BAT54 Series
BAT54 / BAT54A / BAT54C / BAT54S
Elektronische Bauelemente
Surface Mount Schottky Barrier Diode
RoHS Compliant Product
A suffix of "-C" specifies halogen & lead-free
FEATURES
n
SOT-23
Dim
A
L
B S
Low Turn-on Voltage
Fast Switching
PN Junction Guard Ring for Transient and
ESD Protection
3
1
2
Min
2.800
1.200
0.890
0.370
1.780
0.013
0.085
0.450
0.890
2.100
0.450
Max
3.040
1.400
1.110
0.500
2.040
0.100
0.177
0.600
1.020
2.500
0.600
n
A
B
C
D
G
H
C
n
Top View
MECHANICAL DATA
n
V
G
Case: SOT-23, Molded Plastic
Terminals: Solderable per MIL-STD-202,
Method 208
Polarity: See Diagrams Below
Weight: 0.008 grams (approx.)
Mounting Position: Any
D
H
n
J
K
K
J
n
L
S
V
n
n
All Dimension in mm
3
3
3
3
1
2
1
2
1
2
1
2
BAT54 Marking: LV3,KL1
BAT54A Marking: B6,KL2
BAT54C Marking: B5,KL3
BAT54S Marking: LD3,KL4
MAXIMUM
RATINGS
(TJ = 125°C unless otherwise noted)
Rating
Reverse Voltage
Forward Power Dissipation
@ TA = 25°C
Derate above 25°C
Forward Current (DC)
Junction Temperature
Storage Temperature Range
Symbol
VR
PF
225
1.8
IF
TJ
Tstg
200 Max
125 Max
– 55 to +150
mW
mW/°C
mA
°C
°C
Value
30
Unit
Volts
ELECTRICAL CHARACTERISTICS
(TA = 25°C unless otherwise noted) (EACH DIODE)
Characteristic
Reverse Breakdown Voltage (IR = 10
µA)
Total Capacitance (VR = 1.0 V, f = 1.0 MHz)
Reverse Leakage (VR = 25 V)
Forward Voltage (IF = 0.1 mAdc)
Forward Voltage (IF = 30 mAdc)
Forward Voltage (IF = 100 mAdc)
Reverse Recovery Time
(IF = IR = 10 mAdc, IR(REC) = 1.0 mAdc) Figure 1
Forward Voltage (IF = 1.0 mAdc)
Forward Voltage (IF = 10 mAdc)
Forward Current (DC)
Repetitive Peak Forward Current
Non–Repetitive Peak Forward Current (t < 1.0 s)
Symbol
V(BR)R
CT
IR
VF
VF
VF
trr
VF
VF
IF
IFRM
IFSM
Min
30
—
—
—
—
—
—
—
—
—
—
—
Typ
—
7.6
0.5
0.22
0.41
0.52
—
0.29
0.35
—
—
—
Max
—
10
2.0
0.24
0.5
1.0
5.0
0.32
0.40
200
300
600
Unit
Volts
pF
µAdc
Vdc
Vdc
Vdc
ns
Vdc
Vdc
mAdc
mAdc
mAdc
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page 1 of 2
BAT54 Series
BAT54 / BAT54A / BAT54C / BAT54S
Elektronische Bauelemente
Surface Mount Schottky Barrier Diode
820
Ω
+10 V
2k
100
µH
0.1
µF
DUT
50
Ω Οutput
Pulse
Generator
50
Ω
Input
Sampling
Oscilloscope
90%
VR
Input Signal
IR
I
R(REC) = 1 mA
Output Pulse
(IF = IR = 10 mA; measured
at
I
R(REC) = 1 mA)
IF
0.1
µF
tr
10%
tp
t
IF
trr
t
Notes: 1. A 2.0 kΩ variable resistor adjusted for a Forward Current (IF) of 10 mA.
Notes:
2. Input pulse is adjusted so IR(peak) is equal to 10 mA.
Notes:
3. tp » trr

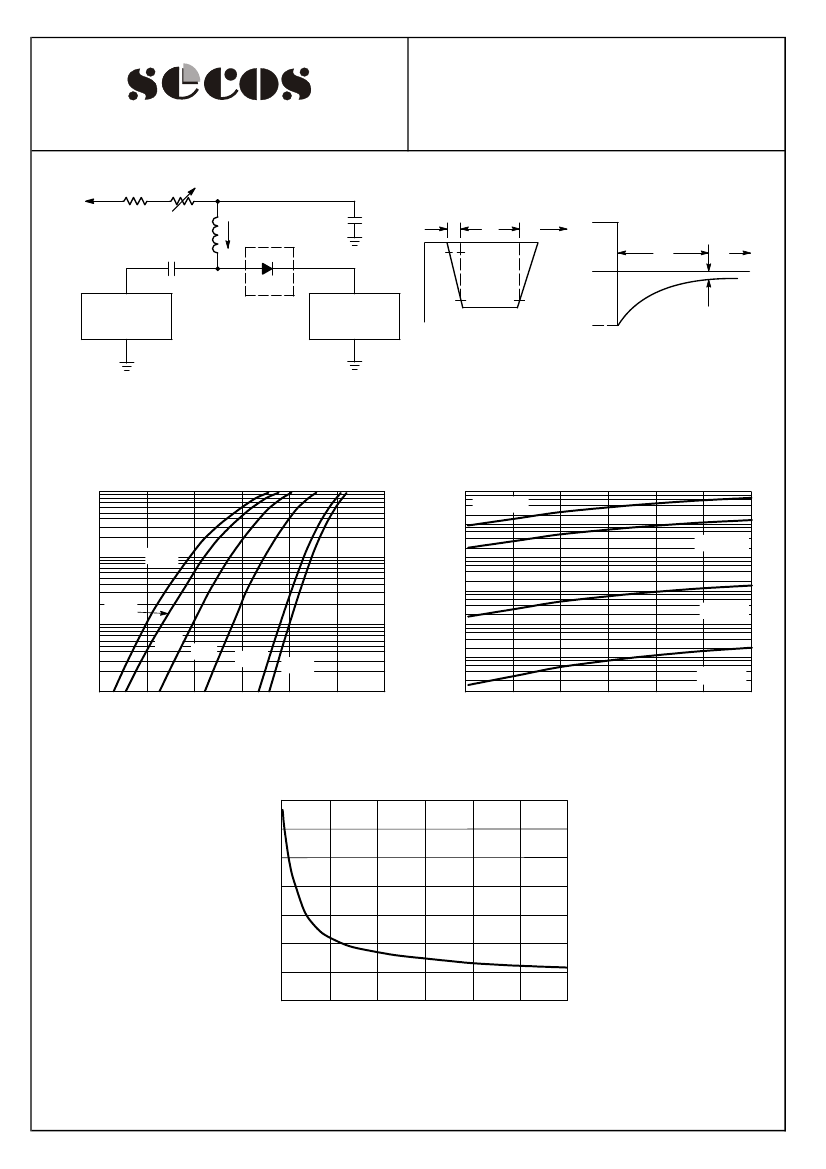

Figure 1. Recovery Time Equivalent Test Circuit
100
1000
TA = 150°C
100
10
1 50°C
IR , Reverse
Current
(µA)
IF, Forward
Current
(mA)
TA = 125°C
10
1.0
TA = 85°C
0.1
0.01
TA = 25°C
0.001
0.1
0.2
0.3
0.4
0.5
0.6
0
5
V F, Forward
Voltage (V)
10
15
20
VR,
Reverse Voltage (V)
25
30
1 25°C
1.0
85°C
25°C
– 40°C
– 55°C
0.1
0.0
Figure 2. Forward Voltage
Figure 3. Leakage Current
14
12
C T ,
Total Capacitance (pF)
10
8
6
4
2
0
0
5
10
15
20
25
30
VR,
Reverse Voltage (V)
Figure 4. Total Capacitance
http://www.SeCoSGmbH.com
Any changing of specification will not be informed individual
01-Jun-2002 Rev. A
Page
2
of 2
