ZFMDK05A Overview

Smart/Normal 7 Seg Numeric LED Display, Red, 5.08mm, ROHS COMPLIANT PACKAGE-10

ZFMDK05A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-10
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	RED
Configuration	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	5.08 mm
Maximum forward current	0.03 A
Number of functions	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

www.SunLED.com

Part Number:

ZFMDK05A

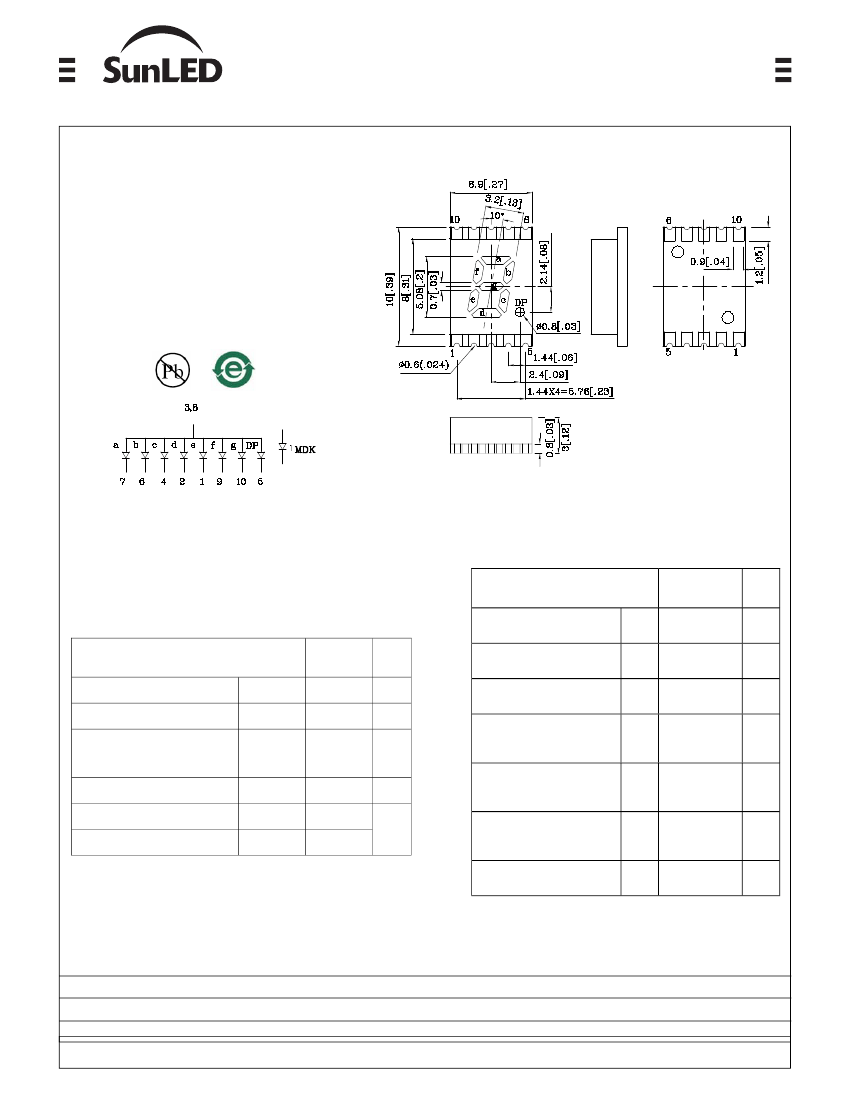

SURFACE MOUNT DISPLAY

Features

●

0.21 INCH DIGIT HEIGHT.

●

LOW CURRENT OPERATION.

●

EXCELLENT CHARACTER APPEARANCE.

●

I.C. COMPATIBLE.

●

MECHANICALLY RUGGED.

●

GRAY FACE,WHITE SEGMENT.

●

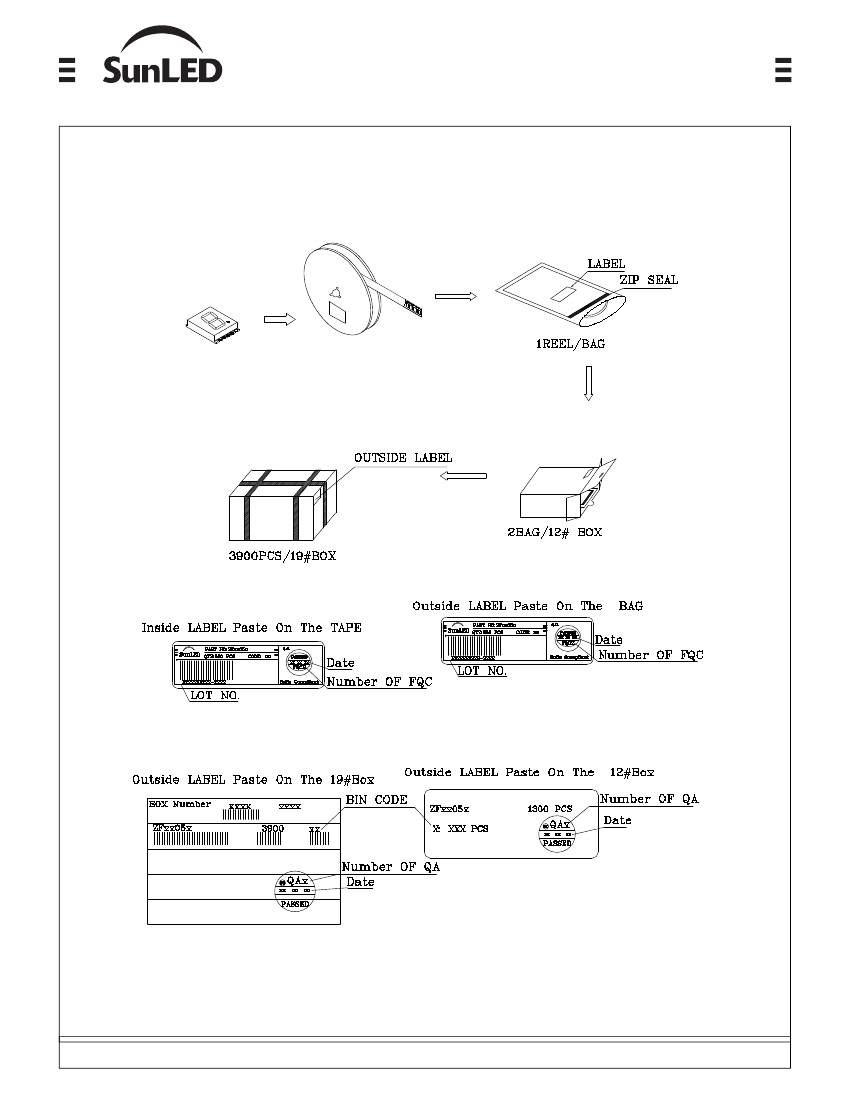

PACKAGE : 650 PCS / REEL.

●MOISTURE

SENSITIVITY LEVEL : LEVEL 4.

●

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

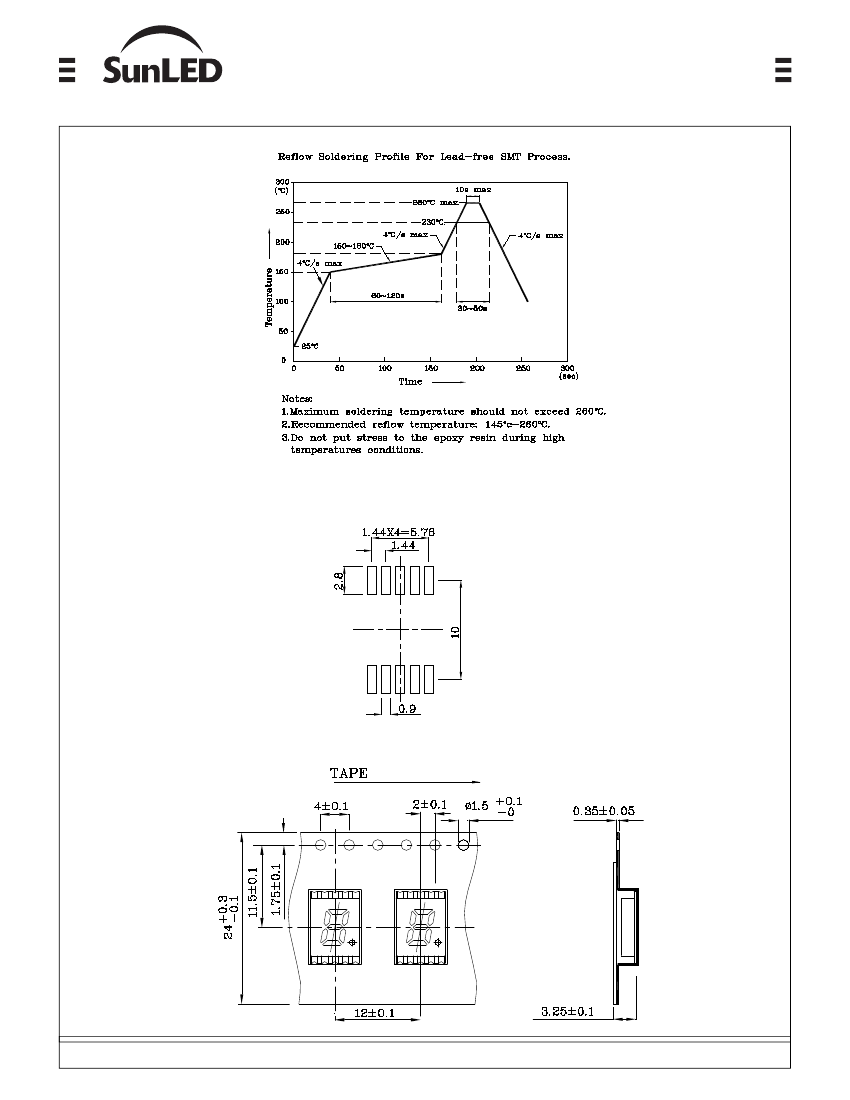

3.The gap between the reflector and PCB shall not exceed 0.25mm.

4.Specifications are subject to change without notice.

Absolute Maximum Ratings

=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Tstg

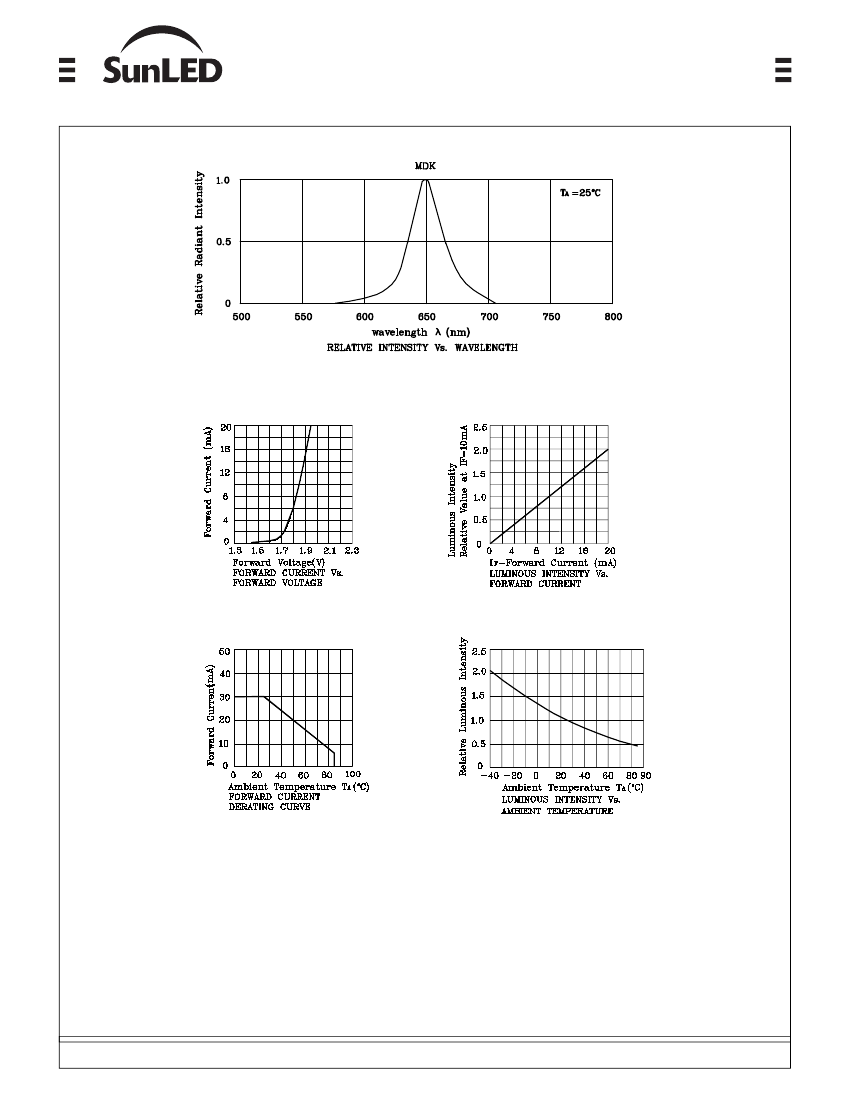

Operating Characteristics

(TA=25°C)

Forward Voltage (Typ.)

=10mA)

Unit

°C

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength of Peak Emis-

sion (Typ.)

=10mA)

Wavelength of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width

At Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

Luminous

Intensity

(IF=10mA)

ucd

min.

ZFMDK05A

Red

InGaAlP

8000

typ.

30390

650

Common Anode. Rt. Hand Decimal

MDK

(InGaAlP)

1.85

2.5

Unit

MDK

(InGaAlP)

185

-40 ~ +85

650

635

Δλ

Part

Number

Emitting

Color

Emitting

Material

Wavelength

Description

Published Date : FEB 28. 2008

Drawing No : SDSA5283

Checked : Shin Chi

P.1/4
