FEATURES AND SPECIFICATIONS
LC Duplex Single-Boot
Connector
106025
LC Duplex Single-
Boot Connector
Reduce cable congestion using a LC Duplex connector with only a single cable
Development Background: Molex offers many
additional features for fiber optic connectors to
provide functionality for OEM’s and other customers.
By combining the LC duplex interface with a cabled
version of the LC loopback connector, we are able
to offer a rugged, yet compact connector that is
compatible with existing LC adapters and transceivers.
The LC connector effectively reduces the required
cable diameter, allowing neat and less congested fiber
routing within the system.
The LC Duplex Single-Boot connector offers the benefits
of a duplex connector with the fiber management of
Features and Benefits
n
Single boot using simplex style cable with two
900 μm buffered fibers provide duplex
connectivity while optimizing cable routing space
n
Variety of strain relief boots including straight,
90°angled and mini boots offer flexibility for
cable routing
n
Small housing footprint allows connectors to
be ganged or stacked in belly-to-belly cage
applications
n
Multimode or singlemode styles for factory or
field termination can be used in most standard
applications with common fiber types
n
RoHS Compliant meets EU environmental
requirements for electronic equipment and
accessories.
a simplex style connector. Using a cabled version of
the Molex LC loopback style housing, this LC connector
provides a robust duplex interface with a two fiber
single jacketed cable. The connector is available for
either singlemode or multimode fiber types and can be
field or factory terminated.
Additionally, the connector is compatible with straight,
90° angled and mini boots, providing cable routing
options suitable for most applications.
For additional product information, please visit
www.molex.com/link/lcsingleboot.html.
SPECIFICATIONS
Reference Information
Packaging: individually bagged
Mates With: 106059, 106125, 106126, 106127,
and 106128 series LC adapters
Designed In: Inches
Mechanical
Mating Durability: IL<0.2dB change over 200 cycles
Physical
Housing: UL 94V-0 rated polymer
Ferrule: Zirconia Ceramic
Operating Temperature: -40 to +85°C

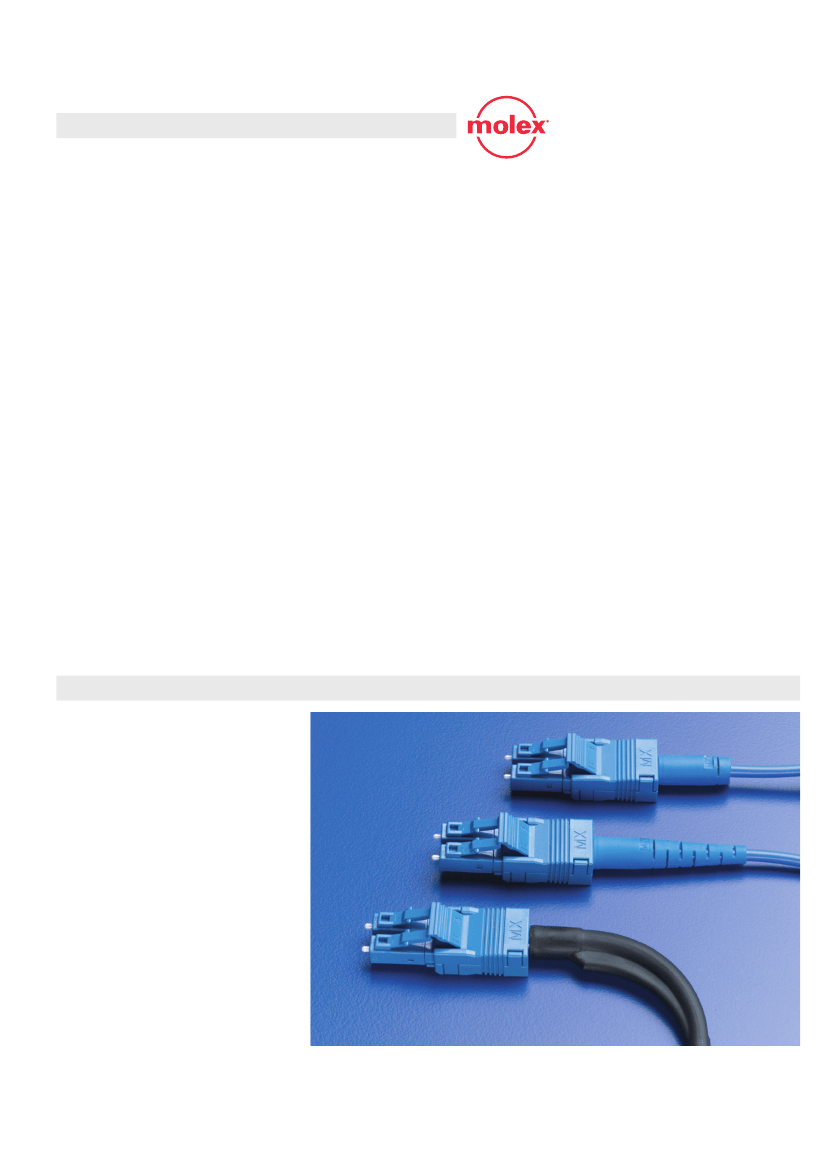

LC Duplex Single-Boot Connectors with Mini boot (top), Straight boot (middle), and 90° boot (bottom) options

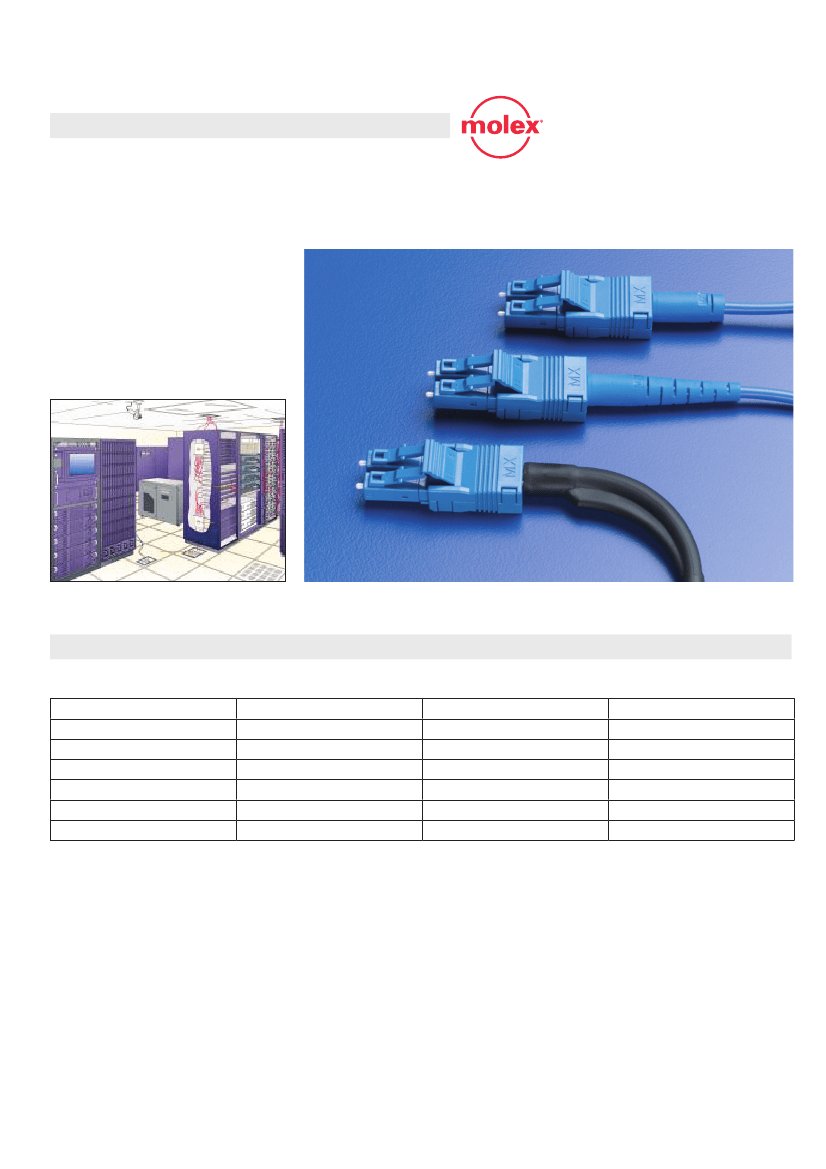

APPLICATIONS
LC Duplex Single-Boot
Connector
106025
LC Duplex Single-
Boot Connector
n
Telecommunication
– Cross Connects
– Routers
– SFP and SFP+
n
Storage
– Servers
– Switches
n
Premise
– Computer connections
– Optical DVI
ORDERING INFORMATION
LC Single Boot Duplex Connector (for field termination)
Order No.
106025-2320
106025-2360
106025-2370
106025-2380
106025-2330
106025-2340
Ferrule Diameter
Singlemode 125.5μm
Multimode 127μm
Singlemode 125.5μm
Multimode 127μm
Singlemode 125.5μm
Multimode 127μm
Boot
3.3mm Straight
3.3mm Straight
3mm 90° Angled
3mm 90° Angled
3mm Mini**
3mm Mini**
Housing Color
Blue
Beige
Blue
Beige
Blue
Beige
Cable Assembly
Cable assemblies are custom designed to meet customers requirements. Please contact Molex Fiber Optics to request a customized cable assembly using the
LC Duplex Single-Boot connector.
** Molex Mini style straight boots are to be used in areas where space is limited and bending stress will not be seen. This boot does not provide bend relief
and is recommended to be used with bend insensitive fibers for best results.
www.molex.com/link/lcsingleboot.html
