60-130 WATT DESKTOP POWER ADAPTERS
DESCRIPTION
The PUP60/80/130 series of AC/DC switching power supplies
are for 60 to 130 watts of continuous output power. They are
enclosed in a 94V-1 rated polyphenylene-oxide case with an IEC
320 inlet to mate with interchangeable cord for world-wide use.
An on/off switch can be added at request. All models meet
CISPR 22 and FCC class B emission limits, and comply with UL,
CSA, IEC and CE requirements.
PUP60/80/130 SERIES
(
LVD+EMC)
F E ATU R E S
‧
‧
‧
‧
‧
‧
‧
‧
Optional output connectors
Optional on/off switch
100
﹪
burn-in at full rated load
Auto-ranging input
Input surge current protection
Overvoltage protection
Overcurrent protection
Thermal protection
S a f e t y St a n d a r d A p p ro v a ls
：
UL 60950-1
CSA C22.2 No. 60950-1
TÜV EN60950-1
INPUT SPECIFICATIONS
Input voltage
：
Input frequency
：
Input current
：
PUP60/80 Series:
PUP130 Series:
Leakage current
：
9 0 t o 1 3 0 VA C o r 1 8 0 t o 2 6 0 VA C
(auto-ranging)
47 to 63 Hz
1 . 8 A
（
r m s
）
f o r 11 5 VA C
1 . 0 A
（
r m s
）
f o r 2 3 0 VA C
3 . 0 m A ( r m s ) f o r 11 5 VA C
1 . 7 A
（
r m s
）
f o r 2 3 0 VA C
0 . 4 0 m A m a x . @ 11 5 VA C , 6 0 H z
0 . 8 0 m A m a x . @ 2 3 0 VA C , 5 0 H z
GENERAL SPECIFICATIONS
Switching frequency：
Efficiency：
60KHz to 75KHz
70
﹪
minimum on Vo
≧
12V ,
65% minimum on the others
OUTPUT SPECIFICATIONS
Output voltage/current：
Output power range：
Ripple and noise：
Overvoltage protection：
See rating chart
See rating chart
1﹪ peak to peak maximum
Provided on output; set at 112 -
132﹪ of its nominal output
voltage
All outputs protected to short
circuit conditions
All outputs ±0.04﹪ /℃
maximum
Maximum excursion of 4﹪ or
better on all models, recovering
to 1﹪ of final value within 500us
after a 25﹪ step load change
Hold-up time：
PUP60/80 SERIES:
15 msec minimum at 110VAC
PUP130 SERIES:
10 msec minimum at 110VAC
Line regulation：
±0.5﹪ maximum at full load
Inrush current：
15 amps @ 115VAC, or 30 amps @
230VAC, at 25℃ cold start
Withstand voltage：
3000VAC from input to output
1500VAC from input to ground
500VAC from output to ground
MTBF：
PUP60/PUP80 300,000 hours
minimum, PUP130 400,000 hours
minimum at full load at 25℃
ambient, calculated per
MIL-HDBK-217F, excluding DC
fan.
EMC performance
(EN55024)
EN55022:
Class B conducted, class B radiated
FCC:
Class B conducted, Class B radiated
VCCI:
Class B conducted, Class B radiated
EN61000-3-2:
Harmonic distortion, Class A
EN61000-3-3:
Line flicker
EN61000-4-2:
ESD, ± 8KV air and ± 4KV contact
EN61000-4-3:
EN61000-4-4:
EN61000-4-5:
EN61000-4-6:
EN61000-4-8:
E N 6 1 0 0 0 - 4 - 11 :
Radiated immunity, 3V/m
Fast transient/burst, ± 1KV
Surge, ± 1KV diff., ± 2KV com.
Conducted immunity, 3Vrms
Magnetic field immunity, 1A/m
Voltage dips, 30
﹪
reduction for
500ms and
>95﹪
reduction for 10ms
Overcurrent protection：
Temperature coefficient：
Transient response：
ENVIRONMENTAL SPECIFICATIONS
O p e r a t i n g t e m p e r a t u r e
：
0℃ to +40℃ (PUP60/80 series)
0℃ to +50℃ (PUP130 series)
St o r a g e t e m p e r a t u r e
：
Relative humidity
：
-40
℃
5
﹪
to +85
℃
non-condensing
to 95
﹪
Tumbler Technologies + TRUMPower
3 3 5 0 S c o t t B l vd . , B l d g . 1 3 , S a n ta C l a r a , C a l i f o r n i a 9 5 0 5 4 , U S A
P h o n e : 4 0 8 - 9 8 8 - 6 6 1 6
●
s a l e s @ t r u m p o w e r. c o m
●
w w w.T R U M Po w e r.c o m
AUTORANGING INPUT
PUP60/PUP80/PUP130 SERIES
Imax.
Tol.
Output
Power
OUTPUT VOLTAGE/CURRENT RATING CHART
Output
Vnom.
Model
Imin.
PUP60-10
5V
0A
12A
5%
60W
PUP60-10-1
7V
0A
8.6A
5%
60W
PUP60-11
10V
0A
6A
5%
60W
PUP80-12
12V
0A
6.7A
4%
80W
PUP80-13
15V
0A
5.3A
3%
80W
PUP80-13-1
18V
0A
4.5A
3%
80W
PUP80-14
24V
0A
3.4A
3%
80W
PUP80-16
30V
0A
2.7A
2%
80W
PUP80-17
36V
0A
2.3A
2%
80W
PUP80-18
48V
0A
1.7A
2%
80W
PUP130-12
12V
0A
10.8A
5%
130W
PUP130-13
15V
0A
8.6A
4%
130W
PUP130-13-1
18V
0A
7.2A
4%
130W
PUP130-14
24V
0A
5.4A
3%
130W
PUP130-16
30V
0A
4.3A
3%
130W
PUP130-17
36V
0A
3.6A
2%
130W
PUP130-18
48V
0A
2.7A
2%
130W
Notes:
(1) PUP60 and PUP80 series are without, while PUP130 series are with, built-in fan.
(2) PUP60 series are with remote sense. The other series can also be equipped with remote sense. Please consult factory.

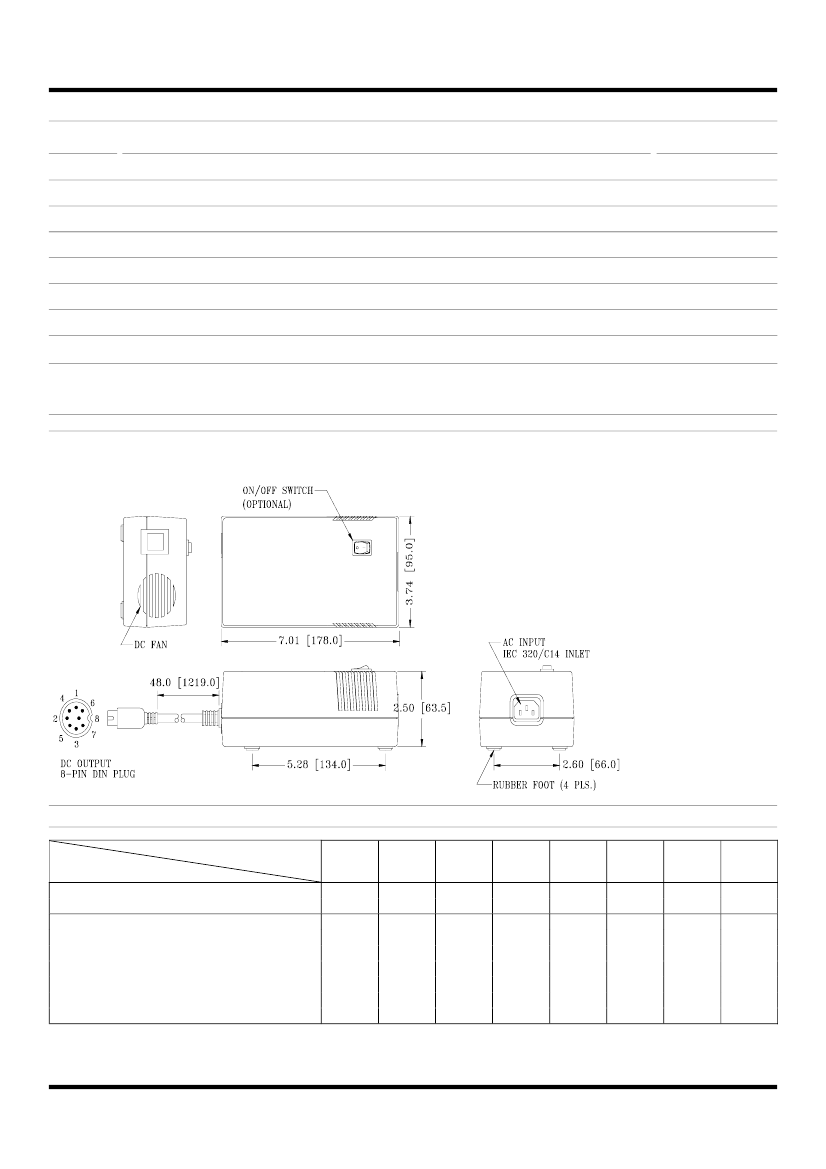

MECHANICAL SPECIFICATIONS
NOTES:
1. Dimensions shown in inch [mm]
2. Tolerance 0.02 [0.5] maximum
3. Weight: 1.0 Kgs (2.2 Lbs.) approx.
4. See pages 6-19 to 6-26 for optional output
connectors. Add the suffix assigned for a
selected connector to a wanted model
number, e.g. PUP130-14-HA, for
ordering.
5.
To order a model with on/off switch, add
suffix “S” to the model number, e.g.
PUP130-14-HA-S.
PIN CHART
PIN
1
MODEL
2
3
4
5
6
7
8
PUP60-10
PUP60-11
PUP80-12
PUP80-13-1
PUP80-16
PUP80-18
PUP130-13
PUP130-14
PUP130-17
PUP60-10-1
PUP80-13
PUP80-14
PUP80-17
PUP130-12
PUP130-13-1
PUP130-16
PUP130-18
RETURN -SENSE
OUTPUT
OUTPUT
OUTPUT
RETURN
RETURN
+SENSE
+V
+V
+V
RETURN RETURN
OUTPUT
OUTPUT
OUTPUT OUTPUT
RETURN
RETURN
+V
+V
+V
+V
Tumbler Technologies + TRUMPower
3 3 5 0 S c o t t B l vd . , B l d g . 1 3 , S a n ta C l a r a , C a l i f o r n i a 9 5 0 5 4 , U S A
P h o n e : 4 0 8 - 9 8 8 - 6 6 1 6
●
s a l e s @ t r u m p o w e r. c o m
●
w w w.T R U M Po w e r.c o m
