D55342H06B1E00C datasheet, PDF

Datasheet> All Categories > Passive components> D55342H06B1E00C

D55342H06B1E00C: DescriptionRESISTOR, THIN FILM, 0.15 W, 1 %, 1000 ohm, SURFACE MOUNT, 0705; CategoryPassive components; File Size255KB，3 Pages; ManufacturerIRC ( TT Electronics ); Websitehttp://www.irctt.com/

Download Datasheet Parametric View All

D55342H06B1E00C Overview

RESISTOR, THIN FILM, 0.15 W, 1 %, 1000 ohm, SURFACE MOUNT, 0705

D55342H06B1E00C Parametric

Parameter Name	Attribute value
Maximum operating temperature	150 Cel
Minimum operating temperature	-65 Cel
Processing package description	CHIP
state	ACTIVE
packaging shape	RECTANGULAR PACKAGE
Terminal shape	WRAPAROUND
terminal coating	TIN LEAD
Installation features	SURFACE MOUNT
Rated temperature	70 Cel
Manufacturer Series	PFC
size code	0705
deviation	1 %
resistance	1000 ohm
Craftsmanship	THIN FILM
Resistor type	RESISTOR
Operating Voltage	50 V
Rated power P	0.1500 W

Preview

Download Datasheet

View All

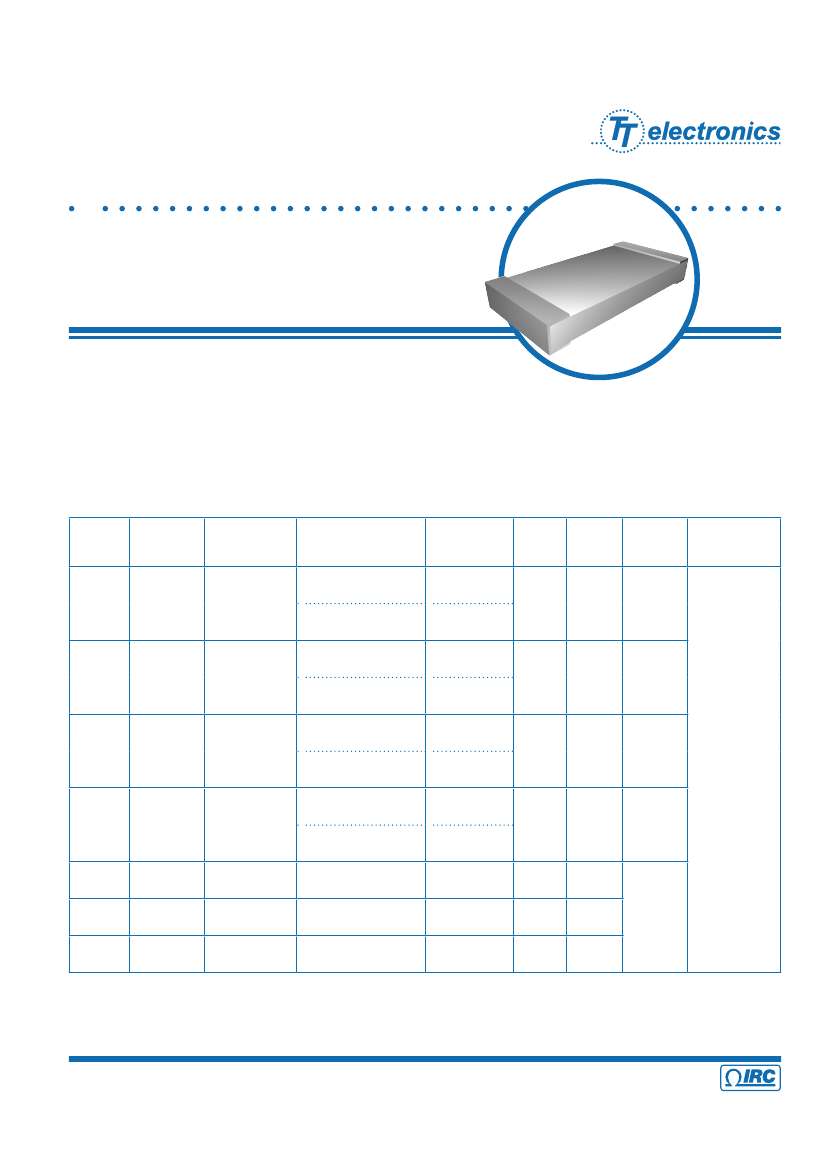

Precision Military Qualiﬁed

Chip Resistors

MIL-CHIP Series

•

6 industry chip sizes available

•

Thin and thick ﬁlm technologies

•

MIL-PRF-55342 Characteristics E, H, K, and M

•

MIL-PRF-55342 extended reliability levels C, M, P, R, and S

The IRC military chip resistor series provides precision and stable

performance in six industry standard chip sizes. IRC now utilizes two

ﬁlm technologies to expand our options in size, resistance range and tolerance. IRC’s proprietary thick ﬁlm

technology provides extended range and lower cost while our exclusive thin ﬁlm (TaNFilm

tantalum nitride)

technology provides precision and superior performance in the harshest moisture environment.

Electrical Data

Style

Size

Technology

MIL-PRF-55342

Characteristic

Tolerance

Resistance

Range

(Ω)

100R - 59K

100

±1%, ±2%, ±5%, ±10%

±0.1%

E, H, K, M

±1%, ±2%, ±5%, ±10%

±0.1%

E, H, K, M

±1%, ±2%, ±5%, ±10%

±0.1%

E, H, K, M

±1%, ±2%, ±5%, ±10%

K, M

±1%, ±2%, ±5%, ±10%

10R0- 125K

5R62 - 10M

5R62 - 15M

250

800

1000

100

150

200

C, M,

P, R

10R0- 125K

100R - 125K

250

100

10R0- 125K

100R - 125K

150

125

10R0- 59K

100R - 125K

150

Power

Rating

(mW)

Voltage

Rating*

(V)

Reliability

Level

Termination

Type

Style 12

RM0603

Thin Film

(TaNFilm

)

±0.1%

E, H, K, M

C, M, P,

R, S

Style 06

RM0705

Thin Film

(TaNFilm

)

C, M, P,

R, S

Style 04

RM1505

Thin Film

(TaNFilm

)

C, M, P,

R, S

Type `B´

Sn/Pb solder

over nickel

barrier

Style 07

RM1206

Thin Film

(TaNFilm

)

C, M, P,

R, S

Style 07

RM1206

Style 08

RM2010

Style 09

RM2512

Thick Film

General Note

IRC reserves the right to make changes in product speciﬁcation without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

A subsidiary of

TT electronics plc

MIL-CHIP Series Issue January 2009 Sheet 1 of 3
