CM101G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> CM101G

CM101G: DescriptionSingle Color LED, High Efficiency Green, Diffused Green, T-1 3/4, 4.699mm,; CategoryLED optoelectronic/LED photoelectric; File Size71KB，1 Pages; ManufacturerChicago Miniature

Download Datasheet Parametric Compare View All

CM101G Overview

Single Color LED, High Efficiency Green, Diffused Green, T-1 3/4, 4.699mm,

CM101G Parametric

Parameter Name	Attribute value
Maker	Chicago Miniature
Reach Compliance Code	unknown
color	HIGH EFFICIENCY GREEN
Configuration	SINGLE
Lens type	DIFFUSED GREEN
Nominal luminous intensity	8.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Optoelectronic device types	SINGLE COLOR LED
total height	7.0104 mm
method of packing	BULK
peak wavelength	565 nm
shape	ROUND
size	4.699 mm
surface mount	NO
T code	T-1 3/4
Terminal pitch	2.54 mm
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

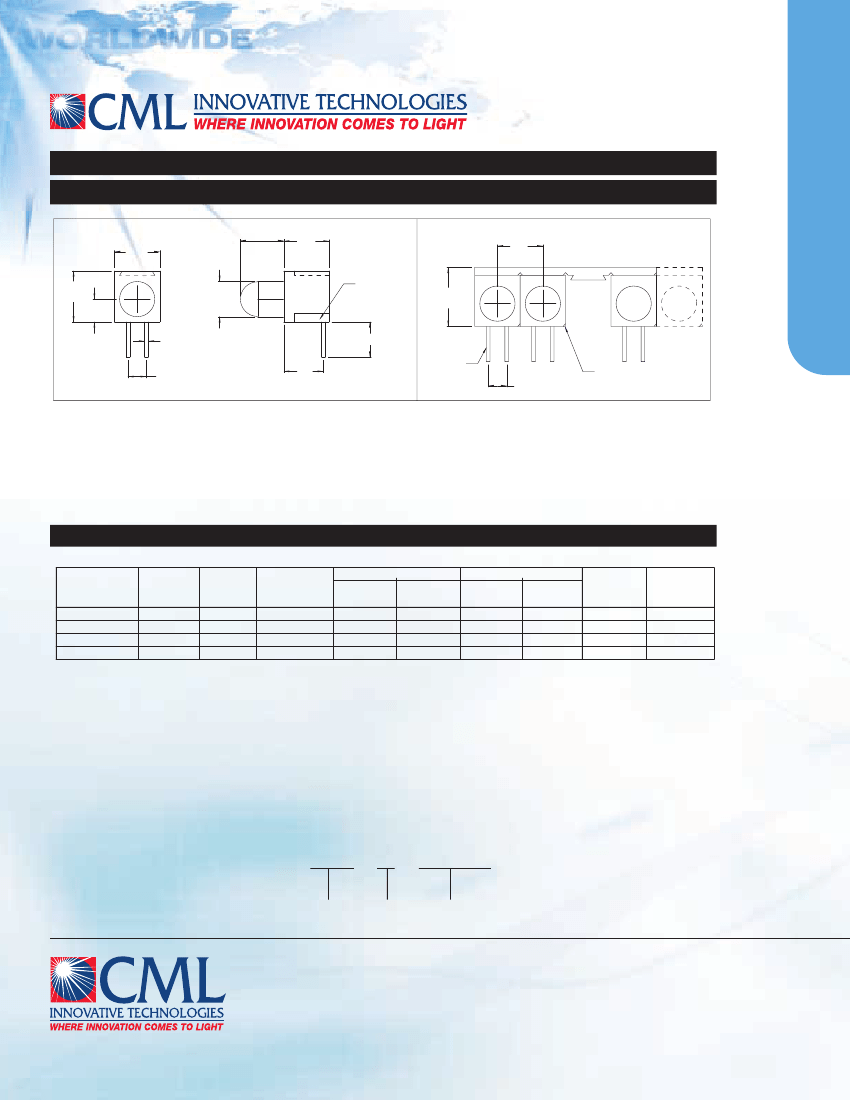

T-1 3/4 StatusPak™ Circuit Board Indicators

DESCRIPTION AND FEATURES

LE NS

P R OT R US ION

.245

MAX.

.255

.250

TYP.

.276

MAX.

.120

.020 S Q.

TYP.

ÿ. 185

MAX.

C AT HODE

R E F E R E NC E

.330

MAX.

.190±.015

.020

S Q.T Y P .

.100

TYP.

.100

All dimensions in inches.

.215

C AT HODE

R E F E R E NC E

TYP.

Printed Circuit Board assembly has been made faster and easier than ever before with StatusPak™ Circuit

Board Indicators. These unique right angle LED indicators allow you to mount from one to ten positions in

one easy step. T-1 3/4 StatusPaks™ can be customized to exact specifications requirements. You choose

the number of LEDs, the color sequence and position of the LED. StatusPak™ is shipped to you in a one

piece complete unit ready for PC mounting. StatusPak™ may be customized for your exact LED

requirements if desired.

Mounting hole pattern on page 1-X3.

ELECTRO-OPTICAL CHARACTERISTICS AND RATINGS

Luminous Intensity

Min.

(mcd)

1.25

3.2

T yp.

(mcd)

3.2

8.0

F orward V oltage

T yp.

(V )

1.7

2.2

2.1

2.0

Max.

(V )

2.1

2.5

P eak

Wavelength

(nm)

660

565

590

625

P art Number

C M101S

C M101G

C M101Y

C M101O

E mitted

C olor

R ed

H.E . G reen

Y ellow

Orange

Lens

C olor

R ed

G reen

Y ellow

Orange

P ackage

T ype

Diffused

V iewing

Angle

(degrees)

120

How to order a Multi Position Assembly

1. Determine the color combination you require:

S=Red

G=H.E.Green

Y=Yellow

X=Space

2. Determine the number of positions you require

including any open spaces.

(CML does not recommend assemblies of greater than ten positions.)

C M I - 05 - R X G G Y

Example:

Lens Type

# of Positions

LED Sequence

America:

CML Innovative Technologies,Inc.

147 Central Avenue

Hackensack -NJ 07601 -USA

Tel:1-201-489 -8989

Fax:1-201-489 -6911

e-mail:americas@cml-it.com

Europe:

CML Technologies GmbH &Co.KG

Robert-Bunsen-Str.1

67098 Bad Dürkheim -GERMANY

Tel:+49 (0)6322 9567-0

Fax:+49 (0)6322 9567-88

e-mail:europe@cml-it.com

Asia:

CML Innovative Technologies,Inc.

61 Aida Street

Singapore 459975

Tel:(65)9630 -5003

e-mail:asia@cml-it.com

CML-IT reserves the right to make specification revisions that enhance the design and/or performance of the product

T-1 3/4 StatusPak™ Circuit Board Indicators

CM101G Related Products

	CM101G	CM101Y	CM101S	CM101O
Description	Single Color LED, High Efficiency Green, Diffused Green, T-1 3/4, 4.699mm,	Single Color LED, Yellow, Diffused, T-1 3/4, 4.699mm,	Single Color LED, Red, Diffused, T-1 3/4, 4.699mm,	Single Color LED, Orange, Diffused, T-1 3/4, 4.699mm,
Reach Compliance Code	unknown	unknown	unknown	unknown
color	HIGH EFFICIENCY GREEN	YELLOW	RED	ORANGE
Configuration	SINGLE	SINGLE	SINGLE	SINGLE
Lens type	DIFFUSED GREEN	DIFFUSED	DIFFUSED	DIFFUSED
Nominal luminous intensity	8.0 mcd	8.0 mcd	3.2 mcd	8.0 mcd
Installation features	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT	RADIAL MOUNT
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	7.0104 mm	7.0104 mm	7.0104 mm	7.0104 mm
method of packing	BULK	BULK	BULK	BULK
peak wavelength	565 nm	590 nm	660 nm	625 nm
shape	ROUND	ROUND	ROUND	ROUND
size	4.699 mm	4.699 mm	4.699 mm	4.699 mm
surface mount	NO	NO	NO	NO
T code	T-1 3/4	T-1 3/4	T-1 3/4	T-1 3/4
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm
perspective	120 deg	120 deg	120 deg	120 deg
Maker	Chicago Miniature	-	Chicago Miniature	Chicago Miniature
