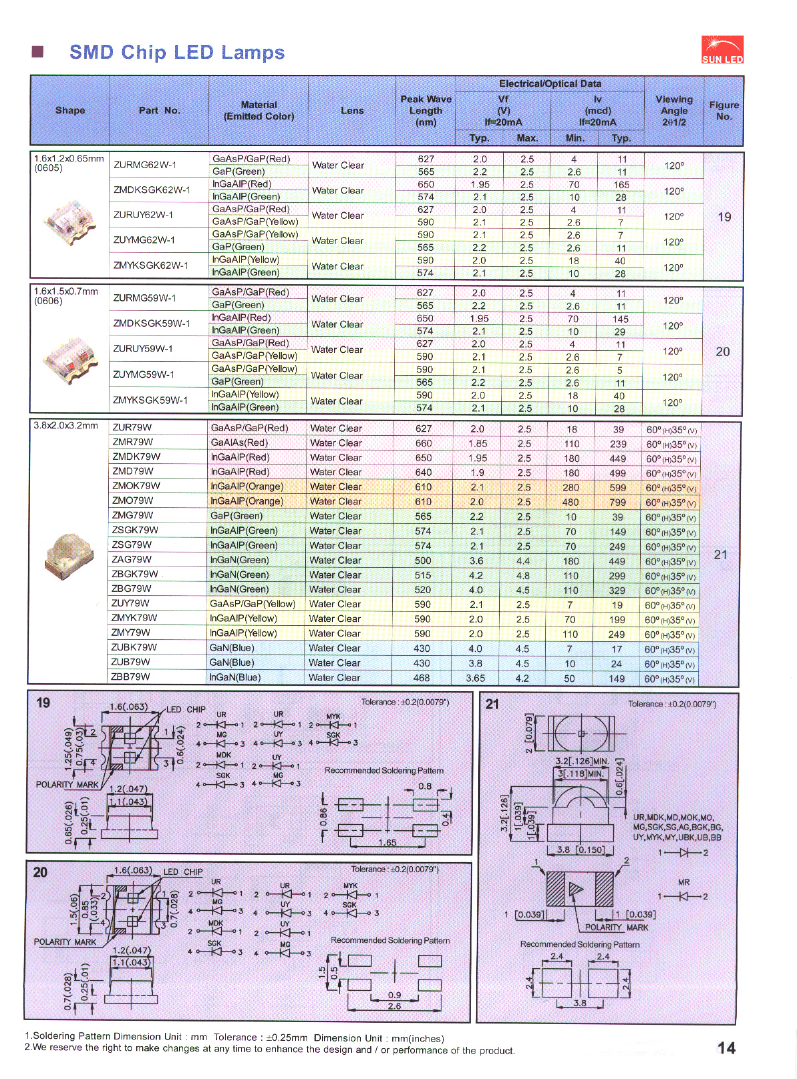

ZBB79W: DescriptionSingle Color LED, Blue, Water Clear, 3mm, 3.80 X 2 MM, 3.20 MM HEIGHT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size1MB，1 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/

Download Datasheet Parametric Compare View All

ZBB79W Overview

Single Color LED, Blue, Water Clear, 3mm, 3.80 X 2 MM, 3.20 MM HEIGHT, SMD, 2 PIN

ZBB79W Parametric

Parameter Name	Attribute value
Maker	SUNLED
package instruction	3.80 X 2 MM, 3.20 MM HEIGHT, SMD, 2 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
color	BLUE
Configuration	SINGLE
Maximum forward current	0.03 A
Lens type	WATER CLEAR
Nominal luminous intensity	149.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	3.2 mm
method of packing	TAPE AND REEL
peak wavelength	468 nm
shape	OVAL
size	3 mm
surface mount	YES
Terminal pitch	3.8 mm
perspective	35 deg
Base Number Matches	1

Preview

Download Datasheet

View All

ZBB79W Related Products

	ZBB79W	ZBGK79W	ZMYKSGK59W-1	ZMDKSGK62W-1	ZMG79W	ZUB79W	ZUYMG59W-1	ZUYMG62W-1	ZMYKSGK62W-1
Description	Single Color LED, Blue, Water Clear, 3mm, 3.80 X 2 MM, 3.20 MM HEIGHT, SMD, 2 PIN	Single Color LED, Green, Water Clear, 3mm, 3.80 X 2 MM, 3.20 MM HEIGHT, SMD, 2 PIN	Dual Color LED, Yellow/green, Water Clear, 1.5mm, 1.60 X 1.50 MM, 0.70 MM HEIGHT, SMD, 4 PIN	Dual Color LED, Red/green, Water Clear, 1.25mm, 1.60 X 1.20 MM, 0.65 MM HEIGHT, SMD, 4 PIN	Single Color LED, Green, Water Clear, 3mm, 3.80 X 2 MM, 3.20 MM HEIGHT, SMD, 2 PIN	Single Color LED, Blue, Water Clear, 3mm, 3.80 X 2 MM, 3.20 MM HEIGHT, SMD, 2 PIN	Dual Color LED, Yellow/green, Water Clear, 1.5mm, 1.60 X 1.50 MM, 0.70 MM HEIGHT, SMD, 4 PIN	Dual Color LED, Yellow/green, Water Clear, 1.25mm, 1.60 X 1.20 MM, 0.65 MM HEIGHT, SMD, 4 PIN	Dual Color LED, Yellow/green, Water Clear, 1.25mm, 1.60 X 1.20 MM, 0.65 MM HEIGHT, SMD, 4 PIN
Maker	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED	SUNLED
package instruction	3.80 X 2 MM, 3.20 MM HEIGHT, SMD, 2 PIN	3.80 X 2 MM, 3.20 MM HEIGHT, SMD, 2 PIN	1.60 X 1.50 MM, 0.70 MM HEIGHT, SMD, 4 PIN	1.60 X 1.20 MM, 0.65 MM HEIGHT, SMD, 4 PIN	3.80 X 2 MM, 3.20 MM HEIGHT, SMD, 2 PIN	3.80 X 2 MM, 3.20 MM HEIGHT, SMD, 2 PIN	1.60 X 1.50 MM, 0.70 MM HEIGHT, SMD, 4 PIN	1.60 X 1.20 MM, 0.65 MM HEIGHT, SMD, 4 PIN	1.60 X 1.20 MM, 0.65 MM HEIGHT, SMD, 4 PIN
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	BLUE	GREEN	YELLOW/GREEN	RED/GREEN	GREEN	BLUE	YELLOW/GREEN	YELLOW/GREEN	YELLOW/GREEN
Configuration	SINGLE	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SINGLE	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum forward current	0.03 A	0.025 A	0.03 A	0.03 A	0.025 A	0.03 A	0.03 A	0.03 A	0.03 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	149.0 mcd	299.0 mcd	40.0/28.0 mcd	165.0/28.0 mcd	39.0 mcd	24.0 mcd	5.0/11.0 mcd	7.0/11.0 mcd	40.0/28.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	4	4	2	2	4	4	4
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	DUAL COLOR LED	DUAL COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	DUAL COLOR LED	DUAL COLOR LED	DUAL COLOR LED
total height	3.2 mm	3.2 mm	0.7 mm	0.65 mm	3.2 mm	3.2 mm	0.7 mm	0.65 mm	0.65 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	468 nm	515 nm	590/574 nm	650/574 nm	565 nm	430 nm	590/565 nm	590/565 nm	590/574 nm
shape	OVAL	OVAL	RECTANGULAR	RECTANGULAR	OVAL	OVAL	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	3 mm	3 mm	1.5 mm	1.25 mm	3 mm	3 mm	1.5 mm	1.25 mm	1.25 mm
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
Terminal pitch	3.8 mm	3.8 mm	1.75 mm	1.65 mm	3.8 mm	3.8 mm	1.75 mm	1.65 mm	1.65 mm
perspective	35 deg	35 deg	120 deg	120 deg	35 deg	35 deg	120 deg	120 deg	120 deg
Base Number Matches	1	1	1	1	1	-	-	-	-
