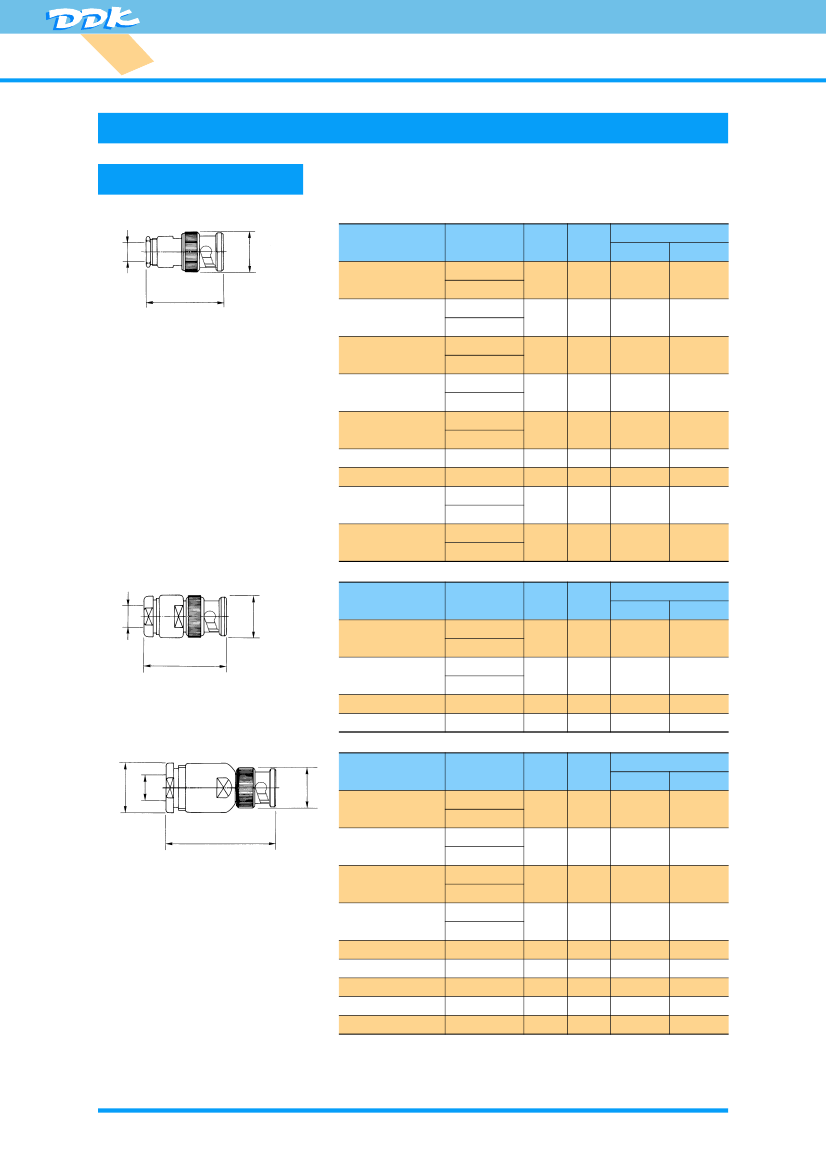

BNC-PJ-5D2W Overview

CABLE TERMINATED, MALE, BNC CONNECTOR, CLAMP, PLUG

BNC Series
BNC Type Connectors
BNC series is most widely used as 50 Ω coaxial
cable connectors.
This series is used specially for interface of fre
-
quent fit-in/pull-out instruments by small size/
light weight bayonet lock mechanism.
Note:
BNC series is intermateable with BNC75 series.
(75Ω group)
If 75 Ω cable is used for this series, the fre
-
quency to be applied must be below 200MHz.
For more than 200MHz, BNC75 series must be
used.
CONFORMING STANDARD
JIS-C-5412、 MIL-C-39012、 DSP-C-6202、 NTTSpec No.2095
SPECIFICATION
Characteristic Impedance
Dielectric withstanding voltage
Insulation resistance
Contact resistance
VSWR
50Ω
1500V AC (rms) for 1 minute
1000MΩmin. at 500V DC
3mΩ max.
1.3max. at DC½2GHz
Specifications depends on each connector although these are basic specifications.
MATERIAL/FINISH
Shell (Body)
Contact (male)
Contact (female)
Insulators
Gaskets
Copper alloy/Silver or Nickel plating
Copper alloy/Silver or Gold plating
Copper alloy/Silver or Gold plating
PTFE
Silicone rubber
Please ask us for the cable assemblies to assure its performance.
