ADPQ-ED10656

Description
Combiner, 40MHz Min, 100MHz Max, 0.5dB Insertion Loss-Max, CASE X0, 6 PIN
CategoryWireless rf/communication    Radio frequency and microwave
File Size98KB,1 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric Compare View All

ADPQ-ED10656 Overview

Combiner, 40MHz Min, 100MHz Max, 0.5dB Insertion Loss-Max, CASE X0, 6 PIN

ADPQ-ED10656 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
Other featuresISOLATION-MIN (DB):21
Characteristic impedance50 Ω
structureCOMPONENT
Maximum insertion loss0.5 dB
JESD-609 codee0
Maximum operating frequency100 MHz
Minimum operating frequency40 MHz
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
RF/Microwave Device TypesCOMBINER
Terminal surfaceTin/Lead (Sn/Pb)
Maximum voltage standing wave ratio1.2
Base Number Matches1
Engineering Development Model
Power Splitter/Combiner
2 Way-90°
Important Note
This model has been designed, built and tested in our engineering
department. Performance data represents model capability.
At present it is a non-catalog model. On request, we can supply a
final specification sheet, part number and price/delivery information.
Please click "Back", and then click "Contact Us" for Applications support.

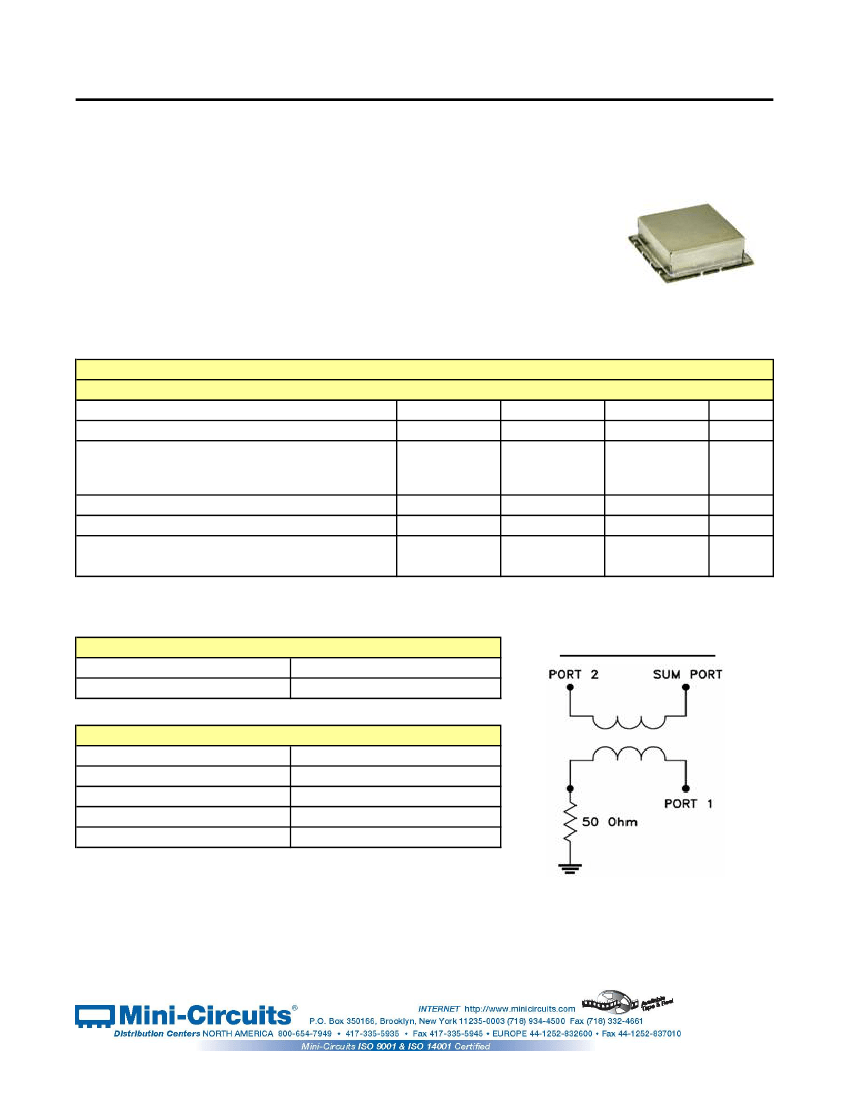

ADPQ-ED10656
CASE STYLE : X0
ELECTRICAL SPECIFICATIONS 50Ω @ +25°C
Parameter
Frequency
Isolation
Insertion Loss
Average of Coupled Outputs
less 3.0 dB
Phase Unbalance
Amplitude Unbalance
VSWR
Min.
40
40 - 100 MHz
40 - 100 MHz
40 - 100 MHz
40 - 100 MHz
SUM Port
OUT Ports
Typ.
21
0.50
2.054
1.136
1.20
1.20
Max.
100
Units
MHz
dB
dB
deg.
dB
(:1)
(:1)
MAXIMUM RATINGS
-40°C to 85°C
Operating Temperature
-55°C to 100°C
Storage Temperature
PIN CONNECTIONS
SUM PORT
PORT 1
PORT 2
GND EXT
50Ω TERMINATION
1
6
4
2, 5
3
Functional Diagram
REV. X1
ADPQ-ED10656
060713
Page 1 of 1

ADPQ-ED10656 Related Products

ADPQ-ED10656 ADPQ-ED10656+
Description Combiner, 40MHz Min, 100MHz Max, 0.5dB Insertion Loss-Max, CASE X0, 6 PIN Combiner, 40MHz Min, 100MHz Max, 0.5dB Insertion Loss-Max, CASE X0, 6 PIN
Is it lead-free? Contains lead Lead free
Is it Rohs certified? incompatible conform to
Maker Mini-Circuits Mini-Circuits
Reach Compliance Code unknown unknown
Other features ISOLATION-MIN (DB):21 ISOLATION-MIN (DB):21
Characteristic impedance 50 Ω 50 Ω
structure COMPONENT COMPONENT
Maximum insertion loss 0.5 dB 0.5 dB
Maximum operating frequency 100 MHz 100 MHz
Minimum operating frequency 40 MHz 40 MHz
Maximum operating temperature 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C
RF/Microwave Device Types COMBINER COMBINER
Maximum voltage standing wave ratio 1.2 1.2
Base Number Matches 1 1
