ECCM1E-XX-FREQ5 datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECCM1E-XX-FREQ5

ECCM1E-XX-FREQ5: DescriptionQUARTZ CRYSTAL RESONATOR, 16 MHz - 24.999 MHz, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size113KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

ECCM1E-XX-FREQ5 Overview

QUARTZ CRYSTAL RESONATOR, 16 MHz - 24.999 MHz, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

ECCM1E-XX-FREQ5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
package instruction	ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	BULK; AT CUT CRYSTAL
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	50 µW
frequency stability	0.005%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	12 pF
Manufacturer's serial number	ECCM1
Installation features	SURFACE MOUNT
Maximum operating frequency	24.999 MHz
Minimum operating frequency	16 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L7.0XB5.0XH1.3 (mm)/L0.276XB0.197XH0.051 (inch)
Series resistance	30 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

ECCM1

Series

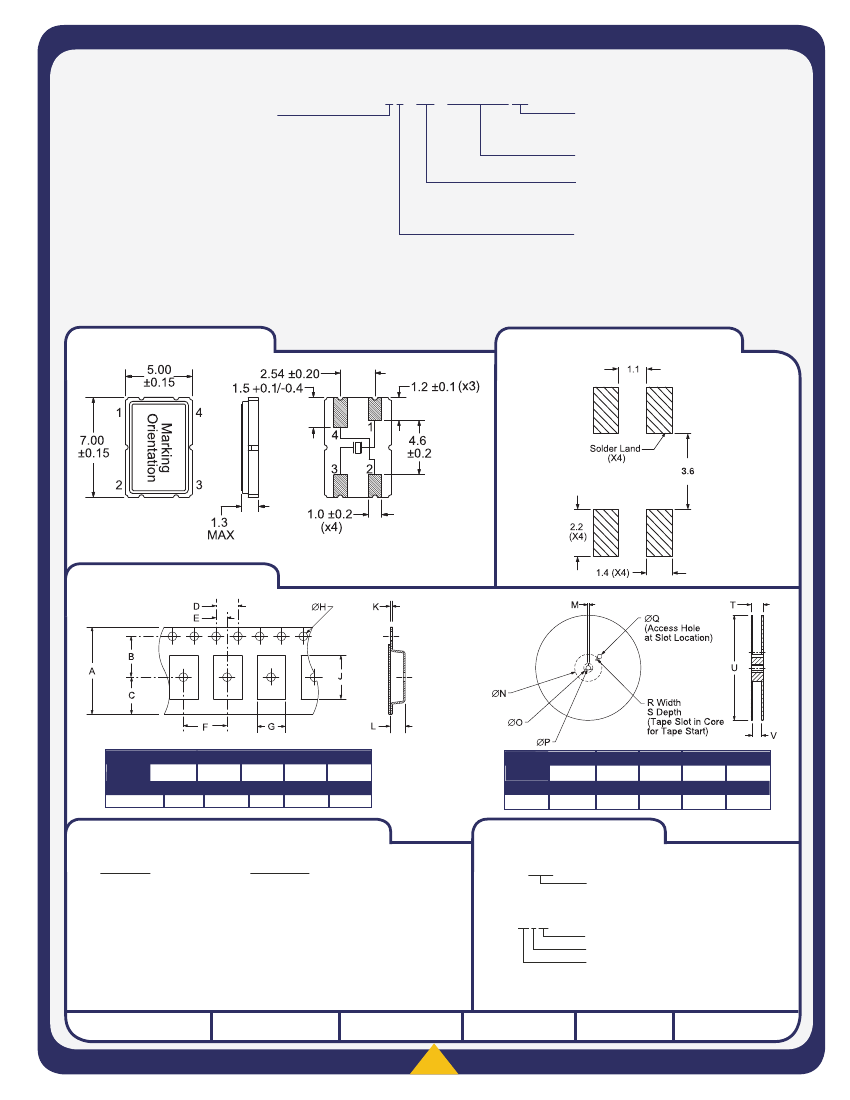

• RoHS Compliant (Pb-Free)

• Four pad ceramic SMD package

• AT cut

• Tight tolerance/stability

• Frequencies to 70.000MHz available

• Tape and reel available

NOTES

ECCM1

1.3

7.0

5.0

CRYSTAL

_____________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Frequency Range

Frequency Tolerance / Stability

Over Operating Temperature Range

Operating Temperature Range

Aging (at 25°C)

Spurious Response

Storage Temperature Range

Shunt Capacitance

Insulation Resistance

Drive Level

Load Capacitance (C

)

7.680MHz to 70.000MHz

±50ppm / ±100ppm (Standard), ±30ppm / ±50ppm,

±15ppm / ±30ppm, ±15ppm / ±20ppm, or ±10ppm / ±15ppm

0°C to 70°C (Standard), -20°C to 70°C, or -40°C to 85°C

±3ppm / year Maximum

-3dB Minimum; F

to F

+5000ppm

-40°C to 85°C

7pF Maximum

500 Megaohms Minimum at 100V

50 μWatts Maximum, 50 μWatts Correlation

18pF (Standard), Custom C

≥12pF,

or Series Resonant

EQUIVALENT SERIES RESISTANCE (ESR), MODE OF OPERATION (MODE), AND CUT

Frequency Range

7.680MHz to 9.999MHz

10.000MHz to 10.999MHz

11.000MHz to 13.999MHz

14.000MHz to 15.999MHz

MANUFACTURER

ESR (Ω)

90 Max

60 Max

50 Max

40 Max
