BW-N30W5

Description
Fixed Attenuator, 0MHz Min, 18000MHz Max, CASE DC736
CategoryWireless rf/communication    Radio frequency and microwave
File Size29KB，1 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric Compare View All

BW-N30W5 Overview

Fixed Attenuator, 0MHz Min, 18000MHz Max, CASE DC736

BW-N30W5 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMini-Circuits
Reach Compliance Codeunknown
Other featuresN
Nominal attenuation30 dB
Characteristic impedance50 Ω
structureCOAXIAL
Maximum input power (CW)36.99 dBm
JESD-609 codee0
Maximum operating frequency18000 MHz
Minimum operating frequency
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
RF/Microwave Device TypesFIXED ATTENUATOR
Terminal surfaceTin/Lead (Sn/Pb)
Maximum voltage standing wave ratio1.3
Base Number Matches1

Preview

Download Datasheet

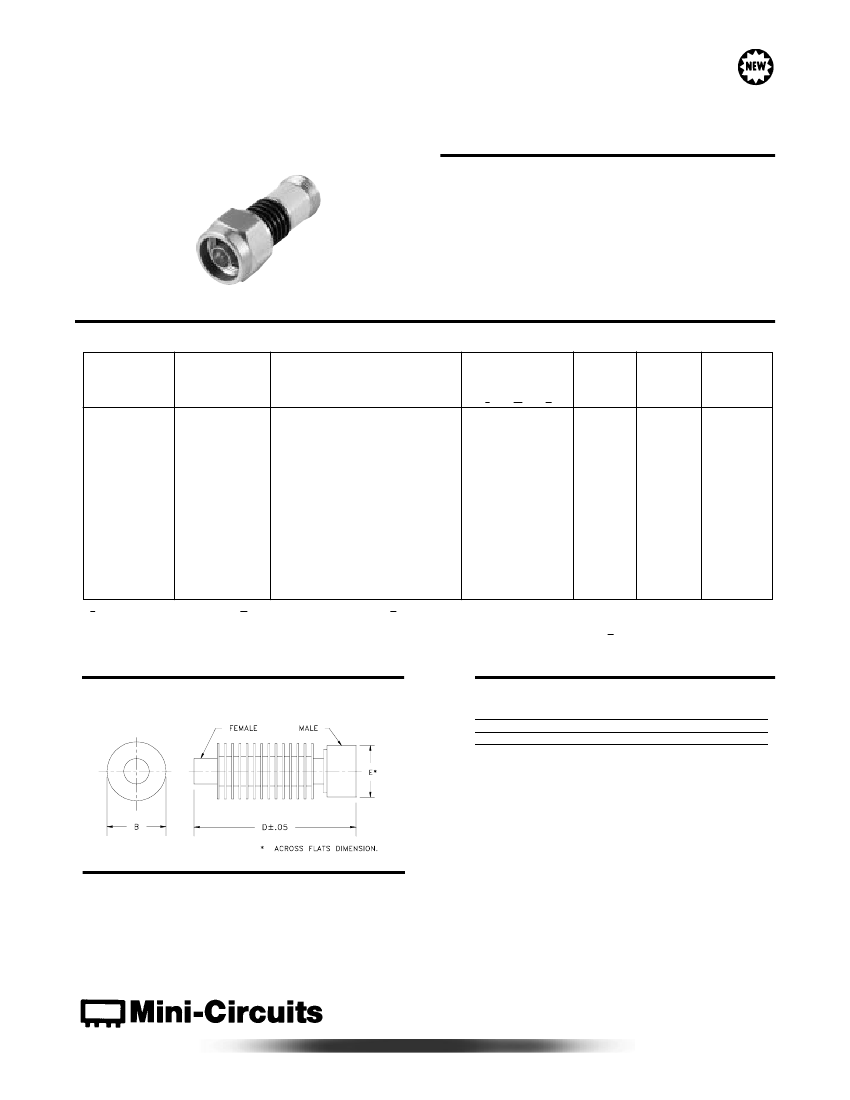

Precision Fixed Attenuators,
5W
1 to 40 dB, DC to 18 GHz
Features
• DC to 18 GHz
• precise attenuation
• excellent VSWR, 1.20:1 typ.
• stainless steel N male and female connectors
BW-NXW5
Applications
DC736
• matching
• instrumentation
• test set-ups
50Ω
Electrical Specifications 50
Ω
MODEL
NO.
FREQUENCY
RANGE
(GHz)
f
L
-f
U
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
DC-18
M= 4-8 GHz
ATTENUATION
(dB)
Nom.
1
2
3
4
5
6
7
8
9
10
12
15
20
30
40
ACCURACY*
±0.40
±0.40
±0.40
±0.40
±0.40
±0.40
±0.60
±0.60
±0.60
±0.60
±0.60
±0.60
±0.60
±0.85
±0.85
U= 8-12.4 GHz
VSWR*
max.
L
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
1.20
M
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
1.25
U
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
1.30
POWER**
(W)
CASE
STYLE
PRICE
$
Qty.
(1-49)
BW-N1W5
BW-N2W5
BW-N3W5
BW-N4W5
BW-N5W5
BW-N6W5
BW-N7W5
BW-N8W5
BW-N9W5
BW-N10W5
BW-N12W5
BW-N15W5
BW-N20W5
BW-N30W5
BW-N40W5
L = DC - 4 GHz
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
DC736
DC736
DC736
DC736
DC736
DC736
DC736
DC736
DC736
DC736
DC736
DC736
DC736
DC736
DC736
54.95
54.95
54.95
54.95
54.95
54.95
54.95
54.95
54.95
54.95
54.95
54.95
54.95
54.95
54.95
Notes:
* At 25°C includes power & frequency variations up to 12.4 GHz. Above 12.4 GHz add 0.5 dB typ. to accuracy and 0.3 typ. to VSWR in the U range.
Temperature coefficient for attenuation .0004 dB/dB/°C typ.
** Average power at 25°C ambient, derate linearly to 2W at 100°C. Peak Power 125W max., 5
µ
sec pulse width, 100 Hz PRF.
Outline Drawing
Maximum Ratings
Operating Temperature
Storage Temperature
Connectors:
-55°C to 100°C
-55°C to 100°C***
N Female-N Male
*** With mated connectors. Unmated, 85°C max.
Outline Dimensions (
inch
)
mm
A
B
—
.61
— 15.49
C
D
E
—
1.90
.812
— 48.26 20.64
wt.
grams
49.7
®
INTERNET
http://www.minicircuits.com
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
REV. OR
M72282
EA-8722
BW-NXW5
RS/TD/CP
000605
