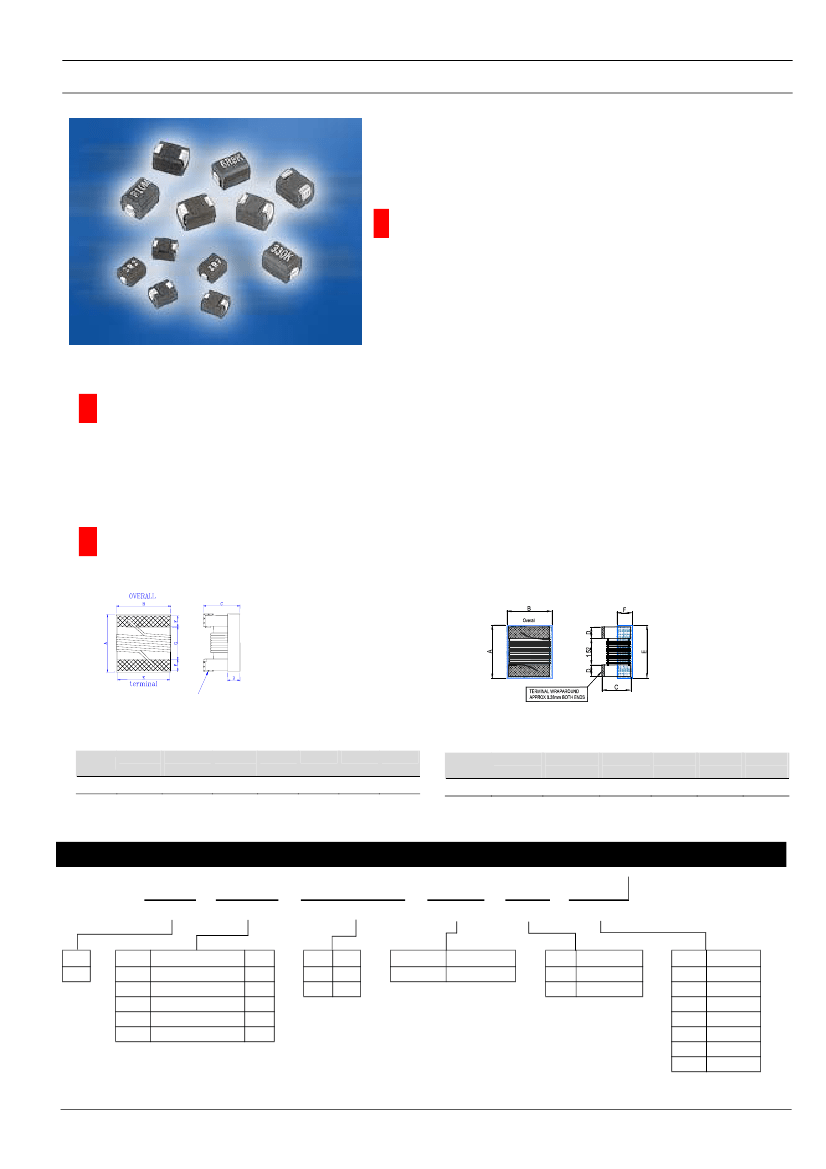

NL Series — SMD Ferrite Wound Inductor
These revolutionary, highly reliable wound chip inductors for
automatic mounting, have been developed in response to the trend
toward high density in electronic equipment.
With metal terminals and a body of heat resistant resin, these
inductors offer many superior features.
F
eature
—
—
—
—
—
Very strong solderability by flow soldering, soldering iron or
wave soldering.
Highly accurate dimensions, can be mounted automatically.
Terminals are highly resistant to pull forces.
Highly resistant to mechanical shocks and pressure.
Highly reliable in environments of sudden temperature change
and humidity. Super Q characteristics.
A
pplication
—
Microtelevisions, liquid crystal televisions, video cameras, portable VCRs, car radios, car stereos, thin tape radios,
television tuners, mobile telephones, radio and other electronic devices.
D
imensions
NL05SERIES—20×16×14
NL08 SERIES—25×20×18
TERMINAL WRAPAROUND：
Approx. 0.015”/0.38mm BOTH ENDS
Dimensions in mm
Unit
mm
A
Max.
2.29
B
Max.
1.73
C
Max.
1.52
D
Ref.
0.51
E
1.27
F
0.51
G
1.02
Dimensions in mm
Unit
mm
A
Max.
2.92
B
Max.
2.79
C
Max.
2.1
D
Ref.
0.51
E
Max.
2.92
F
Ref.
0.51
How to Order
NL
SEI Type
08
Dimensions
J
Inductance Tolerance
T
Packaging
--
Current
1N6
Inductance
Type
NL
Codes Dimensions (lxWxH)
05
08
10
12
20
2.0 x 1.6 x 1.4 mm
2.5 x 2.0 x 1.8 mm
3.2 x 2.5 x 2.2 mm
4.5 x 3.2 x 3.2 mm
5.6 x 5.0 x 5.0 mm
EIA
0805
1008
1210
1812
2220
Code Type
J
K
5%
10%
CodeTypes
T
Type
Tape and Reel
Code
Blank
C
Type
Normal
Large Current
Codes Inductance
1N6
82N
R27
2R7
100
101
102
1.6nH
82nH
270nH
2.7uH
10uH
100uH
1,000uH
Toll Free: (888) SEI-SEIS
www.seielect.com
1
email: marketing@seielect.com
NL Series — SMD Ferrite Wound Inductor
Wound Chip Inductors (Ferrite) – NL05 Open Type
NL10 SERIES—32×25×22
NL20 SERIES—56×50×50
NL12 SERIES—45×32×32
S
tandard Electrical Specifications
Part Number
NL05JT-R12
NL05JT-R15
NL05JT-R18
NL05JT-R22
NL05JT-R27
NL05JT-R33
NL05JT-R39
NL05JT-R47
NL05JT-R56
NL05JT-R68
NL05JT-R82
NL05JT-1R0
NL05JT-1R2
NL05JT-1R5
NL05JT-1R8
NL05JT-2R2
NL05JT-2R7
NL05JT-3R3
NL05JT-3R9
NL05JT-4R7
NL05JT-5R6
NL05JT-6R8
NL05JT-8R2
NL05JT-100
NL05JT-120
NL05JT-150
NL05JT-180
NL05JT-220
NL05JT-270
NL05JT-330
Inductance
(µH)
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
Tolerance
(±%)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Q
Min
20
20
20
20
20
20
20
20
20
20
20
15
15
15
15
15
15
15
15
15
15
15
15
10
15
10
15
10
15
10
Test Frequency
(MHz)
Self Resonant
Frequency
(MHz)Min
DC Resistance
(Ω)max
Rated current
(mA)max
25.2
25.2
25.2
25.2
25.2
25.5
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
500
450
410
350
280
235
210
170
150
140
130
80
95
75
80
70
70
68
55
55
40
40
33
38
25
30
25
25
18
20
0.20
0.25
0.30
0.35
0.40
0.45
0.50
0.55
0.60
0.70
0.75
1.2
0.90
1.45
1.20
1.8
1.60
2.3
2.0
2.8
2.7
3.4
3.6
4.7
4,50
6.5
5.5
8.0
6.5
10.7
600
600
570
550
530
510
490
470
450
420
400
400
325
350
270
300
230
250
190
200
150
180
120
150
105
140
90
120
75
100
Toll Free: (888) SEI-SEIS
www.seielect.com
2
email: marketing@seielect.com
NL Series — SMD Ferrite Wound Inductor
When ordering , please specify tolerance and packaging code. Ex:NL05JT-1R0
Tolerance
Packaging
L , Q , RDC
SRF
: J = 5%
: Clear tape and reel
: HP4287A
: HP8753D
/
HP4291A
to
+ 85ºC
–25ºC
(standard)
Operating temperature range
T
est Instruments
1.6
1.4
1.2
1
L(uH)
0.8
0.6
0.4
:
HP4291A Impedance / Material Analyzer
Q vs. FREQUENCY CHARACTERISTICS
25
1.0uH
1.0uH
INDUCTANCE vs. FREQUENCY CHARACTERISTICS
20
15
Q
10
5
1
10
FREQUENCY (MHz)
100
1000
0.2
0
0
1
10
FREQUENCY (MHz)
100
1000
Wound Chip Inductors (Ferrite) – NL08 Large Current Series
Part Number
NL08JTC1R0
NL08JTC1R2
NL08JTC1R5
NL08JTC1R8
NL08JTC2R2
NL08JTC2R7
NL08JTC3R3
NL08JTC3R9
NL08JTC4R7
NL08JTC5R6
NL08JTC6R8
NL08JTC8R2
NL08JTC100
NL08JTC120
NL08JTC150
NL08JTC180
NL08JTC220
NL08JTC270
NL08JTC330
Inductance
(µH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
Tolerance
(±%)
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
5
Q
Min
25
25
25
25
25
25
25
25
25
25
25
25
20
20
20
20
20
20
20
Test Frequency
(MHz)
Self Resonant
Frequency
(MHz)Min
DC Resistance
(Ω)max
Rated current
(mA)max
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
245
230
182
135
105
70
55
48
43
42
39
36
33
28
24
20
18
17
16
0.35
0.40
0.45
0.55
0.60
0.70
0.75
0.80
0.90
1.05
1.20
1.60
1.90
2.00
2.20
3.50
2.80
3.50
4.20
500
500
450
450
400
400
380
350
320
210
300
280
250
235
220
200
180
150
120
Toll Free: (888) SEI-SEIS
www.seielect.com
3
email: marketing@seielect.com
NL Series — SMD Ferrite Wound Inductor
Wound Chip Inductors (Ferrite) – NL08 Open Type
S
tandard Electrical Specifications
Part Number
Inductance
(µH)
0.005
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.058
0.082
0.10
0.12
0.15
0.18
0.22
0.27
0.33
0.39
0.47
0.56
0.68
0.82
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
Tolerance
(±%)
10
10
10
10
10
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
10 / 5
Q
Min
10
10
15
15
15
20
20
30
35
35
35
35
35
35
30
30
30
30
30
30
30
30
30
30
30
25
25
25
25
25
25
25
25
25
20
20
20
15
15
15
15
15
15
15
10
10
Test Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
100
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
25.2
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
7.96
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
2.52
Self Resonant
Frequency
(MHz)Min
3,000
2,500
2,400
2,300
2,200
2,100
2,000
1,600
1,500
1,400
1,300
1,200
1,100
800
700
550
500
450
425
400
375
350
325
300
260
245
230
182
135
105
70
55
48
43
42
39
36
33
30
26
24
22
21
20
18
17
DC Resistance
(Ω) max.
0.25
0.25
0.26
0.28
0.30
0.35
0.40
0.42
0.45
0.50
0.60
0.65
0.75
0.80
0.30
0.35
0.40
0.50
0.55
0.60
0.65
0.68
0.75
0.85
1.0
1.1
1.2
1.3
1.45
1.55
1.7
1.9
2.1
2.3
2.5
2.7
3.05
3.5
3.8
4.4
4.8
5.5
6.3
7.1
9.5
11.1
Rated current
(mA) max.
2,000
1,800
1,700
1,600
1,550
1,500
1,450
1,400
1,350
1,300
1,250
1,240
1,230
1,220
900
900
850
840
830
820
810
800
800
800
800
800
790
750
750
750
740
730
700
650
640
630
600
680
650
500
450
450
430
380
330
300
COLOR CODING
1
ST
Black
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
Green
Blue
Gray
Brown
Brown
Brown
Brown
Red
Red
Orange
Orange
Yellow
2
ND
Green
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Blue
Gray
Red
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Blue
Gray
Red
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
Blue
Gray
Red
Black
Red
Green
Gray
Red
Violet
Orange
White
Violet
3
RD
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Black
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Brown
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Red
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
Orange
NL08 T-5N0
NL08□T-10N
NL08□T-12N
NL08□T-15N
NL08□T-18N
NL08□T-22N
NL08□T-27N
NL08□T-33N
NL08□T-39N
NL08□T-47N
NL08□T-56N
NL08□T-68N
NL08□T-82N
NL08□T-R10
NL08□T-R12
NL08□T-R15
NL08□T-R18
NL08□T-R22
NL08□T-R27
NL08□T-R33
NL08□T-R39
NL08□T-R47
NL08□T-R56
NL08□T-R68
NL08□T-R82
NL08□T-1R0
NL08□T-1R2
NL08□T-1R5
NL08□T-1R8
NL08□T-2R2
NL08□T-2R7
NL08□T-3R3
NL08□T-3R9
NL08□T-4R7
NL08□T-5R6
NL08□T-6R8
NL08□T-8R2
NL08□T-100
NL08□T-120
NL08□T-150
NL08□T-180
NL08□T-220
NL08□T-270
NL08□T-330
NL08□T-390
NL08□T-470
Toll Free: (888) SEI-SEIS
www.seielect.com
4
email: marketing@seielect.com
NL Series — SMD Ferrite Wound Inductor
Wound Chip Inductors (Ferrite) – NL10 Molding Type
S
tandard Electrical Specifications
Part Number
Inductance
(µH)
56
68
82
100
Tolerance
(±%)
10 / 5
10 / 5
10 / 5
10 / 5
Q
Min
10
10
10
8
Test Frequency
(MHz)
2.52
2.52
2.52
0.796
Self Resonant
Frequency
(MHz)Min
16
15
13
12
DC Resistance
(Ω) max.
12.1
16.6
19
21
Rated current
(mA) max.
270
250
200
120
COLOR CODING
1
ST
Green
Blue
Gray
Brown
2
ND
Blue
Gray
Red
Black
3
RD
Orange
Orange
Orange
Yellow
NL08□T-560
NL08□T-680
NL08□T-820
NL08□T-101
* UV COLOR:
BLUE
/ CORE COLOR :
BLACK
When ordering , please specify tolerance and packaging code. Ex:NL08JT-101
Tolerance
Packaging
L , Q , RDC
SRF
:
□
J = 5%
:
□
K =10%
: Clear tape and reel
: HP4287A
: HP8753D
/
HP4291A .
to
+ 85ºC
–25ºC
(standard) .
Operating temperature range
T
est Instruments
350
:
HP4291A Impedance / Material Analyzer
Q vs. FREQUENCY CHARACTERISTICS
INDUCTANCE vs. FREQUENCY CHARACTERISTICS
T
est
I
nstruments：
HP4291A Impedance / Material Analyzer
50
47uH
45
39uH
40
35
30
300
27uH
250
200
L (uH)
Q
39uH
25
20
15
47uH
10
150
27uH
100
50
5
0
1
10
FREQUENCY (MHz)
100
1
10
FREQUENCY (MHz)
100
0
S
tandard Electrical Specifications
Part Number
NL10KT-10N
NL10KT-12N
NL10KT-15N
NL10KT-18N
NL10KT-22N
NL10KT-27N
NL10KT-33N
NL10KT-39N
NL10KT-47N
NL10KT-56N
NL10KT-58N
NL10KT-82N
NL10KT-R10
NL10KT-R12
NL10KT-R15
NL10KT-R18
NL10KT-R22
NL10KT-R27
Inductance
(µH)
0.010
0.012
0.015
0.018
0.022
0.027
0.033
0.039
0.047
0.056
0.058
0.082
0.10
0.12
0.15
0.18
0.22
0.27
Tolerance
(± %)
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
Q
Min.
15
17
19
21
23
23
25
25
26
26
27
27
28
30
30
30
30
30
Test Frequency
(MHz)
100
100
100
100
100
100
100
100
100
100
100
100
100
25.20
25.20
25.20
25.20
25.20
Self Resonant
Frequency
(MHz)min.
2,500
2,300
2,100
1,900
1,700
1,500
1,400
1,300
1,200
1,100
1,000
900
700
500
450
400
350
320
DC Resistance
(Ω)max.
0.13
0.14
0.16
0.18
0.20
0.22
0.24
0.27
0.30
0.33
0.36
0.40
0.44
0.22
0.25
0.28
0.32
0.36
Rated current
(mA)
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
450
Toll Free: (888) SEI-SEIS
www.seielect.com
5
email: marketing@seielect.com
京公网安备 11010802033920号
EEWORLD
