MIL-DTL-38999
Connectors
Custom Lengths Available
Glenair
ASAP
Fiber Optic Cable Sets
Rugged Overmolded
D38999 Series III to D38999 Series III
PRODUCT FEATURES
Harsh Environment Polyurethane Overmolding
(Viton
®
and Neoprene Available)
Singlemode or Multimode Fiber Media
D38999 Series III Connectors in Aluminum,
Composite or Stainless Steel
Plug, Jam-Nut Receptacle, In-Line and Wall-Mount
Receptacle Configurations
Military Standard Dust Caps and Connector
Accessories
MIL-PRF-29504 Approved Termini
Multichannel Capability: From 2 to 37 Channels
Robust, Flexible and Crush Resistant
The World's Only Short Lead-Time Source for Harsh
Environment Overmolded F/O Cable Assemblies
Glenair’s overmolded cable assemblies are specifically designed to protect fiber optic and
hybrid fiber/copper cables from the effects of moisture, heat, caustic chemicals and mechani-
cal stress conditions. Glenair has been manufacturing these unique overmolded designs in
fiber since 1984, and has produced tens of thousands of cables with zero real-time failures.
Overmolding (as opposed to shrink boots or other sealing materials) brings added strength and
environmental protection to critical interconnect systems. The overmolding process effectively
isolates the transmission media from contaminating elements and protects the media from abra-
sion damage.
Glenair's ASAP Overmolded Fiber Optic Assemblies are available with our full line of com-
posite thermoplastic and metal alloy connectors. Polyurethane is the applied standard overmold-
ing. For other overmolding material types such as Viton
®
or Neoprene, please consult the fac-
tory. The turnkey assembly includes custom extruded cable, Glenair Backshell, MIL-DTL-38999
Style Connectors, MIL-PRF-29504 Termini, Mil-Spec Dust-Caps and customer specified marking
and labeling. Please specify minor customizations on your purchase order.
Overmolded Cable Assemblies
© 2006 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
E-Mail: sales@glenair.com
www.glenair.com
B-34
Glenair
ASAP
Fiber Optic Cable Sets
Rugged Overmolded Polyurethane
D38999 Series III to D38999 Series III
CONNECTOR END
A
CONNECTOR END
B
LENGTH
L

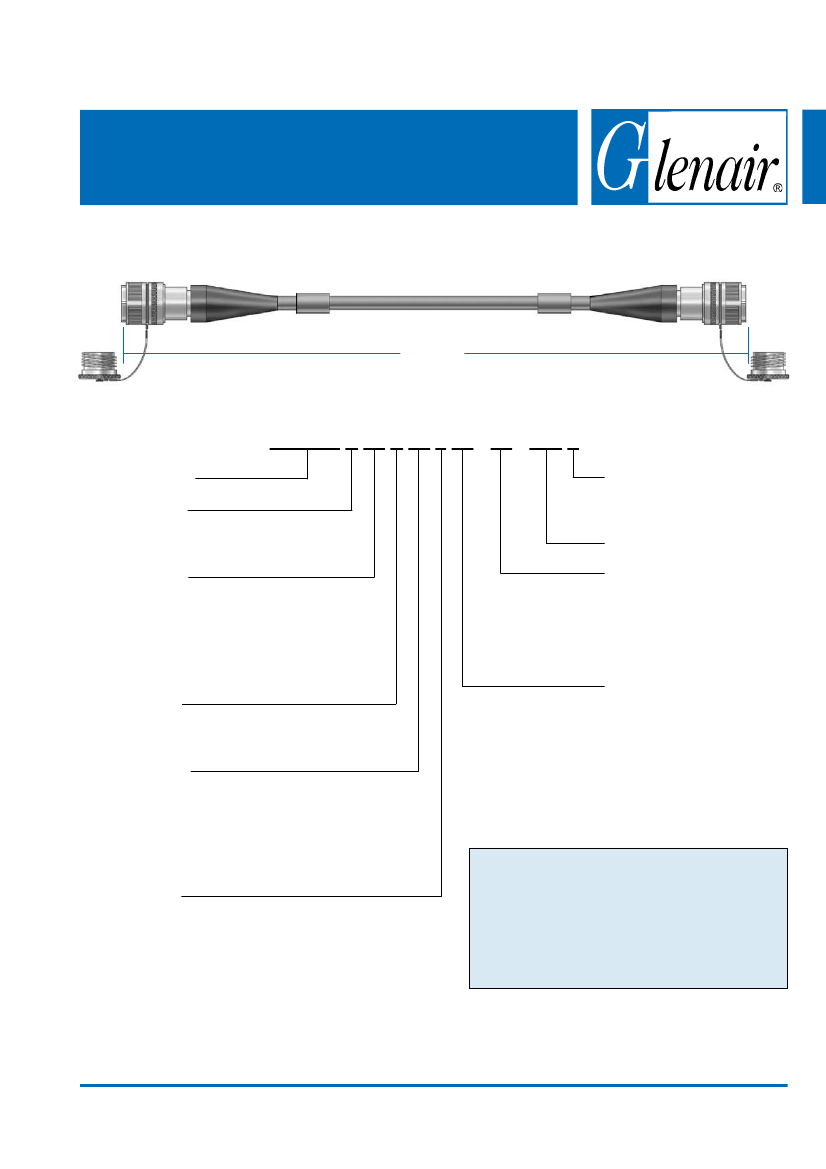

Reference Part Number Development:
FO1000 P 05 P 06 J 04 - 62 - 100 L
Basic Part Number
A Terminus Type
P = Pin Terminus
S = Socket Terminus
A Connector Type
05 = D38999 Style In-Line Receptacle
06 = D38999/26 Style Plug
08 = D38999/24 Style Jam-Nut Receptacle
H7 = D38999/20 Style Wall Mount Receptacle (Std.)
S7 = D38999/20 Style Wall Mount Receptacle (Slotted)
T7 = D38999/20 Style Wall Mount Receptacle (Tapped)
B Terminus Type
P = Pin Terminus
S = Socket Terminus
B Connector Type
05 = D38999 Style In-Line Receptacle
06 = D38999/26 Style Plug
08 = D38999/24 Style Jam-Nut Receptacle
H7 = D38999/20 Style Wall Mount Receptacle (Std.)
S7 = D38999/20 Style Wall Mount Receptacle (Slotted)
T7 = D38999/20 Style Wall Mount Receptacle (Tapped)
Connector Class
F = Aluminum, Electroless Nickel Plating
J = Composite, Olive Drab Cadmium Plating
K = Stainless Steel, Passivated
M = Composite, Electroless Nickel Plating
W = Aluminum, Olive Drab Cadmium Plating
Protective Covers
L = Less Covers
Omit for with Covers
Length in Feet
Fiber Size
09 = 9.3/125 Singlemode
50 = 50/125 Multimode
62 = 62.5/125 Multimode
10 = 100/140 Multimode
20 = 200/230 Multimode
Number of Fibers*
02 = 2 Fibers (Shell Size 11)
04 = 4 Fibers (Shell Size 13)
05 = 5 Fibers (Shell Size 15)
08 = 8 Fibers (Shell Size 17)
11 = 11 Fibers (Shell Size 19)
16 = 16 Fibers (Shell Size 21)
21 = 21 Fibers ( Shell Size 23)
29 = 29 Fibers (Shell Size 25)
37 = 37 Fiber (Shell Size 25)
Standard Cable Make-Up:
2mm Jacketed Fiber, Polyurethane Jacketing
and Overmolding, Kevlar Reinforcement,
Nominal Temperature Range -40° to +85°C.
Please Reference Special Marking, Labels Or
Other Identification Specifications on Your
Purchase Order
*See Page B-10 for Insert Arrangements.
Please Consult Factory for Alternative Overmolding Materials Such As Viton
®
or Neoprene.
Part Numbering is for Reference Purposes Only. A Unique Glenair Part Number Will Be Assigned to Your Cable Order.
