PE-0805CCMC670STH datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> PE-0805CCMC670STH

PE-0805CCMC670STH: DescriptionData Line Filter, 1 Function(s), 50V, 0.33A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN; CategoryAnalog mixed-signal IC filter; File Size1MB，4 Pages; ManufacturerPulse Electronics; Environmental Compliance

Download Datasheet Parametric View All

PE-0805CCMC670STH Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	PE-0805CCMC670STH	-	-	View	Buy Now

PE-0805CCMC670STH Overview

Data Line Filter, 1 Function(s), 50V, 0.33A, ROHS COMPLIANT, EIA STD PACKAGE SIZE 0805, 4 PIN

PE-0805CCMC670STH Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Maximum DC resistance	0.35 Ω
filter type	DATA LINE FILTER
Minimum insulation resistance	10 MΩ
Installation type	SURFACE MOUNT
Number of functions	1
Output impedance	67 OHM Ω
Rated current	0.33 A
Rated voltage	50 V
Base Number Matches	1

Preview

Download Datasheet

View All

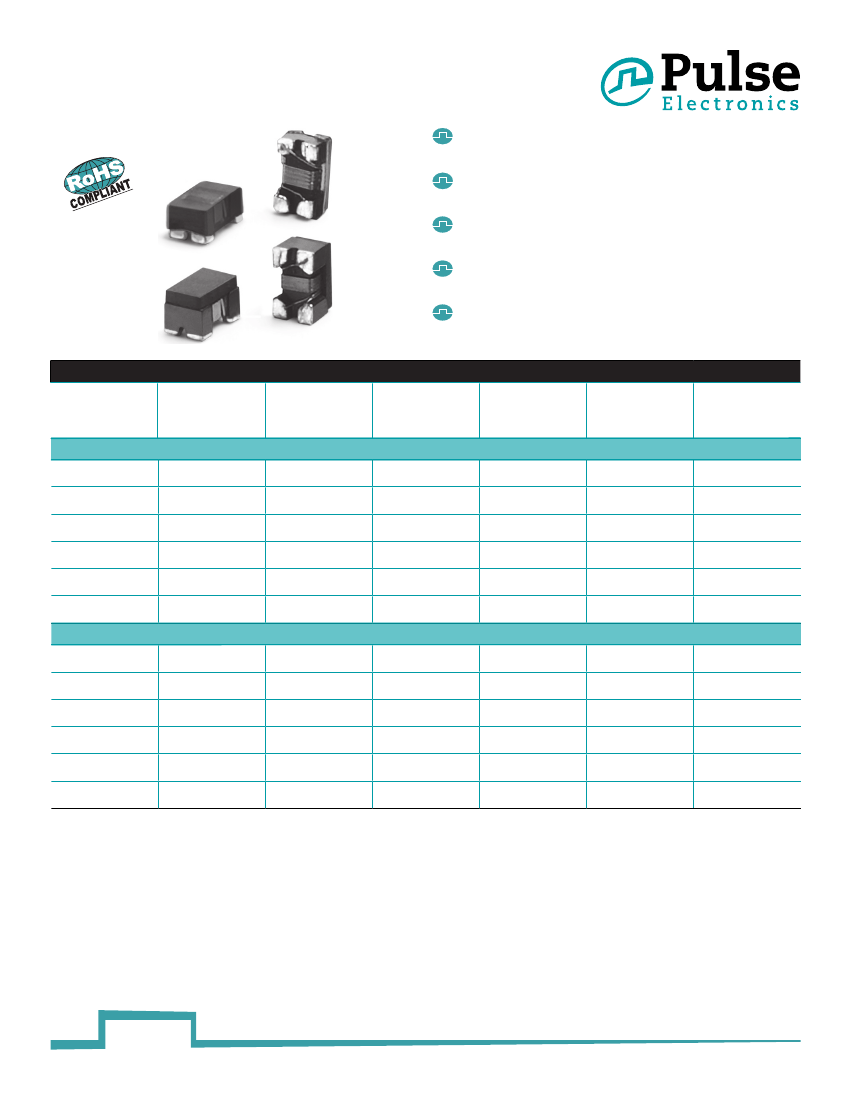

2-Line Chip Style

Common Mode Chokes

ChipChoke™ CCMC Series

Available in 0805 (2012) and 1206 (3216)

size

For USB2.0, 3.0 and other high speed differ-

ential signal lines (IEEE1394, LVDS)

Suppression of common mode noise without

attenuating the signal

Large range of common mode impedance to

fit with signal and noise level

Magnetic shield versions available for lower

Rdc and higher current features

Electrical Specifications @ 25°C

Common Mode

Part Number

Impedance

(25%)

@ 100MHz (Ω)

0805CCMCXTS

- Magnetic Shield - 0805 Size

PE-0805CCMC670STS

PE-0805CCMC900STS

PE-0805CCMC121STS

PE-0805CCMC181STS

PE-0805CCMC261STS

120

180

260

Resistance

(Ω MAX)

0.25

0.35

0.30

0.35

0.40

0.45

0.3

0.40

0.50

0.80

1.00

Rated

Voltage

(Vdc)

Rated

Current

(mA MAX)

400

330

370

330

300

280

370

340

310

260

230

200

Withstanding

Voltage

(Vdc)

125

Insulation

Resistance

(MΩ MIN)

PE-0805CCMC361STS

360

1206CCMCXTS

- Magnetic Shield - 1206 Size

PE-1206CCMC900STS

PE-1206CCMC161STS

PE-1206CCMC261STS

PE-1206CCMC601STS

PE-1206CCMC102STS

160

260

600

1000

PE-1206CCMC222STS

2200

1.20

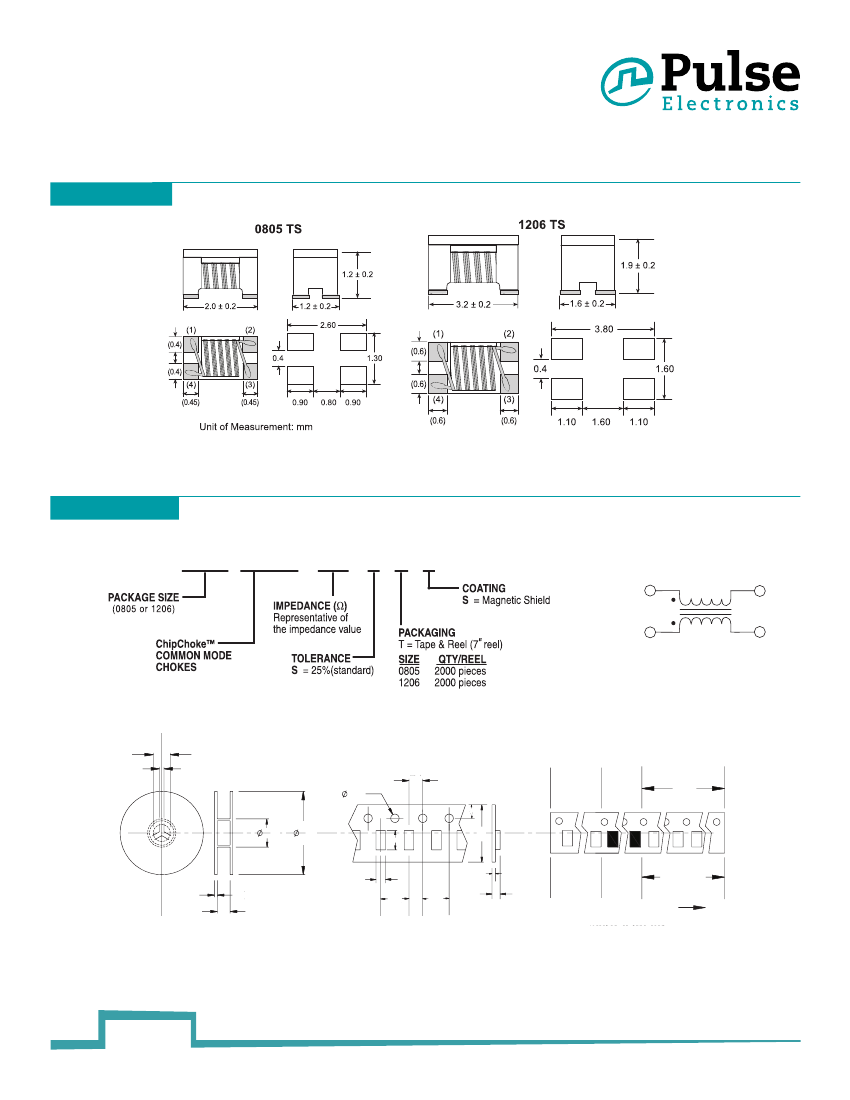

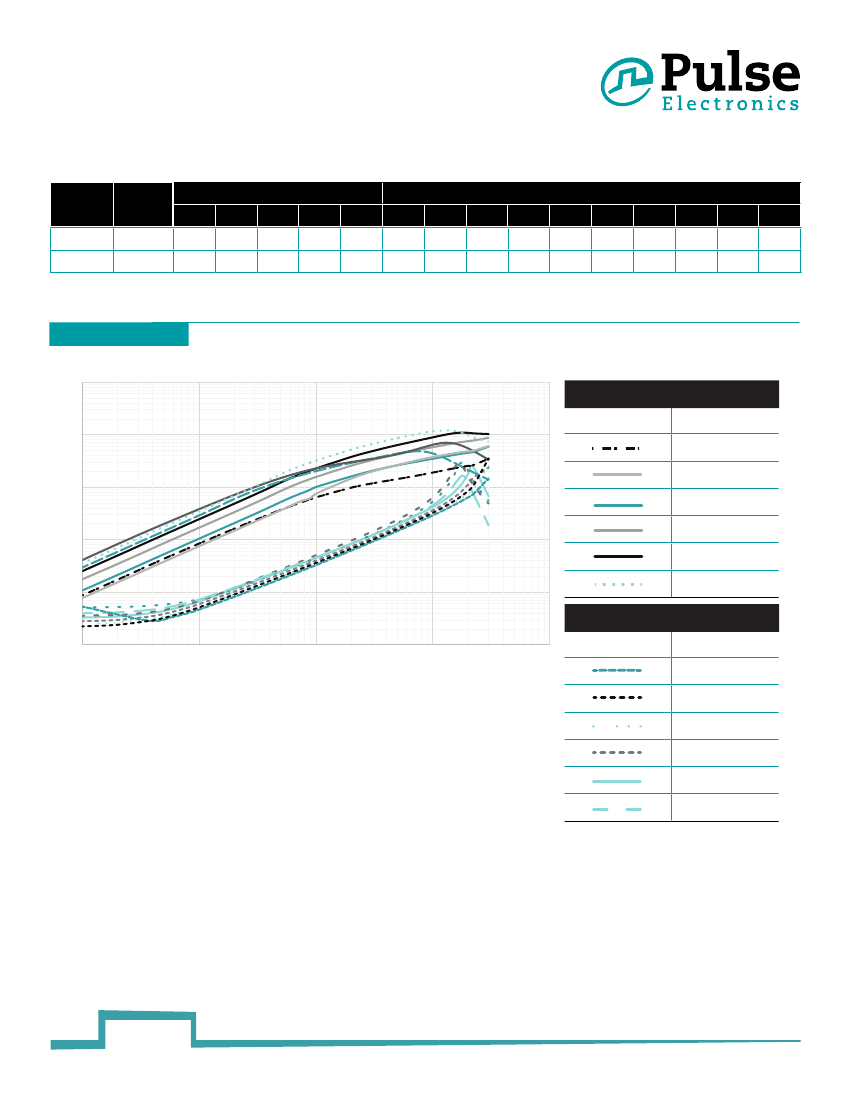

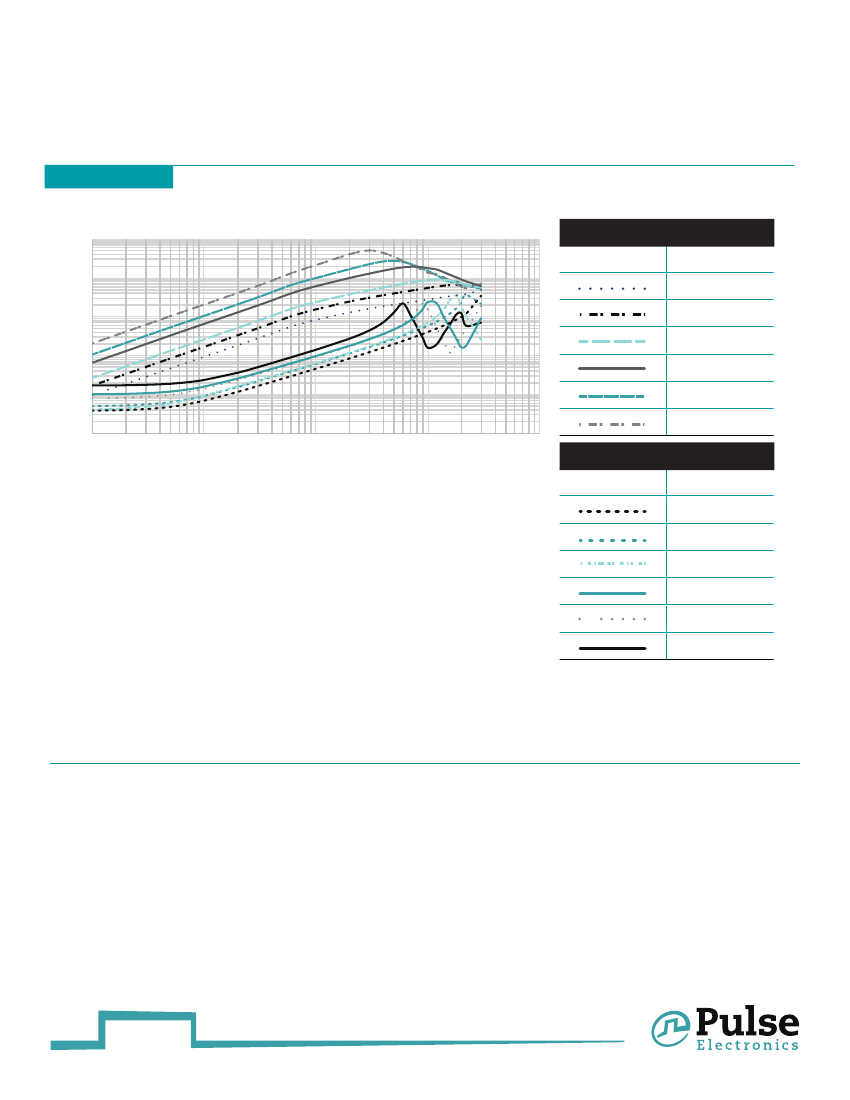

Notes:

1. These part numbers are lead free and RoHS compliant. No additional suffix or identifier is required.

USA 858 674 8100

Germany 49 7032 7806 0

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

W712.I (07/16)

pulseelectronics.com
