CZRL5255B-G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> CZRL5255B-G

CZRL5255B-G: DescriptionZENER DIODE,SINGLE, TWO TERMINAL,6.2V V(Z),5%,SOD-80; CategoryDiscrete semiconductor diode; File Size172KB，4 Pages; ManufacturerComchip Technology; Websitehttp://www.comchiptech.com/; Environmental Compliance

Download Datasheet Parametric View All

CZRL5255B-G Overview

ZENER DIODE,SINGLE, TWO TERMINAL,6.2V V(Z),5%,SOD-80

CZRL5255B-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Comchip Technology
Reach Compliance Code	compli
ECCN code	EAR99
Configuration	SINGLE
Diode type	ZENER DIODE
Maximum dynamic impedance	44 Ω
Number of components	1
Maximum operating temperature	175 °C
Peak Reflow Temperature (Celsius)	260
Maximum power dissipation	0.5 W
Nominal reference voltage	28 V
surface mount	YES
Maximum time at peak reflow temperature	30
Maximum voltage tolerance	5%
Working test current	4.5 mA
Base Number Matches	1

Preview

Download Datasheet

View All

Surface Mount Zener Diodes

SMD Diodes Specialist

CZRL5225-G Thru. CZRL5267-G

Voltage: 3.0 ~ 75V

Power Dissipation: 500mW

RoHS Device

MiniMELF (SOD-80)

Features

-Silicon planar power Zener diodes.

-For use in stabilizing and clipping circuits with

higher power rating.

-Standard Zener voltage tolerance is ±5% with a "B"

suffix.

0.020(0.50)

0.012(0.30)

0.063(1.60)

0.055(1.40)

Mechanical Data:

-Case: MiniMELF glass case (SOD-80)

-Weight: approx. 0.05g

0.146(3.70)

0.134(3.40)

Dimensions in inches and (millimeter)

Electrical Characteristics (at TA=25

Parameter

Zener current (See table "Characteristics)

Power dissipation at T

=25°C

Thermal resistance, junction to ambient air

Junction temperature

Storage temperature range

Note: Valid provided that electrodes are kept at ambient temperature.

C unless otherwise noted)

Symbol

Value

Unit

tot

θJA

STG

500

(1)

°C/W

°C

300

(1)

175

-65 to +150

REV:B

QW-BZ010

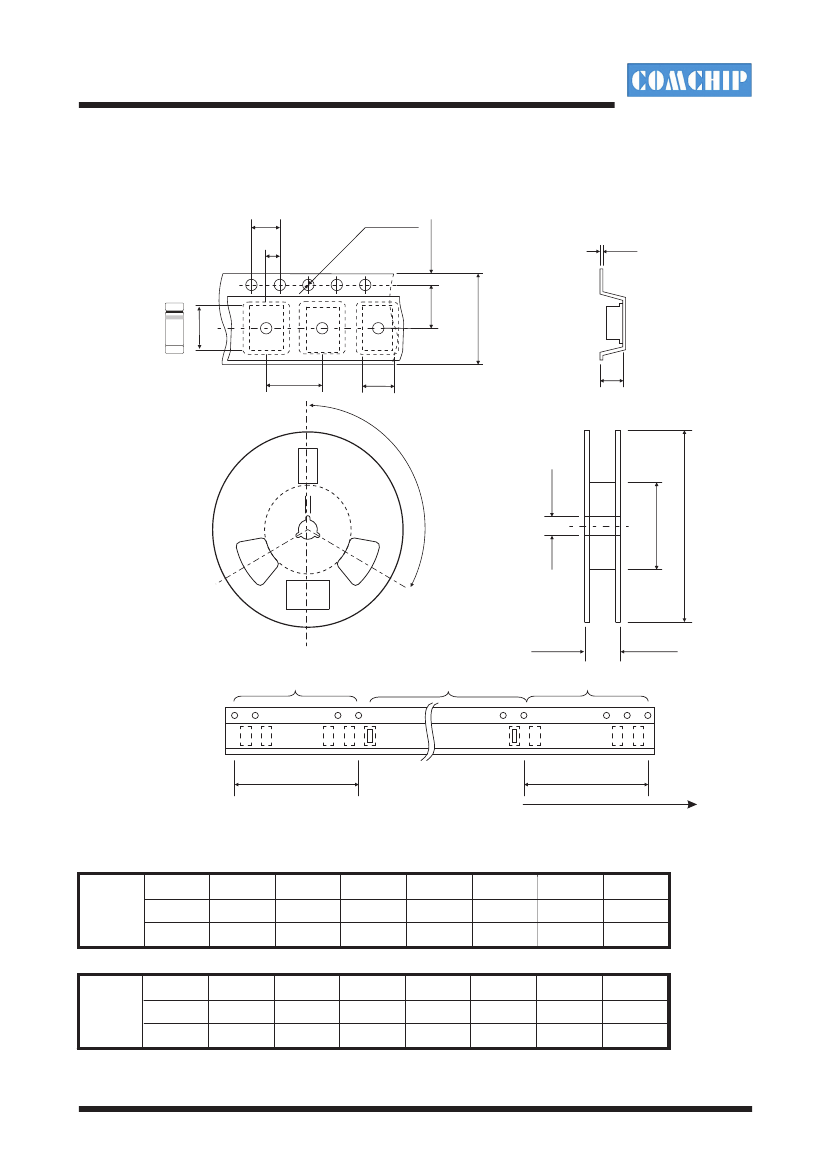

Page 1
