LOW CURRENT T-100 & T-1 3/4
SOLID STATE LAMPS
HER
YELLOW
GREEN
HLMP-1700
HLMP-1719
HLMP-1790
FEATURES
• Low power consumption ( low current drive at 2mA)
• Solid state reliability
• Tinted and diffused
.189 (4.8)
.165 (4.2)
HLMP-4700
HLMP-4719
HLMP-4740 (MV2454)

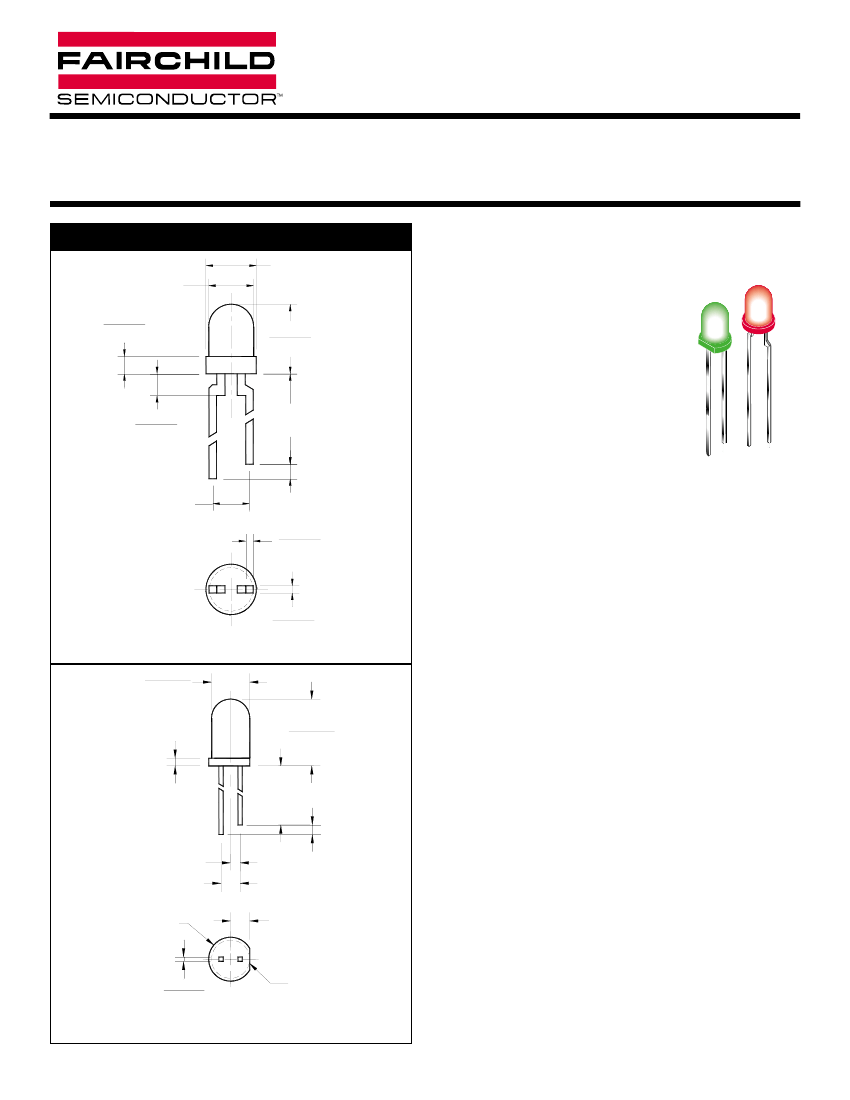

PACKAGE DIMENSIONS
.135 (3.15)
.122 (3.1)
.047 (1.2)
.032 (.8)
(ANODE)
.059 (1.5)
.032 (0.8)
1.040 (26.4)
MIN
DESCRIPTION
.040 (1.00)
MIN
.020 (.51)
2X
.016 (.41)
.100 (2.54)
The T-1 3/4 HLMP-47XX series and T-100 HLMP-17XX series
are tinted diffused, providing a moderate viewing angle. These
parts are optimized for low current and are brighter than the stan-
dard LED lamps operated at very low current.
NOTES:
.018 (.46)
2X
.012 (.30)
1. ALL DIMENSIONS ARE IN INCHES (mm).
2. TOLERANCE ARE ±.010” UNLESS OTHERWISE SPECIFIED.
3. AN EPOXY MENISCUS MAY EXTEND ABOUT .040”(1 mm)
DOWN THE LEADS.
HLMP-17XX
.200 (5.08)
.180 (4.57)
.040 (1.02)
.350 (8.89)
.330 (8.38)
1.00 (25.4)
MIN.
.050 (1.27)
.100 (2.54)
.050 (1.27)
REF.
Ø .230 (5.84)
.100 (2.54)
REF.
.023 (.58)
.017 (.43)
SQ. TYP. (2X)
FLAT DENOTES
CATHODE
HLMP-47XX
2001 Fairchild Semiconductor Corporation
DS300016
3/14/01
1 OF 3
www.fairchildsemi.com
LOW CURRENT T-100 & T-1 3/4
SOLID STATE LAMPS
ABSOLUTE MAXIMUM RATING
Parameter
Power Dissipation (derated from 92°C at 1mA/°C)
Peak Forward Current (PW
≤
1 ms, DF
≤
30 %)
Continuous Forward Current
Lead Soldering Time at 260° C
Reverse Breakdown Voltage (V)
Operating Temperature
Storage Temperature
(T
A
=25°C)
HER
27
25
7.5
5
5
-55 to +100
-55 to +100
YELLOW
24
20
7.5
5
5
-55 to +100
-55 to +100
GREEN
27
25
7.5
5
5
-55 to +100
-55 to +100
UNITS
mW
mA
mA
sec
I
R
= 100µA
°C
°C
ELECTRICAL / OPTICAL CHARACTERISTICS
Parameter
Luminous Intensity (mcd)
Minimum
Typical
Forward Voltage (V)
Maximum
Typical
Peak Wavelength (nm)
Spectral Line Half Width
Viewing Angle (°)
(T
A
=25°C)
YELLOW
HLMP-1719/4719
GREEN
HLMP-1790/4740
(MV2454)
I
F
= 2mA
Condition
HER
HLMP-1700/4700
1.0/1.2
2.0/2.0
2.2
1.8
635
45
50/35
1.0/1.2
2.0/2.0
2.7
1.9
585
35
50/35
1.0/1.2
2.0/3.0
I
F
= 2mA
2.7
1.9
565
30
50/35
I
F
= 2mA
I
F
= 2mA
I
F
= 2mA
www.fairchildsemi.com
2 OF 3
3/14/01
DS300016
LOW CURRENT T-100 & T-1 3/4
SOLID STATE LAMPS
DISCLAIMER
FAIRCHILD SEMICONDUCTOR RESERVES THE THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE
TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT
ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT
DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE
RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or
systems which, (a) are intended for surgical
implant into the body,or (b) support or sustain life,
and (c) whose failure to perform when properly
used in accordance with instructions for use provided
in labeling, can be reasonably expected to result in a
significant injury of the user.
2. A critical component in any component of a life support
device or system whose failure to perform can be
reasonably expected to cause the failure of the life
support device or system, or to affect its safety or
effectiveness.
DS300016
3/14/01
3 OF 3
www.fairchildsemi.com
