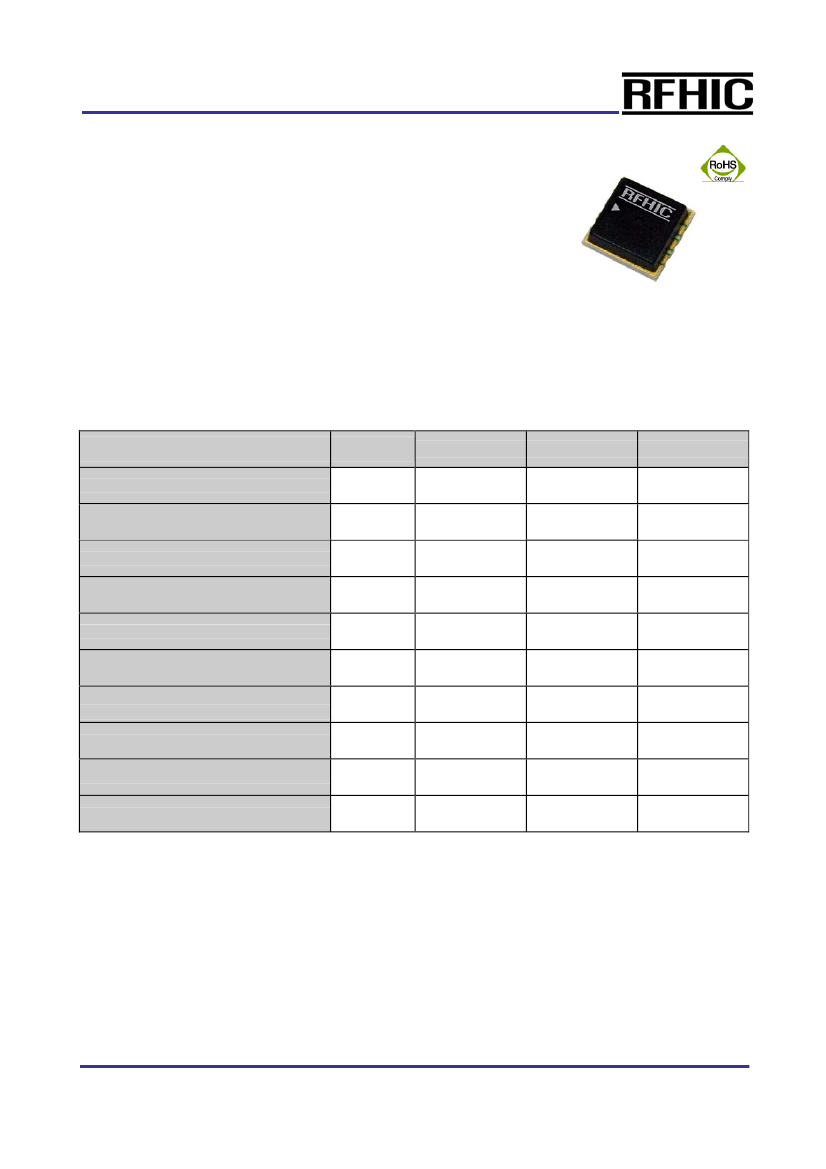

Limiter-diode LNA
Product Features
• GaAs p-HEMT chip on board
• Limiter–diode insertion
• High Maximum Input Power(+30dBm)
• No matching circuit needed
• Single Supply Voltage (+5V)
• Surface Mount Hybrid Type
• Tape & Reel Packaging
• Small Size, High Heatsink
• Alumina Substrate
• Pb Free / RoHS Standard
CL2102D-L
Application
• WiMAX, WiBro, LTE
• PCS, DCS, W-CDMA, WLAN
• Repeater
• Base Station
• RF Sub-Systems
Package : CP-16A
Description
• This LNA family is a high gain, ultra low noise amplifier.
• This family of Low Noise Amplifier has superior performance comes with a modest price tag.
Electrical Specifications
Parameter
Frequency Range
Small Signal Gain(S
21
)
Gain Flatness
Input Return Loss (S
11
)
Output Return Loss (S
22
)
1dB Compression Point (P
1
dB)
Output 3
rd
Order Intercept Point
(OIP3) (TYP.)
Noise Figure (TYP.)
RF Input Power (for 12 hours)
DC Supply Current (Vdc=+5V)
Units
MHz
dB
dB
dB
dB
dBm
dBm
dB
dBm
mA
Minimum
1750
Typical
Maximum
2600
14.5
±
2.0
-20
-10
18
30
20
33
0.7
1.0
30
100
120
Test Condition
①
Fc=2100MHz, Supply Voltage = +5V, 50ohm system, Ta = 25℃
②
OIP3 is measured with two tones, at an output power of + 0dBm/tone separated by 1MHz.
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
1/5
▪
All specifications may change without notice.
▪
Version 1.3

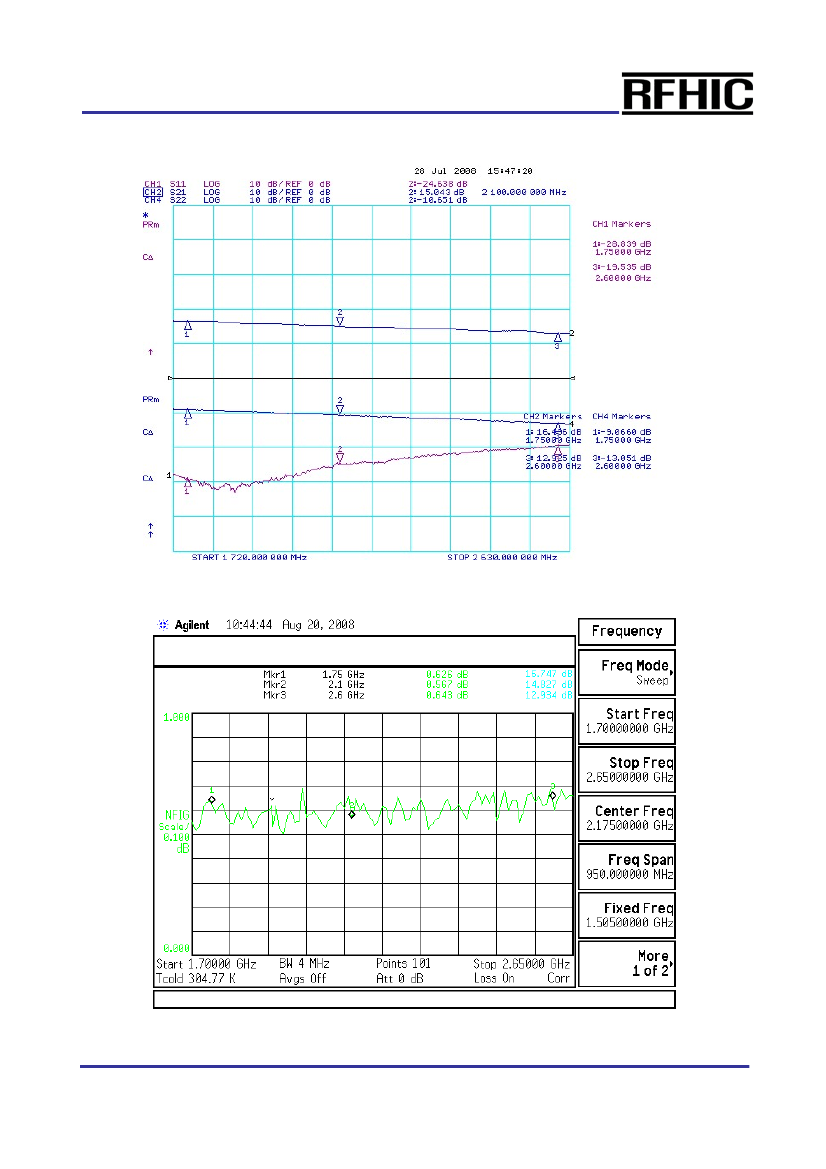

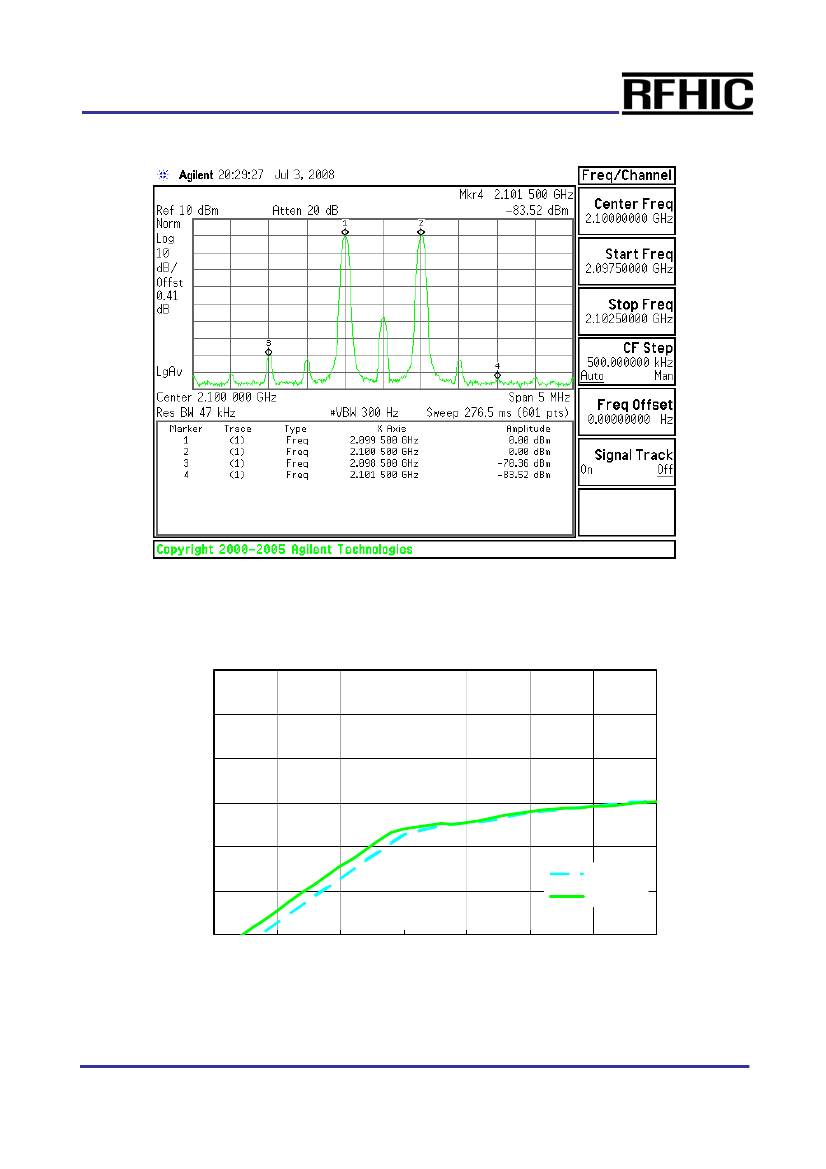

Limiter-diode LNA

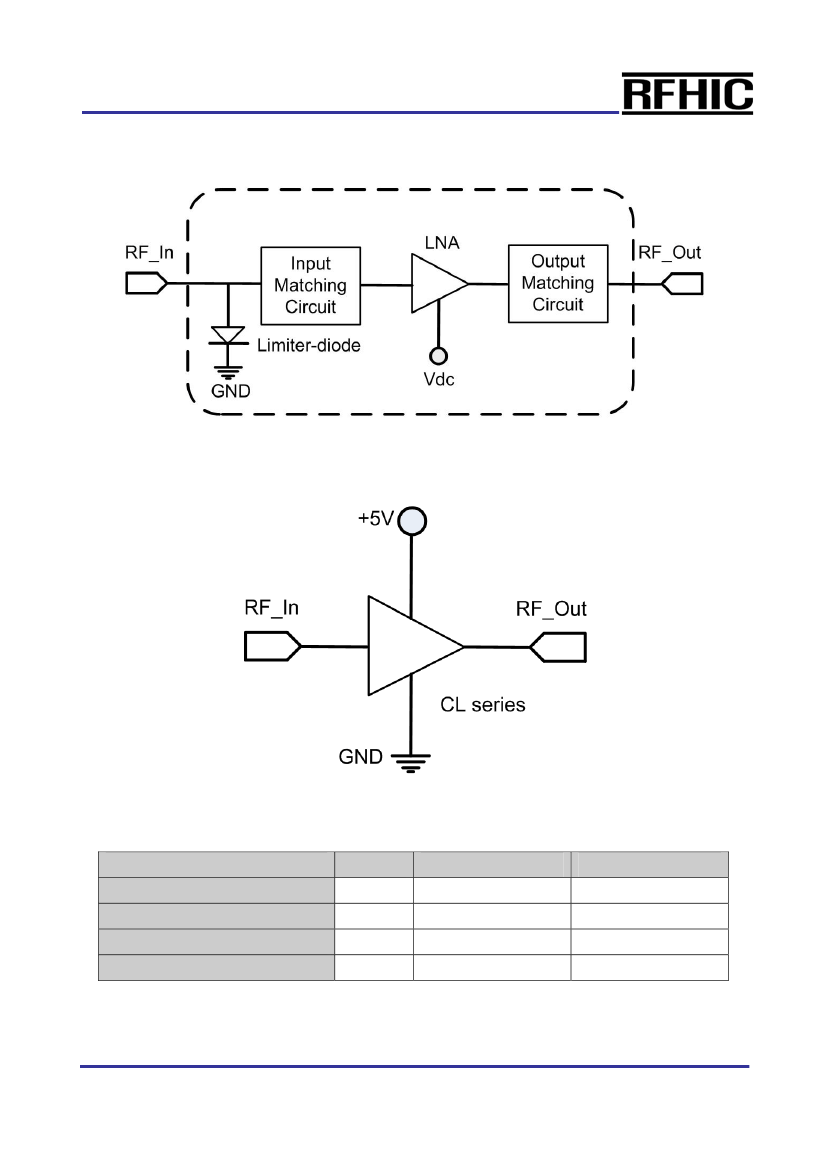

Internal Block Diagram
CL2102D-L
Application
Absolute Maximum Ratings*
PARAMETER
Device Voltage
RF Input Power
Storage Temperature
Ambient Operating Temperature
Unit
V
dBm
℃
℃
Rating
+8
+30
-50 to +125
-40 to +85
Remark
* Operation of this device in excess of any one of these parameters may cause permanent damage.
▪
Tel : 82-31-250-5011
▪
rfsales@rfhic.com
4/5
▪
All specifications may change without notice.
▪
Version 1.3
Limiter-diode LNA

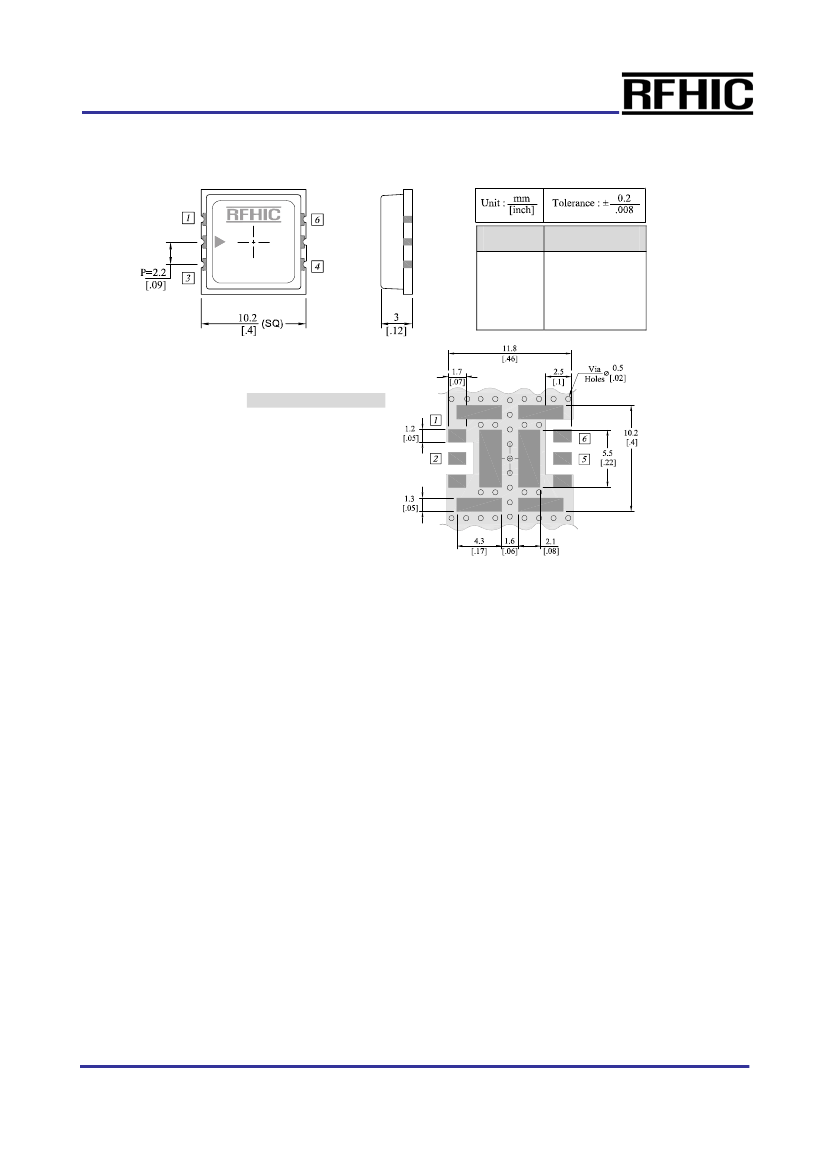

Package Dimensions
(Type: CP-16A)
CL2102D-L
Pin No.
1, 3, 4
2
5
6
Function
Ground
Input
Output
Vcc
Recommended Pattern
ESD Protection
Gallium Arsenide Integrated Circuits are sensitive to electrostatic discharge (ESD) and can be damaged by static electricity.
Proper ESD control techniques should be used when handling these devices. Some of the precautions recommended are;
- Person at a workbench should be earthed via a wrist strap and a resistor.
- All mains-powered equipment should be connected to the mains via an earth-leakage switch.
- Equipment cases should be grounded.
- Relative humidity should be maintained between 40% and 50%.
- An ionizer is recommended.
- Keep static materials, such as plastic envelopes and plastic trays etc. away from the workbench.
