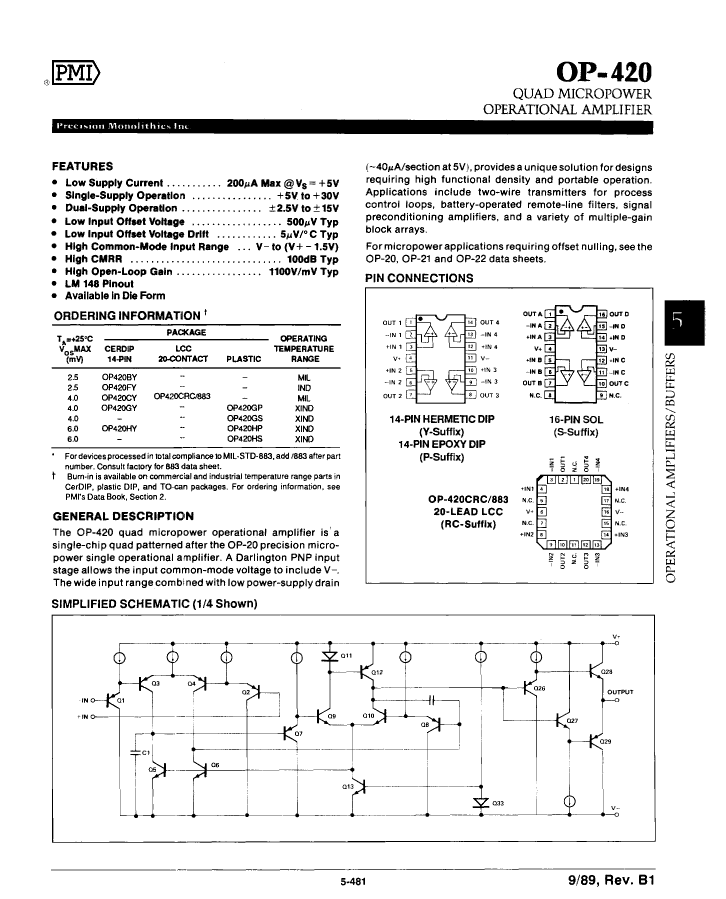

OP-420GR amplifier basic information:
OP-420GR is an OPERATIONAL AMPLIFIER.
OP-420GR amplifier core information:
Its maximum average bias current is 0.04 µA
The nominal supply voltage of OP-420GR is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of OP-420GR is 6000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)

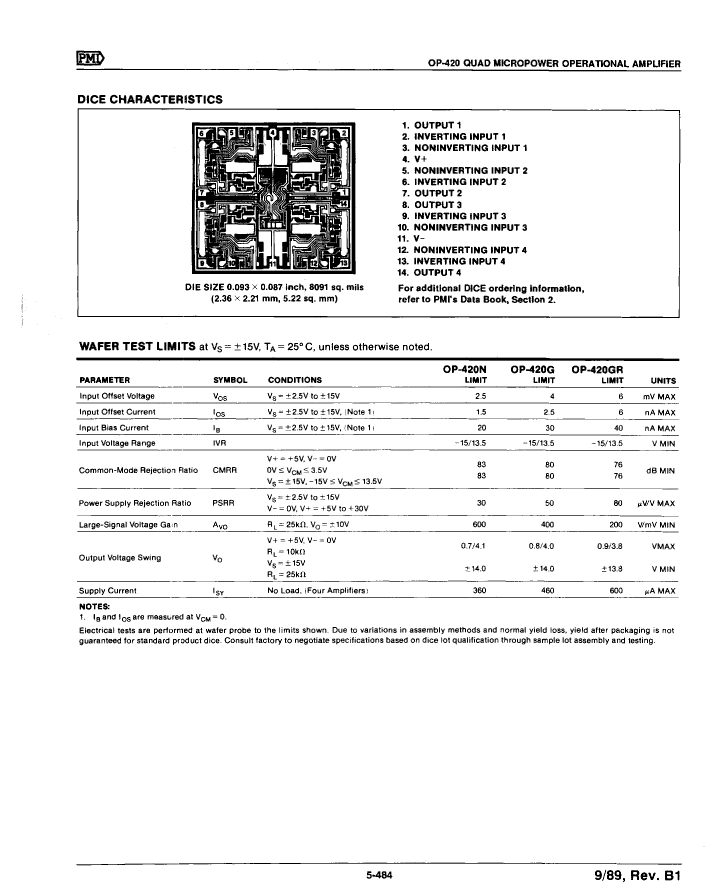

Related dimensions of OP-420GR:
OP-420GR has 14 terminals. Its terminal position type is: UPPER.
OP-420GR amplifier additional information:
The corresponding JESD-30 code is: X-XUUC-N14. The packaging code of OP-420GR is: DIE. OP-420GR packaging materials are mostly UNSPECIFIED. The package shape is UNSPECIFIED. OP-420GR package pin formats are: UNCASED CHIP.
Its terminal forms are: NO LEAD.
OP-420GR amplifier basic information:
OP-420GR is an OPERATIONAL AMPLIFIER.
OP-420GR amplifier core information:
Its maximum average bias current is 0.04 µA
The nominal supply voltage of OP-420GR is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of OP-420GR is 6000 µV (input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the operational amplifier 0V (or close to 0V).)
Related dimensions of OP-420GR:
OP-420GR has 14 terminals. Its terminal position type is: UPPER.
OP-420GR amplifier additional information:
The corresponding JESD-30 code is: X-XUUC-N14. The packaging code of OP-420GR is: DIE. OP-420GR packaging materials are mostly UNSPECIFIED. The package shape is UNSPECIFIED. OP-420GR package pin formats are: UNCASED CHIP.
Its terminal forms are: NO LEAD.

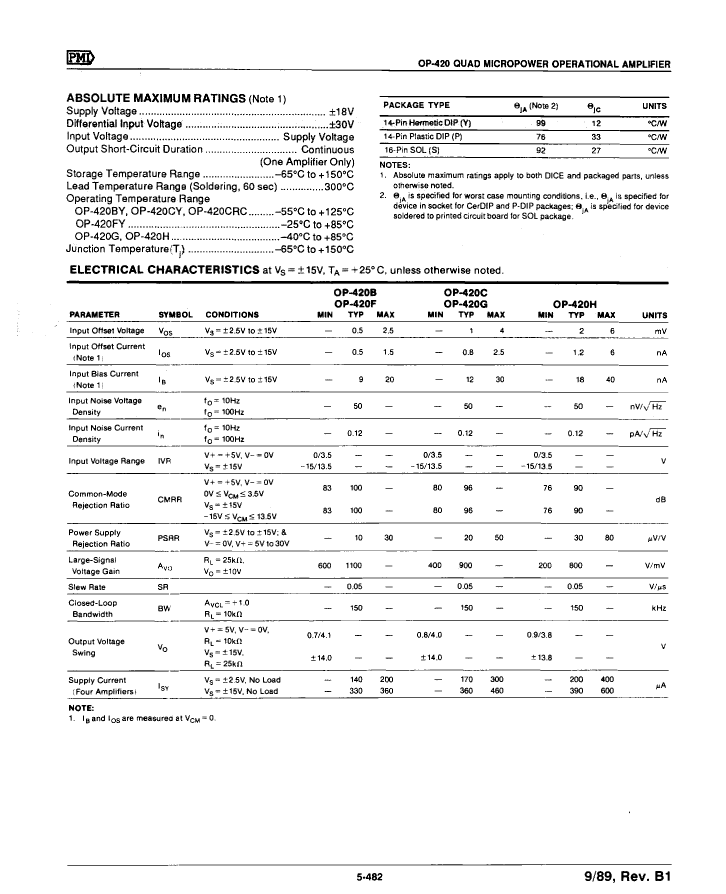

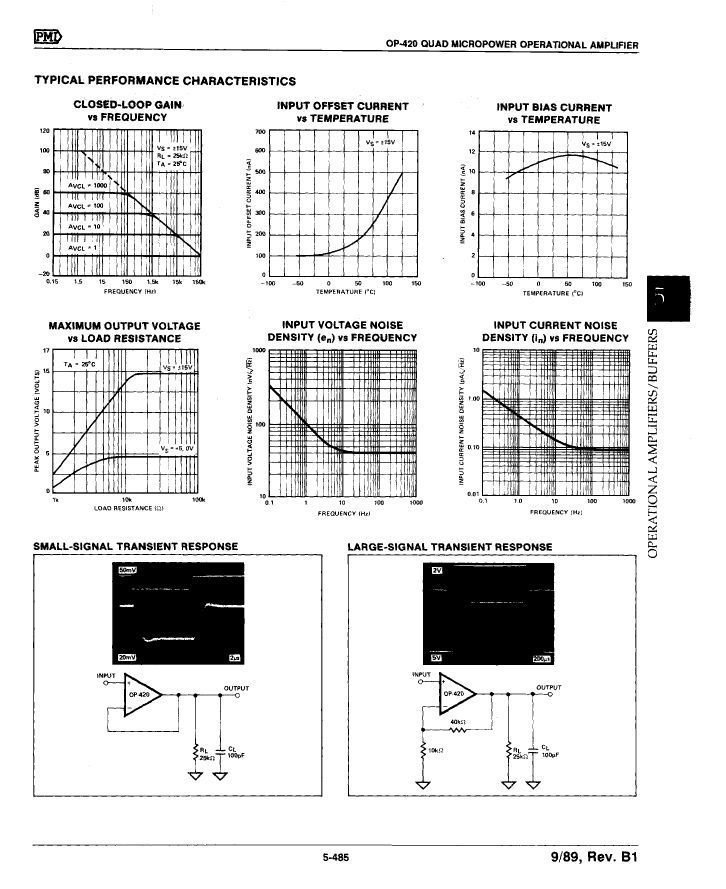

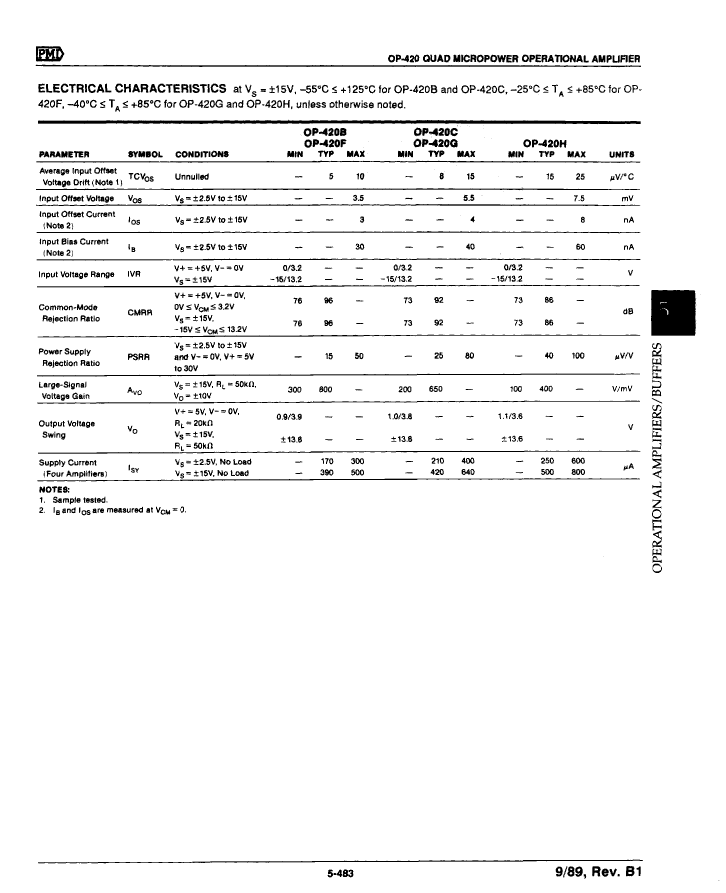

| Parameter Name | Attribute value |
| Maker | Precision Monolithics Inc |
| Reach Compliance Code | unknown |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.04 µA |
| Nominal Common Mode Rejection Ratio | 76 dB |
| Maximum input offset voltage | 6000 µV |
| JESD-30 code | X-XUUC-N14 |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 4 |
| Number of terminals | 14 |
| Package body material | UNSPECIFIED |
| encapsulated code | DIE |
| Package shape | UNSPECIFIED |
| Package form | UNCASED CHIP |
| Certification status | Not Qualified |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| technology | BIPOLAR |
| Terminal form | NO LEAD |
| Terminal location | UPPER |
| Base Number Matches | 1 |
| OP-420GR | OP-420G | OP-420N | OP420BIGP | OP420BIHY | OP420BIEY | OP420BIHP | OP420EY | |
|---|---|---|---|---|---|---|---|---|
| Description | Operational Amplifier, 4 Func, 6000uV Offset-Max, BIPolar, | Operational Amplifier, 4 Func, 4000uV Offset-Max, BIPolar, | Operational Amplifier, 4 Func, 2500uV Offset-Max, BIPolar, | Operational Amplifier, 4 Func, 5500uV Offset-Max, BIPolar, PDIP14, PLASTIC, DIP-14 | Operational Amplifier, 4 Func, 7500uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 | Operational Amplifier, 4 Func, 3500uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 | Operational Amplifier, 4 Func, 7500uV Offset-Max, BIPolar, PDIP14, PLASTIC, DIP-14 | Operational Amplifier, 4 Func, 3500uV Offset-Max, BIPolar, CDIP14, HERMETIC SEALED, DIP-14 |
| Maker | Precision Monolithics Inc | Precision Monolithics Inc | Precision Monolithics Inc | Precision Monolithics Inc | Precision Monolithics Inc | Precision Monolithics Inc | Precision Monolithics Inc | Precision Monolithics Inc |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknow | unknow | unknow |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.04 µA | 0.03 µA | 0.02 µA | 0.04 µA | 0.06 µA | 0.03 µA | 0.06 µA | 0.03 µA |
| Nominal Common Mode Rejection Ratio | 76 dB | 80 dB | 83 dB | 92 dB | 86 dB | 96 dB | 86 dB | 96 dB |
| Maximum input offset voltage | 6000 µV | 4000 µV | 2500 µV | 5500 µV | 7500 µV | 3500 µV | 7500 µV | 3500 µV |
| JESD-30 code | X-XUUC-N14 | X-XUUC-N14 | X-XUUC-N14 | R-PDIP-T14 | R-GDIP-T14 | R-GDIP-T14 | R-PDIP-T14 | R-GDIP-T14 |
| Negative supply voltage upper limit | -18 V | -18 V | -18 V | -18 V | -18 V | -18 V | -18 V | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 |
| Number of terminals | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Package body material | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | PLASTIC/EPOXY | CERAMIC, GLASS-SEALED |
| Package shape | UNSPECIFIED | UNSPECIFIED | UNSPECIFIED | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | UNCASED CHIP | UNCASED CHIP | UNCASED CHIP | IN-LINE | IN-LINE | IN-LINE | IN-LINE | IN-LINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Supply voltage upper limit | 18 V | 18 V | 18 V | 18 V | 18 V | 18 V | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | YES | YES | YES | NO | NO | NO | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Terminal form | NO LEAD | NO LEAD | NO LEAD | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal location | UPPER | UPPER | UPPER | DUAL | DUAL | DUAL | DUAL | DUAL |
| package instruction | - | - | - | PLASTIC, DIP-14 | HERMETIC SEALED, DIP-14 | HERMETIC SEALED, DIP-14 | PLASTIC, DIP-14 | HERMETIC SEALED, DIP-14 |
| Maximum operating temperature | - | - | - | 85 °C | 85 °C | 85 °C | 85 °C | 85 °C |
| Minimum operating temperature | - | - | - | -40 °C | -40 °C | -25 °C | -40 °C | -25 °C |
| Nominal slew rate | - | - | - | 0.05 V/us | 0.05 V/us | 0.05 V/us | 0.05 V/us | 0.05 V/us |
| Temperature level | - | - | - | INDUSTRIAL | INDUSTRIAL | OTHER | INDUSTRIAL | OTHER |
| Nominal Uniform Gain Bandwidth | - | - | - | 150 kHz | 150 kHz | 150 kHz | 150 kHz | 150 kHz |
