40ST1041D Overview

40 PIN SMD ETHERNET 10/100 BASE QUAD PORT TRANSFORMER

40 PIN SMD ETHERNET 10/100 BASE QUAD PORT TRANSFORMER

PN/:40ST1041D DATA SHEET

A.GENERAL SPECIFICATIONS

1.IEEE 802.3 ETHERNET COMPATIABLE, 100 BASE-TX

2.SURFACE MOUNTABLE

3.DESIGN FOR MULTIPORT REPEATER AND ETHERNET SWITCHING HUB APPLICATION

4.CUSTOMER DESIGNS AVAILABLE FOR SPECIFIC APPLICATION

B.ELECTRICAL SPECIFICATIONS@25°C

1.ISOLATION HI-POT: 1500 Vrms (PRI. /SEC.)

2.TURN RATIO (± 5%): TX=1CT: 1CT, RX=1:1

3.RISE TIME: 2.5 ns TYP

4.CW/W: 28 pF MAX

5.LEAKAGE INDUCTANCE (1MHz): 0.45uH Max

6.CMRR (0.1-100 MHz): -37dB MIN

7.RETURN LOSS (MIN): 5-30 MHz

30-60 MHz

60 -80MHz

-16dB

-12dB

-10 dB

8.CROSSTALKS (0.1 TO 100MHz): -38dB Min

9.OCL (uH,Min):350 uH, at 8mA/dc FROM 0-70°C

10.DCR: 0.9 Max

11. INSETION LOSS (1MHz-100MHz): -1.1 dB Max

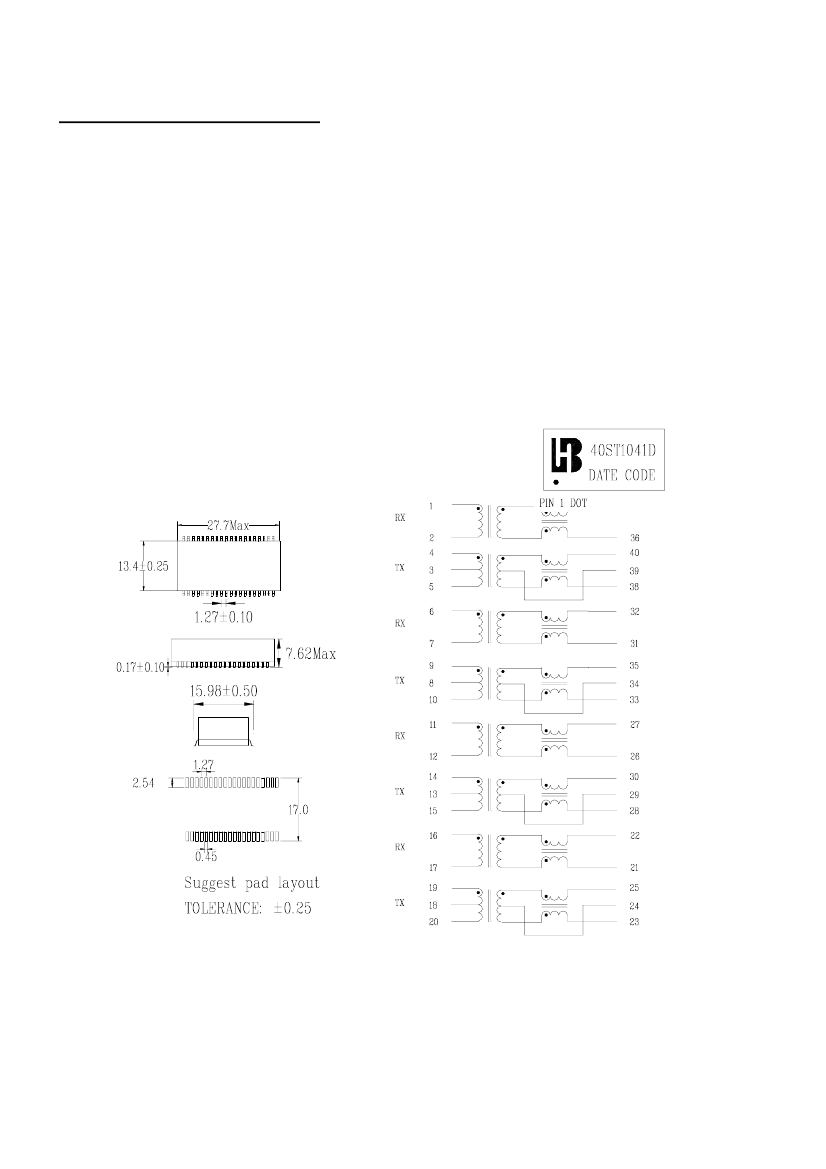

C.SCHEMATIC & DIMENSIONS & MARKING (UNIT mm):

Date: April 15-2000 Pre by:WuQingli Rev.: X.0
