40ST1041EX_S: Description40 PIN SMD ETHERNET 10/100 BASE QUAD PORT TRANSFORMER; File Size210KB，1 Pages; ManufacturerBOTHHAND; Websitehttp://www.bothhandusa.com/

Download Datasheet View All

40ST1041EX_S Overview

40 PIN SMD ETHERNET 10/100 BASE QUAD PORT TRANSFORMER

Preview

Download Datasheet

View All

Bothhand USA.

e-mail: sales@bothhandusa.com http://www.bothhandusa.com

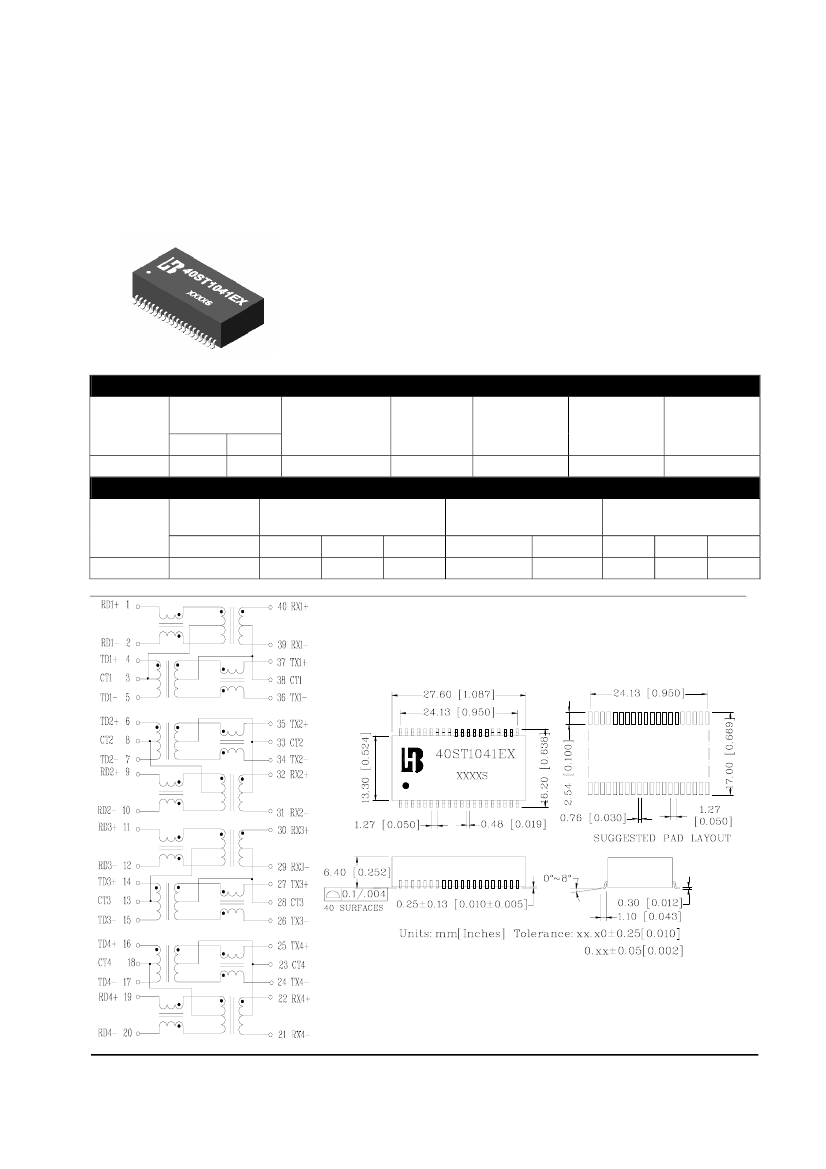

40 PIN SMD ETHERNET 10/100 BASE QUAD PORT TRANSFORMER

Page : 1/1

P/N: 40ST1041EX DATA SHEET

Feature

IEEE 802.3 Ethernet compatible, 100 Base-TX.

Surface mountable.

Design for multiport repeater and Ethernet switching Hub

application.

Customer designs available for specific application.

Operating temperature range : 0℃ to +70℃.

Storage temperature range: -25℃to +125℃.

Electrical Specifications @ 25°C

Part

Number

Turns Ratio

(±5%)

OCL(μH Min)

@100KHz/0.1Vrms

8mA DC/Bias

350

Return Loss

(dB Min)

0.3-30MHz 30-60MHz 60-80MHz

-16

-12

-10

L.L

(μH Max)

0.5

Cw/w

(pF Max)

Cross talk

(dB Min)

0.3-60MHz

-45

60-100MHz

-35

HI-POT

(Vrms)

1500

DCMR

(dB Min)

60MHz 100MHz 200MHz

-37

-28

-25

Rise Time

(nS Typ)

2.5

40ST1041EX 1CT:1CT 1CT:1CT

Insertion Loss

(dB Max)

0.3–100MHz

-1.15

Continue

Part

Number

40ST1041EX

Schematic

Mechanical

462 Boston St - Topsfield, MA 01983 - Phone: 978-887-8050 - Fax: 978-887-5434

A7(02/07)
