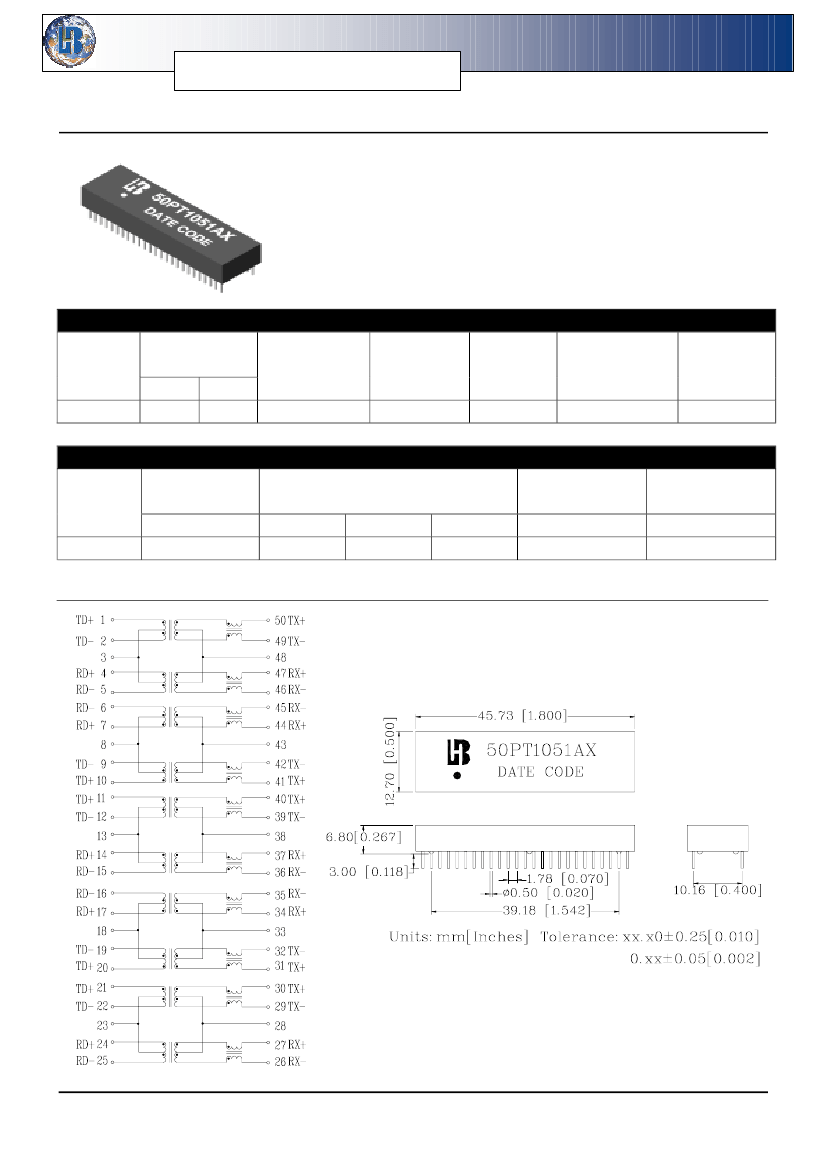

P/N: 50PT1051AX DATA SHEET
Feature
!
!
!
!
Compliant with IEEE 802.3 E and ANSI X3.263 standards
including 350uH OCL with 8mA Bias.
Symmetrical TX and RX channels for Auto MDI/MDIX
capability.
Operating temperature range : 0℃ to +70℃.
Storage temperature range: -25℃ to +105℃.
Electrical Specifications @ 25°C
Part
Number
TX
Turns Ratio
(±5%)
RX
OCL(uH Min)
@100KHz/0.1V
8mA DC Bias
350
L.L
(uH Max)
0.4
C
W/W
(pF Max)
56
Rise Time
(nS Typ)
3.0
HI-POT
(Vrms)
1500
50PT1051AX 1CT:1CT 1CT:1CT
Continue
Part
Number
50PT1051AX
Insertion Loss
(dB Max)
0.3–100MHz
-1.15
0.3-30MHz
-16
Return Loss
(dB Min)
30-60MHz
-12
60-80MHz
-10
Cross talk
(dB Min)
0.3-100MHz
-35
DCMR
(dB Min)
0.3-100MHz
-30
Schematic
Mechanical
Max
