SKKT26/16E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Trigger device> SKKT26/16E

SKKT26/16E: DescriptionSilicon Controlled Rectifier, 50A I(T)RMS, 25000mA I(T), 1600V V(DRM), 1600V V(RRM), 2 Element, TO-240AA, CASE A 5, SEMIPACK 1, 7 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size889KB，4 Pages; ManufacturerSEMIKRON; Websitehttp://www.semikron.com; Environmental Compliance

Download Datasheet Parametric Compare View All

SKKT26/16E Overview

Silicon Controlled Rectifier, 50A I(T)RMS, 25000mA I(T), 1600V V(DRM), 1600V V(RRM), 2 Element, TO-240AA, CASE A 5, SEMIPACK 1, 7 PIN

SKKT26/16E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	TO-240AA
package instruction	FLANGE MOUNT, R-XUFM-X7
Contacts	7
Manufacturer packaging code	CASE A 5
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY, UL RECOGNIZED
Shell connection	ISOLATED
Nominal circuit commutation break time	80 µs
Configuration	SERIES CONNECTED, 2 ELEMENTS
Critical rise rate of minimum off-state voltage	1000 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
Quick connection description	2G
Description of screw terminals	A-K-AK
Maximum holding current	200 mA
JEDEC-95 code	TO-240AA
JESD-30 code	R-XUFM-X7
JESD-609 code	e2
Maximum leakage current	10 mA
On-state non-repetitive peak current	470 A
Number of components	2
Number of terminals	7
Maximum on-state current	25000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	50 A
Maximum repetitive peak off-state leakage current	10000 µA
Off-state repetitive peak voltage	1600 V
Repeated peak reverse voltage	1600 V
surface mount	NO
Terminal surface	Tin/Silver (Sn/Ag)
Terminal form	UNSPECIFIED
Terminal location	UPPER
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
Base Number Matches	1

Preview

Download Datasheet

View All

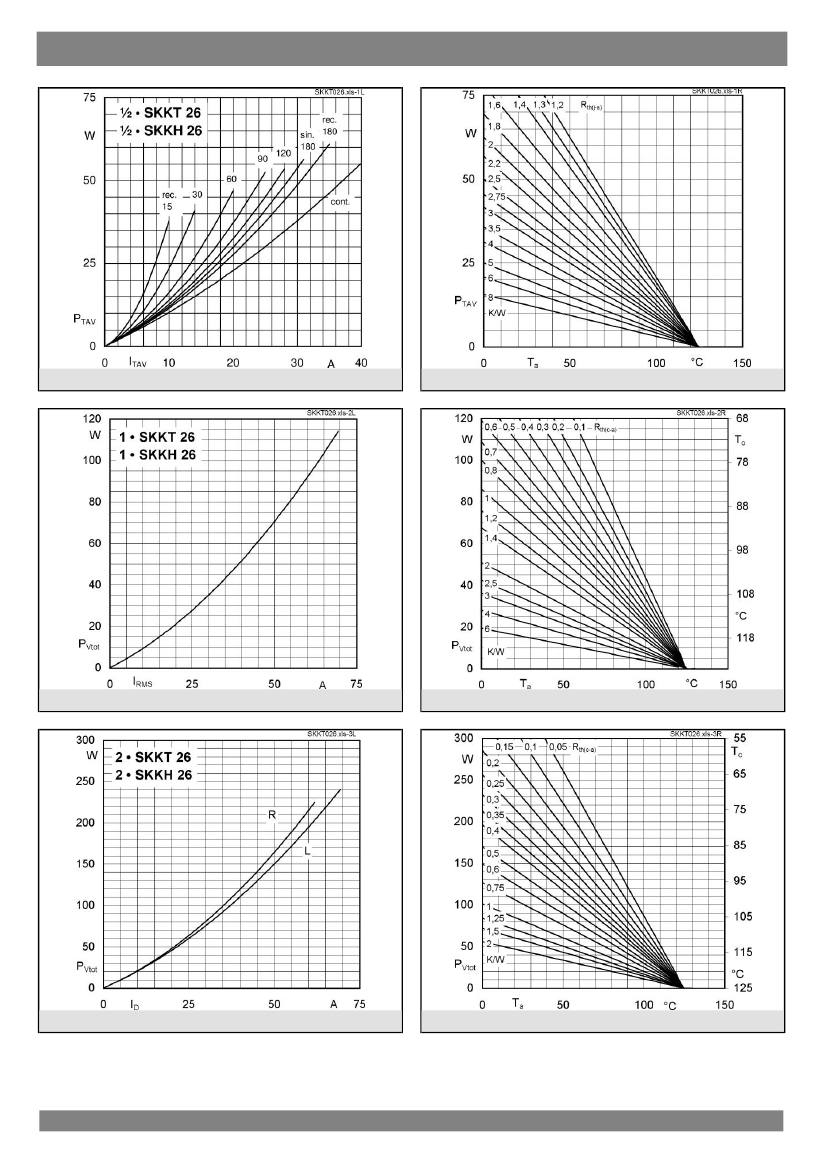

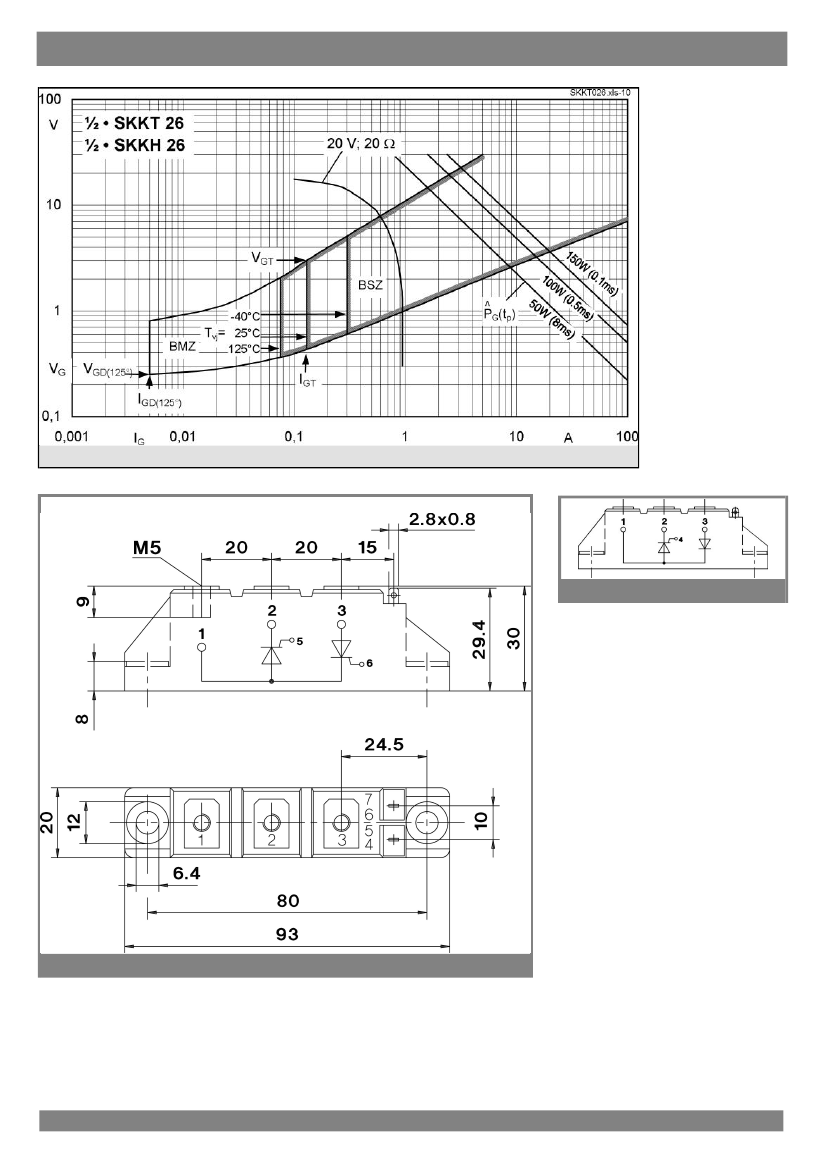

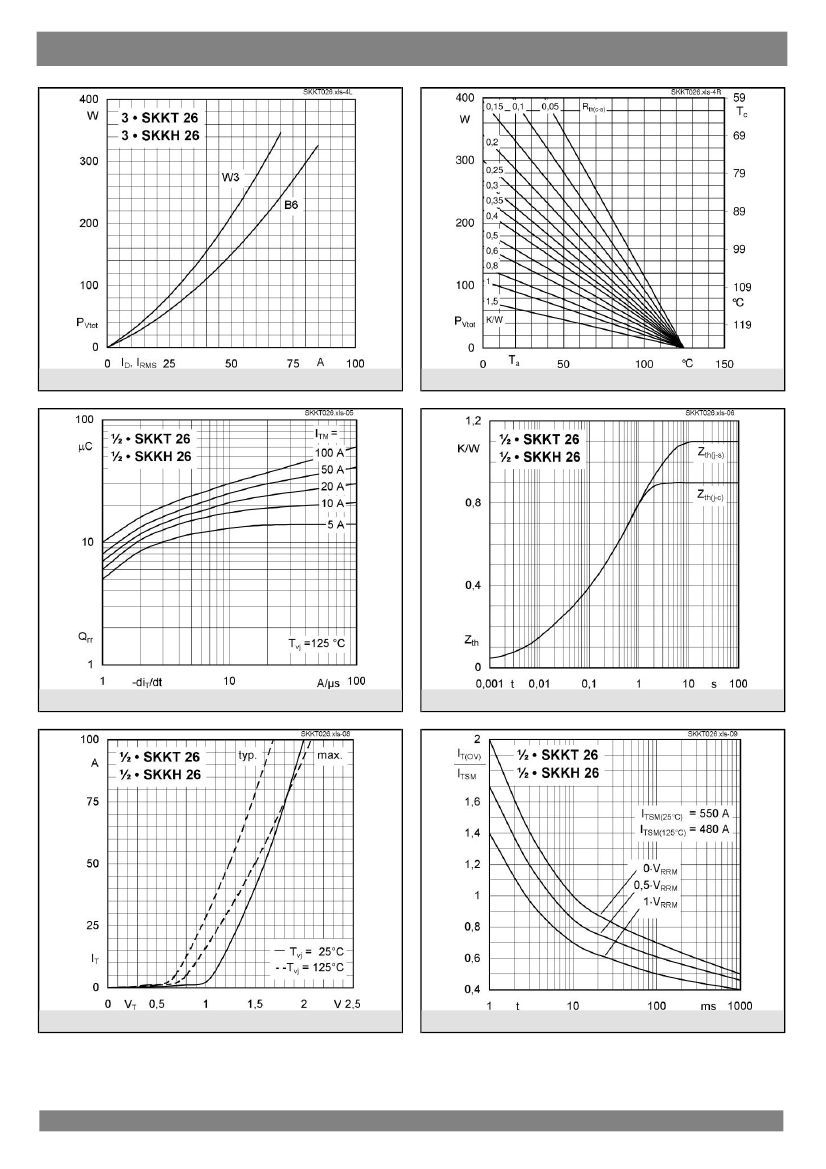

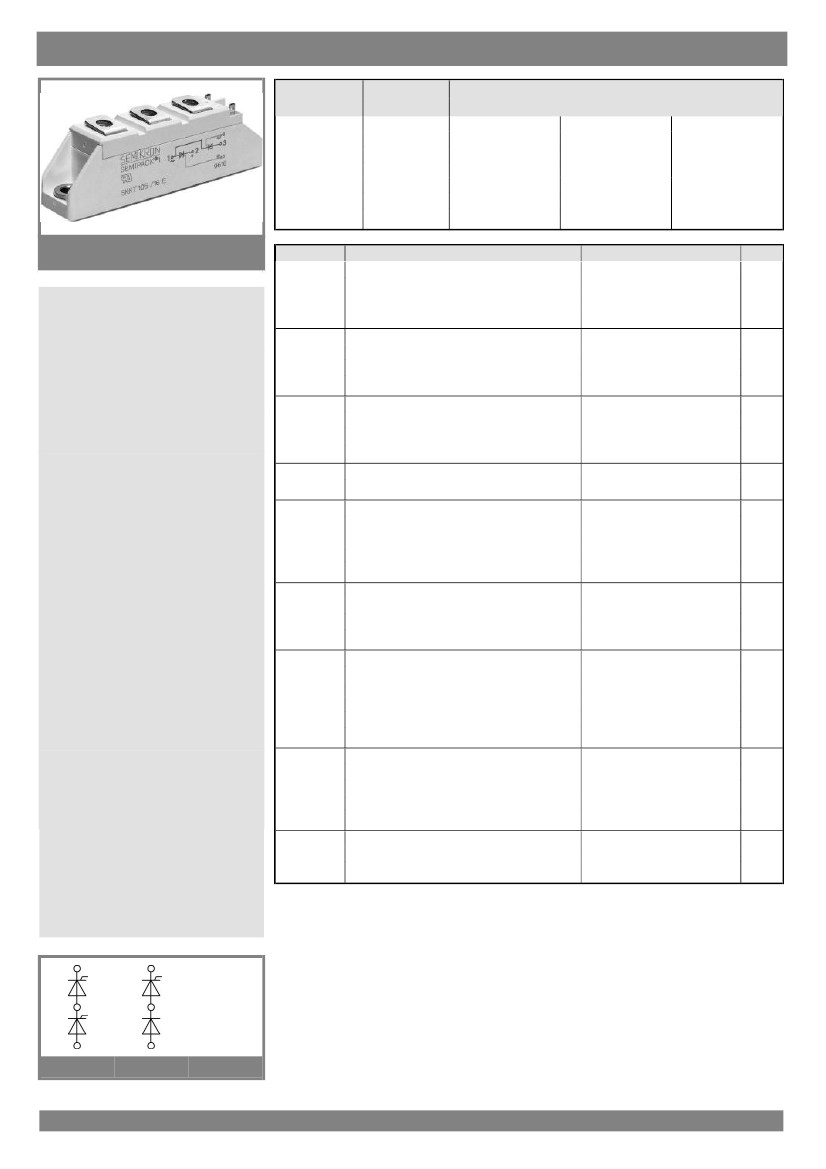

SKKT 26, SKKH 26

THYRISTOR BRIDGE,SCR,BRIDGE

SEMIPACK

Thyristor / Diode Modules

SKKT 26

SKKH 26

Symbol

Conditions

Values

Units

Features

Typical Applications

SKKT

SKKH

13-10-2004 NOS
