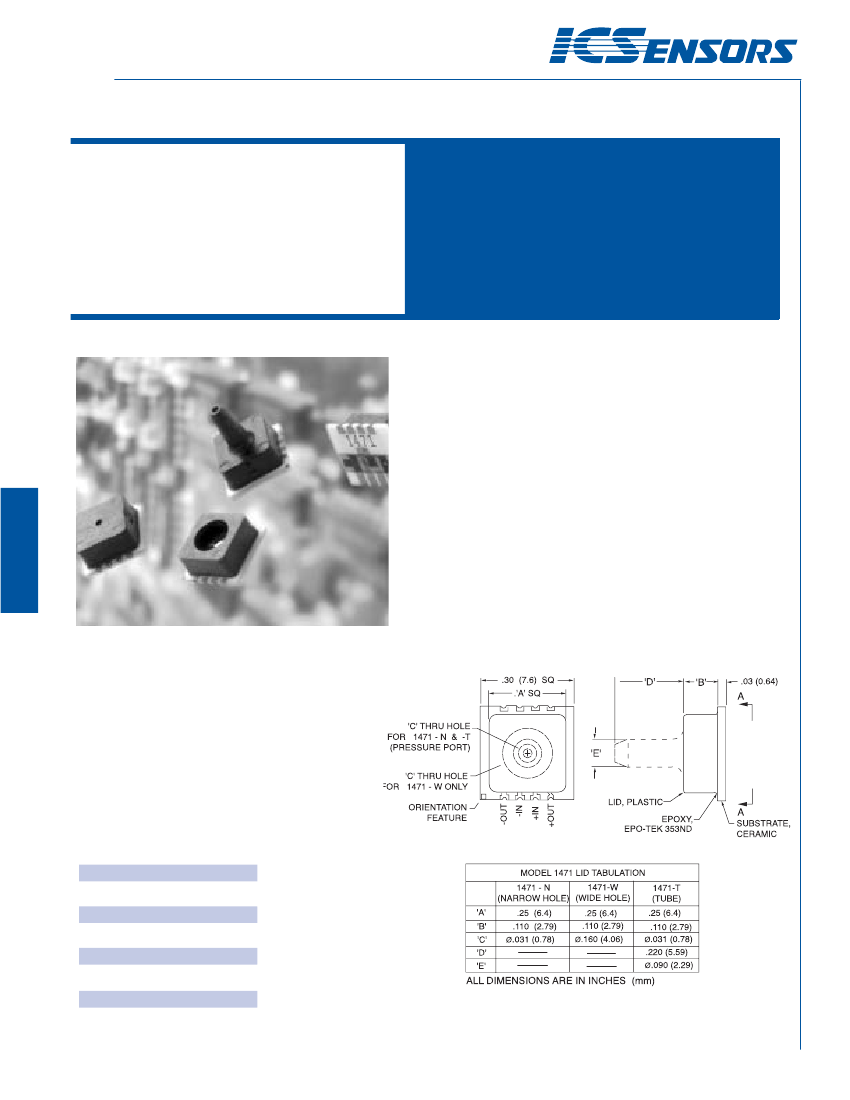

MODEL 1471
PC Board Mountable Pressure Sensor
0-60 mV Output
Gage and Absolute Pressure
Low Cost
• Altitude Measurement
• Barometric Pressure
• Medical Instrumentation
• Consumer Appliances
• Tire Pressure
DESCRIPTION
The Model 1471 is a piezoresistive silicon pressure sensor,
calibrated at room temperature. Packaged in a surface mount
configuration, it is intended for high volume applications
where small size, light weight, low cost, and compatibility
with automated assembly equipment are required.
The pressure sensor is available with a gage or absolute
pressure sensing chip that is attached to a surface mountable
ceramic substrate. A cap is attached to the ceramic substrate,
protecting the chip and providing the pressure port.
The devices are shipped in plastic anti-static shipping
tubes for use with automated production equipment. The
drawing shows a standard tube version. Caps are also avail-
able with a narrow hole or a large hole to interface with the
pressure media.
Pressure
FEATURES
•
Surface Mount Package
•
±0.25% Pressure Non-linearity
•
3 Pressure Port Options
•
Solid State Reliability
•
Low Power
STANDARD RANGES
Range
0 to 5
0 to 15
0 to 30
0 to 50
0 to 100
0 to 250
0 to 500
psia
psig
DIMENSIONS
•
•
•
•
•
•
*
•
*
•
•
•
•
•
I n t e r n e t : w w w. m s i u s a . c o m
Te l : 1 - 7 5 7 - 7 6 6 - 1 5 0 0
N o r t h A m e r i c a To l l F r e e : 1 - 8 0 0 - 7 4 5 - 8 0 0 8
Fax: 1-757-766-4297
* N and W option only
1-9
Surface Mount
PC Board Mountable Pressure Sensor
MODEL 1471
PERFORMANCE SPECIFICATIONS
Supply Voltage: 5 VDC
Ambient Temperature: 25°C (Unless otherwise specified)
PARAMETERS
MIN
TYP
MAX
UNITS
NOTES
__________________________________________________________________________________________________________________________________________________
Full Scale Output Span
10
13
16
mv/V
1, 2
__________________________________________________________________________________________________________________________________________________
Zero Pressure Output
–0.5
0.5
mv/V
1
__________________________________________________________________________________________________________________________________________________
Pressure Non-linearity
–0.25
0.25
% Span
3
__________________________________________________________________________________________________________________________________________________
Pressure Hysteresis
–0.1
0.1
% Span
__________________________________________________________________________________________________________________________________________________
Output Resistance
3500
5000
6000
Ω
__________________________________________________________________________________________________________________________________________________
Input Resistance
3500
25000
Ω
__________________________________________________________________________________________________________________________________________________
Temperature Coefficient - Span
–0.20
%/°C
4
__________________________________________________________________________________________________________________________________________________
Temperature Coefficient - Zero
+0.05
%/°C
4
__________________________________________________________________________________________________________________________________________________
Temperature Coefficient - Resistance
+0.25
%/°C
4
__________________________________________________________________________________________________________________________________________________
Thermal Hysteresis - Zero
–0.2
0.2
% Span
4
__________________________________________________________________________________________________________________________________________________
Supply Voltage
5
12
VDC
__________________________________________________________________________________________________________________________________________________
Response Time (10% to 90%)
1.0
msec
5
__________________________________________________________________________________________________________________________________________________
Output Noise
1.0
µV p-p
6
__________________________________________________________________________________________________________________________________________________
Insulation Resistance (50 VDC)
50
MΩ
__________________________________________________________________________________________________________________________________________________
Long Term Stability
0.5
±% Span/year
__________________________________________________________________________________________________________________________________________________
Pressure Overload
3X
Rated
__________________________________________________________________________________________________________________________________________________
Operating Temperature
–40°C to +125°C
__________________________________________________________________________________________________________________________________________________
Storage Temperature
–50°C to +150°C
__________________________________________________________________________________________________________________________________________________
Media
Non-Corrosive Gases
__________________________________________________________________________________________________________________________________________________
Notes
1. Trimmed at room temperature. Does not include
temperature dependence of offset and span
2. For absolute pressure sensor. Offset limit will be
±5mv/V
3. Best Fit Straight Line
4. Over the temperature range 0-50ºC with respect to 25º C
5. For a zero-to-full scale pressure step change
6. 10Hz to 1kHz
7. For sensor above 100 psi applications, the entire sensor is required
to be inside the pressure chamber
8. Gel fill coating is only offered with the wide hole port option.
9. Tighter accuracy or other outputs can be achieved. Please contact
factory
ORDERING INFORMATION
1471 - 015
A
N
F
Coating (F-Gel Fill,
Blank-No Coating
CONNECTIONS
Bottom View (View A-A)
Port (T=Tube,
N=Narrow Hole,
W=Wide Hote
Type (A=Absolute, G= Gage)
Pressure Range
Model
Surface Mount
1-10
Pressure
Weight
0.3 g
