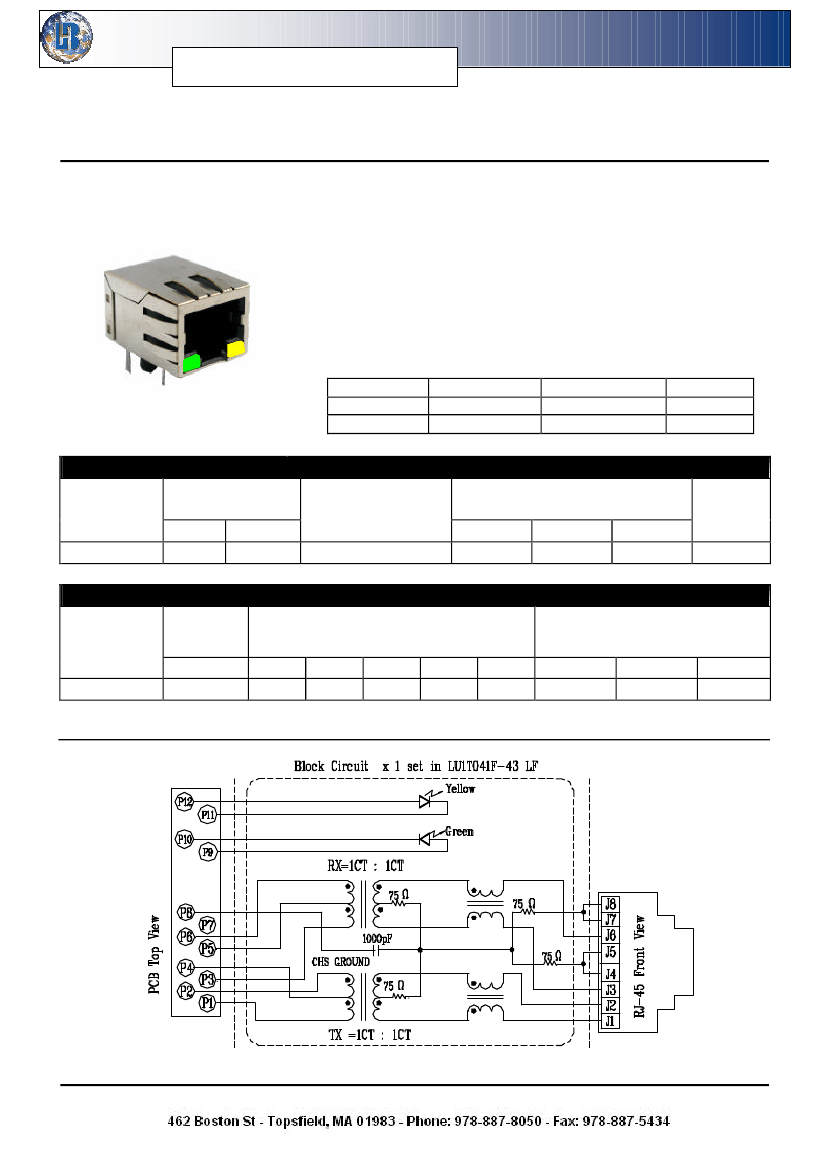

“LAN-MATE” SERIES

SINGLE RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS AND LEDS

P/N: LU1T041F-43 LF

Page : 1/2

Feature

l

RJ-45 connector integrated with transformer/impedance

resistor/high voltage capacitor.

Size same as RJ-45 connector to save PCB board space.

Reduced EMI radiation to improve EMI performance.

Design for 10/100 BASE transmission over UTP-5 cable.

Comply with RoHS requirements-whole part No Cd, No Hg,

No Cr6

+

, No PBB and PBDE and No Pb on external pins.

Operating temperature range: 0℃ to +70℃.

Storage temperature range: -25℃ to +85℃.

Recommended panel

Part Number Standard LED Forward*V(Max)

3

YELLOW

2.6V

4

GREEN

2.6V

(TYP)

2.1V

2.2V

*with a forward current of 20mA

Electrical Specifications @ 25°C

Part

Number

Turns Ratio

(±5%)

TX

RX

1CT:1CT

OCL (uH Min)

@ 100KHz/0.1V

with 8mA DC Bias

350

1-30MHz

-30

CMR

(dB Min)

30-60MHz

-25

60-125MHz

-20

HI-POT

(Vrms)

1500

LU1T041F-43 LF 1CT:1CT

Continue

Part

Number

LU1T041F-43 LF

Insertion Loss

(dB Max)

0.3-100MHz

-1.15

30MHz

-16

40MHz

-14

Return Loss

(dB Min)

50MHz

-13.5

60MHz

-13

80MHz

-10

0.3-30MHz

-40

Cross talk

(dB Min)

30-60MHz

-35

60-100MHz

-30

Schematic
