82S153A/B2A datasheet, PDF - EEWORLD Datasheet

82S153A/B2A: DescriptionOT PLD, 45ns, PLA-Type, TTL, CQCC20,; CategoryProgrammable logic devices Programmable logic; File Size390KB，8 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

82S153A/B2A Overview

OT PLD, 45ns, PLA-Type, TTL, CQCC20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
Is Samacsys	N
Architecture	PLA-TYPE
JESD-30 code	S-XQCC-N20
JESD-609 code	e0
Number of entries	18
Output times	10
Number of product terms	42
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Programmable logic type	OT PLD
propagation delay	45 ns
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Base Number Matches	1

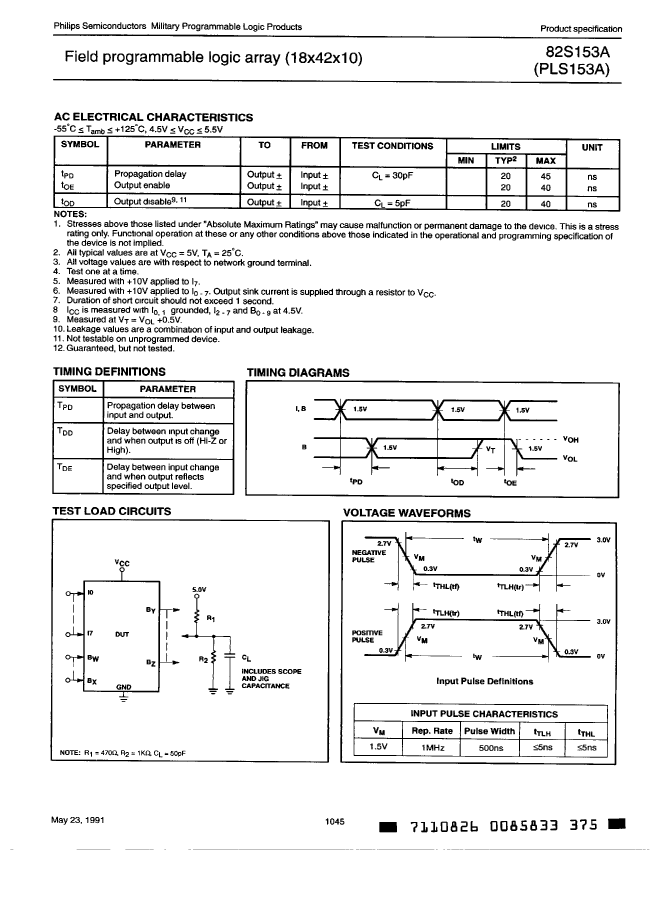

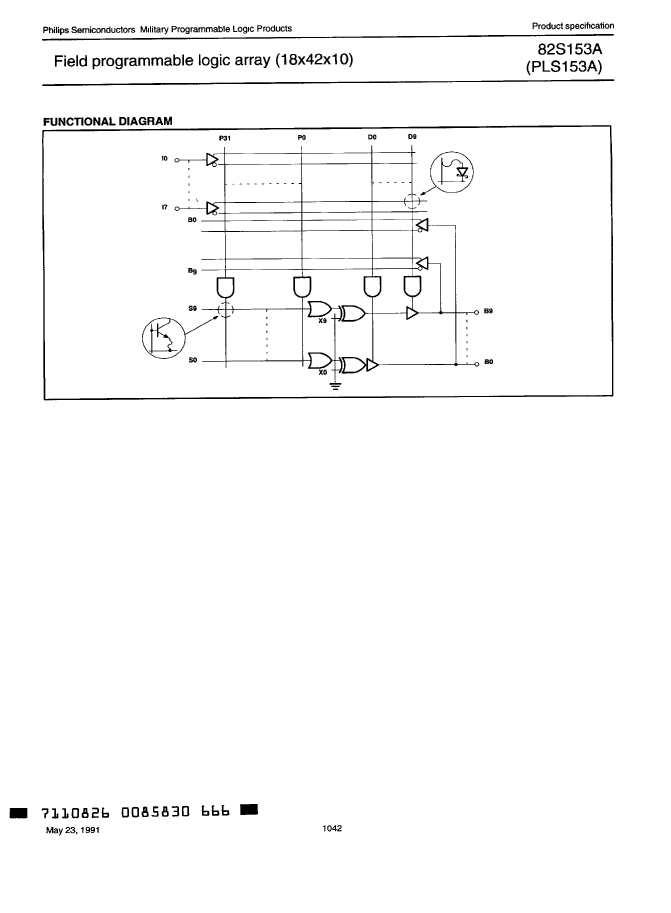

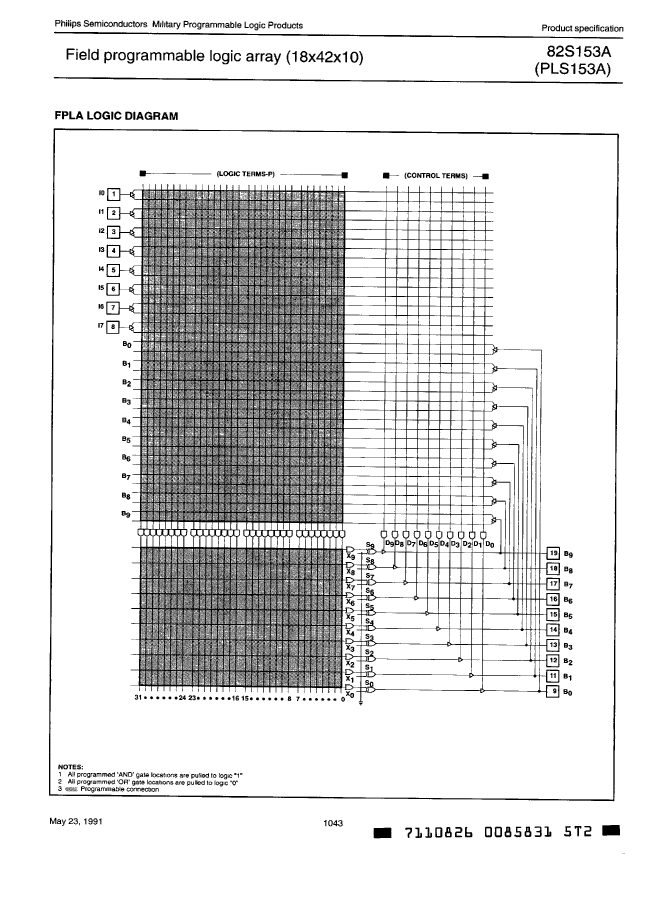

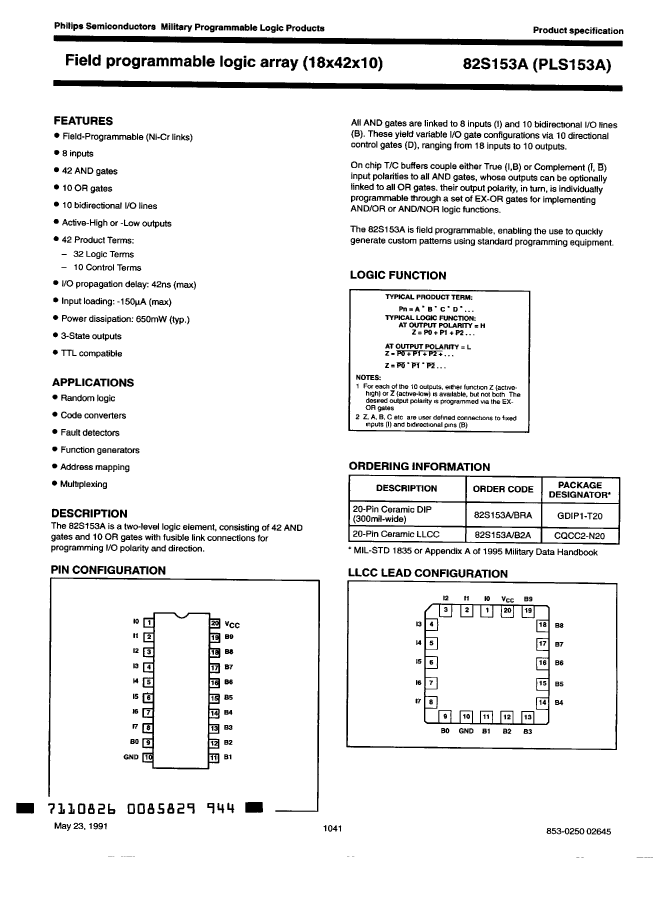

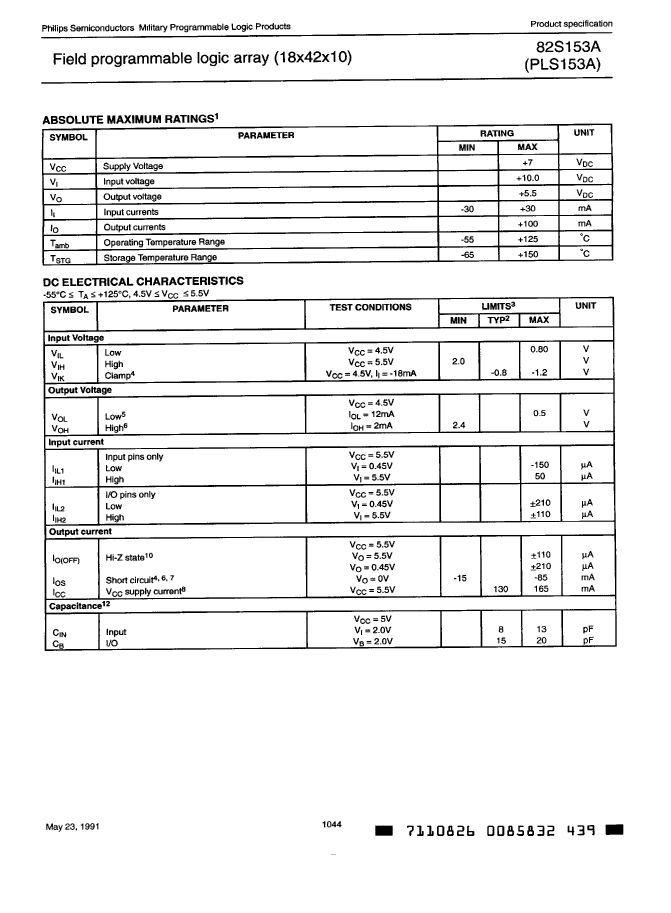

This Material Copyrighted By Its Respective Manufacturer

	82S153A/B2A	82S153A/BRA
Description	OT PLD, 45ns, PLA-Type, TTL, CQCC20,	OT PLD, 45ns, PLA-Type, TTL, CDIP20,
Is it Rohs certified?	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC20,.35SQ	DIP, DIP20,.3
Reach Compliance Code	unknown	unknown
Architecture	PLA-TYPE	PLA-TYPE
JESD-30 code	S-XQCC-N20	R-XDIP-T20
JESD-609 code	e0	e0
Number of entries	18	18
Output times	10	10
Number of product terms	42	42
Number of terminals	20	20
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC
encapsulated code	QCCN	DIP
Encapsulate equivalent code	LCC20,.35SQ	DIP20,.3
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE
power supply	5 V	5 V
Programmable logic type	OT PLD	OT PLD
propagation delay	45 ns	45 ns
Certification status	Not Qualified	Not Qualified
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	TTL	TTL
Temperature level	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
Base Number Matches	1	1
