1X8 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU8S000 LF
Feature
l
l
l
l
l
l
l
l
RJ-45 needs to be matched FCC standard
RJ-45 connector integrated with X’
FMR /Impedance
resistor/High voltage capacitor.
Size same as RJ-45 connector to save PCB Board space.
Reduced EMI radiation to Improve EMI performance.
Design for 100 BASE transmission over UTP-5 cable.
Comply with RoHS requirements-whole part No Cd, No Hg,
No Cr6
+
, No PBB and PBDE and No Pb on external pins.
Operating temperature range: 0℃ to +70℃.
Storage temperature range: -25℃ to +125℃.
Page: 1/3

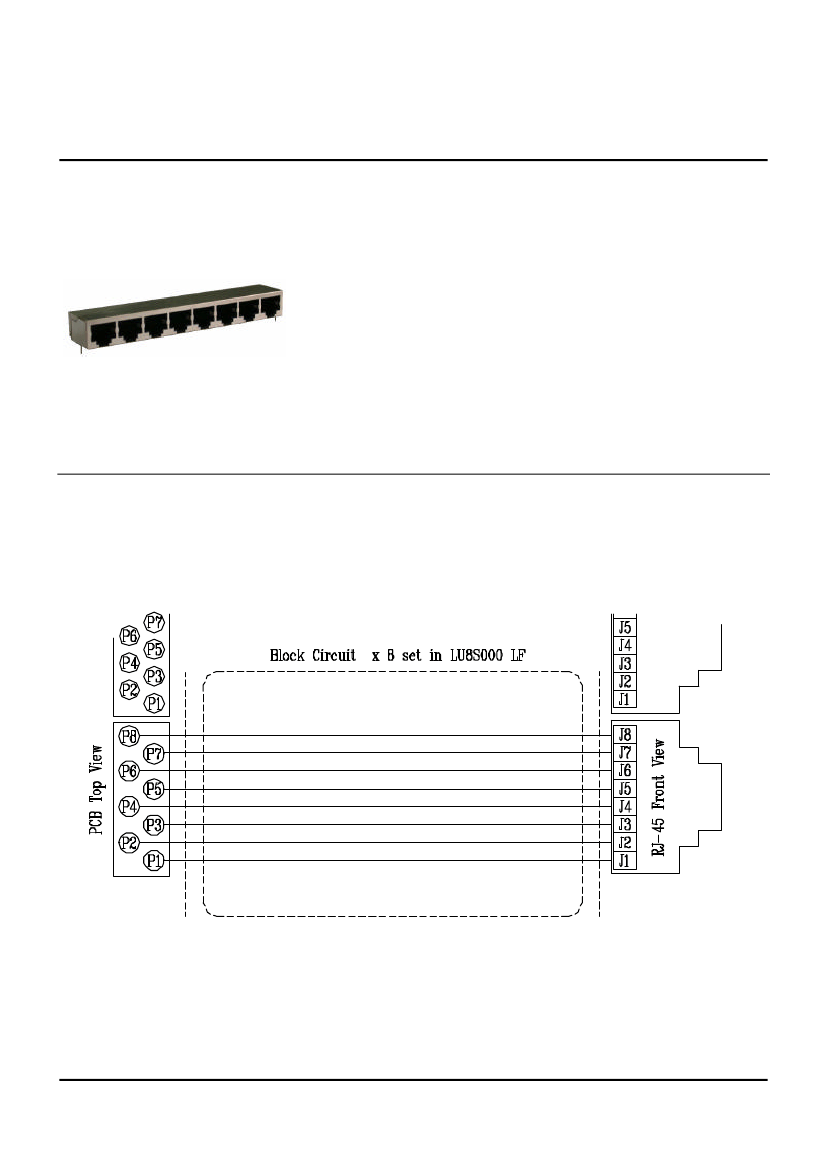

Schematic
462 Boston St,
Topsfield, MA 01983
http://www.bothhandUSA.com
email:sales@bothhandusa.com
A1(08/01)
tel: 978-887-8050
fax: 978-887-5434
Bothhand USA
“LAN-MATE” SERIES
email:sales@bothhandusa.com
tel: 978-887-8050
1X8 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU8S000 LF

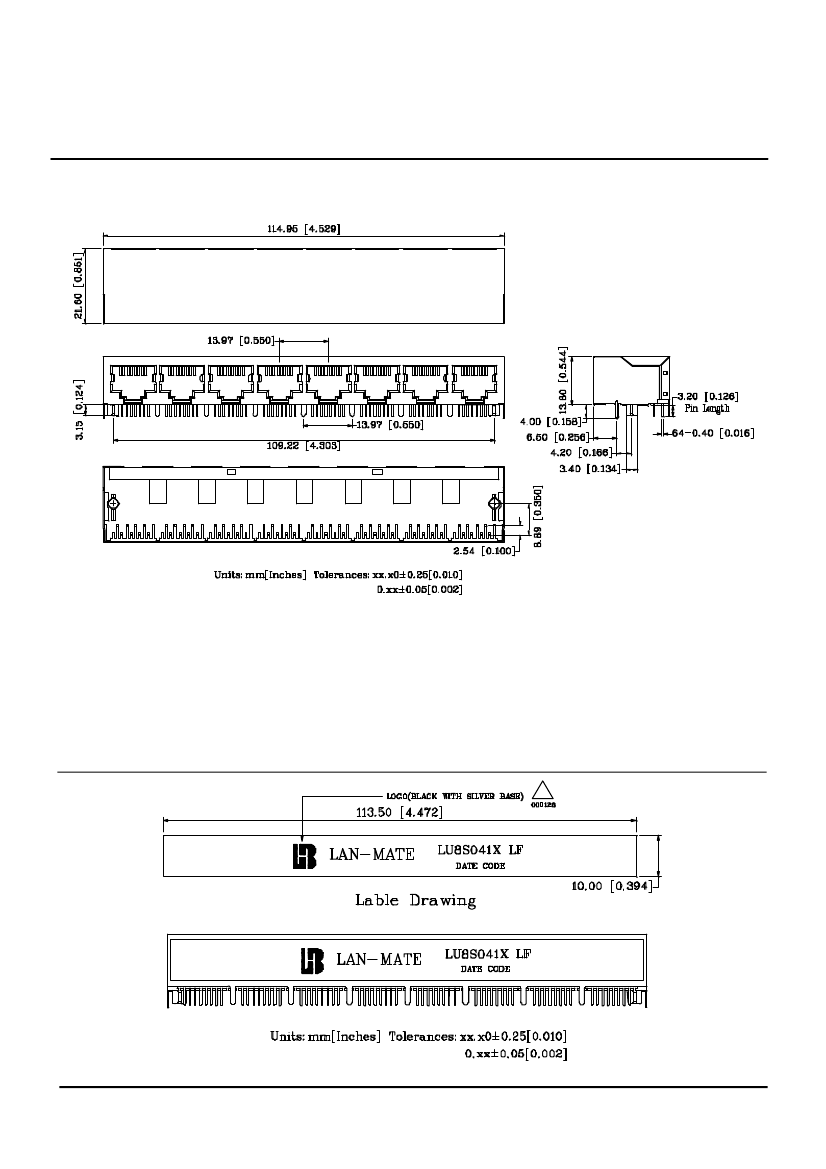

Mechanical
Page: 2/3
1. Plastic Material
2. Metal Shield
3. Spring Wire
4. Solder Pin
5. Durability
: Thermoplastic (UL 94V-0), Black Housing
: Brass, 20u" inches thick Nickel
: Phosphor bronze with selective gold plating
: 0.4x0.4mm, Phosphor bronze with solder Plated
: 750 Mating cycles Min.
Label position
﹗
462 Boston St,
Topsfield, MA 01983
http://www.bothhandUSA.com
email:sales@bothhandusa.com
A1(08/01)
tel: 978-887-8050
fax: 978-887-5434
Bothhand USA
“LAN-MATE” SERIES
email:sales@bothhandusa.com
tel: 978-887-8050
1X8 RJ45 CONNECTOR MODULE WITH INTEGRATED 10/100 BASE-TX MAGNETICS
P/N: LU8S000 LF

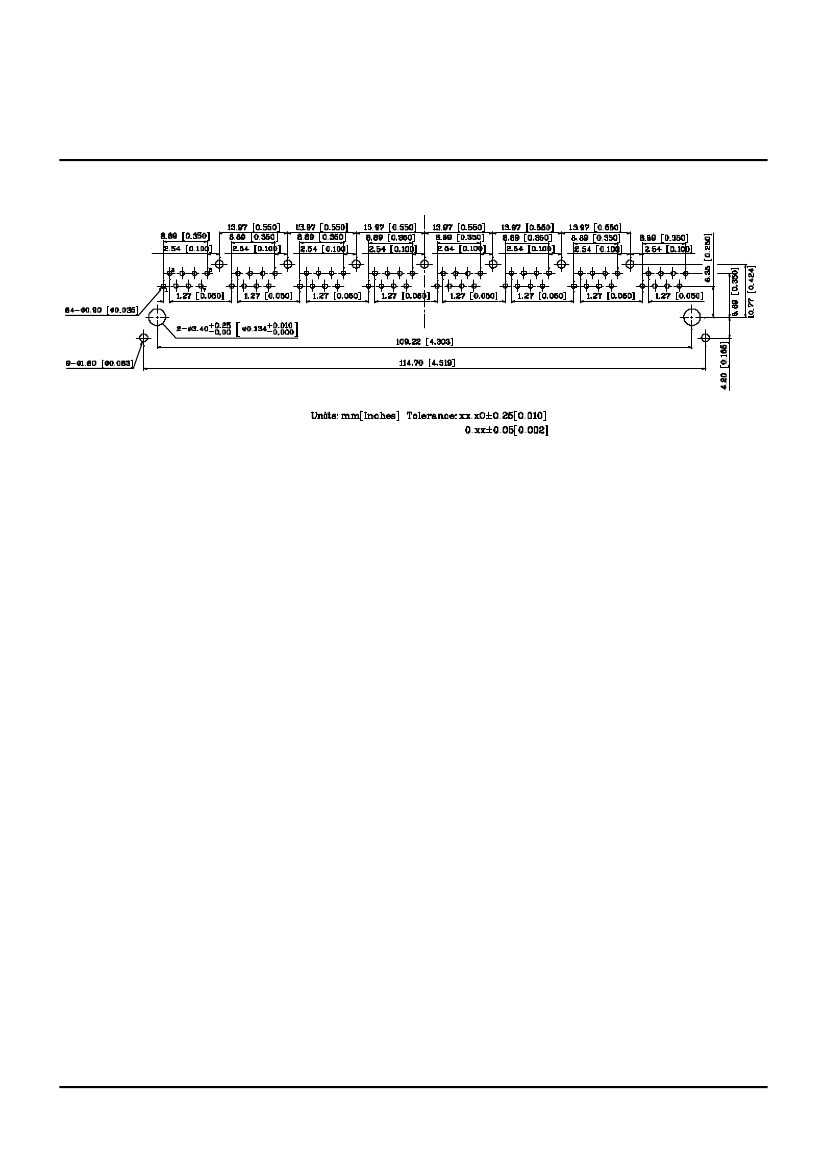

PCB Layout Mounting Hole(Top View)
