014034-0014 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 014034-0014

014034-0014: DescriptionD Subminiature Connector, 4 Contact(s), Male, Solder Terminal, Locking, Plug,; CategoryThe connector The connector; File Size472KB，2 Pages; ManufacturerSabritec

Download Datasheet Parametric View All

014034-0014 Overview

D Subminiature Connector, 4 Contact(s), Male, Solder Terminal, Locking, Plug,

014034-0014 Parametric

Parameter Name	Attribute value
Maker	Sabritec
Reach Compliance Code	unknown
Is Samacsys	N
Other features	COMPATIBLE CONTACTS: 018834-0002, 018834-0003
body width	0.35 inch
body length	1.51 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact arrangement	S0C4
Contactor design	PREASSEM CONN
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact style	HYBRID
DIN compliance	NO
Durability	500 Cycles
empty shell	YES
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYTETRAFLUOROETHYLENE
MIL compliance	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation type	CABLE AND PANEL
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (signal)	3 A
reliability	COMMERCIAL
Shell surface	GOLD
Housing size	2/A
Termination type	SOLDER
Total number of contacts	4
Base Number Matches	1

Preview

Download Datasheet

View All

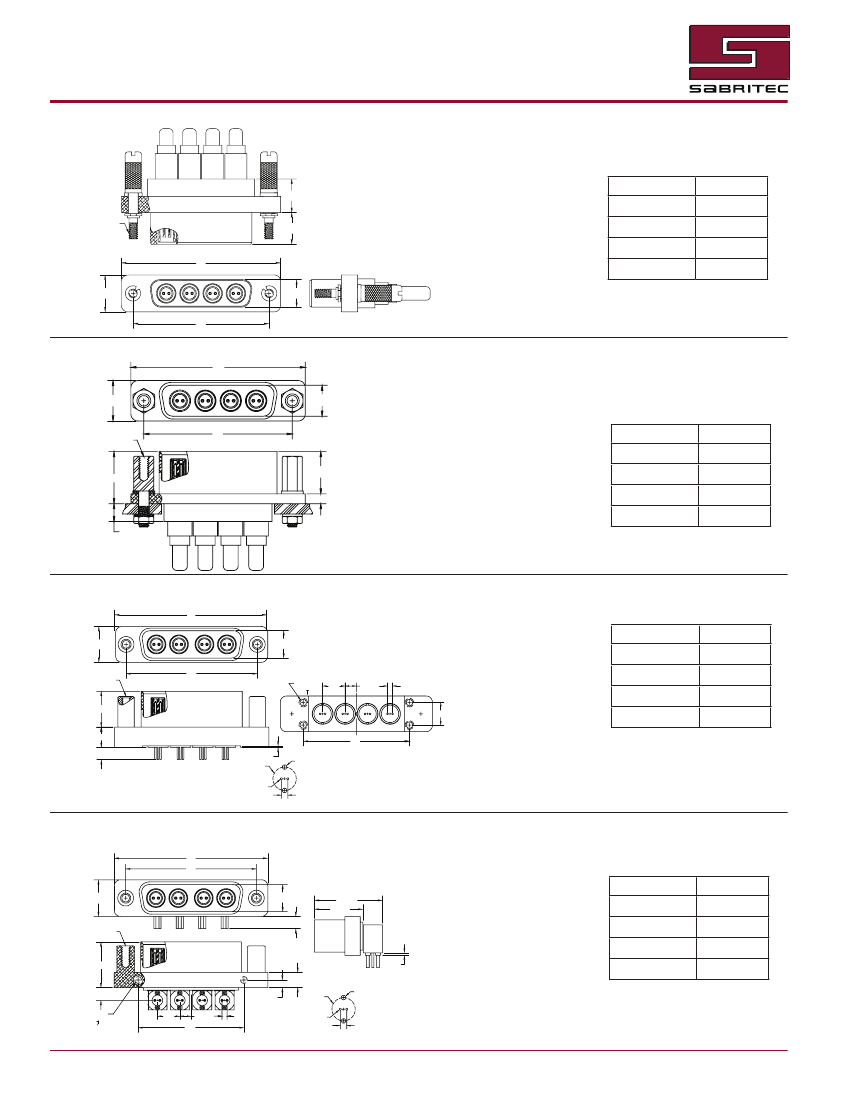

Micro-D Size 10 Twinax Contacts (MDTX)

Sabritec's Micro-D Twinax Connectors (MDTX) offer twinax blindmate assemblies fitted into a low-profile metalized

Micro-D style shell. This series allows for modularity of PCB routing of high speed signaling capable of 100 Ohm

differential pair matched impedance for IEEE 1394b firewire and gigabit Ethernet applications in a size 10 twinax

contact. These connectors allow for maximum space utilization, ultra miniature size, high vibration capability and are

extremely light weight and modular with true signal integrity. Insert arrangements are available in 2, 4, 6 and 8 way

twinax assemblies with mixed signal and power contacts available in hybrid layouts. These connectors are available

with locking post mechanisms or blind mate features.

Please consult factory for unique hybrid layouts and custom shell configurations.

Size 10 Twinax Socket Contact 100 Ohm for MDTX Cable Mount Plug

(.825)

Part Number

Cable Type

Cable

018934-0002 Differential Twinax

018934-0003 Flexible Twinax

018934-0004 Differential Twinax

540-1153-000

540-1161-000

540-1167-000

Size 10 Twinax Pin Contact 100 Ohm for MDTX Cable Mount Receptacle

(.750)

Part Number

Cable Type

Cable

018834-0002 Differential Twinax

018834-0003 Flexible Twinax

018834-0004 Differential Twinax

540-1153-000

540-1161-000

540-1167-000

Cable Assembly Ordering Information

018934-0002

018834-0002

CONNECTOR #1

LENGTH IN INCHES

CABLE GROUP

See Page 38 for cable group listings

CONNECTOR #2

Insert Arrangements

SHELL SIZE 1

SHELL SIZE 2

CUSTOM

Shell Dimensions

Shell Size

Contacts

.845

1.285

1.765

2.205

1.070

1.510

2.040

2.480

.600

1.040

1.480

1.920

#2-56

#4-40

.572

1.012

1.452

1.892

SHELL SIZE 3

SHELL SIZE 4

(3.450)

* Removable Twinax Contacts

Require Removal Tool SIR-035

(ordered separately)

(Ø.192)

(Ø.750)

PLUNGER

HANDLE

EXTRACTION TOOL BODY

2X (Ø.120) FOR JACK SCREW #4-40

2X (Ø.092) FOR JACK SCREW #2-56

(.300)

(R .062)

PANEL CUTOUT

Removal Tool SIR-035
