51963-052LF: DescriptionBoard Connector, 18 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, Black Insulator, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size232KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

51963-052LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	51963-052LF	-	-	View	Buy Now

51963-052LF Overview

Board Connector, 18 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, Black Insulator, Receptacle, LEAD FREE

51963-052LF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Board mount options	HOLE .120- .126
body width	0.574 inch
subject depth	0.5 inch
body length	2.45 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	NOT SPECIFIED
Contact resistance	20 mΩ
Contact style	HYBRID
DIN compliance	NO
Dielectric withstand voltage	2500VDC V
Durability	200 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	.973 N
Insulation resistance	10000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED THERMOPLASTIC
MIL compliance	NO
Manufacturer's serial number	51963-052
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.165 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	18
UL Flammability Code	94V-0
Evacuation force-minimum value	.1668 N
Base Number Matches	1

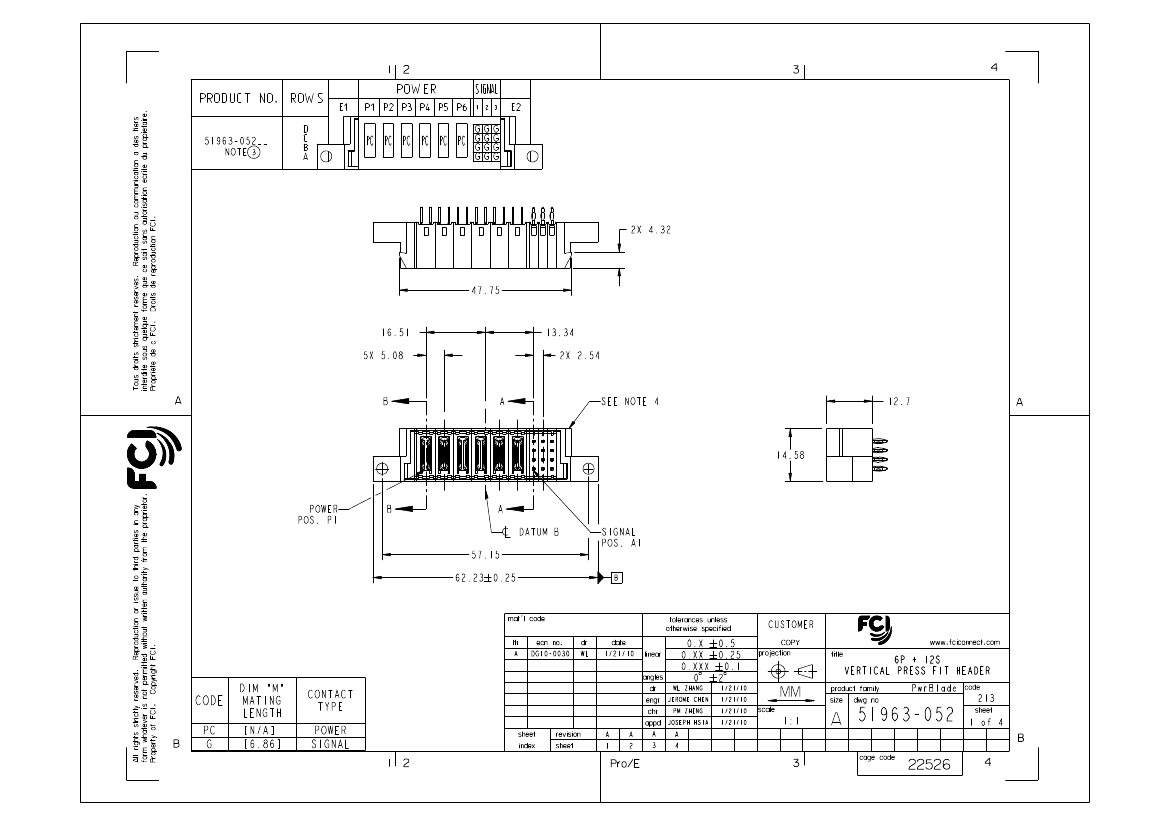

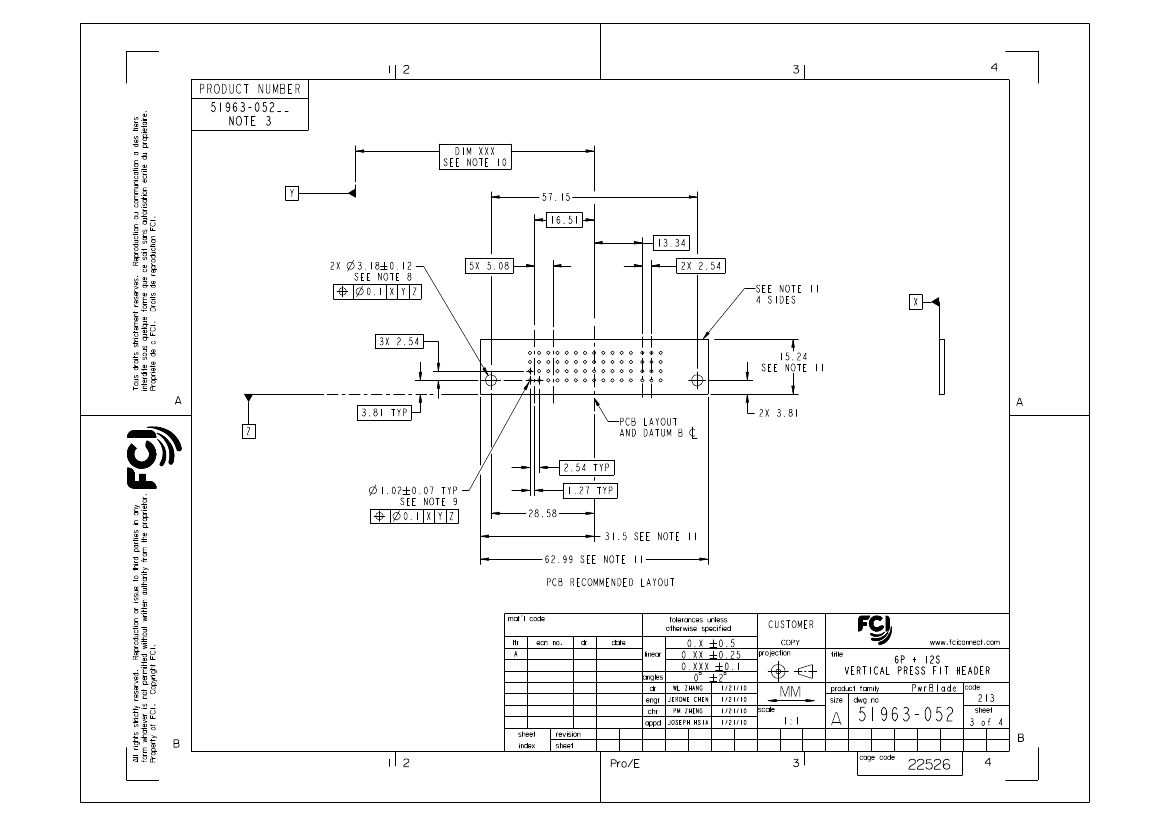

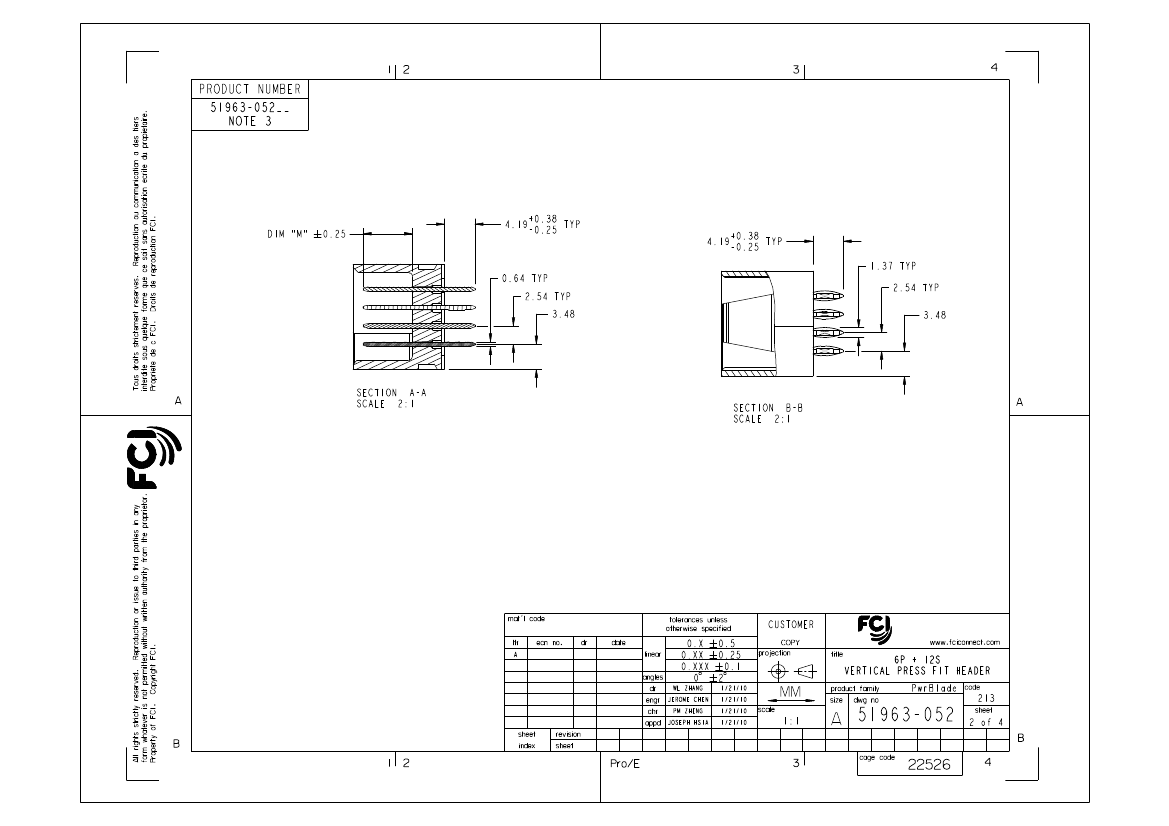

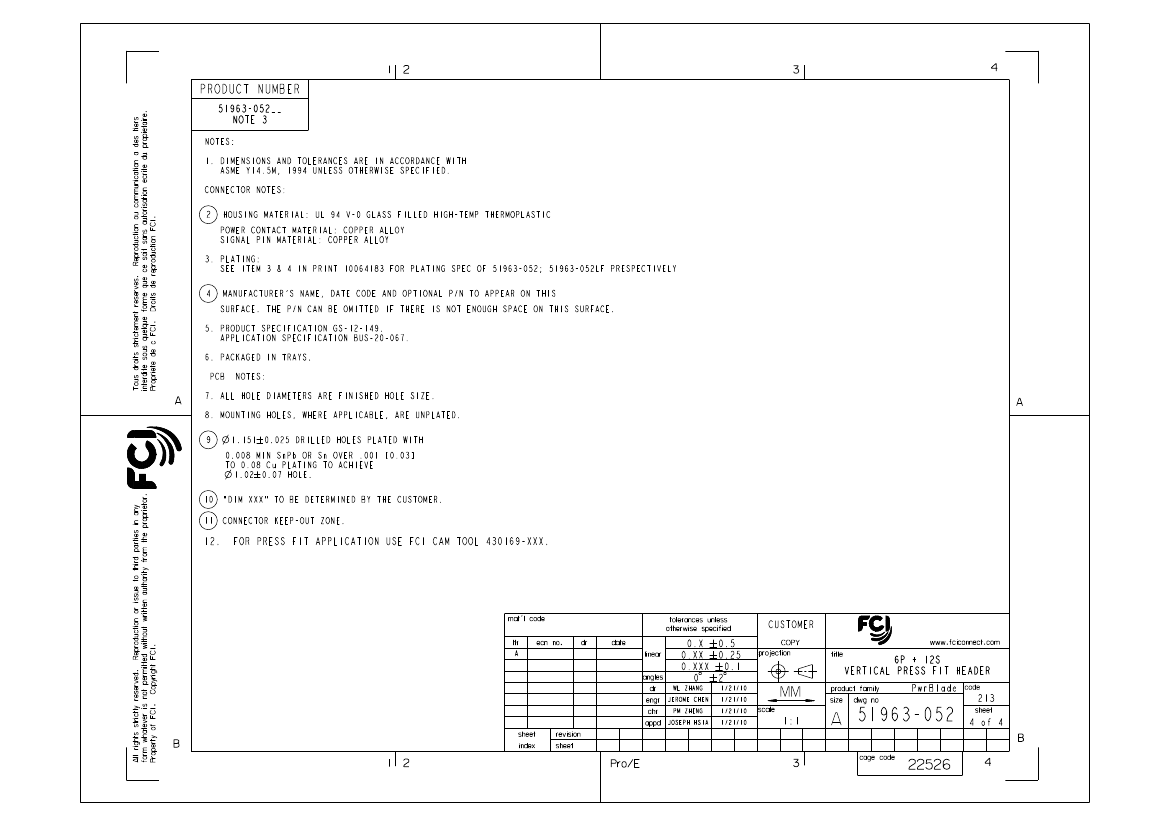

Preview

Download Datasheet

View All

PDM: Rev:A

STATUS:

Released

Printed: Dec 20, 2010

.

51963-052LF Related Products

	51963-052LF	51963-052
Description	Board Connector, 18 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, Black Insulator, Receptacle, LEAD FREE	Board Connector, 18 Contact(s), 4 Row(s), Male, Straight, Press Fit Terminal, Locking, Black Insulator, Receptacle
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Is Samacsys	N	N
Other features	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM	TERMINAL PITCH FOR POWER CONTACTS: 5.08 MM
Board mount options	HOLE .120- .126	HOLE .120- .126
body width	0.574 inch	0.574 inch
subject depth	0.5 inch	0.5 inch
body length	2.45 inch	2.45 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED
Contact completed and terminated	TIN OVER NICKEL	TIN/LEAD OVER NICKEL
Contact point gender	MALE	MALE
Contact material	NOT SPECIFIED	COPPER ALLOY
Contact resistance	20 mΩ	20 mΩ
Contact style	HYBRID	HYBRID
DIN compliance	NO	NO
Dielectric withstand voltage	2500VDC V	2500VDC V
Durability	200 Cycles	200 Cycles
Filter function	NO	NO
IEC compliance	NO	NO
maximum insertion force	.973 N	.973 N
Insulation resistance	10000000000 Ω	10000000000 Ω
Insulator color	BLACK	BLACK
insulator material	GLASS FILLED THERMOPLASTIC	GLASS FILLED THERMOPLASTIC
MIL compliance	NO	NO
Manufacturer's serial number	51963-052	51963-052
Mixed contacts	YES	YES
Installation option 1	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD
Number of connectors	ONE	ONE
Number of rows loaded	4	4
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Terminal length	0.165 inch	0.165 inch
Terminal pitch	2.54 mm	2.54 mm
Termination type	PRESS FIT	PRESS FIT
Total number of contacts	18	18
UL Flammability Code	94V-0	94V-0
Evacuation force-minimum value	.1668 N	.1668 N
Base Number Matches	1	1
