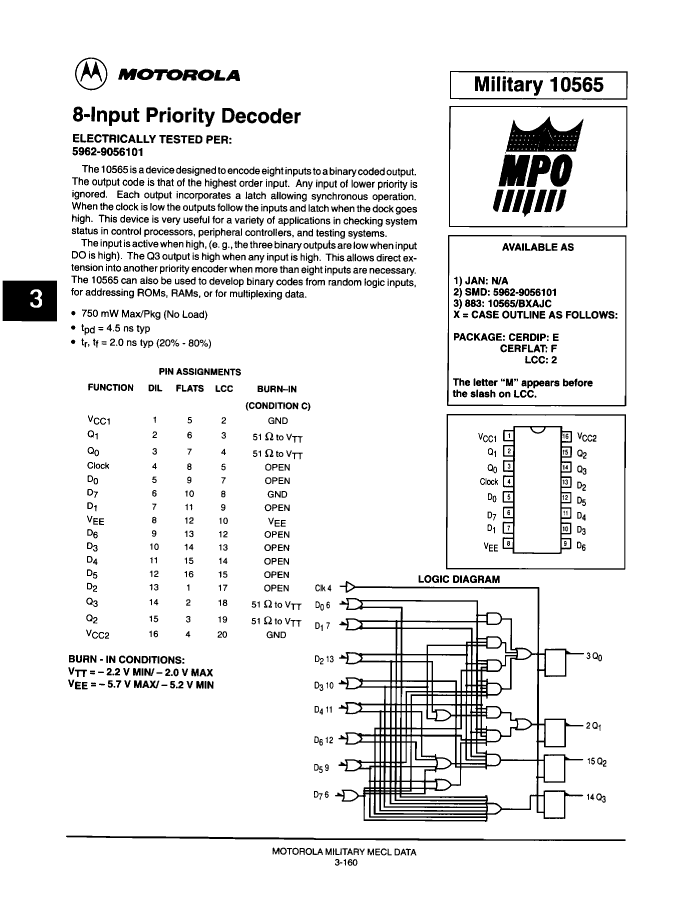

10K SERIES, 8-BIT ENCODER, CDIP16, CERDIP-16

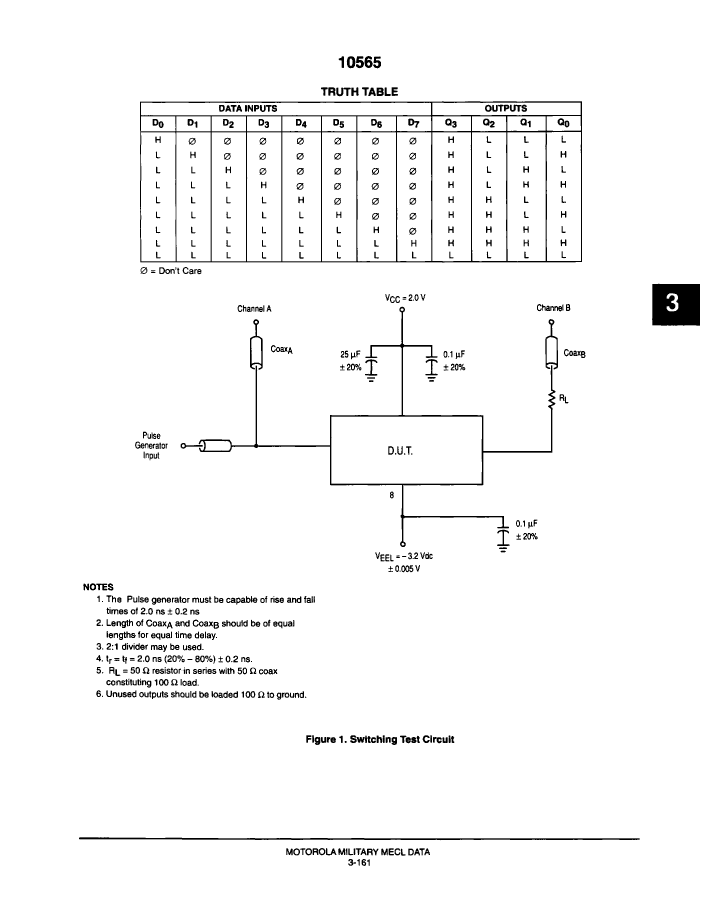

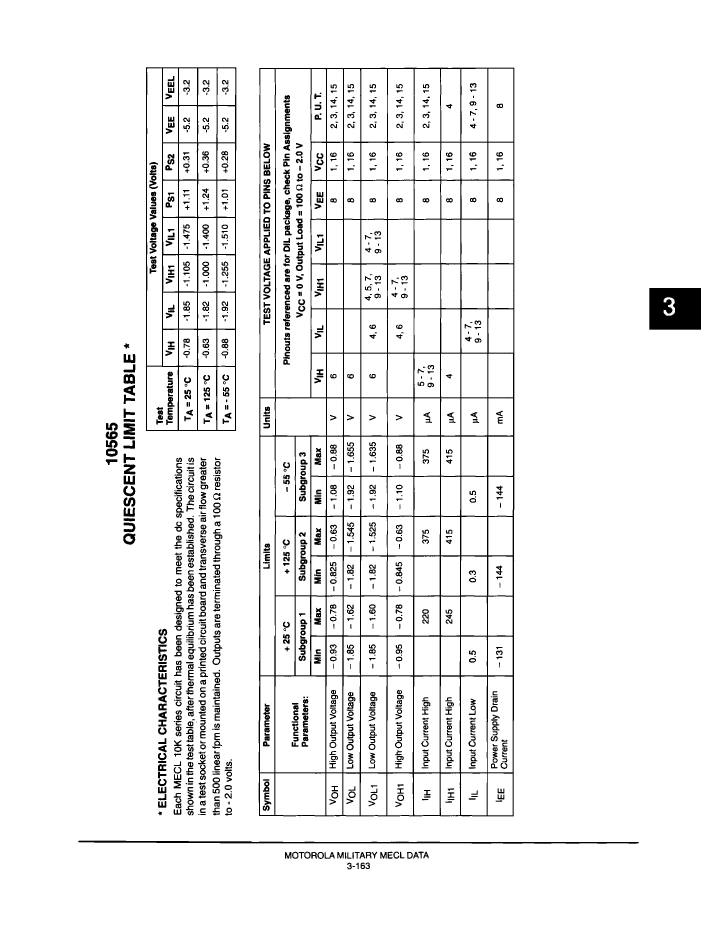

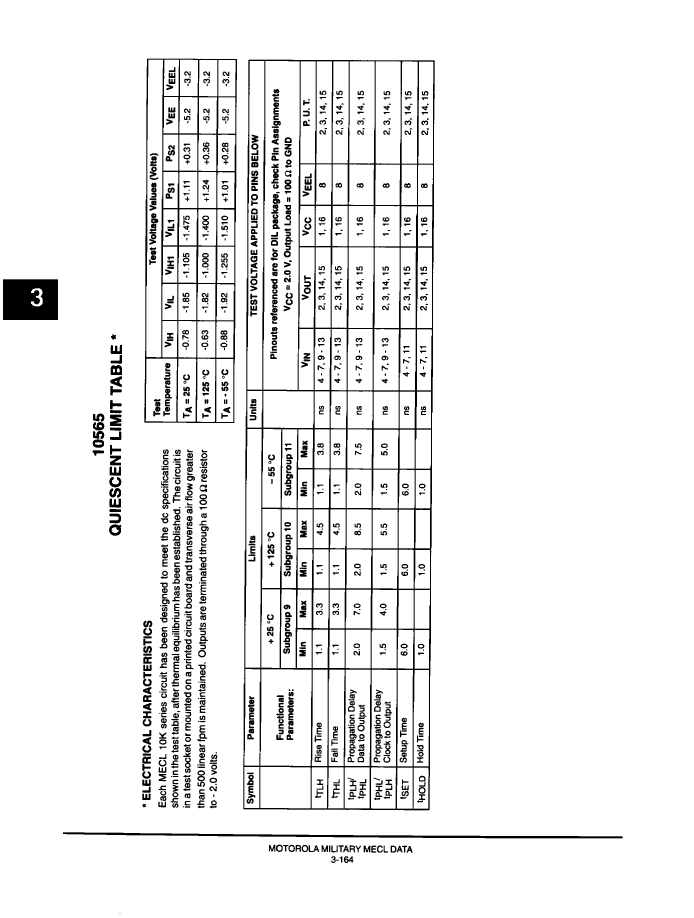

| Parameter Name | Attribute value |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| Is Samacsys | N |
| Other features | 8 TO 4 LINE PRIORITY ENCODER; LATCHED OUTPUTS |
| series | 10K |
| JESD-30 code | R-GDIP-T16 |
| length | 19.495 mm |
| Logic integrated circuit type | ENCODER |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output characteristics | OPEN-EMITTER |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Maximum supply current (ICC) | 144 mA |
| propagation delay (tpd) | 8.5 ns |
| Certification status | Not Qualified |
| Maximum seat height | 5.08 mm |
| surface mount | NO |
| technology | ECL |
| Temperature level | MILITARY |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 7.62 mm |
| Base Number Matches | 1 |
| 10565BEAJC | 10565BFAJC | 5962-90561012A | 5962-9056101FA | 5962-9056101EA | |
|---|---|---|---|---|---|
| Description | 10K SERIES, 8-BIT ENCODER, CDIP16, CERDIP-16 | Encoder, 10K Series, 8-Bit, ECL, CDFP16, CERAMIC, FP-16 | 10K SERIES, 8-BIT ENCODER, CQCC20, CERAMIC, LCC-20 | 10K SERIES, 8-BIT ENCODER, CDFP16, CERAMIC, FP-16 | Encoder, 10K Series, 8-Bit, ECL, CDIP16, CERDIP-16 |
| package instruction | DIP, | DFP, | QCCN, | DFP, | DIP, |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown |
| Other features | 8 TO 4 LINE PRIORITY ENCODER; LATCHED OUTPUTS | 8 TO 4 LINE PRIORITY ENCODER; LATCHED OUTPUTS | 8 TO 4 LINE PRIORITY ENCODER; LATCHED OUTPUTS | 8 TO 4 LINE PRIORITY ENCODER; LATCHED OUTPUTS | 8 TO 4 LINE PRIORITY ENCODER; LATCHED OUTPUTS |
| series | 10K | 10K | 10K | 10K | 10K |
| JESD-30 code | R-GDIP-T16 | R-GDFP-F16 | S-CQCC-N20 | R-GDFP-F16 | R-GDIP-T16 |
| length | 19.495 mm | 9.65 mm | 8.885 mm | 9.65 mm | 19.49 mm |
| Logic integrated circuit type | ENCODER | ENCODER | ENCODER | ENCODER | ENCODER |
| Number of digits | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 16 | 16 | 20 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Output characteristics | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER | OPEN-EMITTER |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DFP | QCCN | DFP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | SQUARE | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | FLATPACK | CHIP CARRIER | FLATPACK | IN-LINE |
| Maximum supply current (ICC) | 144 mA | 144 mA | 144 mA | 144 mA | 144 mA |
| propagation delay (tpd) | 8.5 ns | 8.5 ns | 8.5 ns | 8.5 ns | 8.5 ns |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.08 mm | 2.15 mm | 1.9 mm | 2.15 mm | 5.08 mm |
| surface mount | NO | YES | YES | YES | NO |
| technology | ECL | ECL | ECL | ECL | ECL |
| Temperature level | MILITARY | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | THROUGH-HOLE | FLAT | NO LEAD | FLAT | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 1.27 mm | 1.27 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | QUAD | DUAL | DUAL |
| width | 7.62 mm | 6.415 mm | 8.885 mm | 6.415 mm | 7.62 mm |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 |
| Parts packaging code | DIP | - | QLCC | DFP | - |
| Contacts | 16 | - | 20 | 16 | - |
| JESD-609 code | - | - | e0 | e0 | e0 |
| Terminal surface | - | - | TIN LEAD | TIN LEAD | TIN LEAD |
