1N100W-30FM datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> 1N100W-30FM

1N100W-30FM: DescriptionFixed Attenuator, 0MHz Min, 1500MHz Max, ROHS COMPLIANT PACKAGE; CategoryWireless rf/communication Radio frequency and microwave; File Size44KB，1 Pages; ManufacturerCobham Semiconductor Solutions; Environmental Compliance

Download Datasheet Parametric View All

1N100W-30FM Overview

Fixed Attenuator, 0MHz Min, 1500MHz Max, ROHS COMPLIANT PACKAGE

1N100W-30FM Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Is Samacsys	N
Other features	N-F; N-M, I/P POWER-MAX(PEAK)=1000W
Nominal attenuation	30 dB
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	50 dBm
JESD-609 code	e4
Maximum operating frequency	1500 MHz
Minimum operating frequency
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	FIXED ATTENUATOR
Terminal surface	Gold (Au)
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

Preview

Download Datasheet

View All

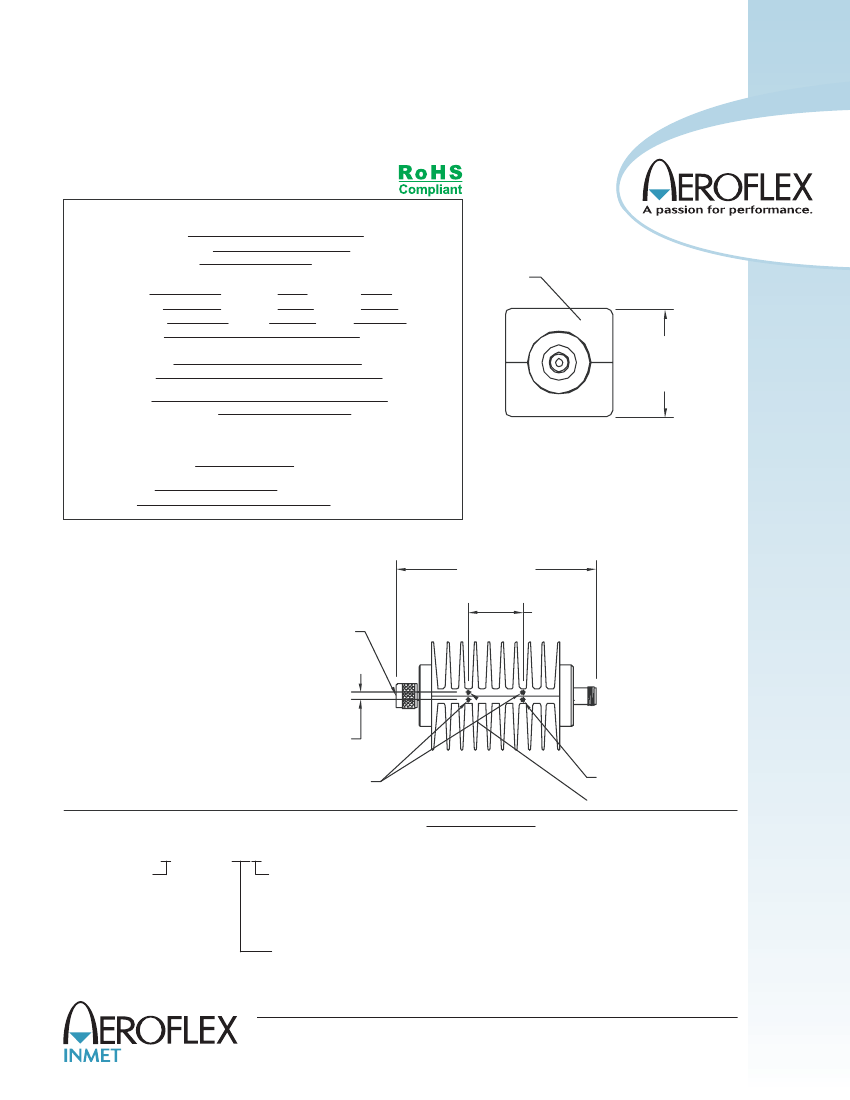

ATTENUATORS

Type N, up to 6 GHz, 100 Watts

SPECIFICATIONS:

Models: XN100W-XX, XN100W-XXF & XN100W-XXM

Electrical:

Frequency Range

Standard Freq. Values

Standard dB Values

Attenuation Accuracy

1 - 6 dB

10 - 40 dB

VSWR (Max.)

Input Power

Reverse Power

Peak Power

Impedance

Operating Temp Range

DC - 6.0 GHz

1.5, 2.5 & 6 GHz

3, 6, 10, 20, 30 & 40 dB

1.5 - 2.5 GHz 2.5 - 6 GHz

±0.50 dB

±0.75 dB

±1.0 dB

±1.5 dB

1.40:1

1.30:1

100 Watts Avg.

Derated Linearly to 20 Watts @ +1 C

Custom Mtg. hole Config.

may be Added to this

Surface

DC - 1.5 GHz

±0.50 dB

±0.75 dB

1.20:1

20 Watts Max.

1 kW Max.

(5uSec Pulse, .05% Duty Cycle)

3.46±.02

[87.88±0.51]

SQUARE

50 Ohms

-55°C to +125°C

Mechanical:

Type N Connectors

Mates with MIL

-STD-348

Passivated Stainless Steel

Gold Plated Beryllium Copper

Anodized Aluminum

END VIEW

TYPICAL

Units must be Mounted in such a way as to

Allow for Free Air Flow Around fins to Assure

Performance

Conductors

Housing

Note: Units are Unidirectional, Therefore Input Connector MUST be specified & will be Indicated on Unit

Model Number:

XN100W-XX

Male/Female Connectors

Length: 6.36 –.05 [161.5 –1.3]

Pictured

INPUT

Model Number:

XN100W-XXF

Female/Female Connectors

Length: 6.45 –.05 [163.8 –1.3]

6.36 ±.05

[161.5 ±1.3]

1.75

[44.45]

Model Number:

XN100W-XXM

Male/Male Connectors

Length: 6.28 –.05 [159.5 –1.3]

.23 [5.84]

2X M4x0.7 TAP

x .50 [12.7] DP

2X 8-32UNC-2B TAP

x .50 [12.7] DP

HOW TO ORDER:

Model Number:

Ordering Examples:

Model Number:

1N100W-1

DC - 1.5 GHz, 1 dB; Type N - Male/Fem

XN100W-XXY

Connector Configuration

Model Number:

2N100W-3F

= Male/Female

DC - 2.5 GHz, 3 dB; Type N - Fem/Fem

(Male Input)

F = Fem/Fem

Model Number:

6N100W-20FM

M = Male/Male

FM = Female/Male

DC - 6 GHz, 20 dB; Type N - Female/Male

(Female Input)

dB Value

Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.

Design specifications are subject to change without notice.

XN100W-ATT: REV N

Contact factory for technical specifications before purchasing or use.

Freq. Range

1 = DC - 1.5 GHz

2 = DC - 2.5 GHz

6 = DC - 6 GHz

Aeroflex / Inmet, Inc.

• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.

888-244-6638 or 734-426-5553 • FAX: 734-426-5557

www.aeroflex-inmet.com • sales@aeroflex-inmet.com
