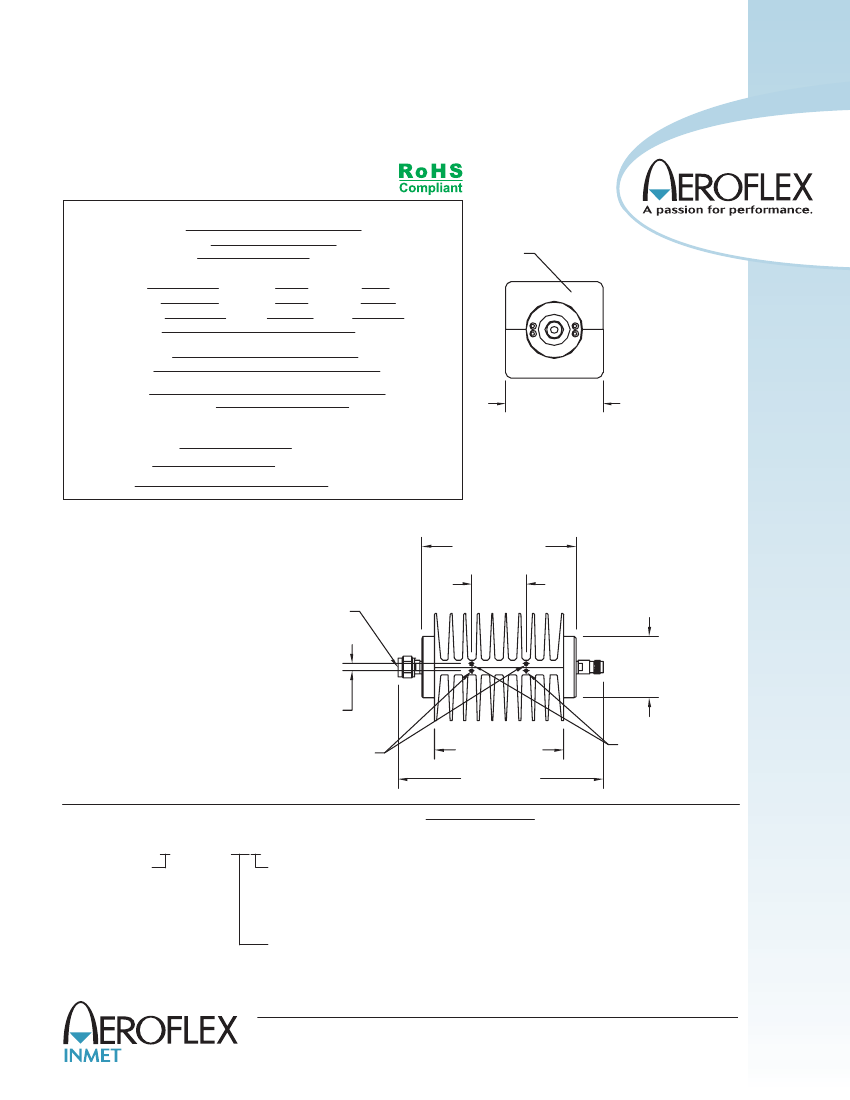

ATTENUATORS
TNC up to 6 GHz, 100 Watts
SPECIFICATIONS:
Models: XT100W-XX, XT100W-XXF, XT100W-XXM
Electrical:
Frequency Range
Standard Freq. Values
Standard dB Values
Attenuation Accuracy
1 - 6 dB
10 - 40 dB
VSWR (Max.)
Input Power
Reverse Power
Peak Power
Impedance
Operating Temp Range
DC - 6.0 GHz
1.5, 2.5, & 6 GHz
3, 6, 10, 20, 30 & 40 dB
DC - 1.5 GHz 1.5 - 2.5 GHz 2.5 - 6 GHz
±0.50 dB
±0.75 dB
±0.50 dB
±1.0 dB
±1.5 dB
±0.75 dB
1.30:1
1.20:1
1.40:1
100 Watts Avg.
Derated Linearly to 20 Watts @ +125
o
C
Custom Mtg. hole Config.
may be Added to this
Surface
20 Watts Max.
1 kW Max.
(5uSec Pulse, .05% Duty Cycle)
50 Ohms
-55°C to +125°C
3.46 [87.9]
SQ.
Mechanical:
TNC Connectors
Mates with MIL-STD-348
Passivated Stainless Steel
Gold Plated Beryllium Copper
Anodized Aluminum
END VIEW
TYPICAL
Units must be Mounted in such a way as to
Allow for Free Air Flow Around fins to Assure
Performance
Conductors
Housing
Note: Units are Unidirectional, Therefore Input Connector MUST be specified & will be Indicated on Unit
Model Number:
XT100W-XX
Male/Female Connectors
Length: 6.53 ±.05 [165.9 ±1.3]
Pictured
INPUT
Model Number:
XT100W-XXF
Female/Female Connectors
Length: 6.62 ±.05 [168.1 ±1.3]
4.965 ±.025
[126.11 ±0.64]
1.75
[44.5]
2x Ø1.98
[50.3]
.23 [5.8]
2X M4x0.7 TAP
x .50 [12.7] DP.
4.125 [104.8]
6.53 ±.05
[165.9 ±1.3]
2X 8-32UNC-2B TAP
x .50 [12.7] DP.
Model Number:
XT100W-XXM
Male/Male Connectors
Length: 6.43 ±.05 [163.3 ±1.3]
HOW TO ORDER:
Model Number:
XT100W-XXY
Connector Configuration
= Male/Female
(Male Input)
F = Fem/Fem
M = Male/Male
FM = Female/Male
(Female Input)
dB Value
Ordering Examples:
Model Number:
1T100W-1
DC - 1.5 GHz, 1 dB; TNC - Male/Fem
Model Number:
2T100W-3F
DC - 2.5 GHz, 3 dB; TNC - Fem/Fem
Model Number:
6T100W-20FM
DC - 6 GHz, 20 dB; TNC - Female/Male
Freq. Range
1 = DC - 1.5 GHz
2 = DC - 2.5 GHz
6 = DC - 6 GHz
Note: Dimensions in Brackets are Expressed in Millimeters and are for Reference Only.
Design, specifications are subject to change without notice. Contact factory for technical
specifications before purchasing or use.
XT100W-ATT: REV N
Aeroflex / Inmet, Inc.
• 300 Dino Drive, Ann Arbor, MI 48103 • U.S.A.
888-244-6638 or 734-426-5553 • FAX: 734-426-5557
www.aeroflex-inmet.com • sales@aeroflex-inmet.com
