LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
LED SMD
Pb
LG-192HYS-CT
DATA SHEET
DOC. NO :
REV.
DATE
:
:
QW0905-LG-192HYS-CT
B
04 - Feb - 2005
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LG-192HYS-CT
Page 1/10
Features:
1. Package in 8.0mm carrier tape on 7" diameter reel.
2. Compatible with automatic placement equipment.
3. Compatible with reflow solder process.
Descriptions:
1. The LG-192 SMD Taping is much smaller than
lead frame type components, thus enable smaller
board size, higher packing density, reduced storage
space and finally smaller equipment to be obtained.
2. Besides, lightweight makes them ideal for miniature
applications. etc.
Applications:
1. Automotive : backlighting in dashboard and switch.
2. Telecommunication : indicator and backlighting in telephone and fax.
3. Flat backlight for LCD, switch and symbol
4. General use.
Device Selection Guide:
PART NO
LG-192HYS-CT
MATERIAL
AIGaInP
COLOR
Emitted
Yellow
Lens
Water Clear
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LG-192HYS-CT
Page 2/10
Package Dimensions
Cathode Mark
0.8
0.4
0.2
Resin
LED DICE
0.3
Cathode
Mark
1.6
1.0
1.0 0.6
Soldering
Terminal
0.3
PCB
Note : 1.All dimension are in millimeter tolerance is
±
0.1mm unless otherwise noted.
2.Specifications are subject to change without notice.
Recommended Soldering Pad Dimensions
0.8
0.8
0.7
0.8
Note : The tolerances unless mentioned is
±
0.1mm,Angle
±
0.5. Unit=mm.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LG-192HYS-CT
Page 3/10
Absolute Maximum Ratings at Ta=25
℃
Parameter
Power Dissipation
Peak Forward Current
Duty 1/10@10KHz
Forward Current
Reverse Current @5V
Electrostatic Discharge
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
PD
I
FP
I
F
Ir
ESD
T
opr
Tstg
Tsol
Ratings
78
60
30
10
2000
-40 ~ +85
-40 ~ +90
Max 260
℃
for 5 sec Max
UNIT
mW
mA
mA
μ
A
V
℃
℃
Typical Electrical & Optical Characteristics (Ta=25
℃
)
Items
Luminous Intensity
Peak Wavelength
Dominant Wavelength
Spectral Line Half-Width
Forward Voltage
Viewing Angle
Symbol Min.
Iv
50
----
----
----
1.7
----
Typ.
125
590
587
15
----
140
Max. UNIT
----
----
----
----
2.6
----
mcd
nm
nm
nm
V
deg
CONDITION
IF=20mA
IF=20mA
IF=20mA
IF=20mA
IF=20mA
IF=20mA
λ
P
λD
△λ
V
F
2
θ
1/2
Note : 1.The forward voltage data did not including
±
0.1V testing tolerance.
2. The luminous intensity data did not including
±
15% testing tolerance.
LIGITEK ELECTRONICS CO.,LTD.
Property of Ligitek Only
PART NO. LG-192HYS-CT
Page 4/10

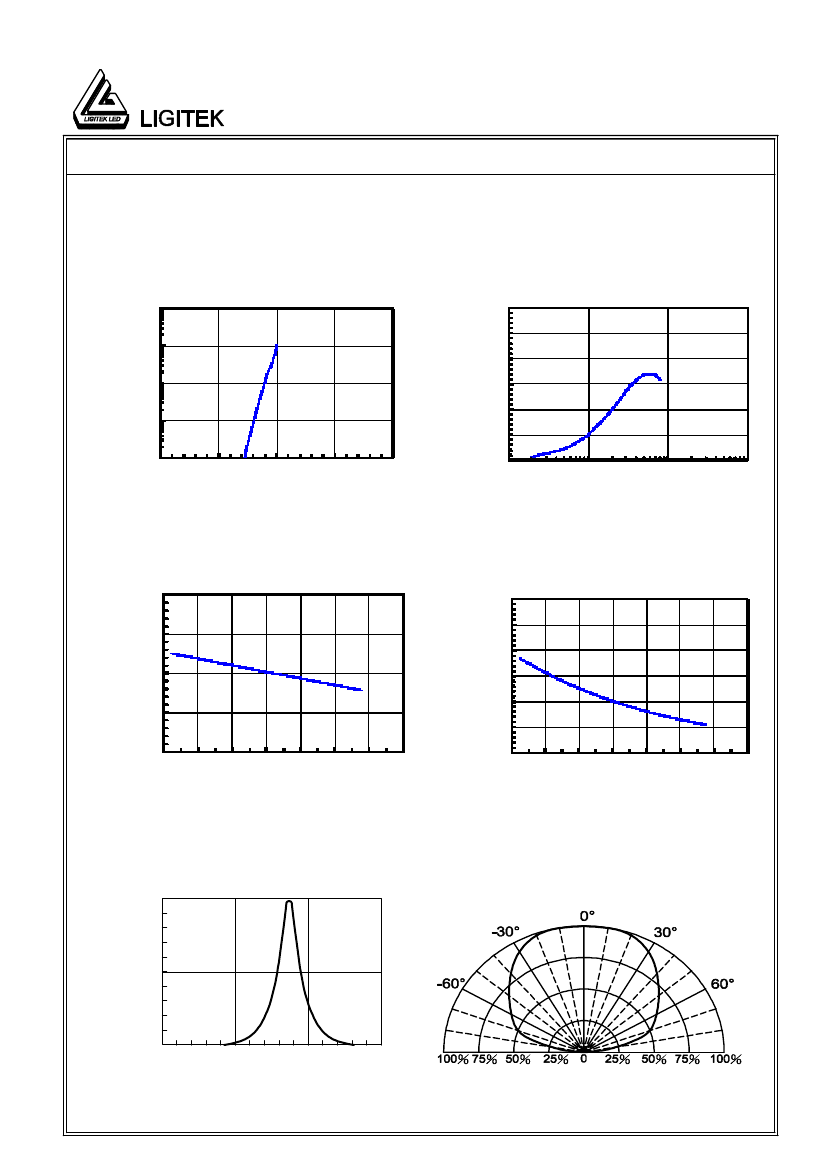

Typical Electro-Optical Characteristics Curve
HYS CHIP
Fig.1 Forward current vs. Forward Voltage
1000
Fig.2 Relative Intensity vs. Forward Current
3.0
Forward Current(mA)
100
Relative Intensity
Normalize @20mA
1.5
2.0
2.5
3.0
2.5
2.0
1.5
1.0
0.5
0.0
10
1.0
0.1
1.0
1.0
10
100
1000
Forward Voltage(V)
Fig.3 Forward Voltage vs. Temperature
1.2
Forward Current(mA)
Fig.4 Relative Intensity vs. Temperature
3.0
Relative Intensity@20mA
Normalize @25
℃
80
100
Forward Voltage@20mA
Normalize @25
℃
1.1
2.5
2.0
1.5
1.0
0.5
0.0
-40
-20
0
20
40
60
80
100
1.0
0.9
0.8
-40
-20
0
20
40
60
Ambient Temperature(
℃
)
Ambient Temperature(
℃
)
Fig.5 Relative Intensity vs. Wavelength
1.0
Fig.6 Directive Radiation
Relative Intensity@20mA
0.5
0.0
500
550
600
650
Wavelength (nm)
