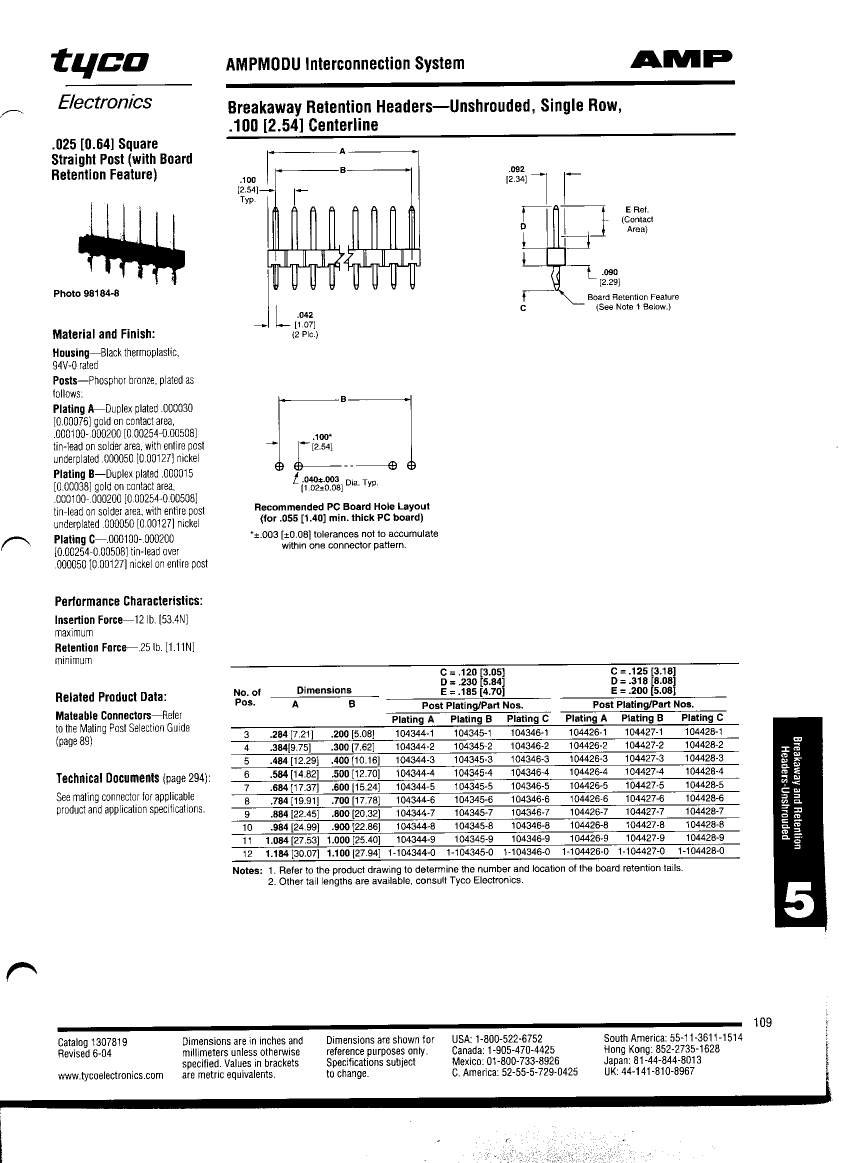

104428-7: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,9 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK; CategoryThe connector The connector; File Size38KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

104428-7 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,9 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK

104428-7 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Reach Compliance Code	unknow
Other features	BREAKAWAY TYPE
body width	0.092 inch
subject depth	0.09 inch
body length	0.884 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	750VAC V
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	104428
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
Plating thickness	100u inch
Rated current (signal)	3 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	9
Base Number Matches	1

Preview

Download Datasheet

View All

104428-7 Related Products

	104428-7	1-104346-0	1-104428-0	104428-8	104428-9	104428-3	104428-5	104346-7	104346-9
Description	HEADER CONNECTOR,PCB MNT,RECEPT,9 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,12 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,10 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,11 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,5 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,7 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,9 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK	HEADER CONNECTOR,PCB MNT,RECEPT,11 CONTACTS,PIN,0.1 PITCH,PC TAIL W/RETNN TERMINAL,BLACK
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknow	compli	unknow	unknow	unknow	unknow	unknow	unknown	unknown
Other features	BREAKAWAY TYPE	BREAKAWAY TYPE	BREAKAWAY TYPE	BREAKAWAY TYPE	BREAKAWAY TYPE	BREAKAWAY TYPE	BREAKAWAY TYPE	BREAKAWAY TYPE	BREAKAWAY TYPE
body width	0.092 inch	0.092 inch	0.092 inch	0.092 inch	0.092 inch	0.092 inch	0.092 inch	0.092 inch	0.092 inch
subject depth	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch	0.09 inch
body length	0.884 inch	1.184 inch	1.184 inch	0.984 inch	1.084 inch	0.484 inch	0.684 inch	0.884 inch	1.084 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI	SN-PB ON NI
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK
insulator material	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC	THERMOPLASTIC
Manufacturer's serial number	104428	104346	104428	104428	104428	104428	104428	104346	104346
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C	-65 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch	100u inch
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA	UL, CSA
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.125 inch	0.12 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.125 inch	0.12 inch	0.12 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS	SOLDER KINKED LEADS
Total number of contacts	9	12	12	10	11	5	7	9	11
Base Number Matches	1	1	1	1	1	1	1	1	1
