MC145406N datasheet, PDF - EEWORLD Datasheet

MC145406N: DescriptionLine Driver/Receiver, 3 Driver, PDIP16,; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size217KB，5 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MC145406N Overview

Line Driver/Receiver, 3 Driver, PDIP16,

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	DIP, DIP16,.3
Reach Compliance Code	unknown
Differential output	NO
Number of drives	3
High level input current maximum value	0.000001 A
JESD-30 code	R-PDIP-T16
JESD-609 code	e3
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Minimum output swing	7.5 V
Maximum output low current	0.004 A
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5,+-5/+-12 V
Certification status	Not Qualified
Maximum receive delay	425 ns
surface mount	NO
Temperature level	COMMERCIAL
Terminal surface	Matte Tin (Sn)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

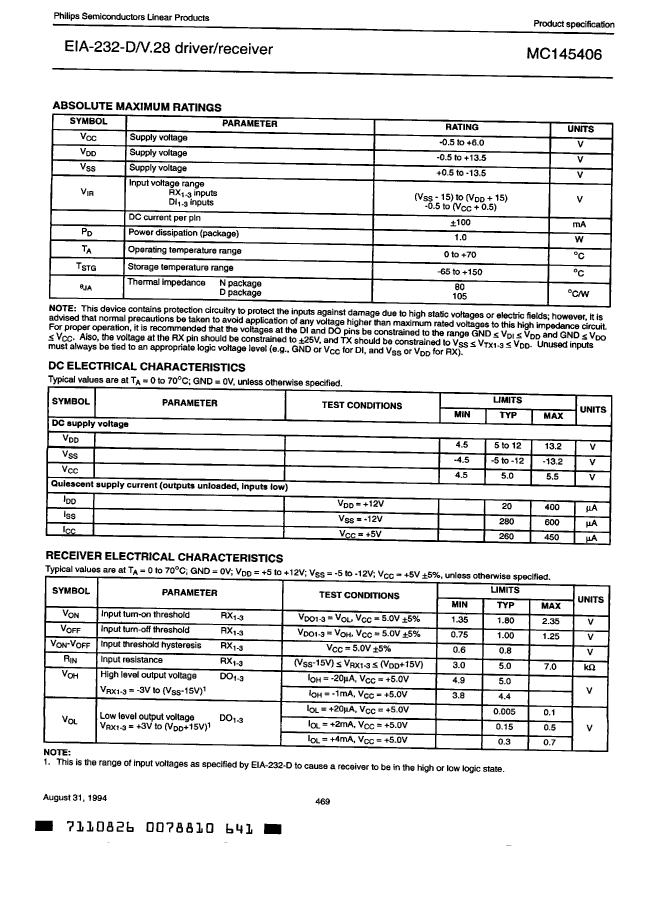

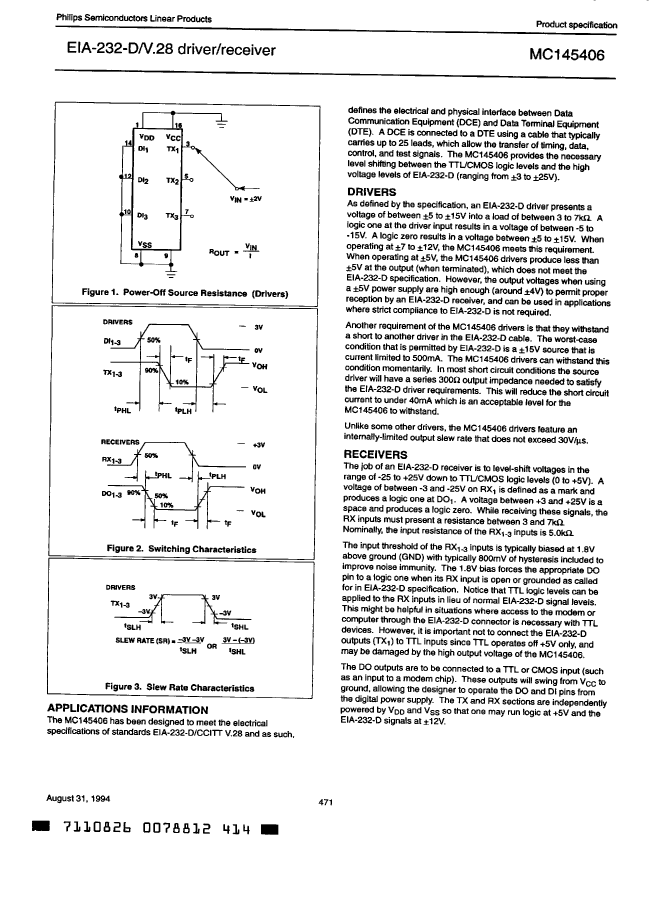

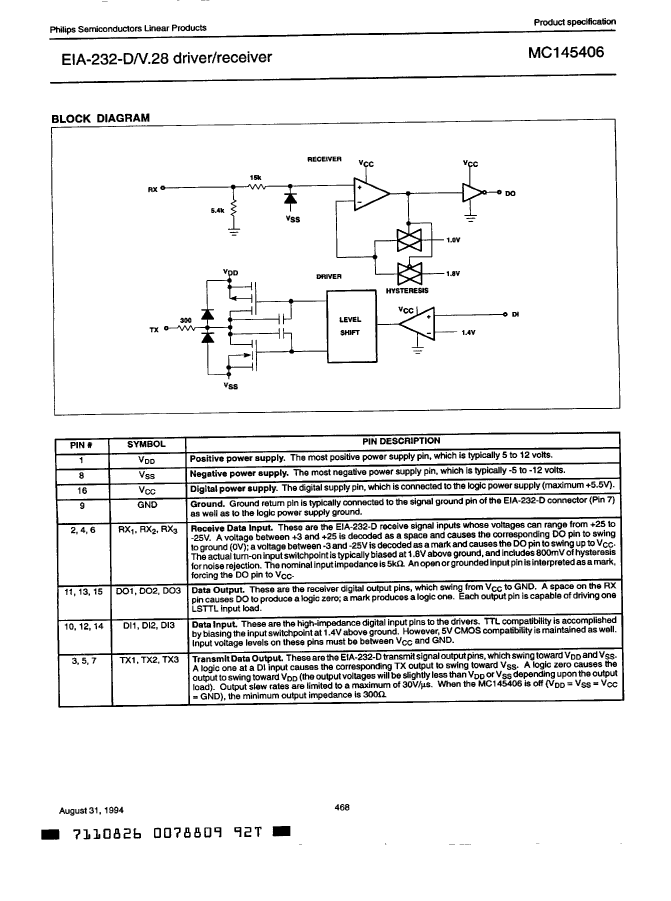

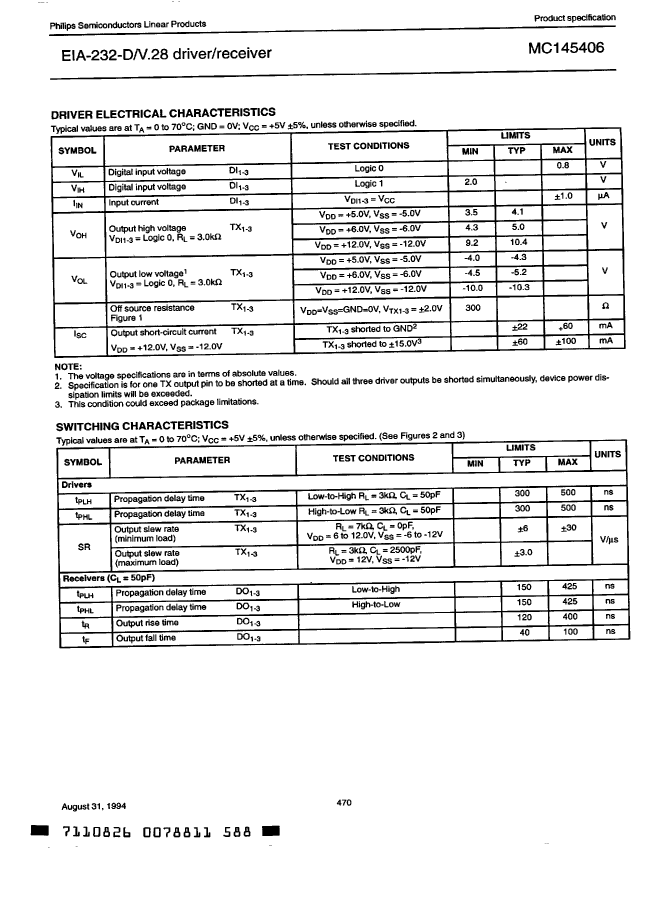

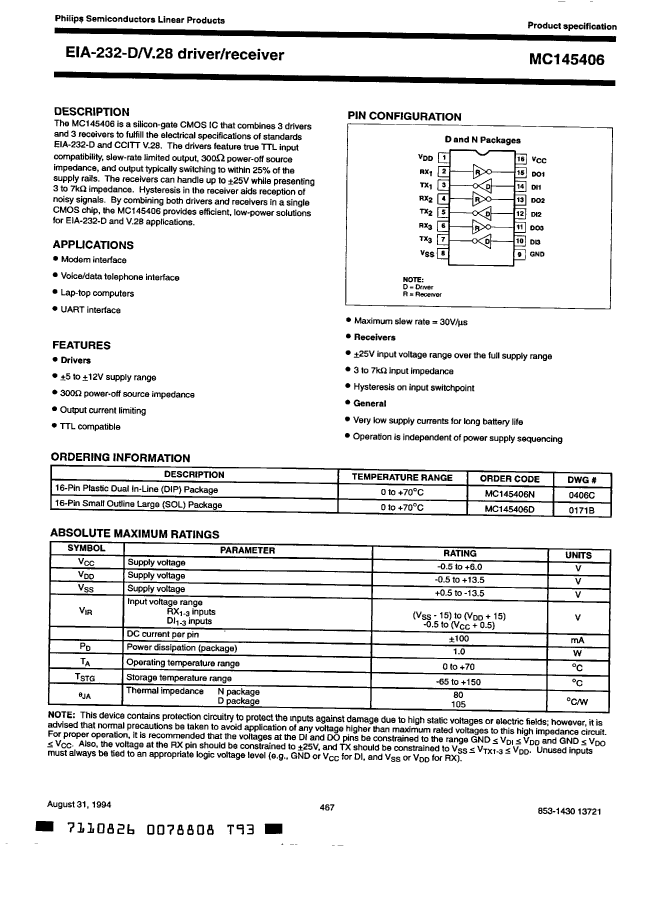

This Material Copyrighted By Its Respective Manufacturer

	MC145406N	MC145406D
Description	Line Driver/Receiver, 3 Driver, PDIP16,	Line Driver/Receiver, 3 Driver, PDSO16,
Is it Rohs certified?	conform to	conform to
package instruction	DIP, DIP16,.3	SOP, SOP16,.4
Reach Compliance Code	unknown	unknown
Differential output	NO	NO
Number of drives	3	3
High level input current maximum value	0.000001 A	0.000001 A
JESD-30 code	R-PDIP-T16	R-PDSO-G16
JESD-609 code	e3	e4
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Minimum output swing	7.5 V	7.5 V
Maximum output low current	0.004 A	0.004 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Encapsulate equivalent code	DIP16,.3	SOP16,.4
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
power supply	5,+-5/+-12 V	5,+-5/+-12 V
Certification status	Not Qualified	Not Qualified
Maximum receive delay	425 ns	425 ns
surface mount	NO	YES
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Matte Tin (Sn)	Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
Base Number Matches	1	1
