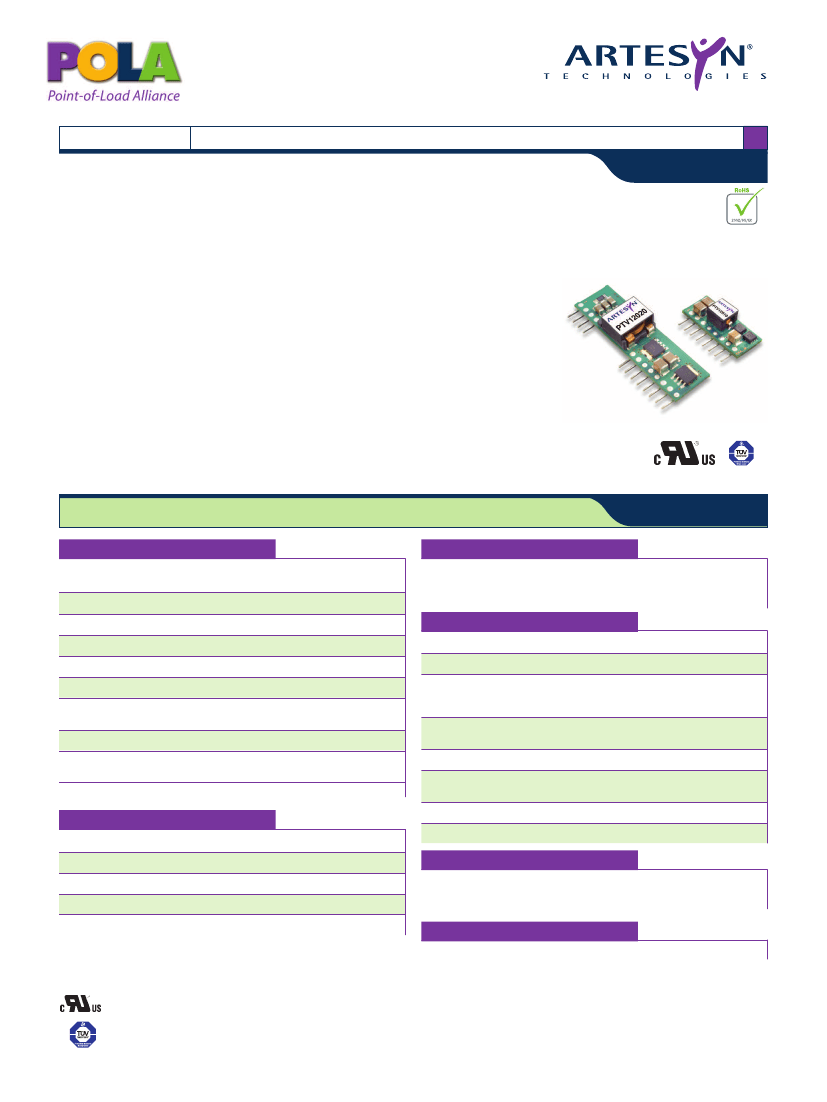

12 Vin single output
DC-DC CONVERTERS
POLA Non-isolated
NEW Product
1
•
8 A output current
•
12 V input voltage
•
Wide-output voltage adjust
•
1.2 Vdc to 5.5 Vdc for suffix ‘W’ and
0.8 Vdc to 1.8 Vdc for suffix ‘L’
•
Auto-track™ sequencing*
•
Pre-bias start-up
•
Efficiencies up to 93%
•
Output ON/OFF inhibit
•
Vertical through-hole mounting
•
Point-of-Load-Alliance (POLA) compatible
•
Undervoltage lockout
•
Available RoHS compliant
The PTV12010 is a non-isolated dc-dc converter from Artesyn under the Point of Load
Alliance (POLA) standard. The vertical mounting option of the PTV12010 module provides
performance in less than 20% of the space that is required by alternative solutions. The
Auto-Track™ feature provides for sequencing between multiple modules, a function,
which is becoming a necessity for powering advanced silicon including DSP’s, FPGA’s
and ASIC’s requiring controlled power-up and power-down. The PTV12010 has an input
voltage of 10.8 Vdc to 13.2 Vdc and offers a wide 1.2 Vdc to 5.5 Vdc for suffix ‘W’ and
0.8 Vdc to 1.8 Vdc for suffix ‘L’ output voltage range with up to 8 A output current, which
allows for maximum design flexibility and a pathway for future upgrades.
All specifications are typical at nominal input, full load at 25 °C unless otherwise stated
C
in
= 100 µF and 10 µF (Ceramic), C
out
= 0 µF
OUTPUT SPECIFICATIONS
Voltage adjustability
(See Note 4)
Setpoint accuracy
Line regulation
Load regulation
Total regulation
Minimum load
Ripple and noise
20 MHz bandwidth
Suffix ‘W’
Suffix ‘L’
(See Note 8)
Suffix ‘W’
Suffix ‘L’
(See Note 8)
1.2-5.5 Vdc
0.8-1.8 Vdc
±2.0% Vo
±10 mV typ.
±12 mV typ.
±3.0% Vo
0A
20 mV pk-pk
15 mV pk-pk
±0.5% Vo
EMC CHARACTERISTICS
Electrostatic discharge
Conducted immunity
Radiated immunity
EN61000-4-2, IEC801-2
EN61000-4-6
EN61000-4-3
PTV12010
2 YEAR WARRANTY
SPECIFICATIONS
GENERAL SPECIFICATIONS
Efficiency
Insulation voltage
Switching frequency
Suffix ‘W’
Suffix ‘L’
Approvals and
standards
Material flammability
Dimensions
Weight
(L x W x H)
250-400 kHz
200-300 kHz
See Tables on page 2
Non-isolated
325 kHz typ.
250 kHz typ.
EN60950
UL/cUL60950
UL94V-0
22.86 x 8.38 x 10.16 mm
0.90 x 0.330 x 0.400 in
2.6 g (0.09 oz)
Telcordia SR-332
5,000,000 hours
Temperature co-efficient -40 ºC to +85 ºC
Transient response
(See Note 5)
70 µs recovery time
Overshoot/undershoot 100 mV
INPUT SPECIFICATIONS
Input voltage range
Input standby current
Remote ON/OFF
Undervoltage lockout
Track input current
(See Note 1)
(Increasing)
Pin 5 (See Notes 6 and 7)
(See Note 3)
10.8V-13.2 Vdc
10 mA typ.
Positive logic
9.5 V typ.
-0.13 mA
MTBF
ENVIRONMENTAL SPECIFICATIONS
Thermal performance
(See Note 2)
Operating ambient,
temperature
Non-operating
-40 ºC to +85 ºC
-40 ºC to +125 ºC
PROTECTION
Overcurrent
Auto reset
16 A typ.
International Safety Standard Approvals
UL/cUL CAN/CSA-C22.2 No. 60950
File No. E174104
TÜV Product Service (EN60950) Certificate No. B 04 06 38572 044
CB Report and Certificate to IEC60950, Certificate No.
US/8292/UL
*Auto-track™ is a trade mark of
Texas Instruments
File Name: ptv12010w.pdf Rev (02): 19 Dec 2005
12 Vin single output
DC-DC CONVERTERS
POLA Non-isolated
NEW Product
2
For the most current data and application support visit www.artesyn.com/powergroup/products.htm
OUTPUT
POWER
(MAX.)
15 W
44 W
OUTPUT
CURRENT
(MIN.)
0A
0A
OUTPUT
CURRENT
(MAX.)
(2)
8A
8A
PTV12010
INPUT
VOLTAGE
10.8-13.2 Vdc
10.8-13.2 Vdc
OUTPUT
VOLTAGE
0.8-1.8 Vdc
1.2-5.5 Vdc
EFFICIENCY
(MAX.)
87%
92%
REGULATION
LINE
±10 mV
±10 mV
LOAD
±12 mV
±12 mV
MODEL
NUMBER
(9,10)
PTV12010L
PTV12010W
Part Number System with Options
PTV12010WAH
Mounting Style
(9)
D = Horizontal Through-Hole (Matte Sn)
H = Horizontal Through-Hole (Sn/Pb)
Product Family
Point of Load Alliance
Compatible
Mounting Version
V = Vertical
Input Voltage
12 = 12 V
Output Current
01 = 8 A
Mechanical Package
Always 0
Pin Style
A = Through-Hole Std. Pin Length (0.150”)
Output Voltage Code
W = Wide
L = Low Voltage
Output Voltage Adjustment of the PTV12010 Series
The ultra-wide output voltage trim range offers major advantages to users who
select the PTV12010. It is no longer necessary to purchase a variety of
modules in order to cover different output voltages. The output voltage can be
trimmed in a range of 1.2 Vdc to 5.5 Vdc for suffix ‘W’ and 0.8 Vdc to 1.8 Vdc
for suffix ‘L’. When the PTV12010 converter leaves the factory the output has
been adjusted to the default voltage of 1.2 V for the PTV12010W and 0.8 V for
PTV12010L.
EFFICIENCY TABLE - PTV12010L (I
O
= I
OMAX
)
EFFICIENCY TABLE - PTV12010W (I
O
= I
OMAX
)
OUTPUT VOLTAGE
Vo = 1.8 V
Vo = 1.5 V
Vo = 1.2 V
Vo = 1.0 V
Vo = 0.8 V
EFFICIENCY
87%
86%
84%
81%
78%
OUTPUT VOLTAGE
Vo = 5.0 V
Vo = 3.3 V
Vo = 2.5 V
Vo = 1.8 V
Vo = 1.5 V
Vo = 1.2 V
EFFICIENCY
92%
90%
88%
85%
83%
80%
Notes
1
Remote ON/OFF. Positive logic
Pin 7 open; or V > 2 V
ON:
OFF:
Pin 7 GND; or V < 0.6 V
See Figures 1, 2, 3 and 6 for safe operating curves.
A 100 µF electrolytic input capacitor is required for proper operation as
well as a 10 µF high-frequency ceramic capacitor. The electrolytic
capacitor must be rated for the minimum rms of ripple current.
An external output capacitor is not required for basic operation. Adding
100 µF of distributed capacitance at the load will improve the transient
response.
1 A/µs load step, 50 to 100% I
omax
, C3 = 100 µF.
If utilized Vout will track applied voltage by ±0.3 V (up to Vo set point).
The pre-bias start-up feature is not compatible with Auto-Track™. This is
because when the module is under Auto-Track™ control, it is fully active
and will sink current if the output voltage is below that of a back-feeding
source. Therefore to ensure a pre-bias hold-off, one of the following two
techniques must be followed when input power is first applied to the
module. The Auto-Track™ function must either be disabled, or the
module’s output held off using the Inhibit pin. Refer to Application Note
196 for more details.
8
The set-point voltage tolerance is affected by the tolerance and stability
of Rset. The stated limit is unconditionally met if Rset has a tolerance of
1% with 100/
ºC or better temperature stability.
9
To order Pb-free (RoHS compatible) through-hole parts replace the
mounting option ‘H’ with ‘D’, e.g. PTV12010WAD.
10
NOTICE: Some models do not support all options. Please contact your
local Artesyn representative or use the on-line model number search tool at
http://www.artesyn.com/powergroup/products.htm to find a suitable
alternative.
File Name: ptv12010w.pdf Rev (02): 19 Dec 2005
2
3
4
5
6
7
12 Vin single output
DC-DC CONVERTERS
POLA Non-isolated
NEW Product
3
For the most current data and application support visit www.artesyn.com/powergroup/products.htm

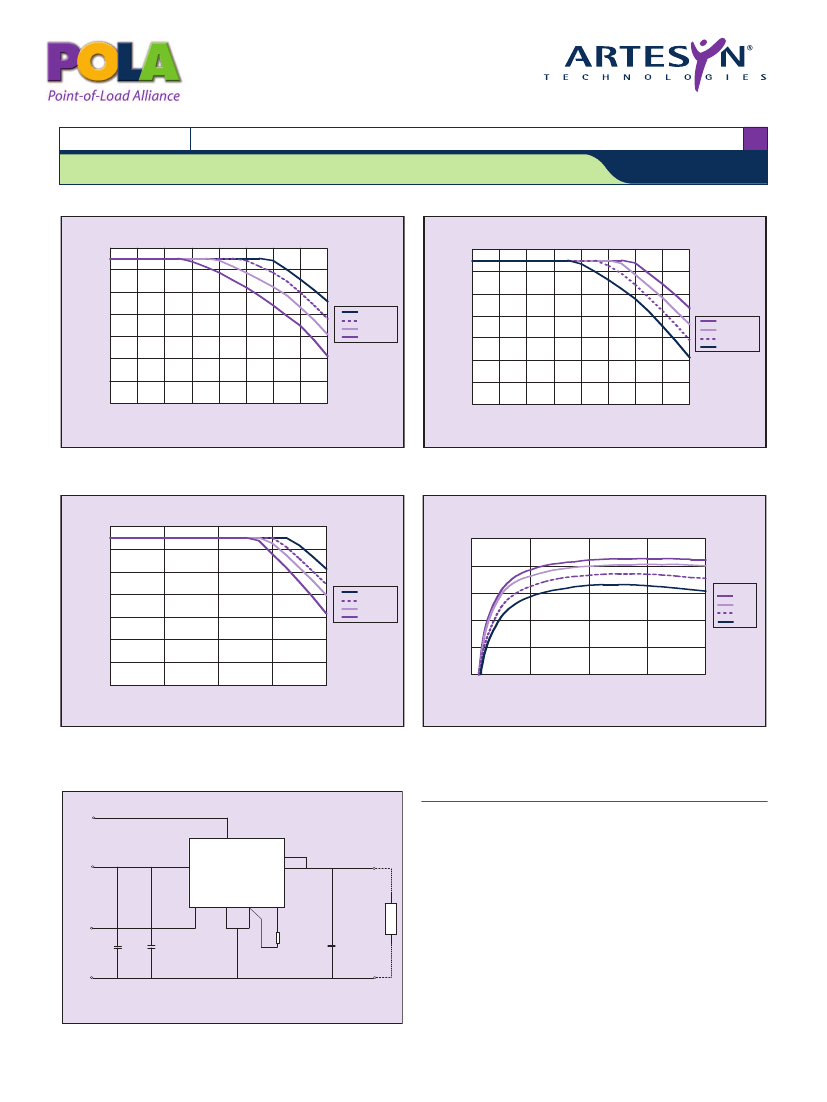

PTV12010W Characteristic Data
PTV12010
90
TEMPERATURE (ºC)
TEMPERATURE (ºC)
90
80
70
60
50
40
30
20
0
1
2
3
4
5
6
7
8
0
1
2
3
4
5
6
7
8
OUTPUT CURRENT (A)
Figure 1 - Safe Operating Area
Vin = 12 V, Output Voltage = 5 V (See Note A)
400 LFM
200 LFM
100 LFM
Nat conv
80
70
60
50
40
30
20
400 LFM
200 LFM
100 LFM
Nat conv
OUTPUT CURRENT (A)
Figure 2 - Safe Operating Area
Vin = 12 V, Output Voltage = 3.3 V (See Note A)
90
100
TEMPERATURE (ºC)
80
EFFICIENCY (%)
70
60
50
40
30
20
0
2
4
6
OUTPUT CURRENT (A)
8
400 LFM
200 LFM
100 LFM
Nat conv
90
80
70
60
50
0
2
4
6
8
Vout
5.0V
3.3V
1.8V
1.2V
OUTPUT CURRENT (A)
Figure 4 - Efficiency vs Load Current
Vin = 12 V (See Note B)
Figure 3 - Safe Operating Area
Vin = 12 V, Output Voltage = 1.8 V (See Note A)
Notes
Track
5
Track
2
Vin
8
Vin
Vo
3
Vo
A
SOA curves represent the conditions at which internal components are
within the Artesyn derating guidelines.
B
Characteristic data has been developed from actual products tested at
25 °C. This data is considered typical data for the converter.
PTVxx010
Inhibit
7
GND
6
1
Vo Adj
4
L
O
A
D
C3
100uF
Optional
Inhibit
C1
100uF
(Required)
C2
10uF
Ceramic
(Required)
Rset
1%
0.05W
GND
GND
Figure 5 - Standard Application
File Name: ptv12010w.pdf Rev (02): 19 Dec 2005
12 Vin single output
DC-DC CONVERTERS
POLA Non-isolated
NEW Product
4
For the most current data and application support visit www.artesyn.com/powergroup/products.htm

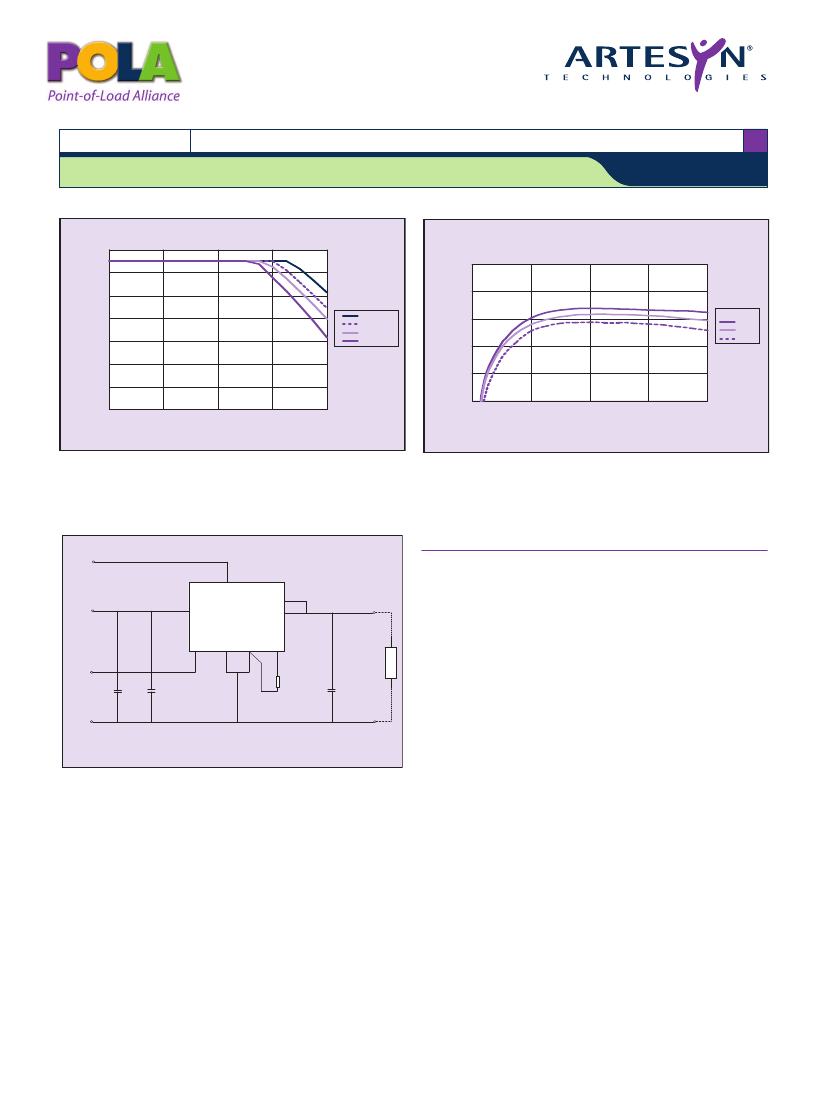

PTV12010L Characteristic Data
PTV12010
90
TEMPERATURE (ºC)
80
EFFICIENCY (%)
100
90
80
70
60
50
2
4
6
OUTPUT CURRENT (A)
8
0
2
4
6
8
Vout
1.2V
1.0V
0.8V
70
60
50
40
30
20
0
400 LFM
200 LFM
100 LFM
Nat conv
OUTPUT CURRENT (A)
Figure 7 - Efficiency vs Load Current
Vin = 12 V (See Note B)
Figure 6 - Safe Operating Area
Vin = 12 V, Output Voltage ≤ 1.8 V (See Note A)
Notes
Track
5
Track
2
Vin
8
Vin
Vo
3
Vo
A
SOA curves represent the conditions at which internal components are
within the Artesyn derating guidelines.
B
Characteristic data has been developed from actual products tested at
25 °C. This data is considered typical data for the converter.
PTVxx010
Inhibit
7
GND
6
1
Vo Adj
4
L
O
A
D
C3
100uF
Optional
Inhibit
C1
100uF
(Required)
C2
10uF
Ceramic
(Required)
Rset
1%
0.05W
GND
GND
Figure 8 - Standard Application
File Name: pth12010wl.pdf Rev (06): 07 Feb 2005
12 Vin single output
DC-DC CONVERTERS
POLA Non-isolated
NEW Product
5
For the most current data and application support visit www.artesyn.com/powergroup/products.htm

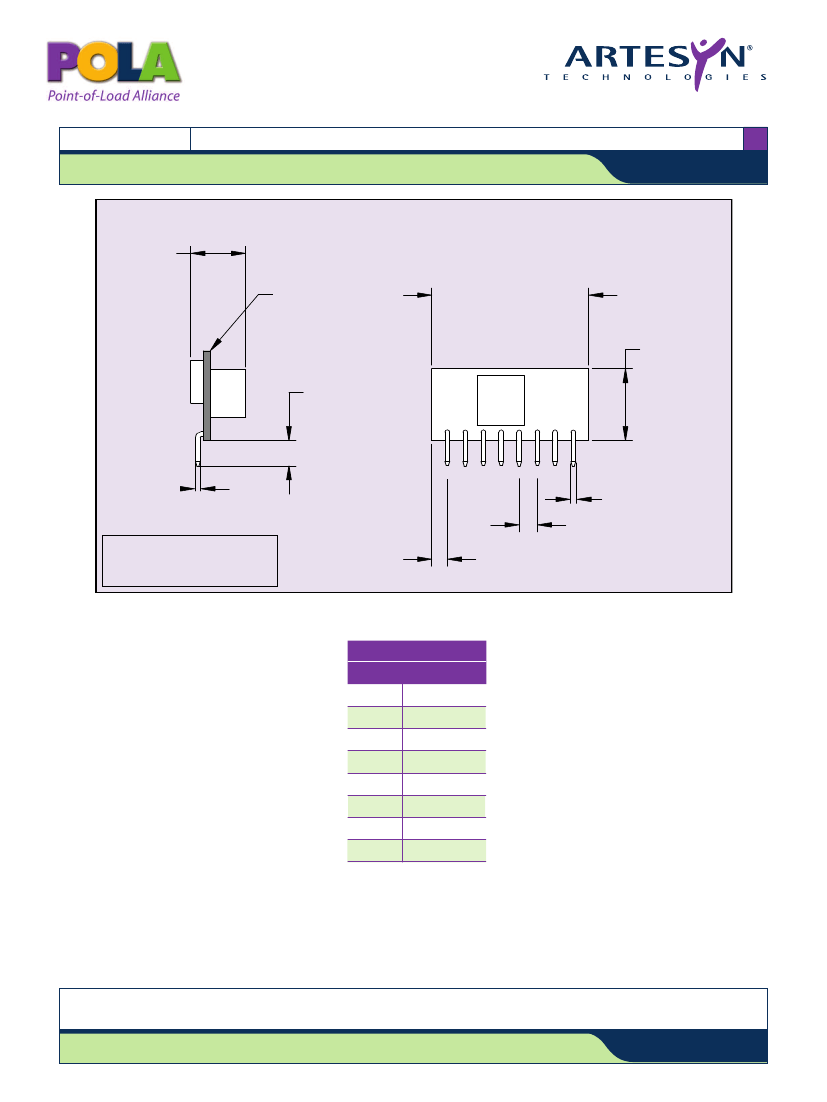

PTV12010
SIDE VIEW
0.330±0.008
(8.38±0.20)
PCB
FRONT VIEW
0.900 (22.86)
0.400 (10.16)
0.150 (3.81)
0.025 (0.64)
Min 8 Places
Plated Through Hole
Dimensions in Inches (mm)
Tolerances (unless otherwise specified)
2 Places
±0.030
(±0.76)
3 Places
±0.010
(±0.25)
1
2
3
4
5
6
7
8
0.020 (0.51)
0.100 (2.54)
0.100 (2.54)
PIN CONNECTIONS
PIN NO.
1
2
3
4
5
6
7
8
FUNCTION
Ground
Vout
Vout
Vo Adjust
Track
Ground
Inhibit
Vin
Figure 9 - Mechanical Drawing and Pinout Table
Datasheet © Artesyn Technologies® 2005
The information and specifications contained in this datasheet are believed to be correct at time of publication. However, Artesyn Technologies accepts no responsibility for consequences arising
from printing errors or inaccuracies. The information and specifications contained or described herein are subject to change in any manner at any time without notice. No rights under any patent
accompany the sale of any such product(s) or information contained herein.
Please consult our website for the following items:
Application Note
www.artesyn.com
File Name: ptv12010w.pdf Rev (02): 19 Dec 2005
