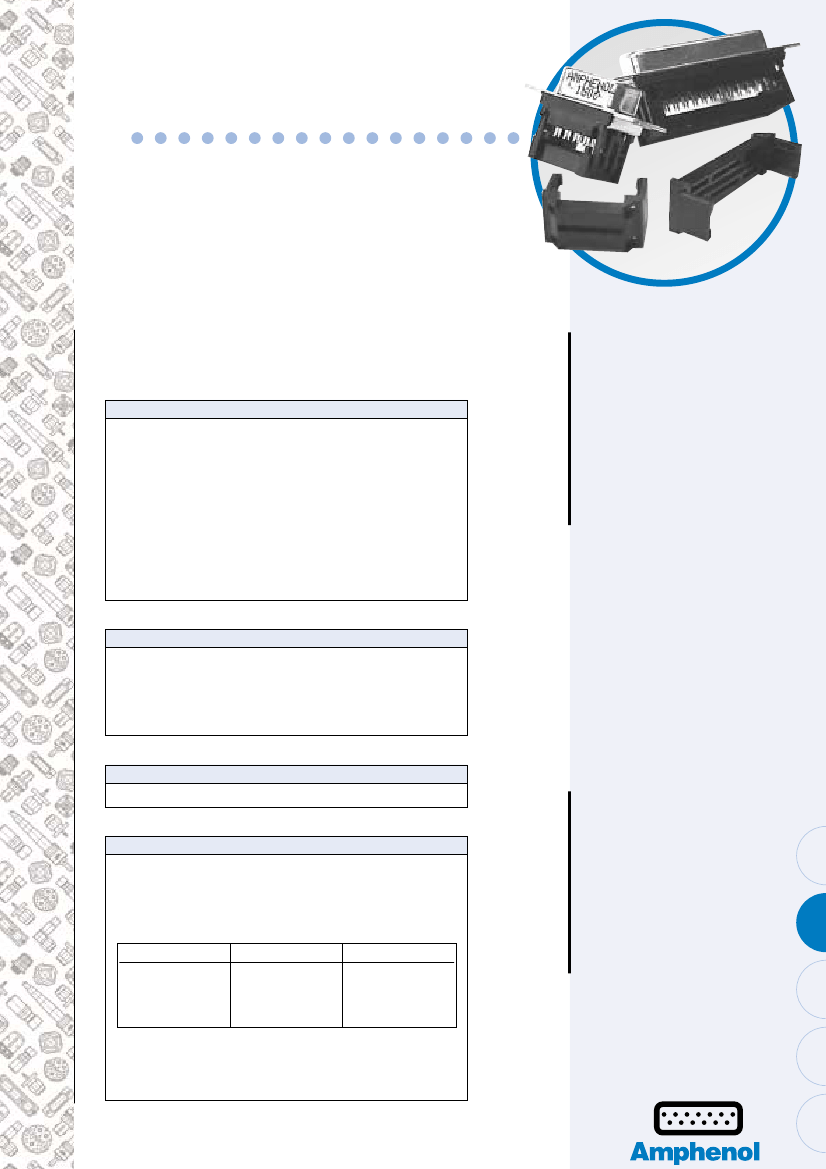

D-Sub connectors - Stamped and Formed Contacts
FLAT RIBBON
D-SUB CONNECTORS
MAIN CHARACTERISTICS
DESCRIPTION
APPLICATIONS
Specifications
•
UL File:
E149426
• Connectors according to MIL C24308
Materials and Platings
Shells
Insulator
Pin contact
Steel with nickel plating
Glass-filled thermoplastic, UL 94V-0
Brass, selected gold in mating aréa;
2.54µm (100µ") min. tin lead
on termination aréa over
1.27µm (50µ") min. nickel
Phosphor bronze, selected gold in
mating aréa; 2.54µm (100µ") min. tin
lead on termination aréa over 1.27µm
(50µ") min. nickel
Brass, 2.54µm (100µ") min. nickel plated
Brass, 2.54µm (100µ") min. nickel plated
These connectors are suitable for
compact requirement of modern
peripheral equipement.
Special contact design allows usage
of standard 1.27mm (.05") flat cable.
Suitable with all standard D-Sub hoods.
Socket contact
Rear insert
Screwlock
Electrical Data
Current rating
Voltage rating
Withstanding voltage
Insulation resistance
Contact resistance
5A
250V AC/rms 60Hz
1000V AC/rms 60Hz for one minute
1000MΩ
20mΩ max
Simplify
your cable
assemblies !
Climatic Data
Operating temperature
-40°C to +125°C
•
Industrial
•
Telecom
•
Any industry standard
I / O connections
Mechanical Data
Single contact insertion force
Single contact withdrawal force
Mating and unmating force
Unit: kg (lb)
No. of Cts
9 (size E)
15 (size A)
25 (size B)
37 (size C)
Mate (max)
3.05
5.09
8.44
12.51
(6.74)
(11.24)
(18.66)
(27.65)
Unmate (min)
0.36
0.46
0.81
1.1
(0.79)
(1.01)
(1.8)
(2.47)
Standard plating thicknesses
• gold flash
• 0.4µm (15µ") gold
• 0.76µm (30µ") gold

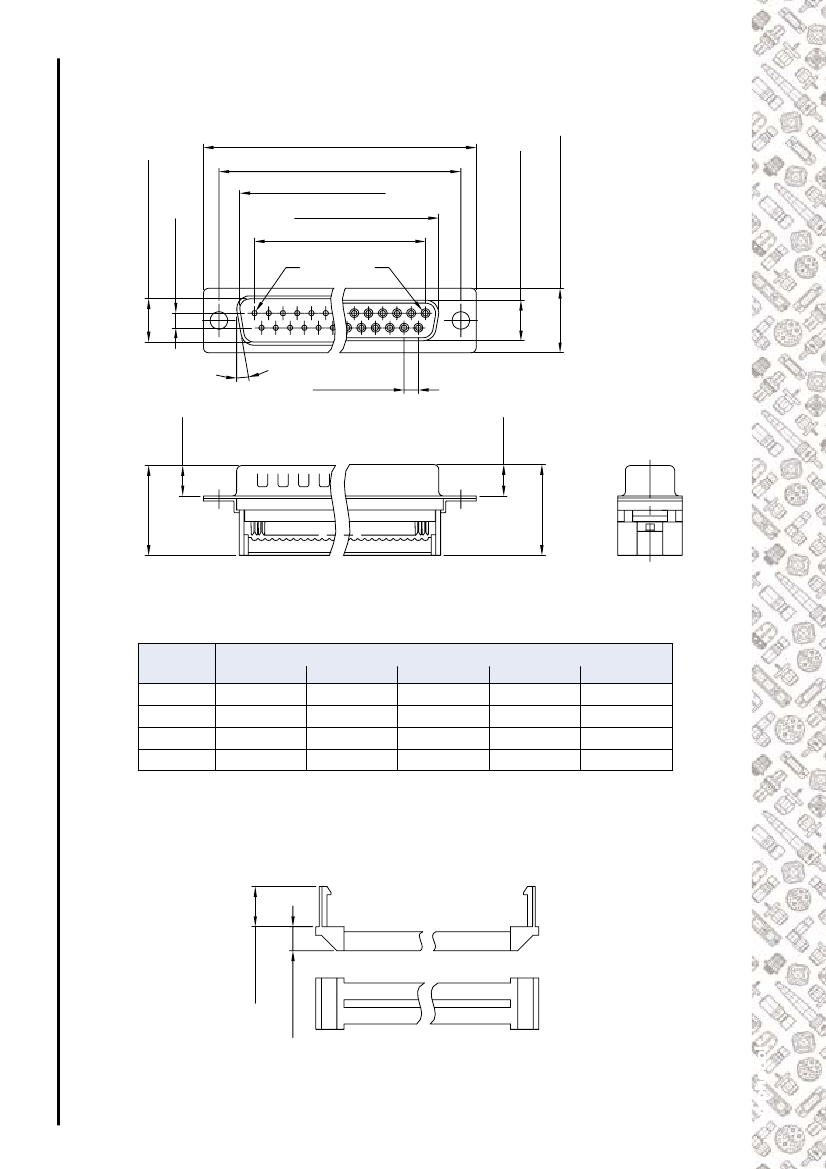

E12/B
DFR / E12
0.54kg (1.19lb) max
0.06kg (0.13lb) min
NOTES
How to order
...
...
FR
...
...
...
...
C309
flash
gold
17D:
tinned shell
for plug and
receptacle
0.4µm
(15µ”)
117D:
tinned shell
for plug and
receptacle
shell size: E,A,B,C
contact type:
P
= pin
S
= socket
Flat ribbon cable type
configuration :
09, 15, 25, 37

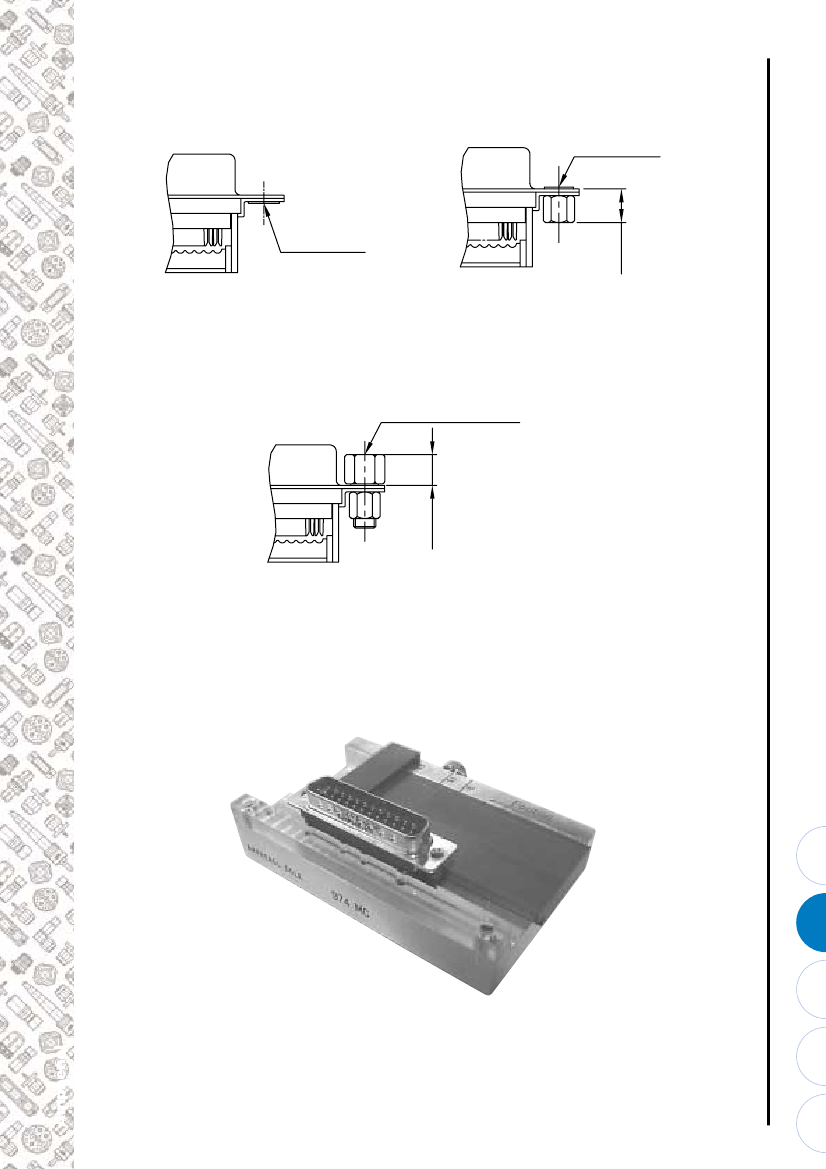

mounting options :
no digit
= standard rivet ø 3.05mm
A
= front screwlock M3
C
= front screwlock 4-40
B
= rear insert M3
D
= rear insert 4-40
type :
A
= front metal shell
B
= all plastic
: Standard options
For special request, please consult factory
Do not hesitate to contact us for further information
A
mphenol
Amphenol Socapex
Telecom Business Unit
21, chemin du Défois - BP 349
F - 39100 Dole
Fax: +33 (0) 3 84 82 94 11
http://www.dsubconnector.com
Technical support
Tel.: +33 (0) 3 84 82 94 00
E12/B
The information given in this document are as a guideline only. We reserve the right to modify our products in any way we deem necessary. Any duplication is prohibited, unless approved in writing.
