177D-B25-S-ST-3 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 177D-B25-S-ST-3

Preview

177D-B25-S-ST-3: DescriptionD Subminiature Connector, 25 Contact(s), Female, Screw Terminal,; CategoryThe connector The connector; File Size310KB，3 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

177D-B25-S-ST-3 Overview

D Subminiature Connector, 25 Contact(s), Female, Screw Terminal,

177D-B25-S-ST-3 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknown
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	177D
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Options	GENERAL PURPOSE
Shell surface	TIN
Shell material	STEEL
Housing size	3/B
Termination type	SCREW
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

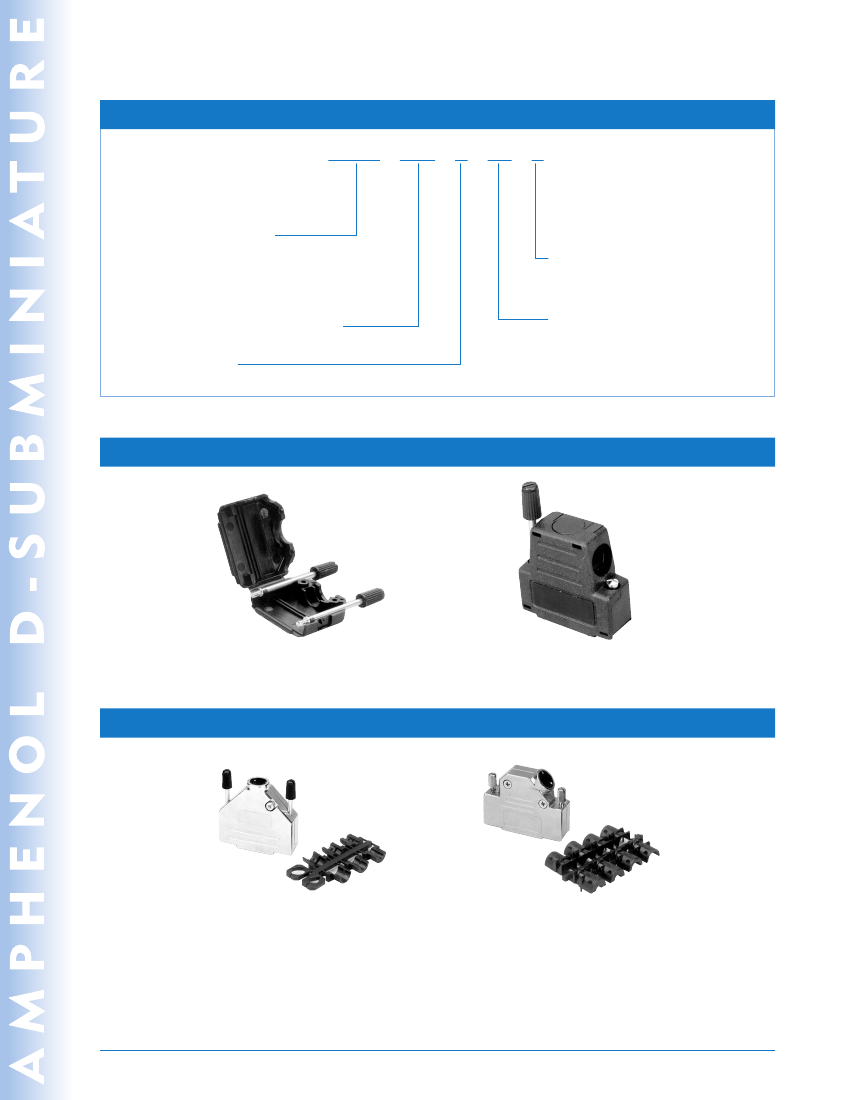

Screw Termination

S

PECIFICATIONS

:

M

ATERIALS

Shells

Insulator

Contacts

AND

D-ST S

ERIES

P

LATINGS

Steel Tin plated

Glass ﬁlled thermoplastic, UL94V-0

Machined brass, full gold

E

LECTRICAL

D

ATA

Current Rating

Voltage Rating

Withstanding Voltage

Insulation Resistance

Contact Resistance

7,5 A max.

300 V RMS at 50 Hz

1000 V RMS at 50 Hz

> 5000

Ω

at 500 V DC

<5

Ω

The Amphenol Screw Termination

D-Sub series is especially designed

for ﬁeld applications.

These new connectors permit easy

wiring without any speciﬁc tool; only

a standard electrician’s screwdriver is

required. Due to their reduced overall

dimensions, these connectors are

compatible with all standard hoods

and accessories.

C

LIMATIC

D

ATA

Operating Temperature

Damp Heat

Salt Spray

-67°F (-55°C) to +185°F (85°C),

peak at 257°F (125°C)

21 days 219°F(104°C - 95% HR)

48 hours

M

ECHANICAL

D

ATA

Cable Type

Cable Gauge

Screw Torque

Mating Cycles

Solid or stranded

0,75 mm

2

max. (AWG 18)

- For bigger wire, please consult factory

0,05 mN max.

100 (class II) or 500 (class I)

• Industry - control of

speed variators

and calculators.

• Houses and public

buildings - control of

heating, air conditioning,

lighting, shutters

and ﬁre safety.

• Infrastructures - ﬂuids

control, motorway tolls

and street lighting.

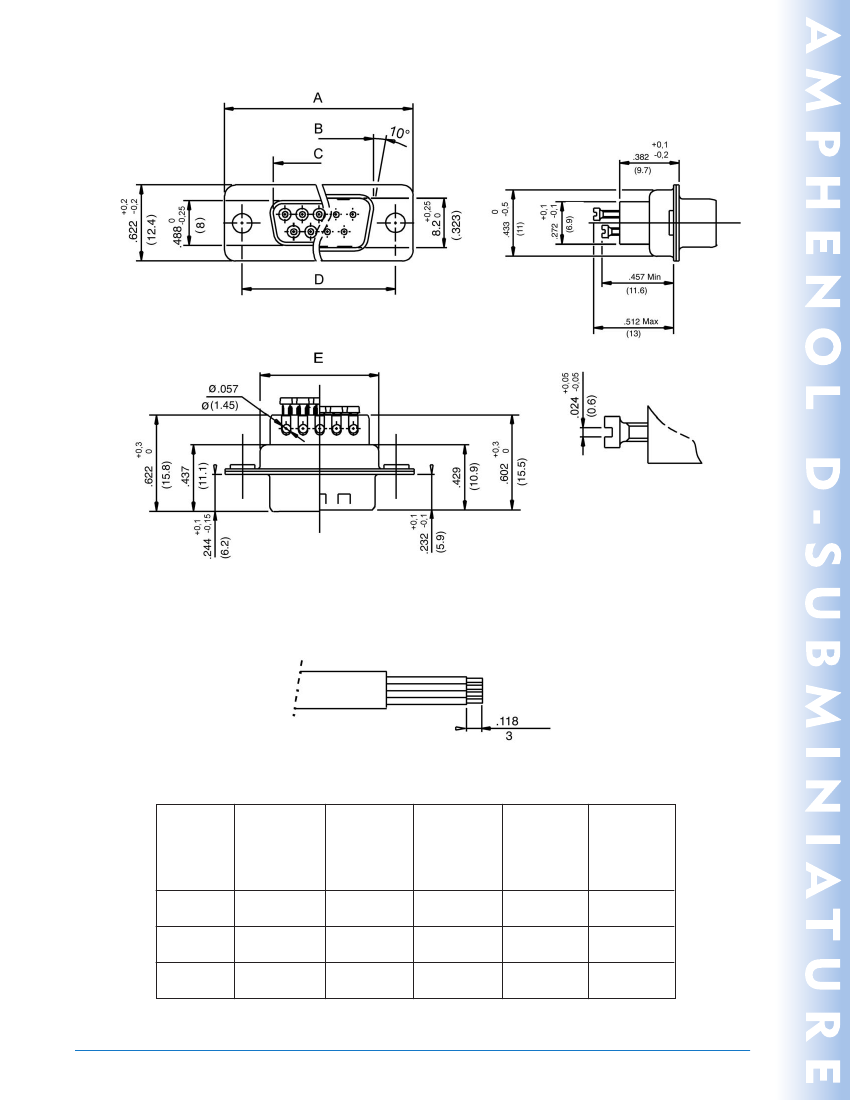

I

NCHES

(

MM

)

26

T

ELEPHONE

: (416) 754-5656 F

AX

: (416) 754-8668

E-M

AIL

:

SALES

@

AMPHENOLCANADA

.

COM
