77315-418-03LF datasheet, PDF - EEWORLD Datasheet

77315-418-03LF: DescriptionBoard Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size141KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

77315-418-03LF Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	77315-418-03LF	-	-	View	Buy Now

Board Connector, 3 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle, ROHS COMPLIANT

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	6 weeks
body width	0.094 inch
subject depth	0.098 inch
body length	0.3 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	MATTE TIN (79) OVER NICKEL (50)
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insulator color	BLACK
insulator material	THERMOPLASTIC
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	77315
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	78u inch
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	3
UL Flammability Code	94V-0
Evacuation force-minimum value	8.896 N
Base Number Matches	1

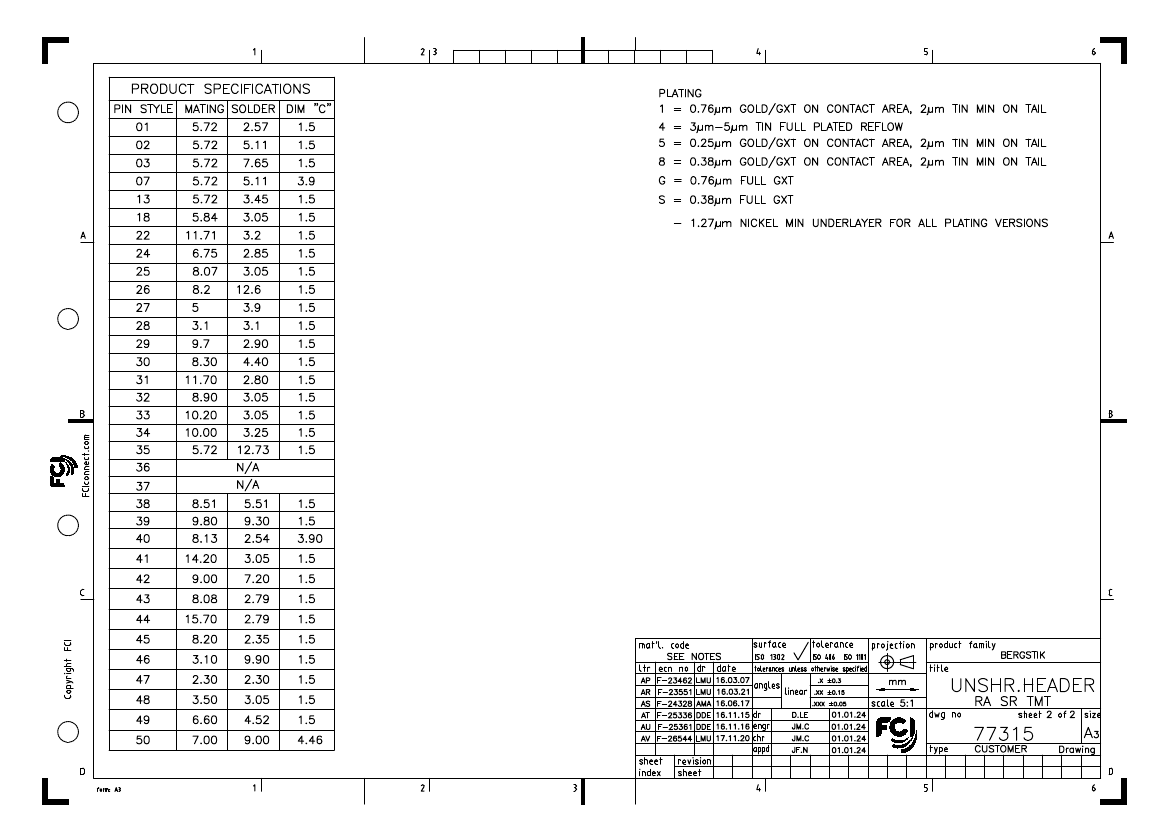

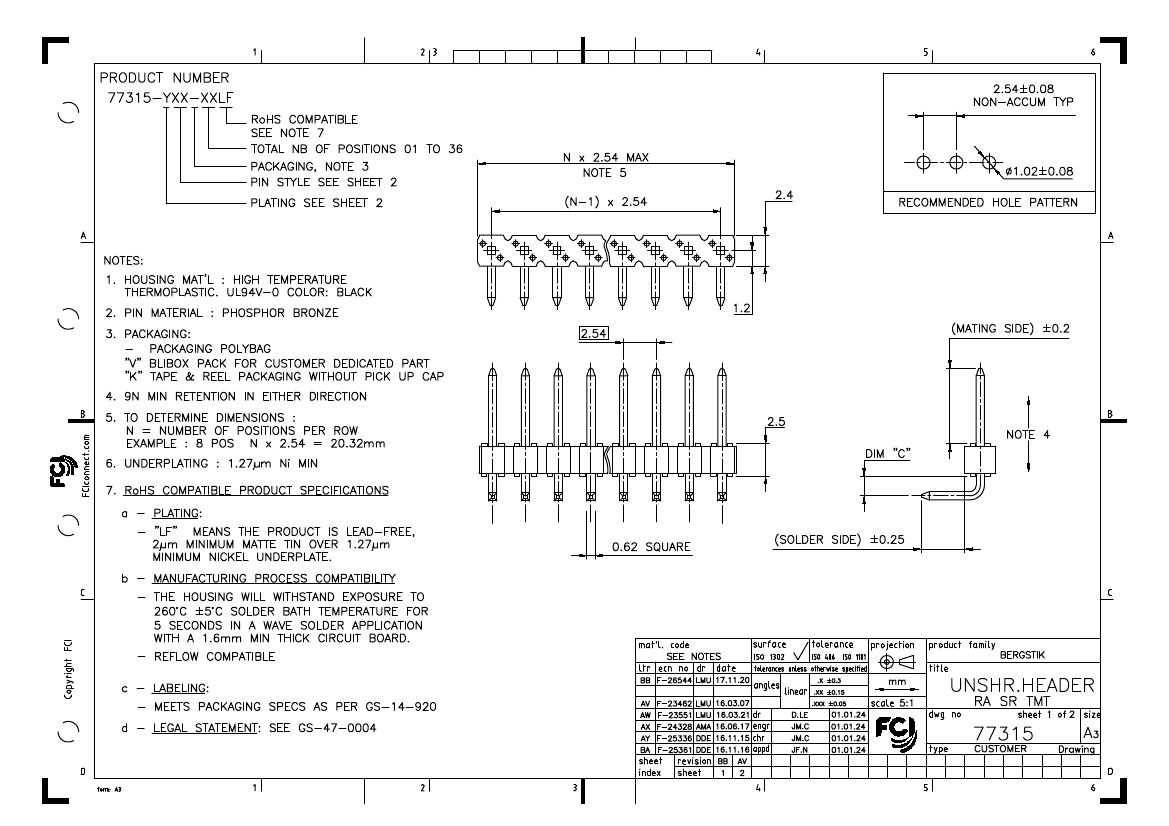

PDS: Rev :BB

STATUS:Released

Printed: Nov 22, 2017
