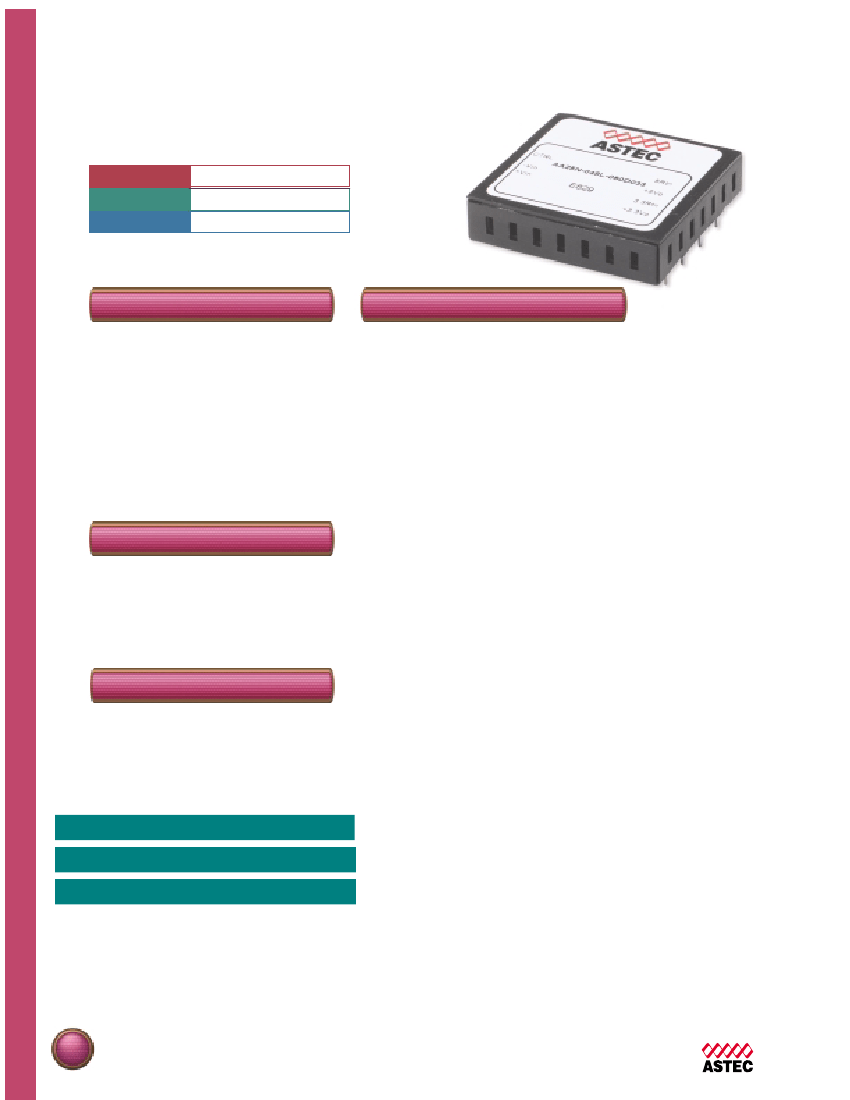

AA25N
25 Watts
AA25N Series
Total Power
Input Voltages
# of Outputs
"Includes 5V/ 3.3V Dual Output Model"
Load Sharing
25 Watts
12V, 24V, 48V
Single, Dual, Triple
S P E C I A L F E AT U R E S
•
•
•
•
•
•
•
•
•
Ideal for telecom/networking
applications
High efficiency
Unencapsulated 2.0” x 2.0” x 0.50”
package.
Integral heat spreader available
100°C Baseplate temperature
Enable (on/off)
Thermal protection
350kHz Switching frequency
Under voltage lockout
E L E C T R I C A L S P E C I F I C AT I O N S
Input
Input range ............................ 9-18Vdc (12Vdc nominal)
18-36 Vdc (24 Vdc nominal)
36 - 75Vdc (48Vdc nominal)
Input capacitance .................. 2µF typical
Input reverse voltage ............. Fuse recommended
protection
Input surge voltage ................ 100V for 100mS (048L)
50V for 100mS (024L)
36V for 100mS (012L)
Input reflected ripple ............. <10mA (P-P) See Note 2
Undervoltage lockout ............ Vin<32V (-048L ONLY)
Efficiency ............................... 82% typical
E N V I R O N M E N TA L
Operating case temperature range:
-40°C +100°C
Storage temperature: -40°C to +125°C
Humidity: 5% to 100%
Output
Voltage tolerance .................. Main Output
±1.0%
Aux Output
±3.0%
Dual Output
±2.0%
Line regulation ....................... Main Output
±0.1%
Aux Output
±0.5%
Dual Output
±0.2%
Load regulation ..................... Main Output
±0.75%
Aux Output
±3.0%
Dual Output
±0.5%
(10% to 100% load) Note 6.
Noise/ripple ........................... 50mV P-P, Singles
100mVp-p, Dual , Triple
Short circuit protection .......... Continuous power cycle
Overvoltage protection .......... 120% of V
0
, Typ
Transient response ................ 2% Vo typ; recovery <500µsec typ
(25% step load change to within 1%V
o
)
Temperature coefficient .........
±0.2%/°C
Switching frequency .............. 350kHz
SAFETY
UL
CAN
TUV
UL1950
CAN22.2-950
EN60950
Control
AA25N-048L-033S Technical Manual - Click Here
Enable ................................... on =2.5 to 5.5Vdc or open circuit
off = 0 to 0.8Vdc
Ref. to -Vin. TTL compatable
Input current (enable OFF) .... <10ma
Output trim ............................ Single output models
Thermal shutdown ................ 110°C Baseplate temperature (typ)
Auto reset
AA25N-048L-050S Technical Manual - Click Here
AA25N-048L-120S Technical Manual - Click Here
Isolation
I/O isolation ........................... 1500Vdc
Isolation resistance ............... 15 x 10
8
ohms
NOTES
All specifications are typical at nominal line, full load and 25° C
unless otherwise stated.
Specifications subject to change without notice.
152
USA: 1-888-41-ASTEC
Europe (UK): +44(0)1384-842211
Asia (HK): 852-2437-9662
ASIA
6F., CDW Building
382-392 Castle Peak Road
Tsuen Wan, N.T., Hong Kong
Telephone: 852-2437-9662
Facsimile: 852-2402-4426
EUROPE
Astec House, Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX, UK
Telephone:+44(0)1384-842211
Facsimile:+44(0)1384-843355
AMERICAS
5810 Van Allen Way
Carlsbad, CA 92008
Telephone: 760-930-4600
Facsimile: 760-930-0698
O R D E R I N G I N F O R M AT I O N
Input
Vdc
9-18
9-18
9-18
9-18
18-36
18-36
18-36
18-36
18-36
18-36
18-36
18-36
18-36
36-75
36-75
36-75
36-75
36-75
36-75
36-75
36-75
36-75
36-75
36-75
Output 1
Voltage
5V @ 4.5A
5V @ 2.5A
12V @ 1.04A
15V @ 0.83A
3.3V @ 6A
5V @ 5A
12V @ 2.08A
15V @ 1.67A
5V @ 2.5A
12V @ 1.04A
15V @ 0.83A
5V @ 2.5A
5V @ 2.5A
3.3V @ 6A
5V @ 5A
12V @ 2.14A
15V @ 1.67A
5V @ 2.5A
5V @ 5A
12V @ 1.04A
15V @ 0.83A
5V @ 2.5A
3.3V @ 3A
3.3V @ 3A
Output 2
Voltage
Output 3
Voltage
Output
Power
22.5W
22.5W
25W
25W
19.8W
25W
25W
25W
25W
25W
25W
25W
25W
19.8W
25W
25W
25W
25W
*25W
25W
25W
25W
25W
25W
Model Number
D
C
D
C
P
-5V @ 2.25A
-12V @ 1.04A
-15V @ .83A
-5V @ 2.5A
-12V @ 1.04A
-15V @ 0.83A
12V @ .52A
15V @ .42A
-12V @ .52A
-15V @ .42A
-5V @ 2.5A
3.3V @ 6A
-12V @ 1.04A
-15V @ 0.83A
12V @ 0.52A
12V @ 0.62A
15V @ 0.5A
-12V @ 0.52A
-12V @ 0.62A
-15V @ 0.5A
AA25N-012L-050S
AA25N-012L-050D
AA25N-012L-120D
AA25N-012L-150D
AA25N-024L-033S
AA25N-024L-050S
AA25N-024L-120S
AA25N-024L-150S
AA25N-024L-050D
AA25N-024L-120D
AA25N-024L-150D
AA25N-024L-050T120
AA25N-024L-050T150
AA25N-048L-033S
AA25N-048L-050S
AA25N-048L-120S
AA25N-048L-150S
AA25N-048L-050D
AA25N-048L-050D033
(Note 7)
AA25N-048L-120D
AA25N-048L-150D
AA25N-048L-050T120
AA25N-048L-033T120
AA25N-048L-033T150
O
W
E
R
* Max output power not to exceed 25W total. The sum of output currents not to exceed 6 Amps.
Any output loading ratio within the maximum specified limits is possible.
AA25N

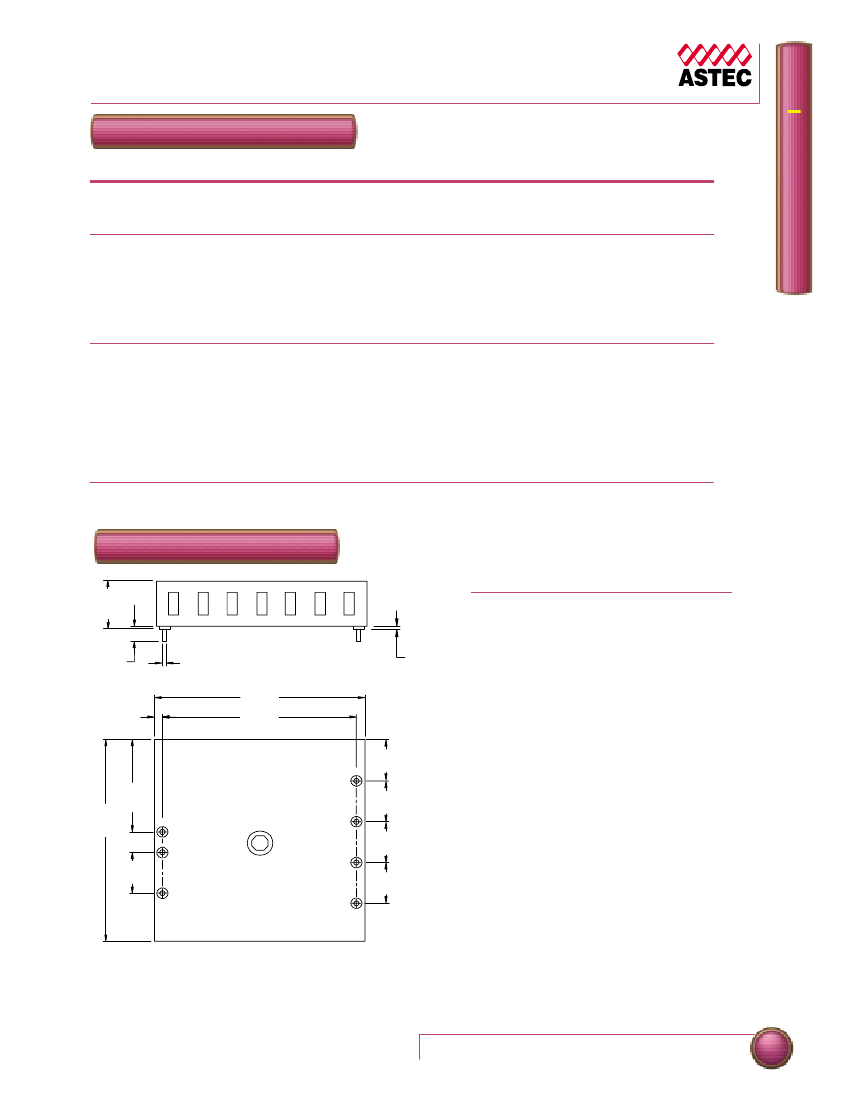

DIMENSIONS
.52
(13.2)
PIN ASSIGNMENTS
Single Output
1.
2.
3.
4.
5.
6.
7.
8.
+Vin
-Vin
No Pin
Enable
No Pin
V1 Out
Comm
Trim
Dual Output
1.
2.
3.
4.
5.
6.
7.
8.
+Vin
-Vin
No Pin
Enable
V1 Out
Comm
V2 Out
N/C
Triple Output
1.
2.
3.
4.
5.
6.
7.
8.
+Vin
-Vin
No Pin
Enable
V2 Out
V1 Out
Comm
V3 Out
.20 (5.0)
MIN.
.040 (1.01)
DIA. TYP.
2.0
(50.8)
.015 (.38)
MIN.
.10
(2.54)
1.80
(45.72)
NOTES
.40
(10.16)
5
.90
(22.86)
2.00
(50.8)
2.00
(50.8)
.40
(10.16)
6
1
2
7
3
4
8
.40
(10.16)
.40
(10.16)
.40
(10.16)
1. 20 MHz bandwidth. An external 2.2µf ceramic
capacitor is recommended to be placed from +V out
to -V out.
2. 12V and 24V Input models require external
capacitor connected between +V in and -V in to
meet FCC class A and ETS300-386-1 requirements
for conducted noise. Consult Factory for filtering
information to meet FCC class B , VDE or EIC
specifications.
3. All specifications are typical at nominal line, full
load, and 25° C unless otherwise noted.
4. All specifications subject to change without notice.
Mechanical drawings are for reference only.
5. Please refer to the Technical Reference Notes for
more information.
6. Balanced loads on dual and Aux output voltage.
7. This model includes Trim feature and unique pin
assignments. Contact factory.
Case material: Metal base/cover
Weight: 2.5 Oz / 68Gr.
Rev 12.29.98
www.astec.com
153
