AM26LS32DC datasheet, PDF - EEWORLD Datasheet

AM26LS32DC: DescriptionQUAD LINE RECEIVER, CDIP16, CERAMIC, DIP-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size86KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com; Related ProductsFound16parts with similar functions to AM26LS32DC

Download Datasheet Parametric View All

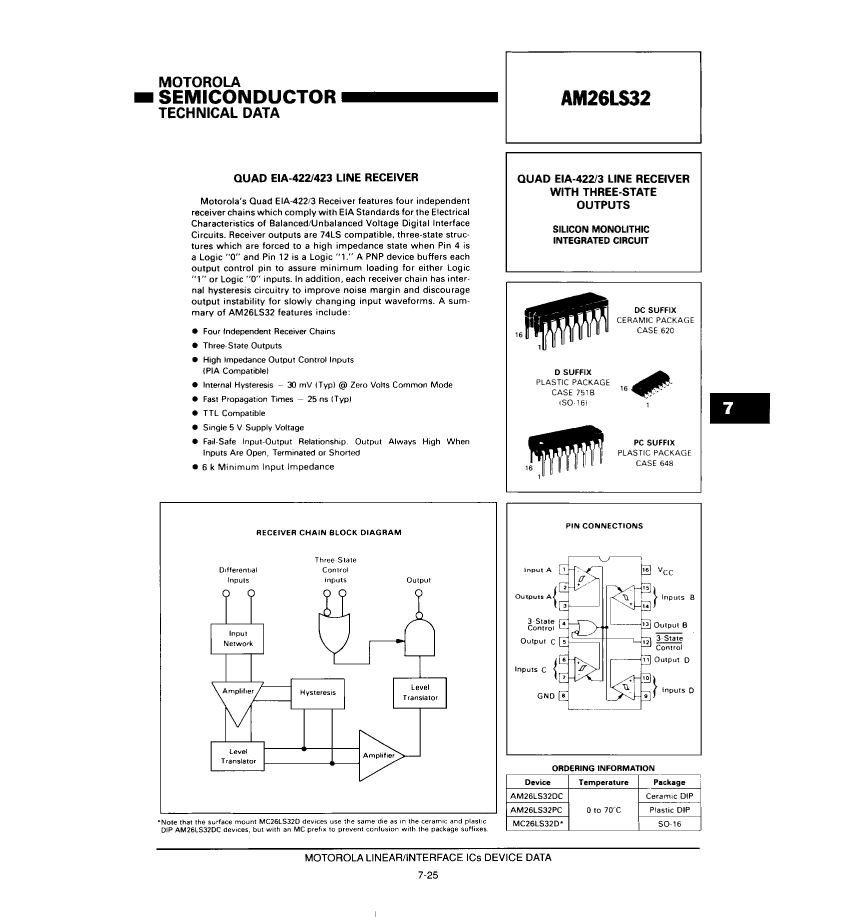

AM26LS32DC Overview

QUAD LINE RECEIVER, CDIP16, CERAMIC, DIP-16

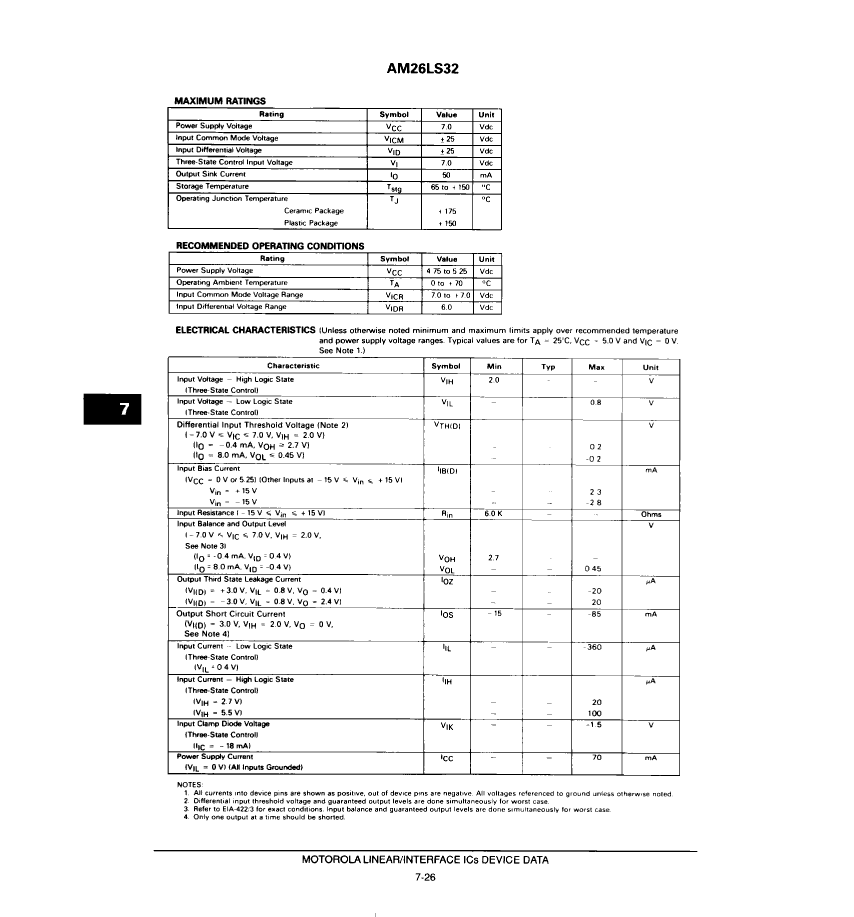

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	EIA-422; EIA-423
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.495 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Maximum output low current	0.008 A
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified

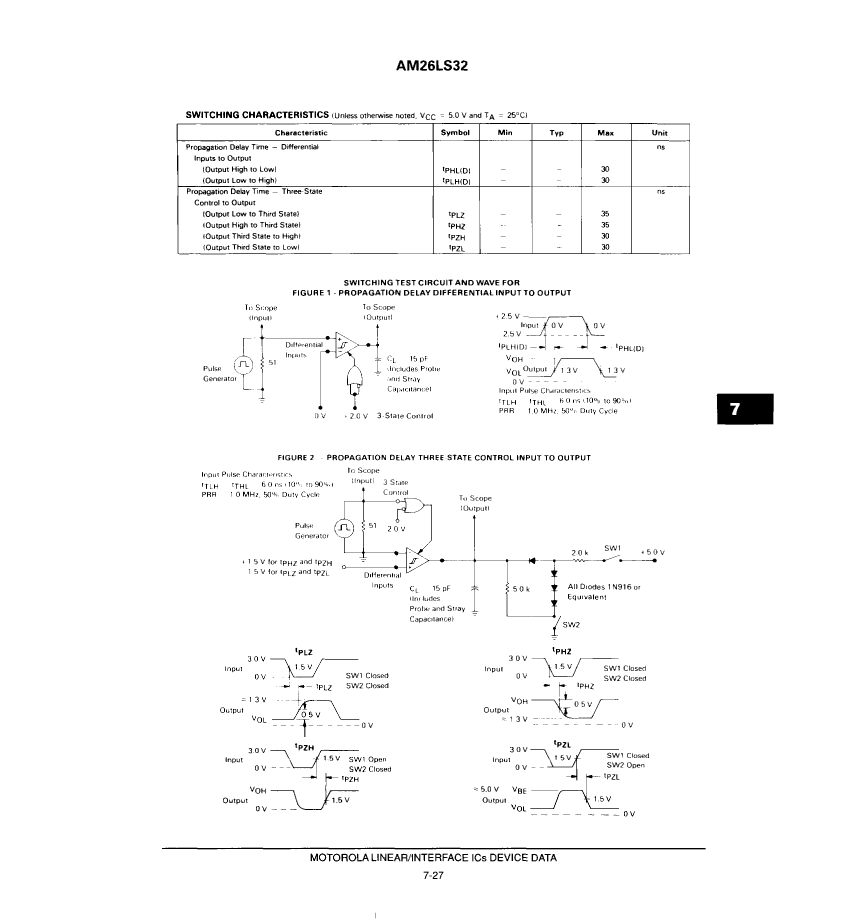

Maximum receive delay	30 ns
Number of receiver bits	4
Maximum seat height	5.08 mm
Maximum slew rate	70 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm
Base Number Matches	1
