AM26LS32BDMB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Drivers and interfaces> AM26LS32BDMB

AM26LS32BDMB: DescriptionLine Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, PACKAGE-16; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size481KB，7 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Related ProductsFound7parts with similar functions to AM26LS32BDMB

Download Datasheet Parametric Compare View All

AM26LS32BDMB Overview

Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, PACKAGE-16

AM26LS32BDMB Parametric

Parameter Name	Attribute value
package instruction	DIP,
Reach Compliance Code	unknow
ECCN code	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER
Interface standards	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-GDIP-T16
length	19.431 mm
Number of functions	4
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum receive delay	26 ns
Number of receiver bits	4
Maximum seat height	5.08 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

REI Datasheet

AM26LS32B

Quad Differential Line Receiver

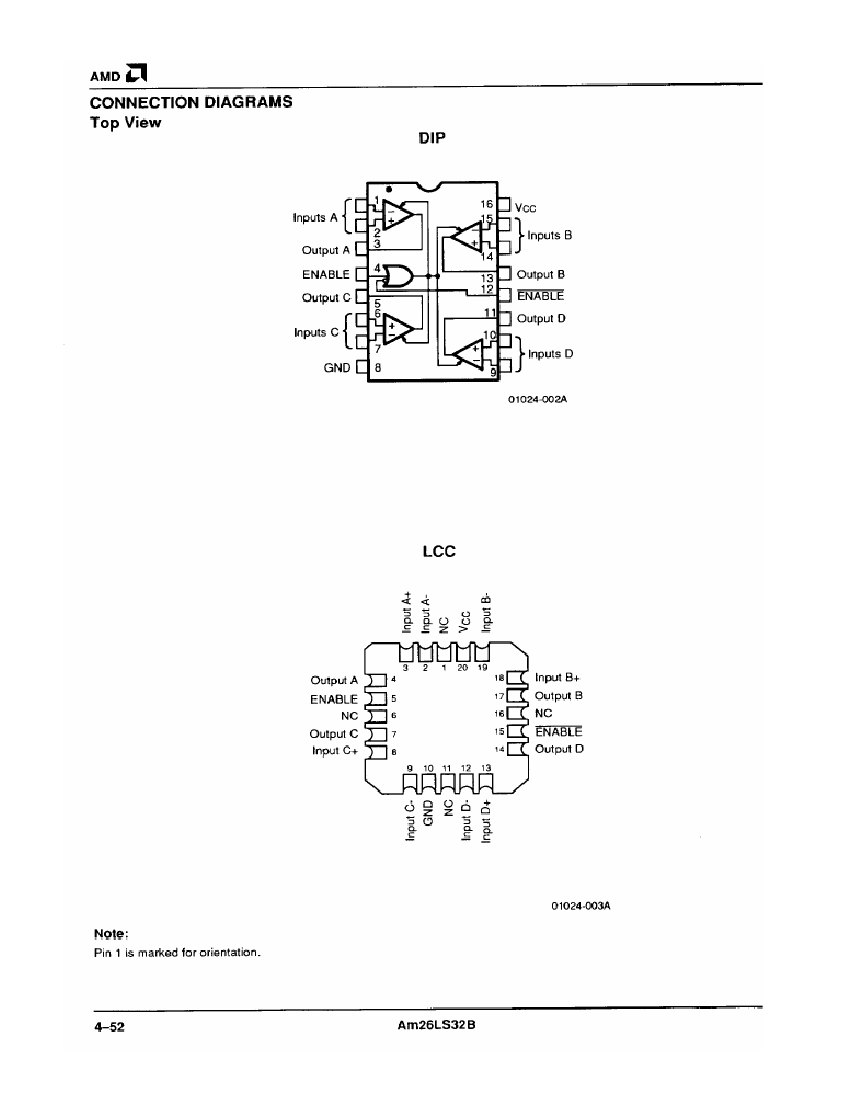

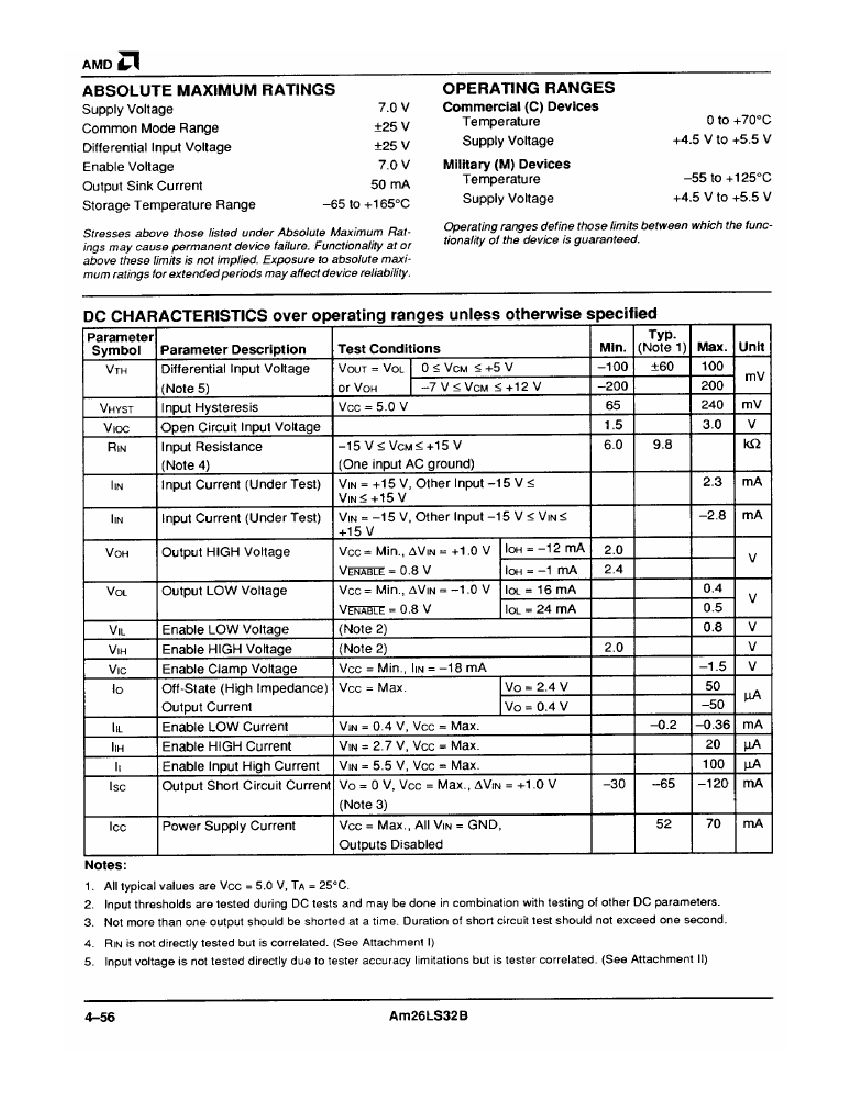

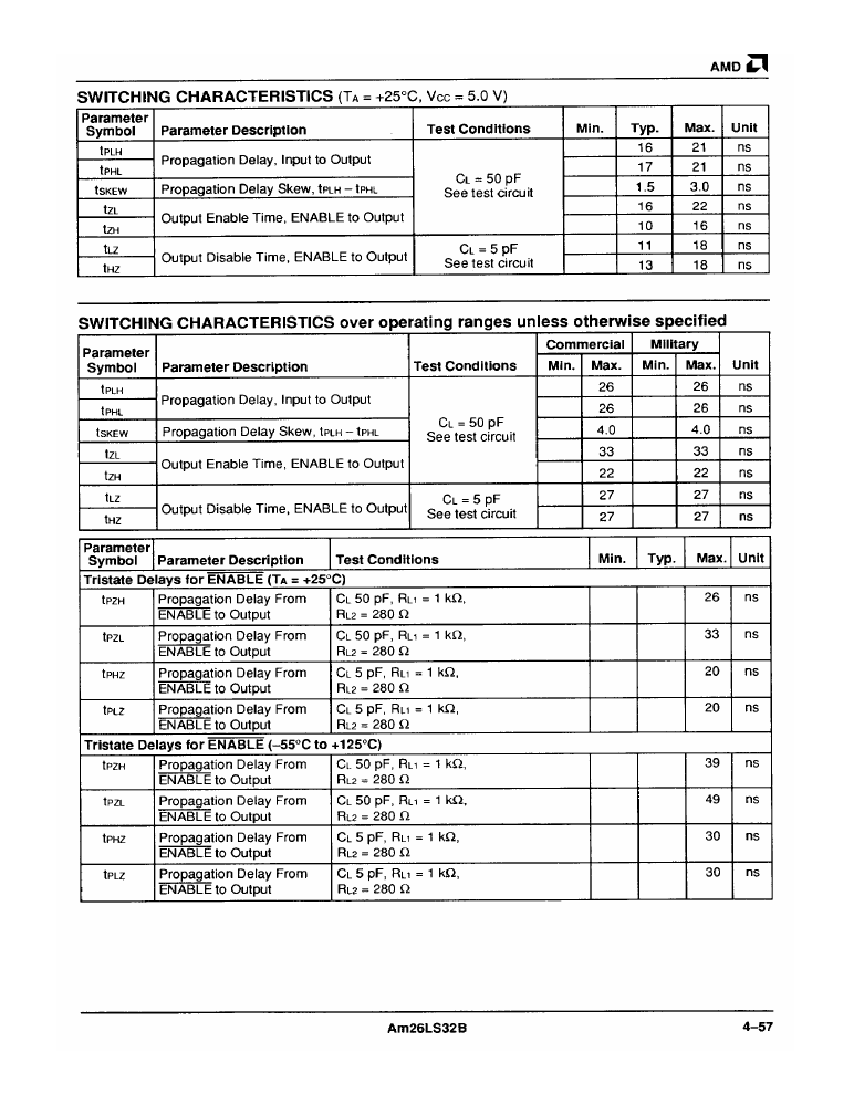

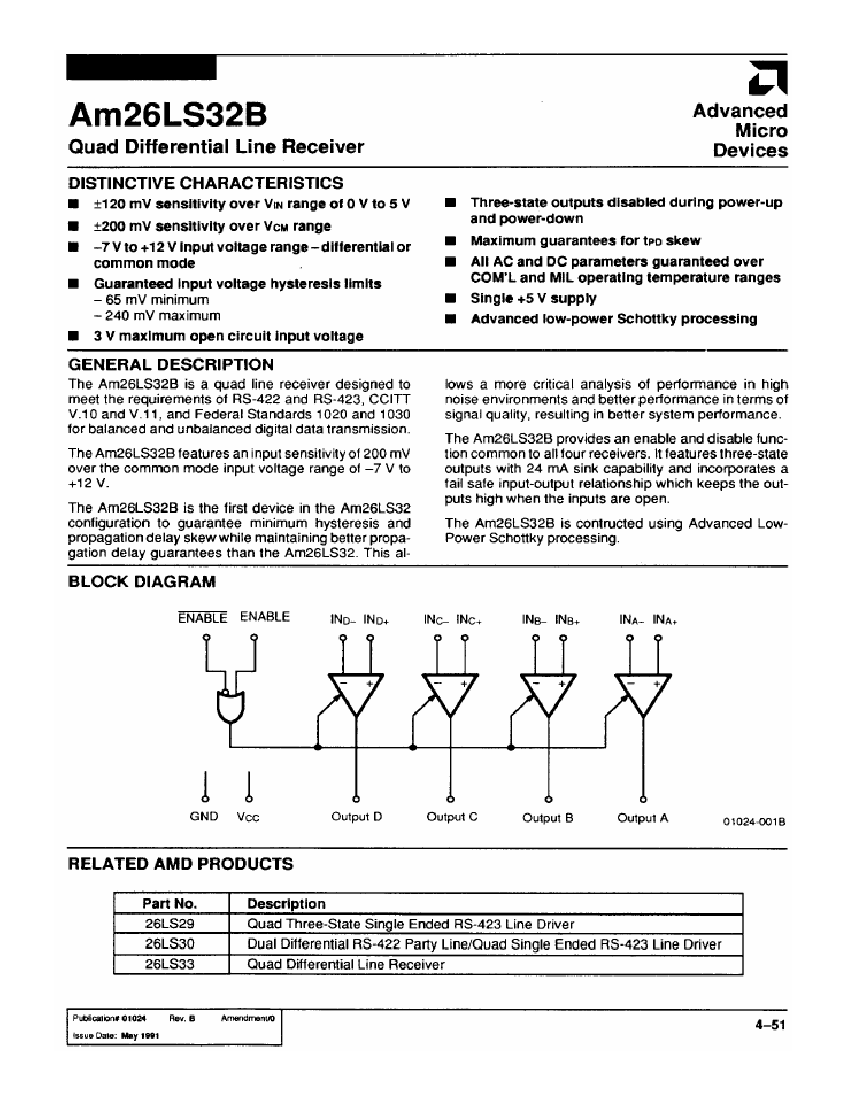

The AM26LS32B is a quad line receiver designed to meet the requirements of RS-422 and RS-423,

CCITT V.10 and V.11, and Federal Standards 1020 and 1030 for balanced and unbalanced digital

data transmission. The AM26LS32B features an input sensitivity of 200 mV over the common mode

input voltage range of -7 V to +12 V.

The AM26LS32B is the first device in the AM26LS32 configuration to guarantee minimum hysteresis

and propagation delay skew while maintaining better propagation delay guarantees than the

AM26LS32. This allows a more critical analysis of performance in high noise environments and better

performance in terms of signal quality, resulting in better system performance.

Rochester Electronics

Manufactured Components

Rochester branded components are

manufactured using either die/wafers

purchased from the original suppliers

or Rochester wafers recreated from the

original IP. All recreations are done with

the approval of the OCM.

Parts are tested using original factory

test programs or Rochester developed

test solutions to guarantee product

meets or exceeds the OCM data sheet.

Quality Overview

•

ISO-9001

• AS9120 certification

• Qualified Manufacturers List (QML) MIL-PRF-38535

•

Class Q Military

•

Class V Space Level

• Qualified Suppliers List of Distributors (QSLD)

• Rochester is a critical supplier to DLA and

meets all industry and DLA standards.

Rochester Electronics, LLC is committed to supplying

products that satisfy customer expectations for

quality and are equal to those originally supplied by

industry manufacturers.

The original manufacturer’s datasheet accompanying this document reflects the performance

and specifications of the Rochester manufactured version of this device. Rochester Electronics

guarantees the performance of its semiconductor products to the original OEM specifications.

‘Typical’ values are for reference purposes only. Certain minimum or maximum ratings may be

based on product characterization, design, simulation, or sample testing.

To learn more, please visit

www.rocelec.com

AM26LS32BDMB Related Products

	AM26LS32BDMB	AM26LS32BPC	AM26LS32BPCB	AM26LS32BSC	AM26LS32BDC	AM26LS32BDM
Description	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, PACKAGE-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDIP16, PACKAGE-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDIP16, PACKAGE-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, PDSO44, PACKAGE-44	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, PACKAGE-16	Line Receiver, 4 Func, 4 Rcvr, BIPolar, CDIP16, CERDIP-16
package instruction	DIP,	DIP,	DIP,	SOP,	PACKAGE-16	CERDIP-16
Reach Compliance Code	unknow	unknow	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Input properties	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER	DIFFERENTIAL SCHMITT TRIGGER
Interface integrated circuit type	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER	LINE RECEIVER
Interface standards	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030	V.10; V.11; EIA-422; EIA-423; FED STD 1020; FED STD 1030
JESD-30 code	R-GDIP-T16	R-PDIP-T16	R-PDIP-T16	R-PDSO-G44	R-GDIP-T16	R-CDIP-T16
Number of functions	4	4	4	4	4	4
Number of terminals	16	16	16	44	16	16
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C	125 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DIP	DIP	SOP	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE
Maximum receive delay	26 ns	26 ns	26 ns	26 ns	26 ns	26 ns
Number of receiver bits	4	4	4	4	4	4
Maximum supply voltage	5.5 V	5.25 V	5.25 V	5.25 V	5.25 V	5.5 V
Minimum supply voltage	4.5 V	4.75 V	4.75 V	4.75 V	4.75 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	YES	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
length	19.431 mm	19.1135 mm	19.1135 mm	-	19.431 mm	19.6215 mm
Maximum seat height	5.08 mm	5.08 mm	5.08 mm	-	5.08 mm	5.08 mm
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm
width	7.62 mm	7.62 mm	7.62 mm	-	7.62 mm	7.62 mm
Base Number Matches	1	1	1	1	-	-
