85832-N156LF: DescriptionBoard Connector, 60 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE; CategoryThe connector The connector; File Size1MB，8 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

85832-N156LF Overview

Board Connector, 60 Contact(s), 5 Row(s), Male, Straight, 0.079 inch Pitch, Press Fit Terminal, Locking, Plug, LEAD FREE

85832-N156LF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	LEAD FREE
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FLAME RETARDANT
Board mount options	PEG
body width	0.701 inch
subject depth	0.669 inch
body length	0.942 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1400VAC V
Filter function	NO
IEC compliance	NO
maximum insertion force	.3614 N
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED LIQUID CRYSTAL POLYMER
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	85832
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal pitch	2 mm
Termination type	PRESS FIT
Total number of contacts	60
UL Flammability Code	94V-0
Evacuation force-minimum value	.139 N
Base Number Matches	1

Preview

Download Datasheet

View All

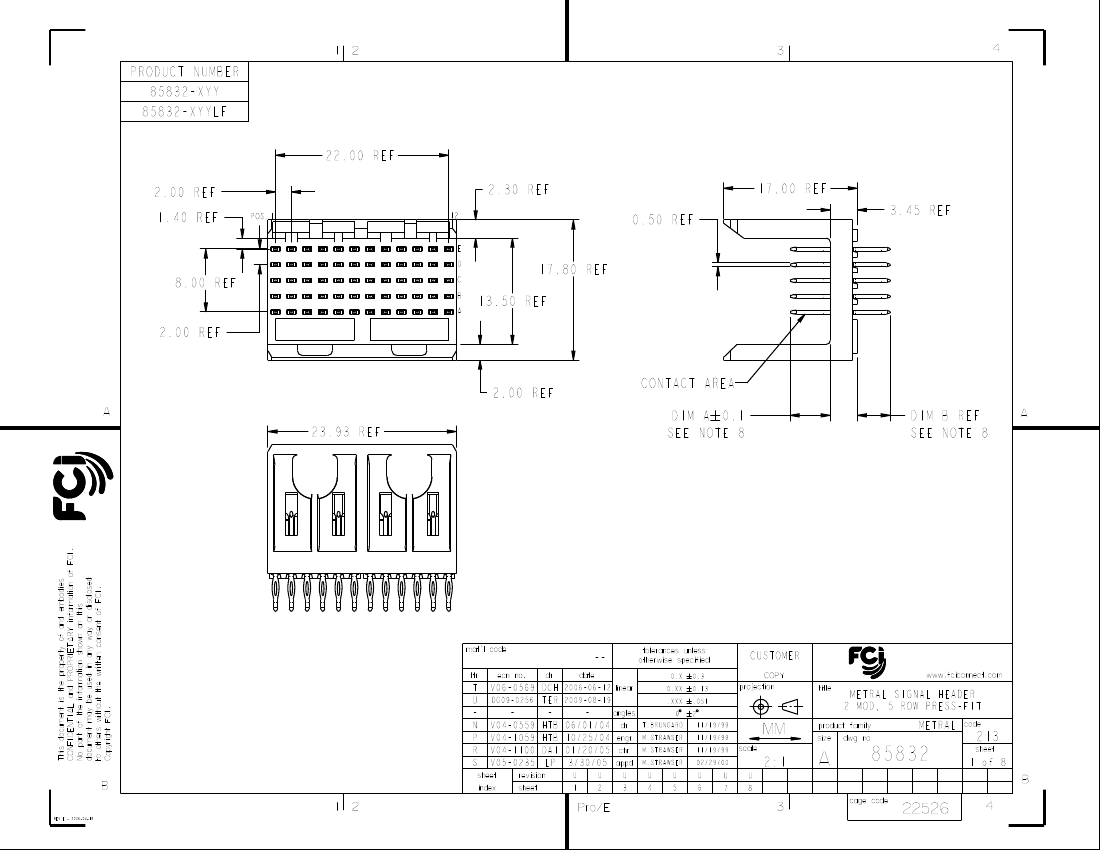

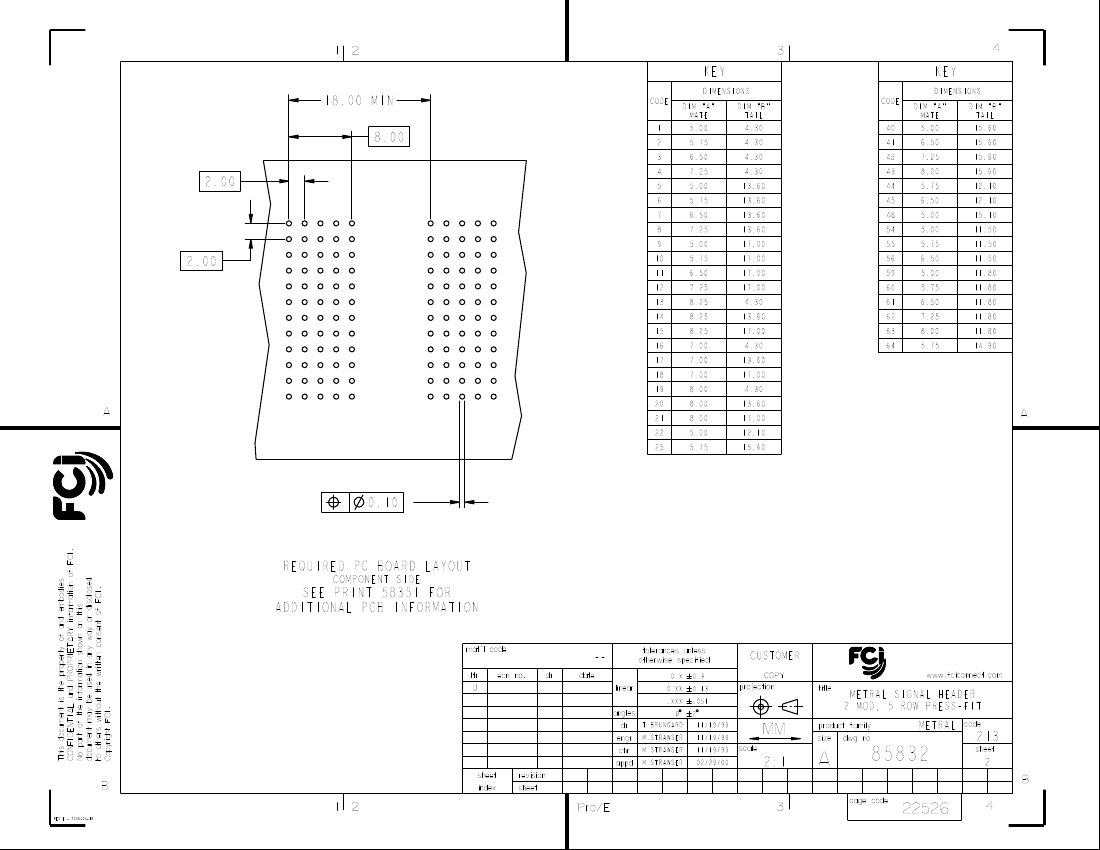

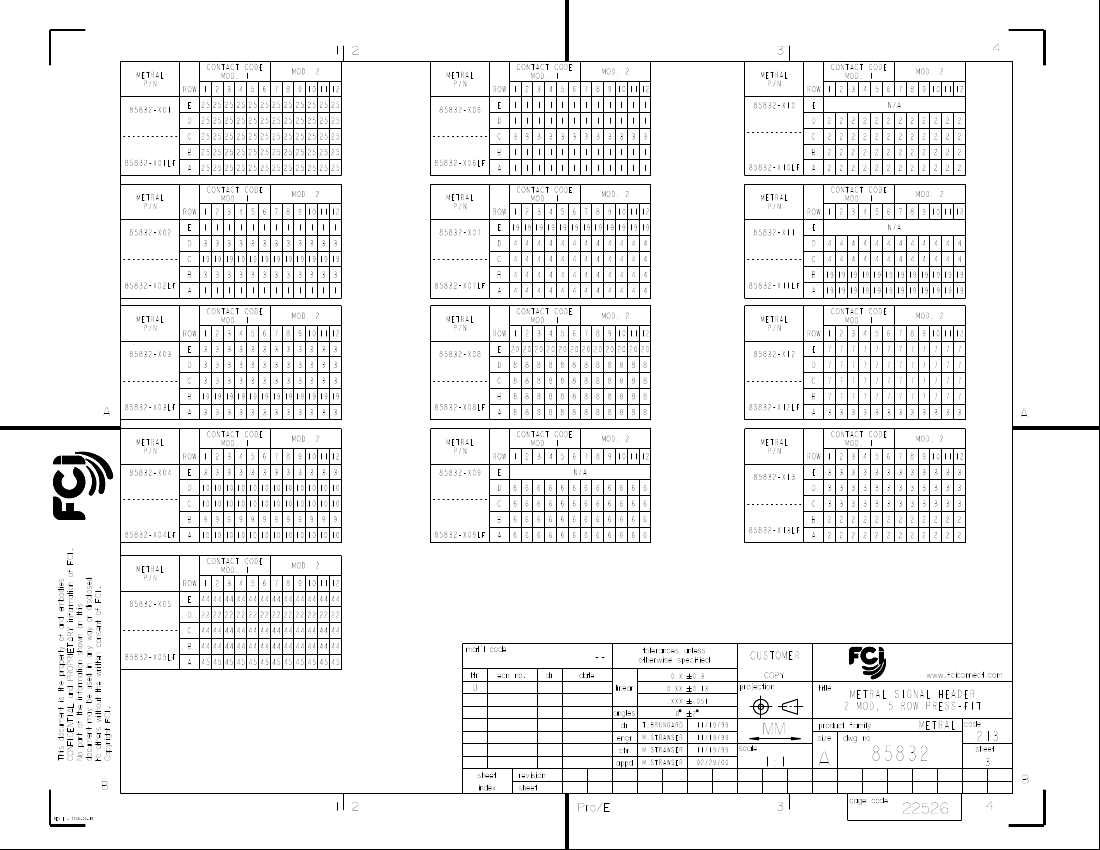

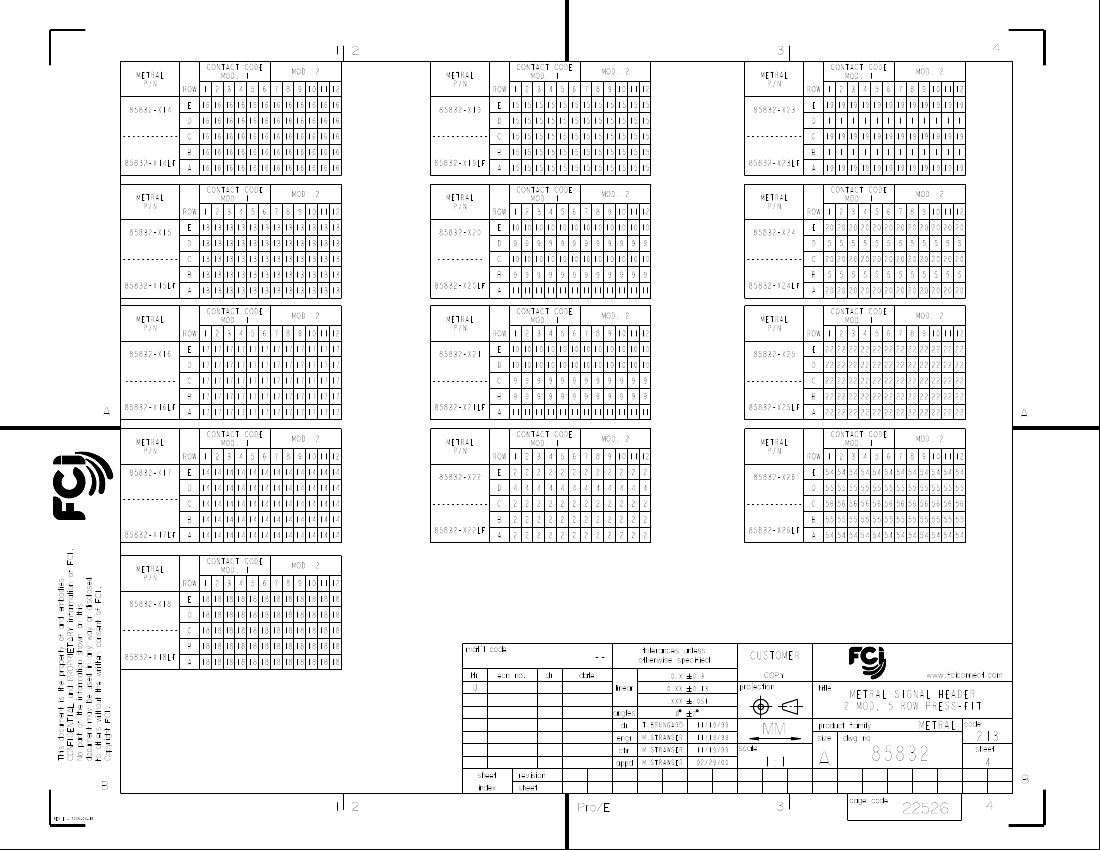

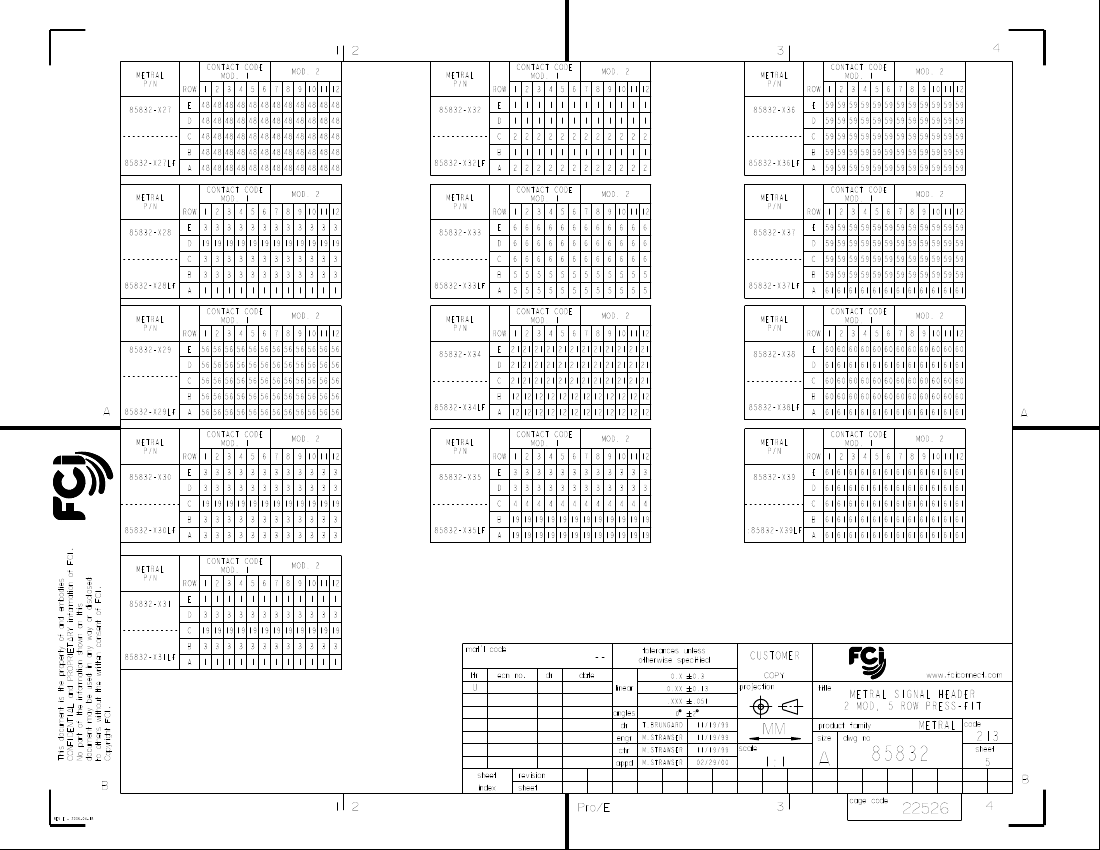

PRODUCT NUMBER

85832-XYY

85832-XYYLF

22.00 REF

2.00 REF

1.40 REF

POS.1

2.30 REF

0.50 REF

17.00 REF

3.45 REF

8.00 REF

17.80 REF

13.50 REF

2.00 REF

CONTACT AREA

DIM A 0.1

SEE NOTE 8

DIM B REF

SEE NOTE 8

23.93 REF

CONFIDENTIAL and PROPRIETARY information of FCI.

This document is the property of and embodies

to others without the written consent of FCI.

document may be used in any way or disclosed

No part of the information shown on this

mat'l code

ecn no.

date

tolerances unless

otherwise specified

CUSTOMER

COPY

projection

title

www.fciconnect.com

ltr

0.X

linear

0.3

0.13

.051

V06-0569 DCH

DG09-0256

TER

V04-0559 HTB

V04-1059 HTB

V04-1100 DAI

V05-0235 LP

sheet

revision

sheet

index

2006-06-12

2009-08-19

0.XX

.XXX

06/01/04

10/25/04

01/20/05

3/30/05

Pro/E

angles

engr

chr

appd

METRAL SIGNAL HEADER

2 MOD, 5 ROW PRESS-FIT

METRAL

code

dwg no

T.BRUNGARD

M.STRAWSER

11/19/99

02/29/00

scale

product family

size

2:1

85832

cage code

213

sheet

1 of 8

REV E - 2006-04-18

22526

PDM: Rev:U

STATUS:

Released

Printed: Sep 16, 2009
