Microwave Ceramics and Modules
2-Pole Filter for SIRIUS
Datasheet Standard
Filter
B69812N2327A314
Features
SMD filter consisting of coupled resonators with stepped impedances
(NdBa)TiO3 (ε
r
= 88 /
TCf
=0±10 ppm/K) with a coating of copper (10µm) and tin (>5µm)
Excellent reflow solderability, no migration effect due to copper/tin metallization
Index
Page 2
•

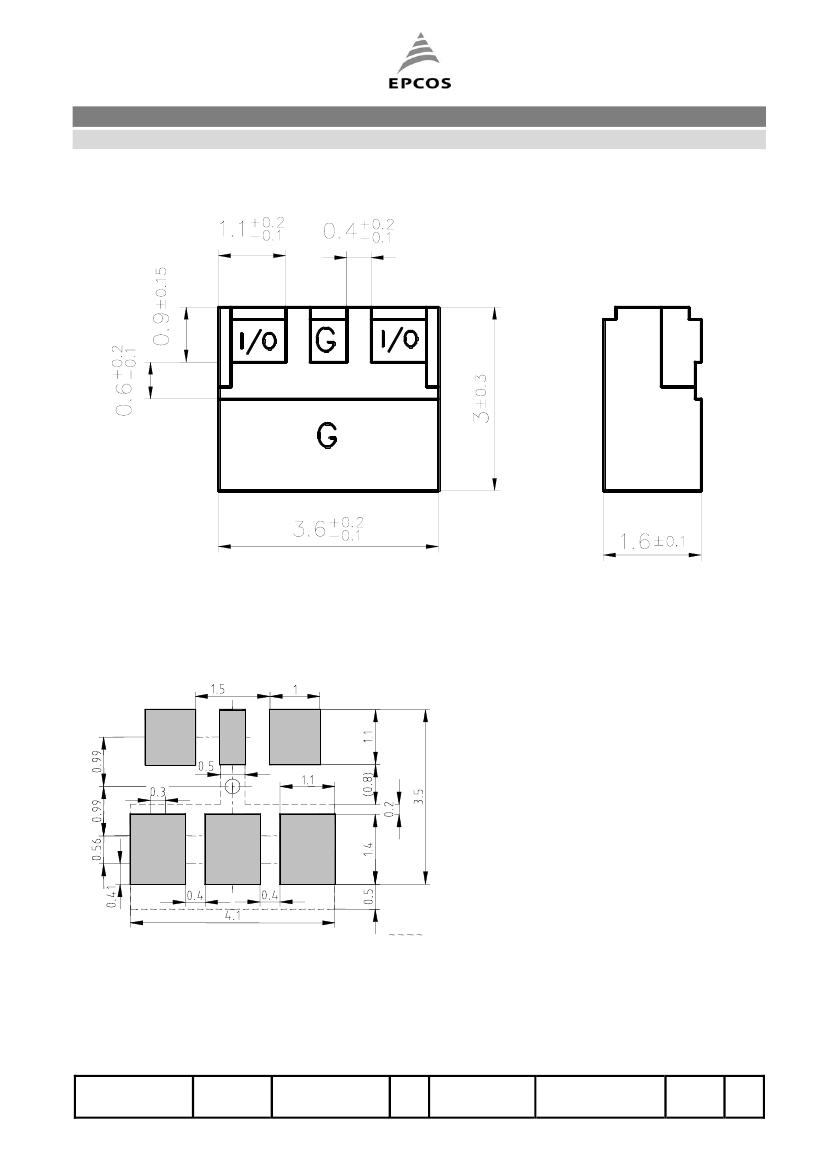

Component drawing
•
Recommended footprint
Page 3
•
Characteristics
•
Maximum ratings
•
Typical passband characteristic
Page 4
•
Processing information
•
Soldering requirements
•
Delivery mode
ISSUE DATE
11.06.03
ISSUE
A
PUBLISHER
SAW MWC PD F
PAGE
1/4
Microwave Ceramics and Modules
2-Pole Filter for SIRIUS
Datasheet Standard
Filter
B69812N2327A314
Characteristics
min.
Center frequency
Insertion loss
Passband
Amplitude ripple (peak - peak)
Standing wave ratio
Impedance
Attenuation
at DC to 1703 MHz
at 2127 MHz
at 2162 to 2175 MHz
at 2227 MHz
at 2400 MHz
at 2426 MHz
at 2500 MHz
at 2526 MHz
f
c -
α
IL
B
14
∆α
SWR
Z
α
33
20
12
10
3
6
15
20
50
35
24
15
11
17
23
0.2
0.5
2.0
Ω
dB
dB
dB
dB
dB
dB
dB
dB
typ.
2326
1.6
max.
-
1.8
MHz
dB
MHz
dB
Maximum ratings
IEC climatic category (IEC 68-1)
Operating temperature
Typical passband characteristic
2,100
2,125
2,150
2,175
2,200
2,225
2,250
2,275
2,300
2,325
2,350
2,375
2,400
2,425
2,450
2,475
2,500
2,525
2,550
2,575
2,600
- 40/+ 90/56
T
op
-40 / +85
°C
0
-5
-10
attenuation[dB]
-15
-20
sB[S11]
dB[S21]
-25
-30
-35
-40
GHz
ISSUE DATE
11.06.03
ISSUE
A
PUBLISHER
SAW MWC PD F
PAGE
3/4
Microwave Ceramics and Modules
2-Pole Filter for SIRIUS
Datasheet Standard
Filter
B69812N2327A314
ZNr.: 667 (F
Processing information
Wettability to IEC 68-2-58:
≥
75% (after aging)
Soldering requirements
Soldering type
Maximum soldering temperature
(measuring point on top surface of the component)
Recommended soldering conditions (infrared):
Temp. [°C]
within 10 sec.
reflow
235 (max. 2 sec.)
225 (max. 10 sec.)
°C
°C
215°C±10°C
20-40 sec.
40-80 sec.
Time [sec.]
LOETPROF.DOC
Delivery mode
Blister tape to IEC 286-3, polyester, grey
Pieces/tape: t.b.d.
EPCOS AG 2001. All Rights Reserved. Reproduction, publication and dissemination of this data sheet, enclosures
hereto and the information contained therein without EPCOS' prior express consent is prohibited.
The information contained in this data sheet describes the type of component and shall not be considered as guaranteed
characteristics. Purchase orders are subject to the General Conditions for the Supply of Products and Services of the
Electrical and Electronics Industry recommended by the ZVEI (German Electrical and Electronic Manufacturers'
Association), unless otherwise agreed.
ISSUE DATE
11.06.03
ISSUE
A
PUBLISHER
SAW MWC PD F
PAGE
4/4
