39JS104-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39JS104-1

39JS104-1: DescriptionRF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack; CategoryThe connector The connector; File Size64KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

39JS104-1 Overview

RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack

39JS104-1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: MIL-C-39012
Body/casing type	JACK
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
Insertion loss	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	YES
Manufacturer's serial number	SMA
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	18 GHz
Options	GENERAL PURPOSE
Panel mounting	YES
Termination type	CRIMP SOLDER
voltage standing wave ratio	1.33
Base Number Matches	1

Preview

Download Datasheet

View All

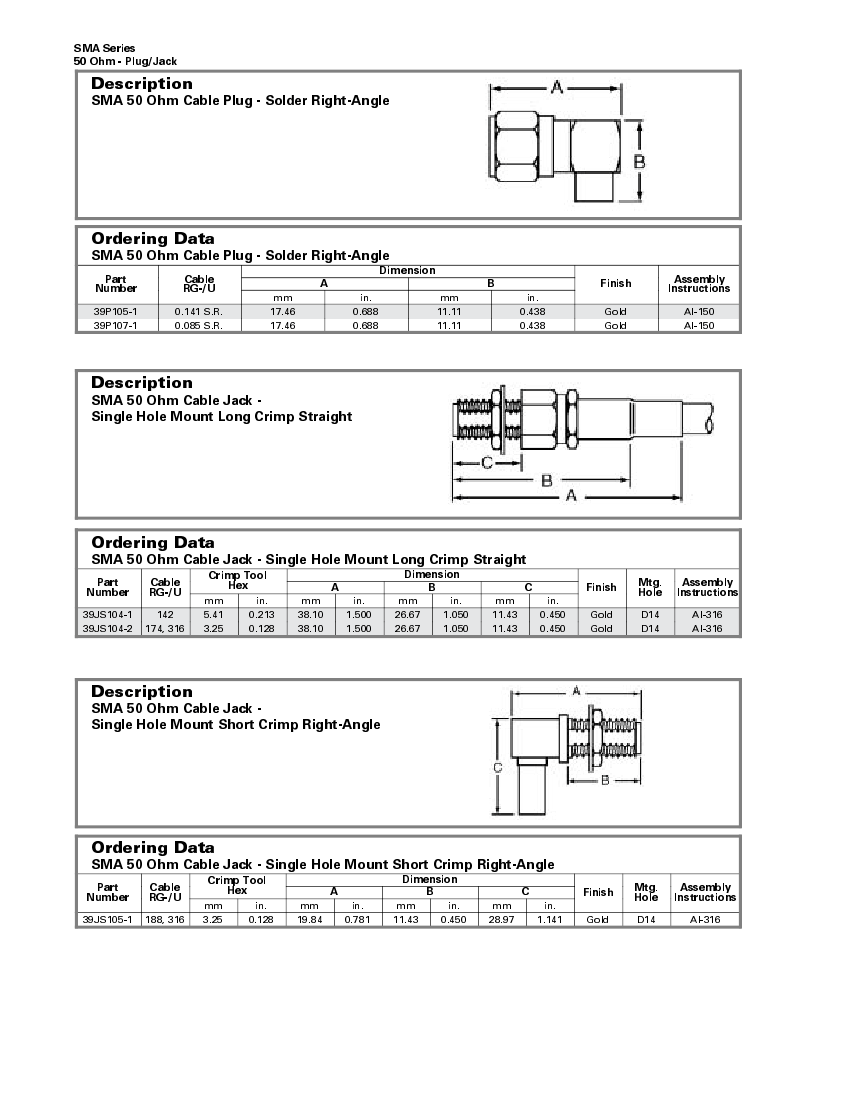

SMA Series

50 Ohm - Plug/Jack

Description

SMA Series

SMA 50 Ohm Cable Plug - Solder Right-Angle

50 Ohm - Plug/Jack

RF/Coaxial

Ordering Data

39P105-1

39P107-1

Part

Number

SMA 50 Ohm Cable Plug - Solder Right-Angle

0.141 S.R.

0.085 S.R.

Cable

RG-/U

17.46

Dimension

in.

0.688

11.11

in.

0.438

Finish

Gold

Assembly

Instructions

AI-150

Description

SMA 50 Ohm Cable Jack -

Single Hole Mount Long Crimp Straight

Ordering Data

Part

Number

Cable

RG-/U

SMA 50 Ohm Cable Jack - Single Hole Mount Long Crimp Straight

39JS104-1 142

5.41

39JS104-2 174, 316 3.25

Crimp Tool

Hex

in.

0.213

0.128

38.10

in.

1.500

26.67

Dimension

in.

1.050

11.43

in.

0.450

Finish

Gold

Mtg.

Hole

D14

Assembly

Instructions

AI-316

Description

SMA 50 Ohm Cable Jack -

Single Hole Mount Short Crimp Right-Angle

Ordering Data

Part

Number

Cable

RG-/U

SMA 50 Ohm Cable Jack - Single Hole Mount Short Crimp Right-Angle

39JS105-1 188, 316 3.25

Crimp Tool

Hex

in.

0.128

19.84

in.

0.781

11.43

Dimension

in.

0.450

28.97

in.

1.141

Finish

Gold

Mtg.

Hole

D14

Assembly

Instructions

AI-316

30-90

RF/Coaxial

39JS104-1 Related Products

	39JS104-1	39JS104-2	39JS105-1	39P105-1	39P107-1
Description	RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack	RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Terminal, Jack	RF SMA Connector, Female, Panel Mount, Cable Mount, Crimp Solder Terminal, Jack	RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug	RF SMA Connector, Male, Cable Mount, Solder Terminal, Plug
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012	STANDARD: MIL-C-39012
Body/casing type	JACK	JACK	JACK	PLUG	PLUG
Characteristic impedance	50 Ω	50 Ω	50 Ω	50 Ω	50 Ω
Connector type	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR	RF SMA CONNECTOR
Contact to complete cooperation	GOLD	GOLD	GOLD	GOLD	GOLD
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	MALE
Coupling type	THREADED	THREADED	THREADED	THREADED	THREADED
DIN compliance	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO
Insertion loss	0.25 dB	0.25 dB	0.25 dB	0.25 dB	0.25 dB
insulator material	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4	e4	e4	e4	e4
MIL compliance	YES	YES	YES	YES	YES
Manufacturer's serial number	SMA	SMA	SMA	SMA	SMA
Installation method	STRAIGHT	STRAIGHT	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	CABLE	CABLE	CABLE	CABLE	CABLE
Maximum operating frequency	18 GHz	18 GHz	18 GHz	18 GHz	18 GHz
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Panel mounting	YES	YES	YES	NO	NO
Termination type	CRIMP SOLDER	CRIMP SOLDER	CRIMP SOLDER	SOLDER	SOLDER
voltage standing wave ratio	1.33	1.33	1.33	1.33	1.33
Base Number Matches	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	-
