Single terminals
106
A

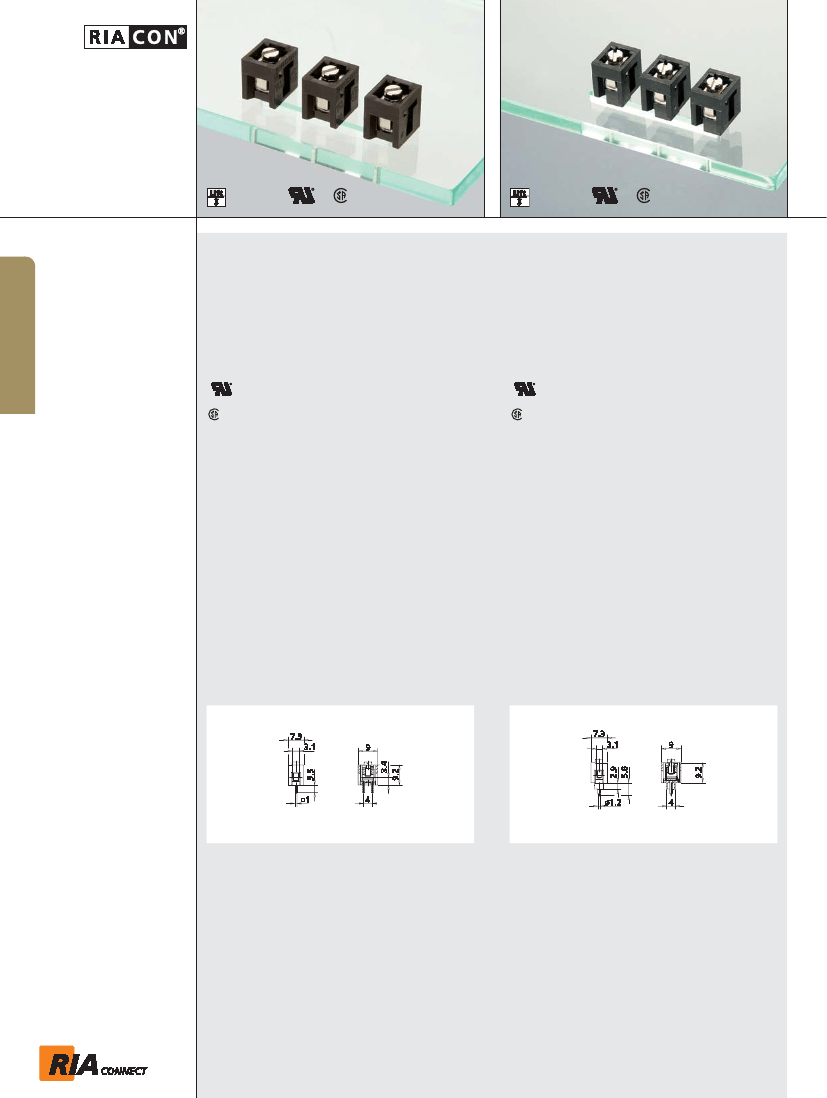

Type 360291
Single terminal block, solderable, horizontal wire entry,
lift system, with molded housing, double solder pins,
screw brought down by hand (transport safety)
Type 360271
Single terminal block, solderable, horizontal wire entry,
lift system, with molded housing, single solder pin,
screw brought down by hand (transport safety)
Technical Data
V / A / AWG
V / A / AWG
50 / 15 / 22 - 14
50 / 15 / 22 - 14
Technical Data
V / A / AWG
V / A / AWG
50 / 15 / 24 - 16
50 / 15 / 24 - 14
Insulation co-ordination according to EN 60664-1
Tightening torque UL
4.4 lb-in max.
Solder pin dimension
2 x 1.0 mm
Recommended pc board hole
dia.
Ø 1.5 mm
Solder pin length
3.5 mm
Insulation co-ordination according to EN 60664-1
Tightening torque UL
4.4 lb-in max.
Solder pin dimension
1.2 mm
Recommended pc board hole
dia.
Ø 1.5 mm
Solder pin length
2.9 mm
Color
black
Dimensions in mm
1 mm = 0.0394 in.
Dimensions in mm
1 mm = 0.0394 in.
Part numbers (P/N)
Part numbers (P/N)
Type 360291
P/N
360291
Type 360271
P/N
360271
