32JR121-1

Description
RF SMB Connector, Male, Panel Mount, Solder Terminal, Jack
CategoryThe connector    The connector
File Size59KB,1 Pages
ManufacturerAmphenol
Websitehttp://www.amphenol.com/
Download Datasheet Parametric Compare View All

32JR121-1 Overview

RF SMB Connector, Male, Panel Mount, Solder Terminal, Jack

32JR121-1 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Reach Compliance Codecompliant
Other featuresSTANDARD: MIL-C-39012, INSERTION LOSS MAX AT 1.5 GHZ
Body/casing typeJACK
Characteristic impedance75 Ω
Connector typeRF SMB CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
Coupling typeSNAP
DIN complianceNO
Filter functionNO
IEC complianceNO
Insertion loss0.3 dB
insulator materialPTFE
MIL complianceYES
Installation methodRIGHT ANGLE
Maximum operating frequency4 GHz
OptionsGENERAL PURPOSE
Panel mountingYES
Termination typeSOLDER
voltage standing wave ratio1.46
Base Number Matches1

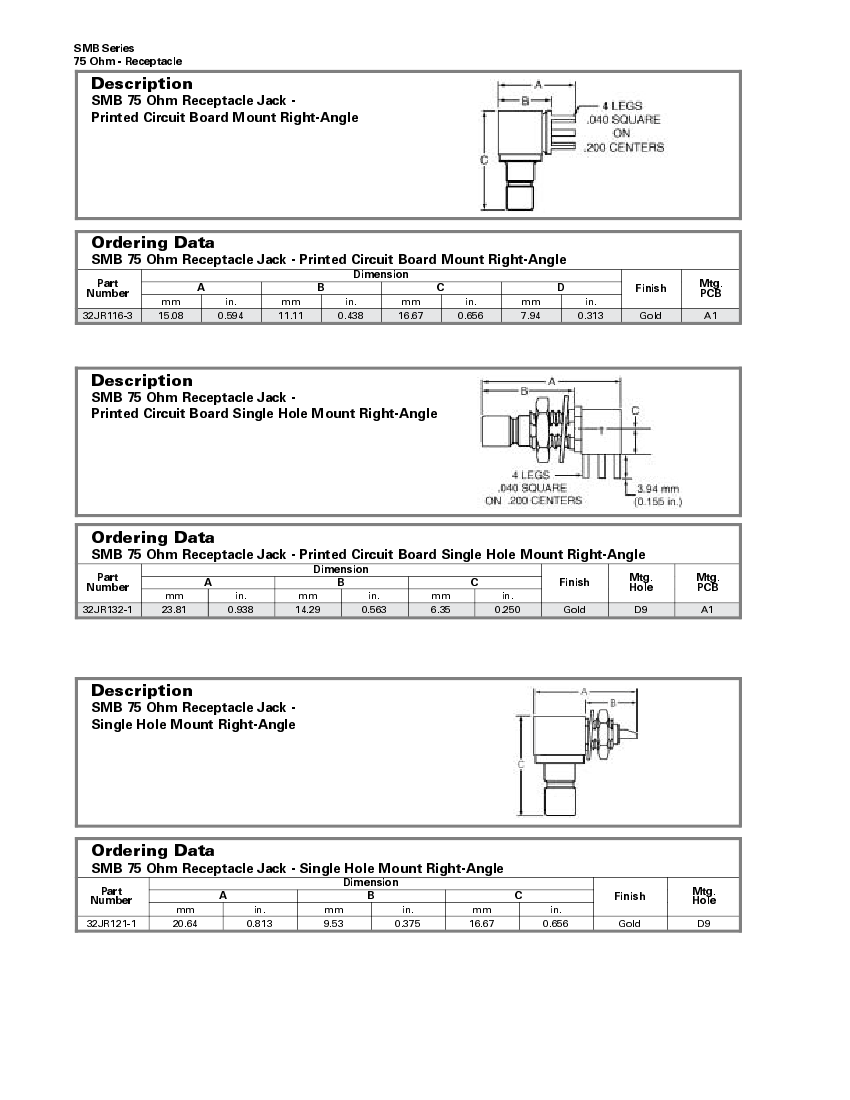

SMB Series
75 Ohm - Receptacle
Description
SMB 75 Ohm Receptacle Jack -
Printed Circuit Board Mount Right-Angle
SMB Series
75 Ohm - Receptacle
RF/Coaxial
Ordering Data
32JR116-3
Part
Number
SMB 75 Ohm Receptacle Jack - Printed Circuit Board Mount Right-Angle
mm
15.08
A
in.
0.594
mm
11.11
B
Dimension
in.
0.438
mm
16.67
C
in.
0.656
mm
7.94
D
in.
0.313
Finish
Gold
Mtg.
PCB
A1
Description
SMB 75 Ohm Receptacle Jack -
Printed Circuit Board Single Hole Mount Right-Angle
Ordering Data
32JR132-1
Part
Number
SMB 75 Ohm Receptacle Jack - Printed Circuit Board Single Hole Mount Right-Angle
mm
23.81
A
in.
0.938
mm
14.29
Dimension
B
in.
0.563
mm
6.35
C
in.
0.250
Finish
Gold
Mtg.
Hole
D9
Mtg.
PCB
A1
Description
SMB 75 Ohm Receptacle Jack -
Single Hole Mount Right-Angle
Ordering Data
32JR121-1
Part
Number
SMB 75 Ohm Receptacle Jack - Single Hole Mount Right-Angle
mm
20.64
A
in.
0.813
mm
9.53
Dimension
B
in.
0.375
mm
16.67
C
in.
0.656
Finish
Gold
Mtg.
Hole
D9
30-116
RF/Coaxial

32JR121-1 Related Products

32JR121-1 32JR116-3 32JR132-1
Description RF SMB Connector, Male, Panel Mount, Solder Terminal, Jack RF SMB Connector, Male, Board Mount, Solder Terminal, Receptacle RF SMB Connector, Male, Panel Mount, Board Mount, Solder Terminal, Receptacle
Is it lead-free? Contains lead Contains lead Contains lead
Reach Compliance Code compliant unknown unknown
Other features STANDARD: MIL-C-39012, INSERTION LOSS MAX AT 1.5 GHZ INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ INDUSTRY STANDARD:MIL-C-39012, INSERTION LOSS MAX AT 1.5GHZ
Body/casing type JACK RECEPTACLE RECEPTACLE
Characteristic impedance 75 Ω 75 Ω 75 Ω
Connector type RF SMB CONNECTOR RF SMB CONNECTOR RF SMB CONNECTOR
Contact to complete cooperation NOT SPECIFIED GOLD GOLD
Contact point gender MALE MALE MALE
Coupling type SNAP SNAP SNAP
DIN compliance NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
Insertion loss 0.3 dB 0.3 dB 0.3 dB
insulator material PTFE PTFE PTFE
MIL compliance YES YES YES
Installation method RIGHT ANGLE RIGHT ANGLE RIGHT ANGLE
Maximum operating frequency 4 GHz 4 GHz 4 GHz
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Panel mounting YES NO YES
Termination type SOLDER SOLDER SOLDER
voltage standing wave ratio 1.46 1.46 1.46
Base Number Matches 1 1 1
Contact completed and terminated - GOLD GOLD
JESD-609 code - e4 e4
Manufacturer's serial number - SMB SMB
Installation type - BOARD BOARD
