Type FCN
Surface Mount Film Capacitors

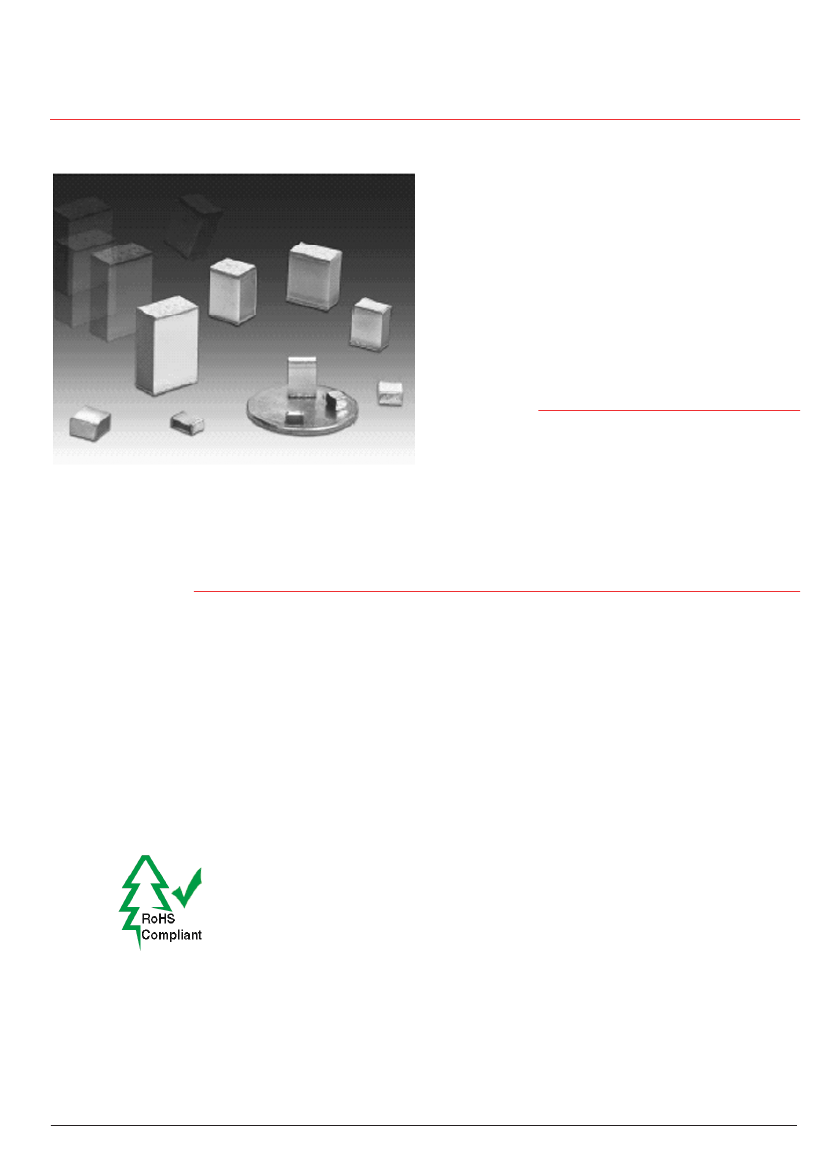

Stable Stacked Metallized Film (PEN) Chips for Reflow Soldering
Type FCN capacitors are designed for applications
requiring a general purpose SMT capacitor with stable
temperature and frequency characteristics similar to
polyester film capacitors. They are ideal for applications
such as EMI noise filtering, power supply input/output
filters, audio or signal coupling, and IC power bus
bypassing or decoupling. FCN SMT capacitors have a
non-inductive stacked metallized PEN film construction
which results in a low ESR and excellent high frequency
performance.
Highlights
•
•
•
•
•
Designed for reflow soldering
Withstands 150% of rated voltage for 60 seconds
Stacked metallized polyethylene naphthalate
(PEN) film
Performs like polyester capacitors
Nonmagnetic and lead-free
surface mount product offerings. They range in capacitance from
.001 µF to 1.0 µF, and they are available in voltage ratings up to
400 Vdc.
T
ype FCN SMT capacitors are the general purpose line of CDE’s
Specifications
Capacitance Range:
Capacitance Tolerance:
Voltages:
Operating Temperature Range:
1000 pF to 1.0 µF (1 kHz at 5 Vrms)
±5% (J), ±10% (K) (See Ratings)
16, 50, 100, 250 & 400 Vdc
16, 50, 100Vdc (<0.012 µF);
–55 ºC to +105 ºC
100 Vdc (≥ 0.012 µF), 250, 400 Vdc;
–40 ºC to +85 ºC
IR (at 20 ºC, after 60 seconds):
C >0.33 µF: IR = 1000 MΩ•µF
Min.
C ≤0.33 µF: IR ≥ 3000 MΩ
Dissipation Factor (Tanδ):
1.0% Max. (1 kHz at 5 Vrms)
Life Test:
1000 h at rated temp. & 125% rated voltage
∆ Capacitance: +1%, –6% max
Dissipation Factor: 1.1% max
IR: 1000 MΩmin (C>0.33 µF, 300 MΩ•µF min)
No significant visual damage
Moisture Resistance:
1000 h at 40 ºC and 90 - 95% RH & rated voltage
∆ Capacitance: +8/-5%
Dissipation Factor: 1.5% max
IR: 100 MΩ min (C >0.33 µF, 30 MΩ•µF min)
Voltage withstanding: 1.3 times rated voltage,
1 min.
No significant damage
Complies with the EU Directive
2002/95/EC requirement
restricting the use of Lead (Pb),
Mercury (Hg), Cadmium (Cd),
Hexavalent chromium (Cr(VI)),
PolyBrominated Biphenyls (PBB)
and PolyBrominated Diphenyl
Ethers (PBDE).
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.
cde.com
Type FCN
Surface Mount Film Capacitors
Specifications
Moisture Resistance:
500 h at 85 ºC and 85% RH
∆ Capacitance: ±10% max
Dissipation Factor: 2% max
IR: 10 MΩ min (C >0.33 µF, 3 MΩ•µF min)
Voltage withstanding: 1.3 times rated voltage,
1 min.
No significant damage
Resistance to Soldering Heat:
5
s at max capacitor surface temperature
∆ Capacitance: ±5% max
Dissipation Factor: 1.1% max
IR: 1000 MΩ min (C >0.33 µF, 300 MΩ•µF
min)
Voltage withstanding: 1.5 times rated voltage,
1 min.
No significant visual damage.
Withstand Voltage:
16 V & 50 V, 100 V ≤ 0.01 µF: 175% rated
voltage, 5 s
100 V ≥ 0.012 µF, 250 V and 400 V: 150% rated
voltage, 5 s
Surface Temperature:
16 V & 50 V & 100 V ≤ 0.01 µF: 240 ºC max
100 V ≥ 0.012 µF, 250 V & 400 V: 230 ºC max
Part Numbering System
FCN
1206
A
102
J
H2
Tape
Packaging
Type
FCN
Case Size
1206
1913
2416
2420
2820
3022
3925
3931
6031
6040
Voltage
C
= 16 Vdc
H
= 50 Vdc
A
= 100 Vdc
E
= 250 Vdc
G
= 400 Vdc
Capacitance
102
= 0.001 µF
223
= 0.022 µF
474
= 0.47 µF
Tolerance
J
= ±5%
K
= ±10%
Code
K1
J1, J2
H1, H2
H3
G1, G2, G3
E1, E2
E3, E4
D1, D2
D3, D4, D5
B, Z
U, V, X, Y
S, T
=
=
=
=
=
=
=
=
=
=
=
=
Width
(mm)
8
8
8
8
8
12
12
12
12
12
16
24
Tape
Diameter
7 (178)
7 (178)
7 (178)
7 (178)
7 (178)
13 (330)
13 (330)
13 (330)
13 (330)
13 (330)
13 (330)
13 (330)
Reel
4000
3000
3000
2000
2000
3000
2000
3000
2000
1500
1000
750
[in.(mm)] Quantity
CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.
cde.com
