GD74HCU04J datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> GD74HCU04J

GD74HCU04J: DescriptionInverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14,; Categorylogic logic; File Size64KB，3 Pages; ManufacturerGoldstar Electron Co., Ltd.

Download Datasheet Parametric Compare View All

GD74HCU04J Overview

Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14,

GD74HCU04J Parametric

Parameter Name	Attribute value
Maker	Goldstar Electron Co., Ltd.
package instruction	,
Reach Compliance Code	unknown
Base Number Matches	1

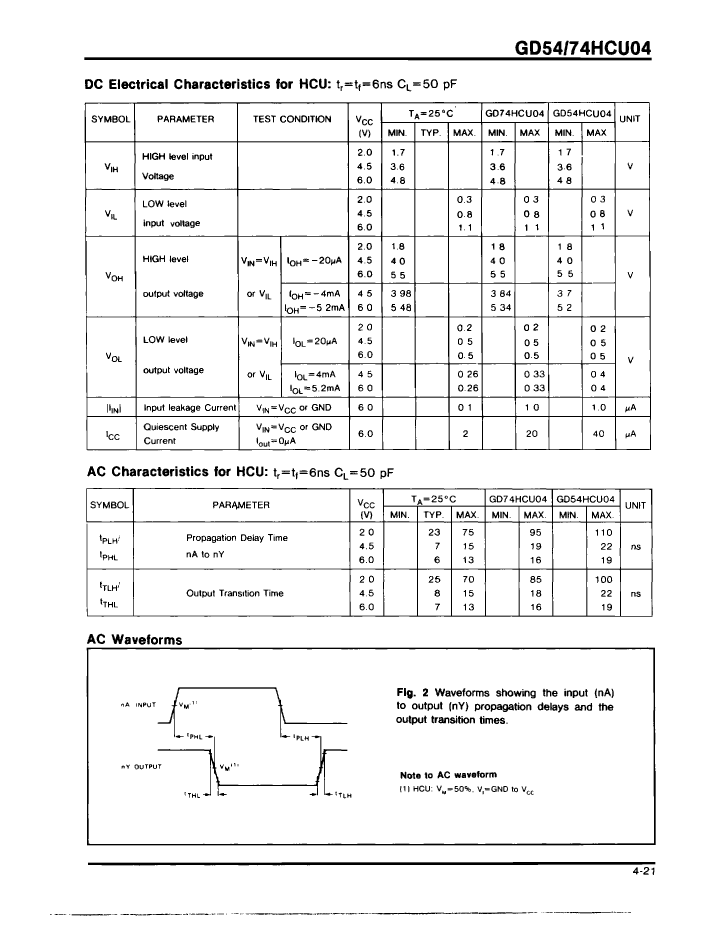

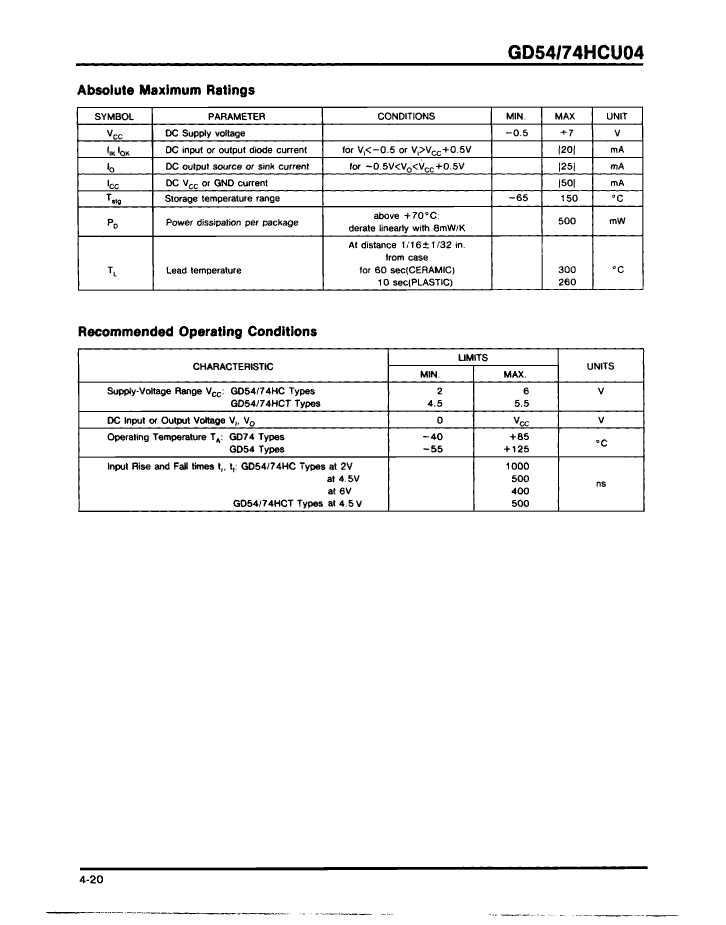

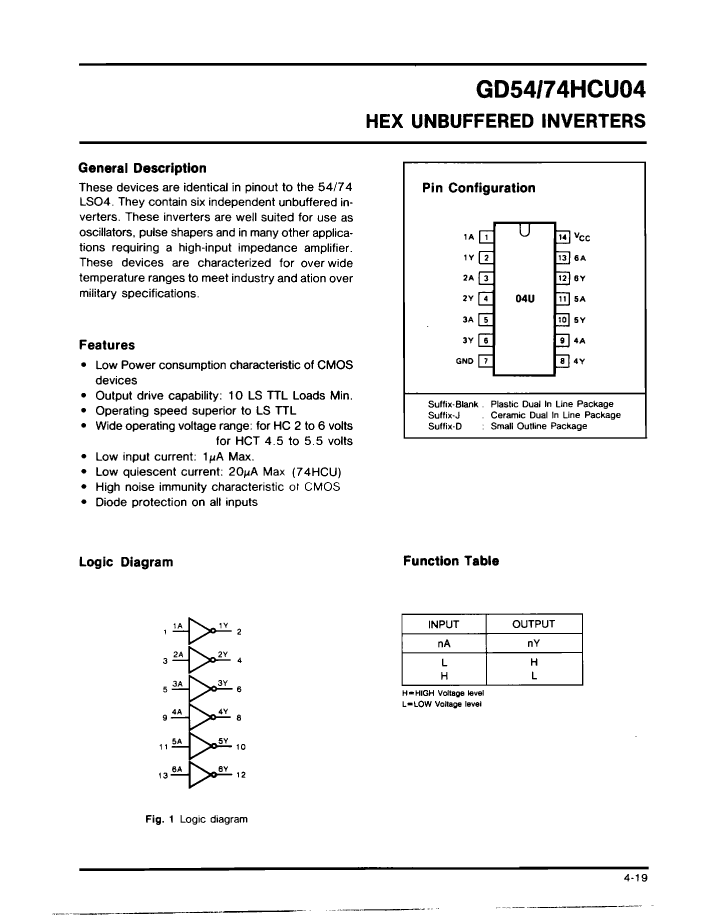

Preview

Download Datasheet

View All

GD74HCU04J Related Products

	GD74HCU04J	GD54HCU04J	GD54HCU04	GD74HCU04D	GD74HCU04	GD54HCU04D
Description	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14,	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, CDIP14,	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDIP14,	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDSO14,	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDIP14,	Inverter, HC/UH Series, 6-Func, 1-Input, CMOS, PDSO14,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
Maker	Goldstar Electron Co., Ltd.	-	-	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.	Goldstar Electron Co., Ltd.
series	-	HC/UH	HC/UH	HC/UH	HC/UH	HC/UH
JESD-30 code	-	R-CDIP-T14	R-PDIP-T14	R-PDSO-G14	R-PDIP-T14	R-PDSO-G14
Load capacitance (CL)	-	50 pF	50 pF	50 pF	50 pF	50 pF
Logic integrated circuit type	-	INVERTER	INVERTER	INVERTER	INVERTER	INVERTER
Number of functions	-	6	6	6	6	6
Number of entries	-	1	1	1	1	1
Number of terminals	-	14	14	14	14	14
Maximum operating temperature	-	125 °C	125 °C	85 °C	85 °C	125 °C
Minimum operating temperature	-	-55 °C	-55 °C	-40 °C	-40 °C	-55 °C
Package body material	-	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	-	IN-LINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE
propagation delay (tpd)	-	22 ns	22 ns	19 ns	19 ns	22 ns
Certification status	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	-	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage (Vsup)	-	2 V	2 V	2 V	2 V	2 V
Nominal supply voltage (Vsup)	-	5 V	5 V	5 V	5 V	5 V
surface mount	-	NO	NO	YES	NO	YES
technology	-	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	-	MILITARY	MILITARY	INDUSTRIAL	INDUSTRIAL	MILITARY
Terminal form	-	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING
Terminal location	-	DUAL	DUAL	DUAL	DUAL	DUAL
