FAI4D-30G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> FAI4D-30G

FAI4D-30G: DescriptionFAST / TTL Logic Triple & Quad Delays 14-Pin DIP & SMD; Categorylogic logic; File Size28KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric View All

FAI4D-30G Overview

FAST / TTL Logic Triple & Quad Delays 14-Pin DIP & SMD

FAI4D-30G Parametric

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Parts packaging code	SOIC
package instruction	SMD-14
Contacts	14
Reach Compliance Code	unknow
Other features	MAX RISE TIME CAPTURED
series	F
JESD-30 code	R-PDSO-G14
Load capacitance (CL)	10 pF
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	1
Number of taps/steps	4
Number of terminals	14
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum supply current (ICC)	130 mA
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	6.35 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	30 ns

Preview

Download Datasheet

View All

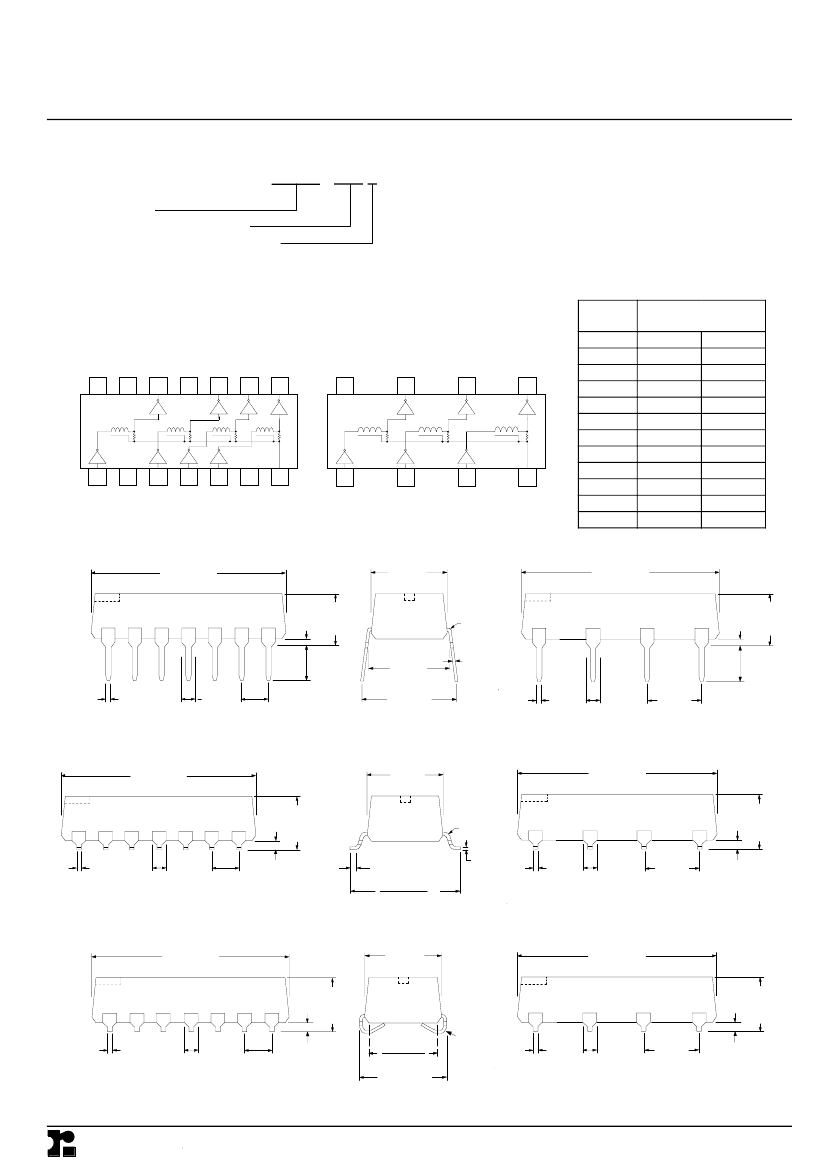

FAST / TTL

Logic Triple & Quad Delays 14-Pin DIP & SMD

Part Number Description

14-Pin Logic Buffered Multi-Line Delays:

FAI3D, FAI4D

Delay Per Line in nanoseconds (ns)

Lead Style: Blank = Auto-Insertable DIP

G = “Gull Wing” Surface Mount

J = “J” Bend Surface Mount

Examples: FAI4D-20 = 20ns Quadruple 74F Buffered, DIP

FAI3D-5G = 5ns Triple 74F Buffered, G-SMD

FAIXD

XXX X

GENERAL:

For Operating Specifications and Test Conditions, see

Tables I and VI on page 5 of this catalog. Delays specified for the Leading

Edge.

Minimum Input Pulse Width ...................................... 100% of total delay

Operating Temp. Range .................................................... 0

C to +70

Temperature Coefficient ............................................ 800ppm/

C typical

Supply Current, I

: FAI3D ............................ 45 mA typ., 95 mA max.

FAI4D .......................... 65 mA typ., 130 mA max.

Electrical Specifications at 25

FAST Buffered Multi-Line

Delay

(ns)

Triple P/N

Quadruple P/N

Quad

14-Pin Schematic

Vcc

OUT

Vcc

Triple

14-Pin Schematic

OUT 1

OUT 2

OUT 3

IN 1

IN 2

IN 3

IN 4

GND

IN 1

IN 2

IN 3

GND

4 ± 1.00

5 ± 1.00

6 ± 1.00

7 ± 1.00

8 ± 1.00

10 ± 1.50

15 ± 2.00

16 ± 2.00

20 ± 2.00

25 ± 2.00

30 ± 2.00

50 ± 2.50

FAI3D-4

FAI3D-5

FAI3D-6

FAI3D-7

FAI3D-8

FAI3D-10

FAI3D-15

FAI3D-16

FAI3D-20

FAI3D-25

FAI3D-30

FAI3D-50

FAI4D-4

FAI4D-5

FAI4D-6

FAI4D-7

FAI4D-8

FAI4D-10

FAI4D-15

FAI4D-16

FAI4D-20

FAI4D-25

FAI4D-30

FAI4D-50

Dimensions in Inches (mm)

.785

(19.94)

MAX.

.285

(7.24)

MAX.

.250

.020 (6.35)

(0.51) MAX.

.120

(3.05)

MIN.

.050

(1.27)

TYP.

.785

(19.94)

MAX.

DIP (Default, FAI4D-XX)

.008 R

(0.20)

.010

(0.25)

TYP.

DIP (Default, FAI3D-XX)

.250

.020 (6.35)

(0.51) MAX.

.120

(3.05)

MIN.

.300

(7.62)

.365

(9.27)

MAX.

.020

(0.51)

TYP.

.100

(2.54)

TYP.

.020

(0.51)

TYP.

.050

(1.27)

TYP.

.200

(5.08)

TYP.

.785

(19.94)

MAX.

.285

(7.24)

MAX.

.250

(6.35)

MAX.

.015

(0.38)

TYP.

.030

(0.76)

TYP.

.785

(19.94)

MAX.

G-SMD (FAI4D-XXG)

.008 R

(0.20)

.010

(0.25)

TYP.

.430 (10.92)

.400 (10.16)

G-SMD (FAI3D-XXG)

.250

(6.35)

MAX.

.015

(0.38)

TYP.

.020

(0.51)

TYP.

.050

(1.27)

TYP.

.100

(2.54)

TYP.

.020

(0.51)

TYP.

.050

(1.27)

TYP.

.200

(5.08)

TYP.

.785

(19.94)

MAX.

.285

(7.24)

MAX.

.265

(6.73)

MAX.

.030

(0.76)

TYP.

.285 (7.24)

.260 (6.60)

.330 (8.38)

MAX.

.020 R

(0.51)

.785

(19.94)

MAX.

J-SMD (FAI4D-XXJ)

J-SMD (FAI3D-XXJ)

.265

(6.73)

MAX.

.030

(0.76)

TYP.

.020

(0.51)

TYP.

.050

(1.27)

TYP.

.100

(2.54)

TYP.

.020

(0.51)

TYP.

.050

(1.27)

TYP.

.200

(5.08)

TYP.

Specifications subject to change without notice.

For other values & Custom Designs, contact factory.

FAI34D 1/98

Rhombus

Industries Inc.

15801 Chemical Lane, Huntington Beach, CA 92649-1595

Tel: (714) 898-0960

•

Fax: (714) 896-0971
