MC74VHC4052D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> MC74VHC4052D

MC74VHC4052D: Description4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, PLASTIC, SOIC-16; CategoryAnalog mixed-signal IC The signal circuit; File Size261KB，16 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

MC74VHC4052D Overview

4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, PLASTIC, SOIC-16

MC74VHC4052D Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
Parts packaging code	SOIC
package instruction	SOP, SOP16,.25
Contacts	16
Reach Compliance Code	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Number of channels	4
Number of functions	1
Number of terminals	16
Nominal off-state isolation	40 dB
On-state resistance matching specifications	30 Ω
Maximum on-state resistance (Ron)	190 Ω
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	2/6,GND/-6 V
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum signal current	0.025 A
Maximum supply current (Isup)	0.16 mA
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	2 V
surface mount	YES
Maximum disconnect time	370 ns
Maximum connection time	370 ns
switch	BREAK-BEFORE-MAKE
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	3.9 mm
Base Number Matches	1

Preview

Download Datasheet

View All

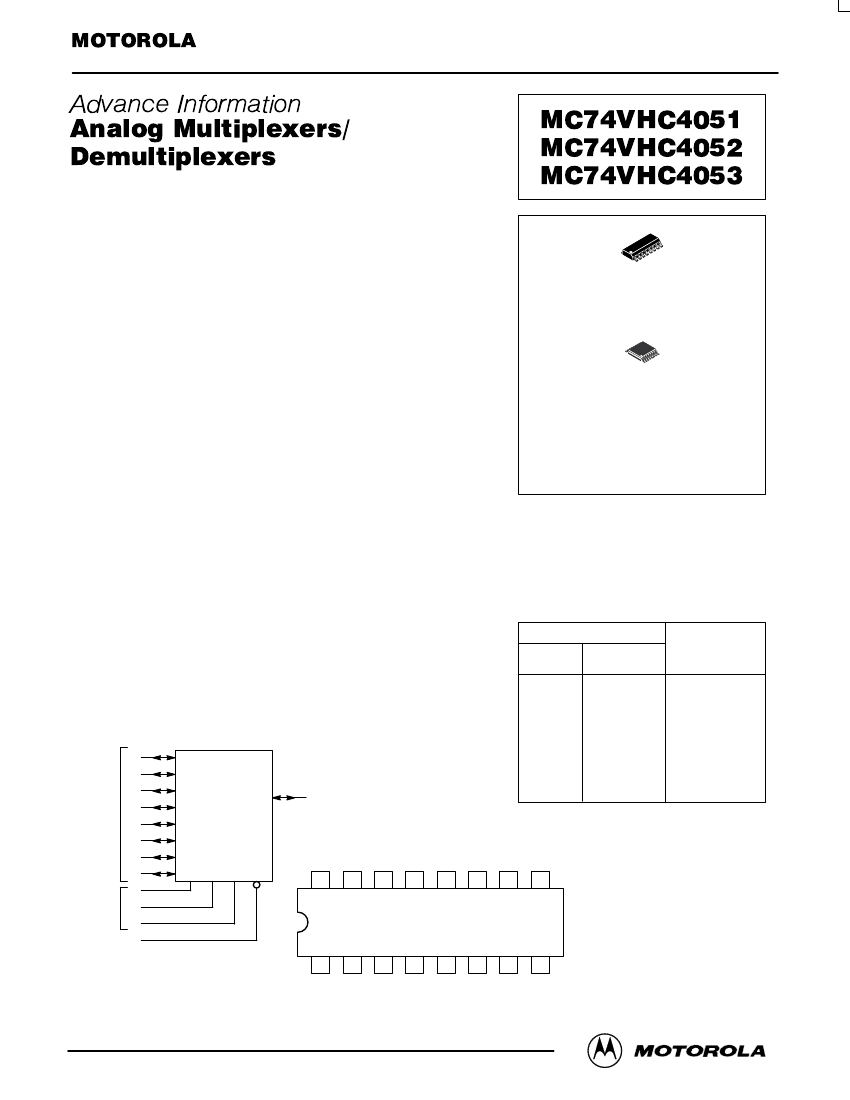

MOTOROLA

SEMICONDUCTOR TECHNICAL DATA

Order this document

by MC74VHC4051/D

Advance Information

Demultiplexers

Analog Multiplexers/

MC74VHC4051

MC74VHC4052

MC74VHC4053

High–Performance Silicon–Gate CMOS

The MC74VHC4051, MC74VHC4052 and MC74VHC4053 utilize silicon–

gate CMOS technology to achieve fast propagation delays, low ON

resistances, and low OFF leakage currents. These analog multiplexers/

demultiplexers control analog voltages that may vary across the complete

power supply range (from VCC to VEE).

The VHC4051, VHC4052 and VHC4053 are identical in pinout to the

high–speed HC4051A, HC4052A and HC4053A, and the metal–gate

MC14051B, MC14052B and MC14053B. The Channel–Select inputs

determine which one of the Analog Inputs/Outputs is to be connected, by

means of an analog switch, to the Common Output/Input. When the Enable

pin is HIGH, all analog switches are turned off.

The Channel–Select and Enable inputs are compatible with standard

CMOS outputs; with pullup resistors they are compatible with LSTTL

outputs.

These devices have been designed so that the ON resistance (Ron) is

more linear over input voltage than R on of metal–gate CMOS analog

switches.

For a multiplexer/demultiplexer with channel–select latches, see

VHC4351.

•

Fast Switching and Propagation Speeds

•

Low Crosstalk Between Switches

•

Diode Protection on All Inputs/Outputs

•

Analog Power Supply Range (VCC – VEE) = 2.0 to 12.0 V

•

Digital (Control) Power Supply Range (VCC – GND) = 2.0 to 6.0 V

•

Improved Linearity and Lower ON Resistance Than Metal–Gate

Counterparts

•

Low Noise

•

In Compliance With the Requirements of JEDEC Standard No. 7A

•

Chip Complexity: VHC4051 — 184 FETs or 46 Equivalent Gates

VHC4052 — 168 FETs or 42 Equivalent Gates

VHC4053 — 156 FETs or 39 Equivalent Gates

LOGIC DIAGRAM

MC74VHC4051

Single–Pole, 8–Position Plus Common Off

ANALOG

MULTIPLEXER/

INPUTS/ X3

DEMULTIPLEXER

OUTPUTS X4

CHANNEL

SELECT

INPUTS

ENABLE

PIN 16 = VCC

PIN 7 = VEE

PIN 8 = GND

D SUFFIX

16–LEAD SOIC PACKAGE

CASE 751B–05

DT SUFFIX

16–LEAD TSSOP PACKAGE

CASE 948F–01

ORDERING INFORMATION

MC74VHCXXXXD

MC74VHCXXXXDT

SOIC

TSSOP

FUNCTION TABLE – MC74VHC4051

Control Inputs

Enable

Select

ON Channels

NONE

X = Don’t Care

COMMON

OUTPUT/

INPUT

Pinout: MC74VHC4051

(Top View)

VCC

Enable VEE

GND

This document contains information on a new product. Specifications and information herein are subject to

change without notice.

07/99

Motorola, Inc. 1999

REV 2

MC74VHC4052D Related Products

	MC74VHC4052D	MC74VHC4052DT	MC74VHC4051DT
Description	4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, PLASTIC, SOIC-16	4-CHANNEL, DIFFERENTIAL MULTIPLEXER, PDSO16, PLASTIC, TSSOP-16	8-CHANNEL, SGL ENDED MULTIPLEXER, PDSO16, PLASTIC, TSSOP-16
Maker	Motorola ( NXP )	Motorola ( NXP )	Motorola ( NXP )
Parts packaging code	SOIC	TSSOP	TSSOP
package instruction	SOP, SOP16,.25	TSSOP,	TSSOP, TSSOP16,.25
Contacts	16	16	16
Reach Compliance Code	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	DIFFERENTIAL MULTIPLEXER	DIFFERENTIAL MULTIPLEXER	SINGLE-ENDED MULTIPLEXER
JESD-30 code	R-PDSO-G16	R-PDSO-G16	R-PDSO-G16
JESD-609 code	e0	e0	e0
length	9.9 mm	5 mm	5 mm
Number of channels	4	4	8
Number of functions	1	1	1
Number of terminals	16	16	16
Nominal off-state isolation	40 dB	40 dB	40 dB
On-state resistance matching specifications	30 Ω	30 Ω	30 Ω
Maximum on-state resistance (Ron)	190 Ω	190 Ω	190 Ω
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	TSSOP	TSSOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.75 mm	1.2 mm	1.2 mm
Maximum supply voltage (Vsup)	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	2 V
Nominal supply voltage (Vsup)	2 V	2 V	2 V
surface mount	YES	YES	YES
Maximum disconnect time	370 ns	370 ns	370 ns
Maximum connection time	370 ns	370 ns	370 ns
technology	CMOS	CMOS	CMOS
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	0.65 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
width	3.9 mm	4.4 mm	4.4 mm
Maximum operating temperature	125 °C	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C
Encapsulate equivalent code	SOP16,.25	-	TSSOP16,.25
power supply	2/6,GND/-6 V	-	2/6,GND/-6 V
Maximum signal current	0.025 A	-	0.025 A
Maximum supply current (Isup)	0.16 mA	-	0.16 mA
switch	BREAK-BEFORE-MAKE	-	BREAK-BEFORE-MAKE
Temperature level	MILITARY	-	MILITARY
